All products

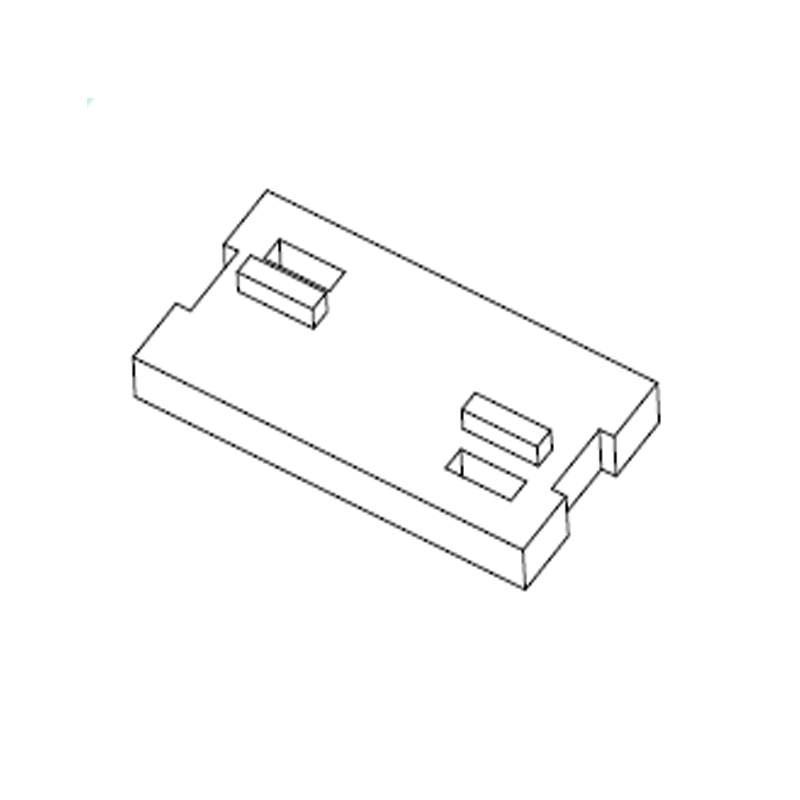

Toroidal Common Mode Choke with PCB Base

One phase filter with base. We opened several new tooling for the base. So it is easy to make inductor with base. Base size=13.4mmX7.0mmX2.15mm. Our inductors are widely used in many PCB boards, for filers, EMI/EMC, Anti-noise,Amplifier,RF transformer,

Toroidal Core Wire Wound Common Mode Inductor Base

Toroidal horizontal type inductor. 8 pins SMD inductor base. Base size=12.8mmX9.5mmX5.5mm. Pin pitch=2.7mm. Parallel distance=5.5mm. We manufacture electronic components for customers, special specifications available upon request. High current inductors made with soft ferrite core, include NiZn, MnZn, Amorphous, Iron powder core.

High Frequency Choke Coil Inductor With Base

Choke mode coil base. 3+3 pins common mode choke base. Base size=10.3mmX6.2mmX7.3mm. Pin pitch=3.5mm. Parallel distance=4.0mm. We manufacture electronic components for customers, special specifications available upon request.

2 Pins Base For Power Supply Choke Coil Inductor

Power choke coil base. Line filter 2 pins base. Base size=22.0mmX17.0mmX10.0mm. We manufacture electronic components for customers, special specifications available upon request. High current inductors made with soft ferrite core, include NiZn, MnZn, Amorphous, Iron powder core.

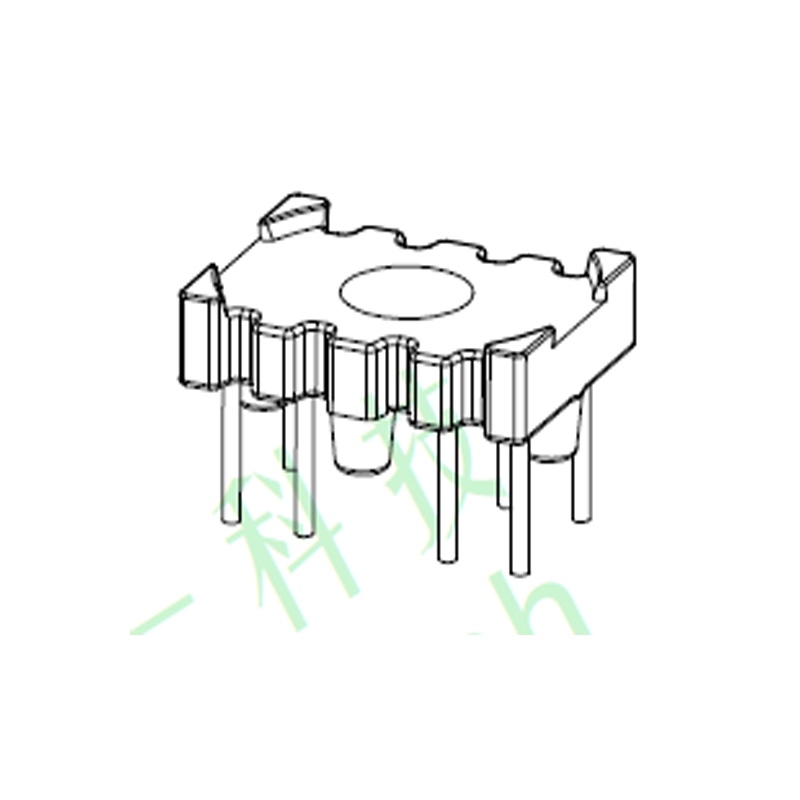

CMC Common Mode Choke Coil With Base

Iron powder core inductor. Filter inductor 10 pins base. Base size=20.6mmX11.5mmX2.50mm. Pitch distance=5.3mm. Parallel distance=10.0mm We manufacture electronic components for customers, special specifications available upon request. High current inductors made with soft ferrite core, include NiZn, MnZn, Amorphous, Iron powder core.

High Frequency Choke Coil Power Inductor Base

Toroidal power inductor base. Parallel distance=7.0mm. Base size=9.9mmX9.9mmX6.0mm. Factory price common mode coil choke inductor with UL/RoHS certification. We manufacture electronic components for customers, special specifications are available.

SMD Coil Wrap Inductor 2+2 Pins Base

Choke inductor SMD base. Through hole choke coil 2+2 pins base. Parallel distance=15.2mm. Pin pitch=6.3mm. Base size=19.1mmX10.8mmX10.8mm. We accept customized package for high current toroidal inductors. We manufacture electronic components for customers, special specifications also available.

Toroidal Core Inductor 2+2 Pins Base

Choke filter with base. Line filter choke coil base factory. Pin pitch=8.25mm. Base size=15.3mmX11.9mmX9.11mm. Parallel distance=11.43mm. We accept customized package for high current toroidal inductors. We manufacture electronic components for customers, special specifications also available.

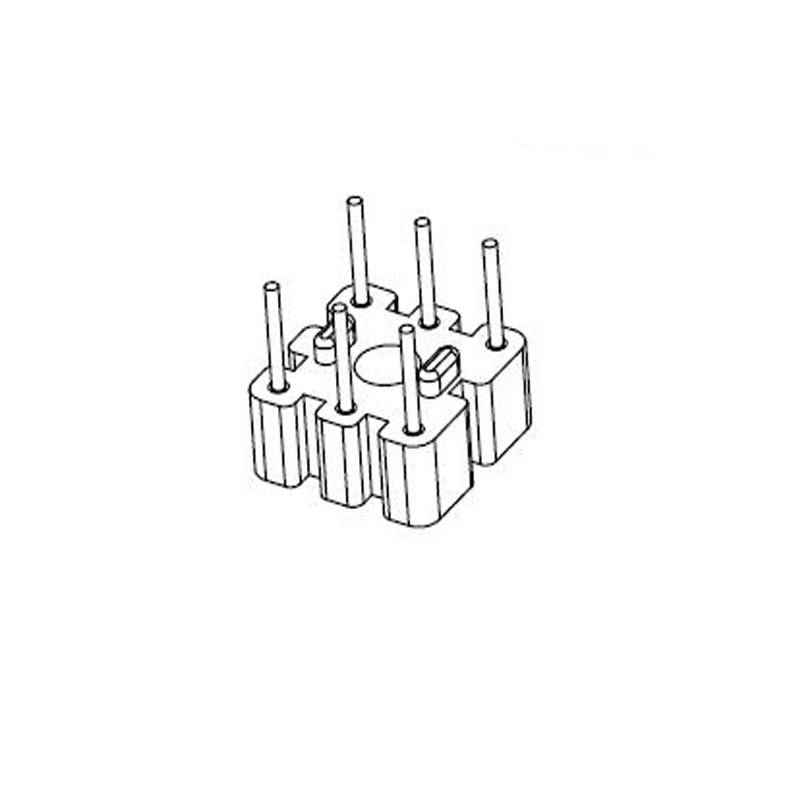

Common Mode Power Inductor 3+3 Pin Base

3+3 pin toroidal choke base. Choke coils with bottom base. Base size=9.4mmX9.4mmX5.1mm. Parallel distance=7.0mm. We accept customized package for high current toroidal inductors. We manufacture electronic components for customers, special specifications also available.

2+2 Pin Common Mode Choke Indcutor Base

Base filter inductor. 2+2 pin choke inductor base. Base Size=27.94mmX20.32mmX12.1mm. Our common mode choke has many features:such as low cost/high efficiency, low magnetic leakage, good control on noise due to the toriodal constructure, etc.

3+3 Pin Bobbin Base used for Coil Inductor

Inductor core base. 3+3 pin square base. Base Size=20.4mmX11.7mmX11.1mm. We manufacture final inductors to meet customer requirements. Inductor features: such as low cost/high efficiency, low magnetic leakage, good control on noise due to the toriodal constructure, etc.

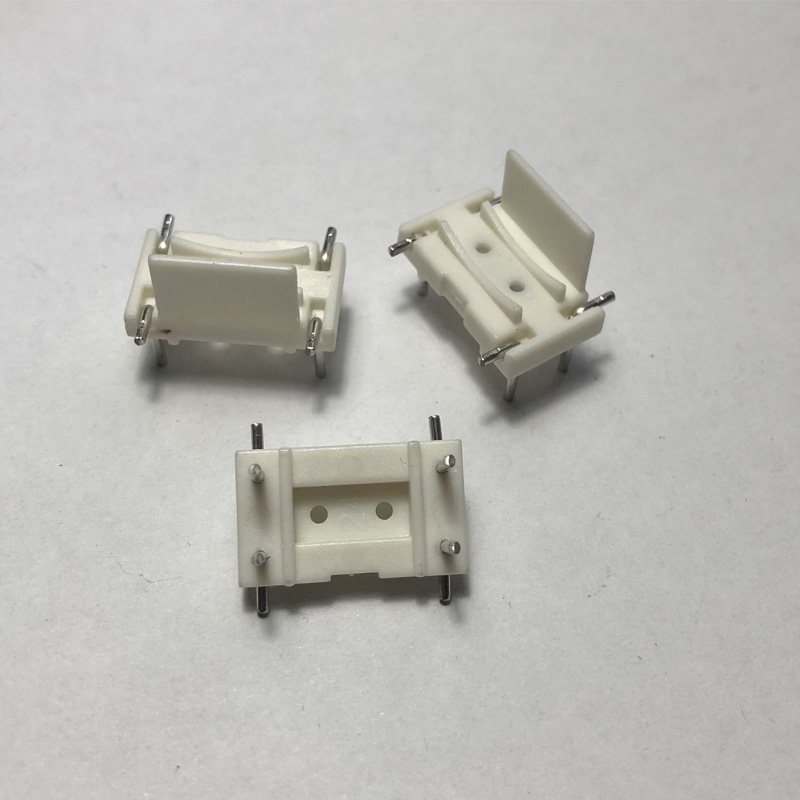

Common Mode Choke 2+2 Pin Inductor Base

Toroidal core inductor with 2+2 pin base. Base Size=25.5mmX15.35mmX11.5mm. We manufacture final inductors and coils. With small size, low resistance, high current frequency, low radiation noise., welcome custom made electronic components and OEM service.

LED Drivers Inductor 5+5 Pin Base

5+5 pin plastic base for common mode choke power inductor. Base Size=24.0mmX17.0mmX9.3mm. We manufacture final inductors and coils. With small size, low resistance, high current frequency, low radiation noise., welcome custom made electronic components and OEM service.

Commom Mode Choke Coil Inductor Base 2+2 Pin

2+2 pin common mode inductor plastic base. Base Size=12.0mmX9.5mmX4.5mm. Pin pitch=4.5mm. Parallel distance=7.6mm. We manufacture final inductors and coils. With small size, low resistance, high current frequency, low radiation noise, welcome custom made electronic components and OEM service.

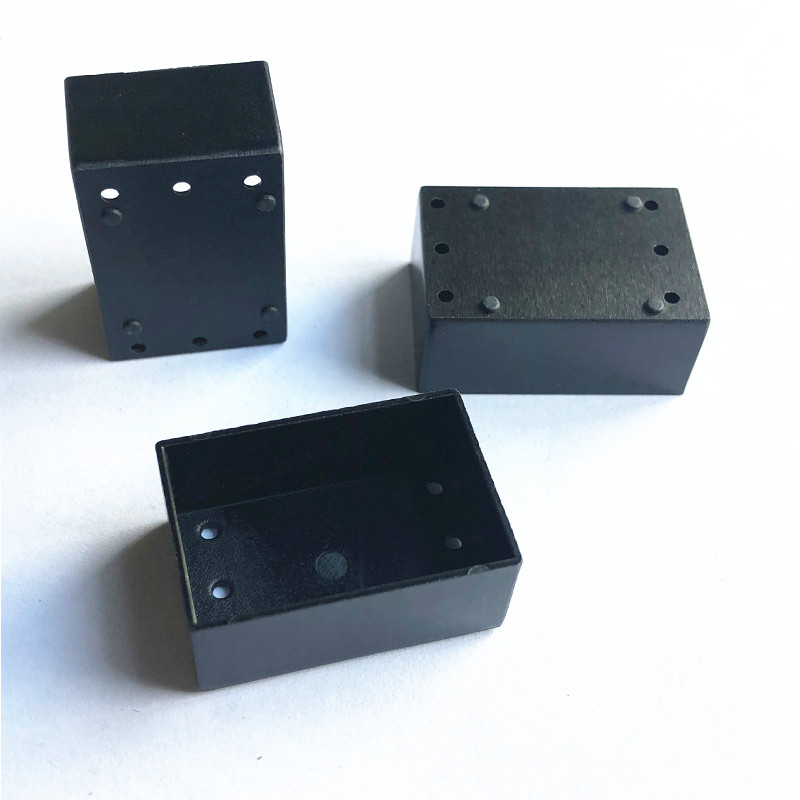

6+6 Hole Base for Power Inductor

6+6 hole choke coil base. Manufacture final inductors and coils. Base Size=27.95mmX18.81mmX12.0mm. With small size, low resistance, high current frequency, low radiation noise, welcome custom made electronic components and OEM service.

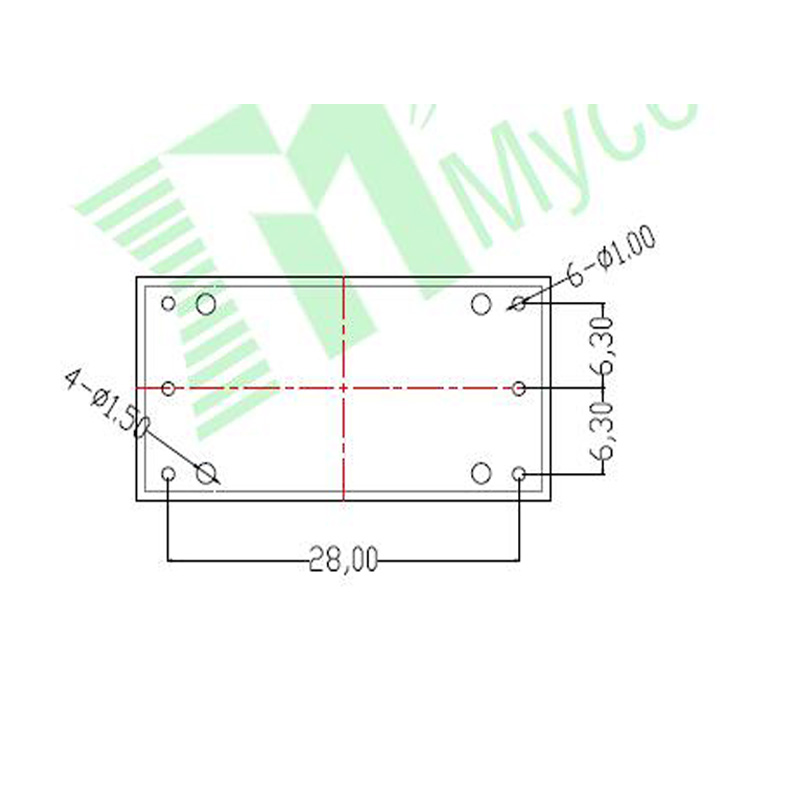

Base Inductor 6+6 Hole Toroidal Core Inductor

Current inductor base 6+6 hole. We produce and design final inductors and coils to meet customer requirements. Base Size=33.0mmX16.5mmX8.0mm. Pin pitch=28.0mm. Parallel distance=6.3mm. With small size, low resistance, high current frequency, low radiation noise, welcome custom made electronic components and OEM service.

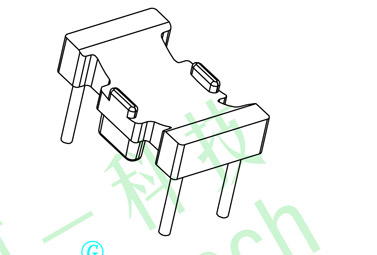

2+2 Pin Common Mode Choke Inductor Base

EE55 inverter transformer bobbin. 2+2pin base. Base Size=22.9mmX35.6mmX14.7mm. China transformer manufacturer.

T14*9*5 Plastic Transformer inductor Base 2+2 pin

Common mode choke inductor base. 2+2pin . Base Size=12.5mmX7.5mmX7.7mm. China transformer manufacturer.
