Industrial 8inch Rugged Panel PC Support Windows10
Product Introduction

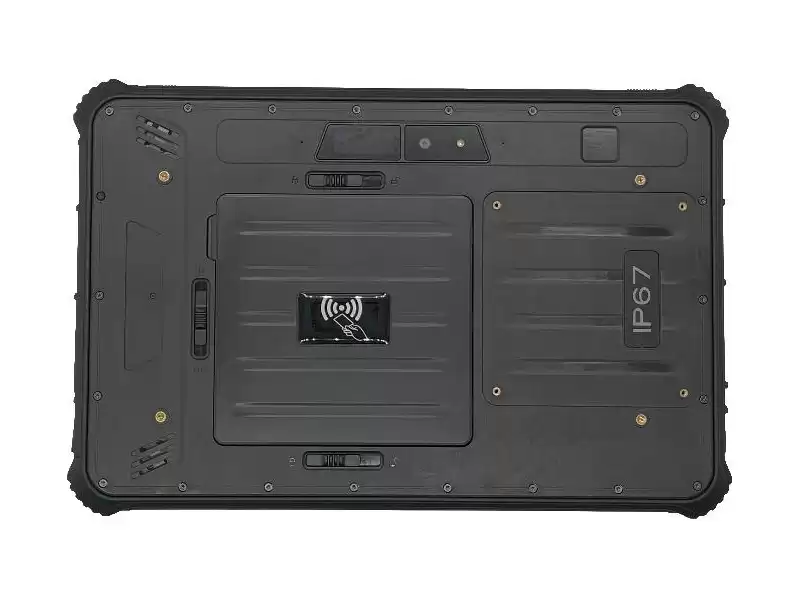

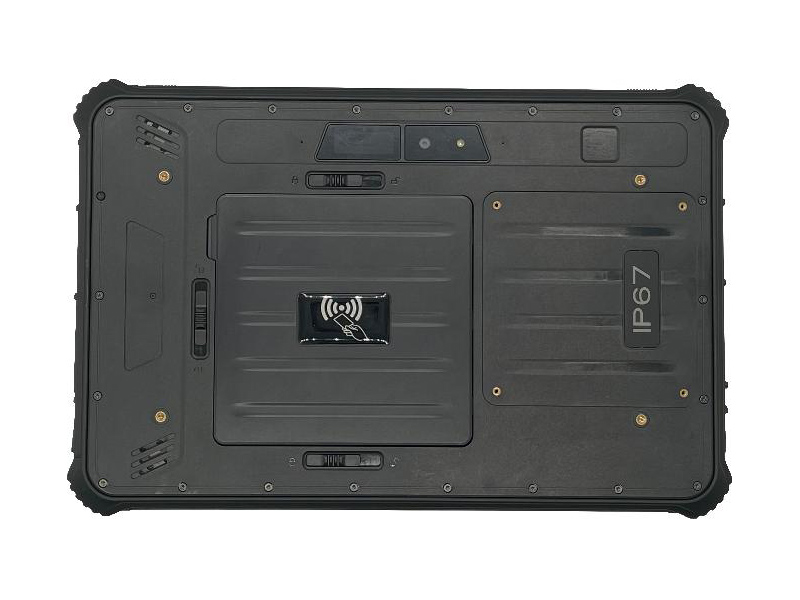

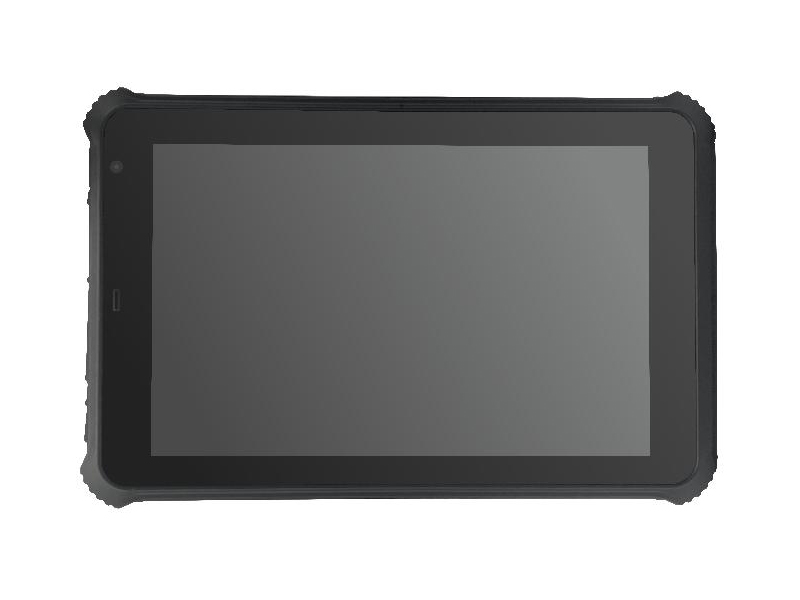

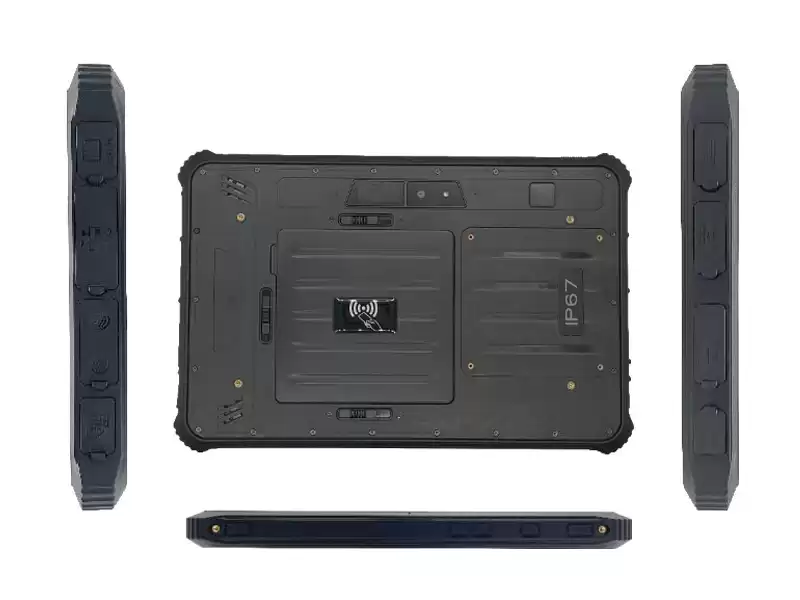

Yanyuetech TPC-08W Industrial 8inch Rugged Panel PC is slim and compact. This industrial touchscreen panel PC easily handle vibration, moisture, water, shock, and dust. Our industrial grade computer is built to last, even in tough manufacturing environments.
| Specifications |
optional configurations |
| CPU |
Intel cherry trail Z8350,1.44GHZ~1.92GHZ |
|
| Memory |
4G |
Optional 2G |
| Hard Disk |
64G |
Optional 32G/128G |
| Operating system |
Windows10 |
|
| Battery |
8500mAh, 3.8v high voltage lithium battery, removable, 10h battery life (1080P+50% brightness) |
| Camera |
2 MP fixed focus camera on the front, 5 MP autofocus camera on the rear |
| 2G/3G/4G |
(Optional LTE FDD: B1/B3/B5/B7/B8/B20; LTE TDD: B38/B40/B41; WCDMA: B1/B5/B8; GSM: B3/B8) |
| Power Supply |
DC interface 5V/3A (optional aerial plug interface 5V/3A) |
| Display |
Resolution 800*1280, 8" IPS LCD, 16:10 vertical screen |
| Brightness |
400cd/㎡（Optional 800cd/㎡（800*1280） |
| Touch screen |
5 point/10 point touch (optional capacitive pen, wet hand touch, glove touch) |
| Cover glass |
Corning Gorilla 3rd generation glass, hardness 7H (optional AG anti-glare coating, increased light transmission coating) |
| Interface |
Dual speaker 1.2W/8Ω Aluminium film, IP67 waterproof speaker; Dual analogue MIC, IP67 waterproof rating
1*Type-A USB2.0, 1*Type-C USB2.0 (support charging/OTG cable/to network port)
1*RJ45, 100Mbps
Audio-video interface 1*3.5mm audio interface; 1*Mini HDMI
Power on key, volume +, volume -, 2* custom keys
Air plug 2*7pin air plug reserved (optional CAN/USB/GPIO/RS232/charging DC etc.)
POGO Pin 1*12pin, USB and DC rechargeable
Extension
12pin POGO PIN, convertible to USB and DC charging |
|
|
| Expansion card |
1*SIM card slot, 1*TF card slot (up to 256GB expansion support) |
| WIFI |
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Dual-band WIFI |
| Bluetooth |
Bluetooth 4.0 (BLE) class1 Transmission range: 10m |
| GPS |
U-blox M8N with GPS support (optional BD, GLONASS, QZSS; differential positioning module (RTK antenna support)) |
| Module function |
Low Frequency RFID: 125KHz RFID
(Optional low frequency RFID: 125KHz RFID; UHF RFID: PR9200 (1.5/2.5/5m), R2000 (8-10m); 2D scanning
head: Zebra SE4710/4750, Honeywell N3680; CAN bus module, ID card reader module, fingerprint module) |
| Accessory |
adapter (5V/3A, Class 6 energy efficiency), hand strap (optional charging dock, car charging cradle, car mount, Type-C OTG cable) |
| Dimensions |
227*142.4*22.9mm |
| Color |
Black (optional custom colour) |
Product Features
■support Windows10
■1xRS232, 2x airline plug reserved.
■Removable battery
■12pin POGO PIN, convertible to USB and DC charging
■Standard WIFI and Bluetooth 4.0
■IP65 for the whole machine
■Optional CCC/CE/RHoS/UN38.3/MSDS/Air Sea Freight Identification/IEC62133/GMS/Explosion-proof US Military Standard / National Military Standard / IP Rating
| Work and Environment |
| Working temperature |
-10～50℃(Optional -20～60℃) |
Storage temperature |
-30～70℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| IP rating |
Resistant IP65 |
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| Certifications |
meet relevant industry and market access requirements and specifications (optional CCC/CE/RHoS/UN38.3/MSDS/Air Marine Identification/IEC62133/GMS/
(Explosion-proof US Military Standard / National Military Standard / IP Rating) |
Drop resistant |
1.2m wooden floor free fall at any angle |
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
