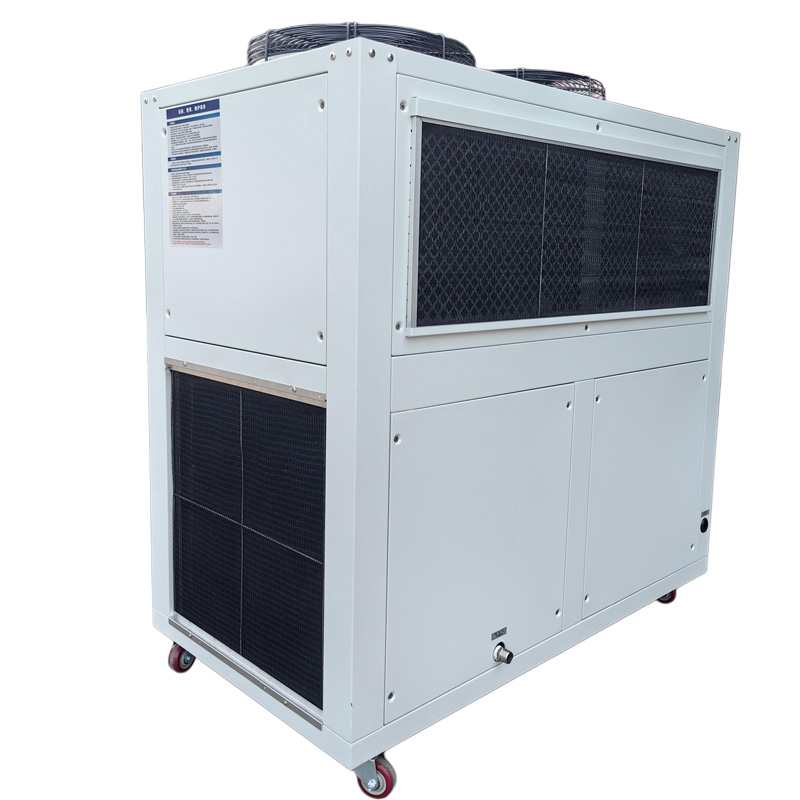

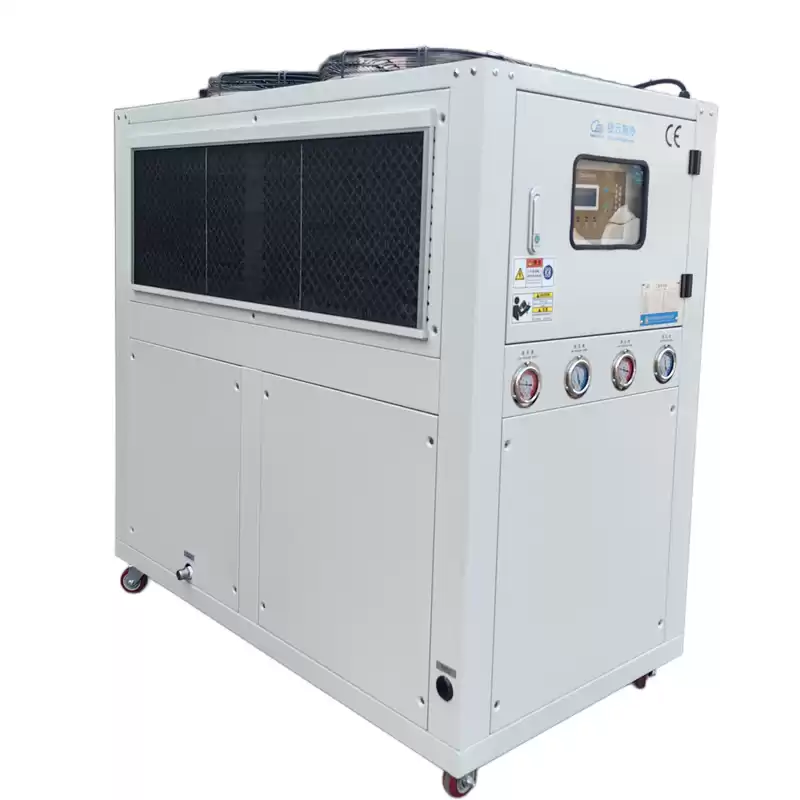

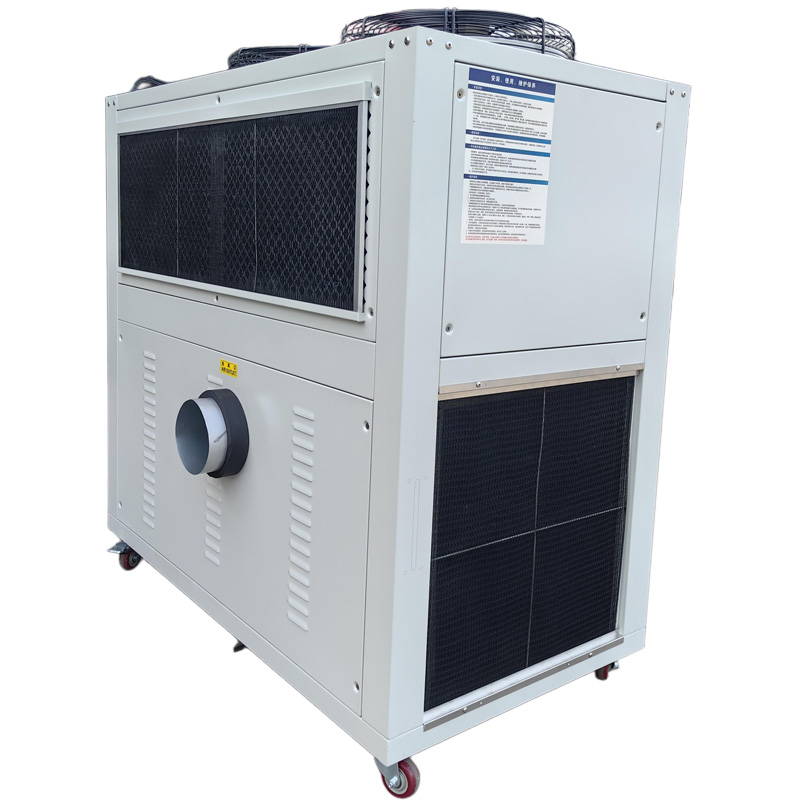

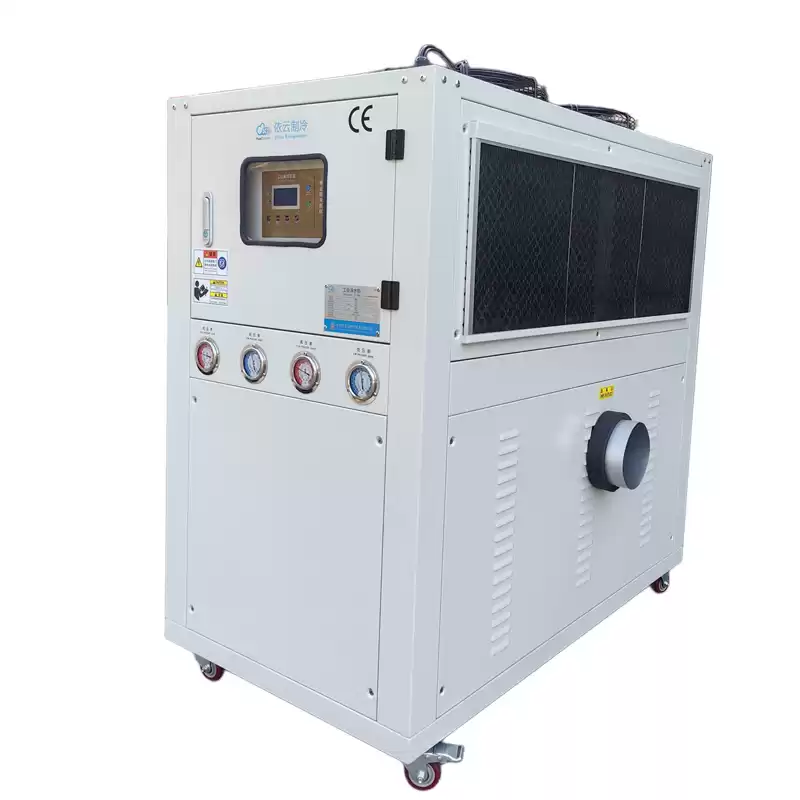

Industrial Air Cooling Unit

Industrial air-cooled chiller units use air as the cooling medium and do not require a cooling water system, providing a stable cooling source for industrial scenes. Adapting to multiple fields such as chemical engineering and electronics, meeting high load continuous operation, easy installation and maintenance, it is the preferred choice for industrial energy-saving refrigeration.

Facebook Twitter Pinterest LinkedIn 分享
Industrial Air Cooling Unit




  • Energy saving and efficient: high-efficiency compressor+optimized flow channel, leading the industry in COP value; Without circulating water equipment, long-term operation and maintenance costs can be saved by more than 30%.

  • Flexible adaptation: No need for fixed water sources and computer rooms, can be installed outdoors to save land; The cooling capacity can be customized and supports parallel adaptation of multiple units to meet production capacity.

  • Stable and reliable: resistant to a wide temperature range of -20 ℃~45 ℃, suitable for high temperature and dusty working conditions; Multiple safety protections and low failure rates ensure continuous production.

  • Easy to install and maintain: integrated design, quick on-site installation; No maintenance of the circulating water system, with a service life of over 15 years.

Design features

Preferred core components: well-known brand configuration, efficient and corrosion-resistant; Low noise variable frequency fan (or frequency conversion), balancing efficiency and noise reduction.
Intelligent and precise temperature control: PLC intelligent system, precise temperature control; Support remote linkage and achieve unmanned operation.
Energy saving and durable structure: anti-corrosion body suitable for outdoor use; Optimize air duct energy saving, some models come with waste heat recovery function.
Industrial humanized design: IP54+protection, reserved maintenance port; Shock absorption and noise reduction, suitable for industrial site requirements.

Specifications

Model HX-02FF HX-03FF HX-05FF HX-06FF HX-08FF HX-10FF HX-15FF HX-20FF HX-25FF HX-30FF HX-40FF
Cooling capacity KW 5.6 8.4 14 16.8 22.4 28 42 56 70 84 112
Kcal/h 4816 7224 12040 14448 19264 24080 36120 48160 60200 72240 96320
Total power KW 2.1 2.9 5.1 5.5 7.9 9.8 12.5 17.2 21 25 35.5
Running current A 4 5 9 10 14 18 23 31 38 45 64
Power supply Single phase 220V 50Hz 3 Phase 380V 50Hz
Temperature control range ℃ 7~20℃
Temperature control accuracy ℃ ±2℃
Refrigerant Type R407C/R134A/R410A
Compressor Form Scroll
Power KW 1.5 2.25 3.75 4.5 6 7.5 11.25 15 18.75 22.5 30.0
Condenser Types of Copper tube with aluminum fin
Cooling air flow % 2000 3000 5000 6000 8000 10000 15000 20000 25000 30000 40000
Evaporator Cooling air flow Copper tube with aluminum fin
Blower (Cold) Air supply KW 400 600 1000 1200 1600 2000 3000 4000 5000 6000 8000
The wind bore   100 100 125 125 125 125 200 250 300 350 400
Motor m³/h 0.37 0.37 0.75 0.75 1.1 1.1 1.5 2.2 3 3 4
Types of Centrifugal fan
Filter Return air using nylon filters (no jefeng tube)
Safety protection Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection, antifreeze protection.
Dimensions Length mm 860 860 1200 1200 1400 1500 1600 1900 2150 2400 2100
Width mm 600 600 850 950 800 850 890 990 990 1150 1600
Height mm 900 600 700 750 1450 1500 1400 1600 1600 1750 1750
Unit weight KG 58 95 148 162 185 215 350 430 490 550 580



Advantages

Plug and Play

Energy saving and efficient
Low Noise Design

Flexible adaptation
Intelligent Energy Saving

Stable and reliable
Simple Maintenance

Easy to install and maintain









Application Areas

Laser Cutting Machines

Laser Cutting Equipment

Provides highly stable and precise temperature control for laser resonators and optics, ensuring consistent beam quality, extending component life, and maximizing cutting accuracy and speed.

Laser Cutting Equipment
Welding Robots

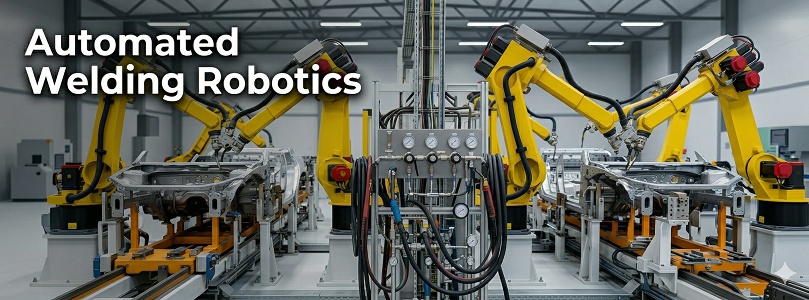

Automated Welding Robotics

Safeguards automated welding guns and robotic systems from overheating during continuous, high-intensity manufacturing processes, reducing downtime and maintenance costs.

Chiller for Welding Robots
3D Printers

Industrial 3D Printing Systems

Delivers reliable cooling for high-power UV light sources, lasers, and extrusion heads in industrial 3D printers, ensuring stable material properties and high-fidelity part production.

Industrial 3D Printing Systems
