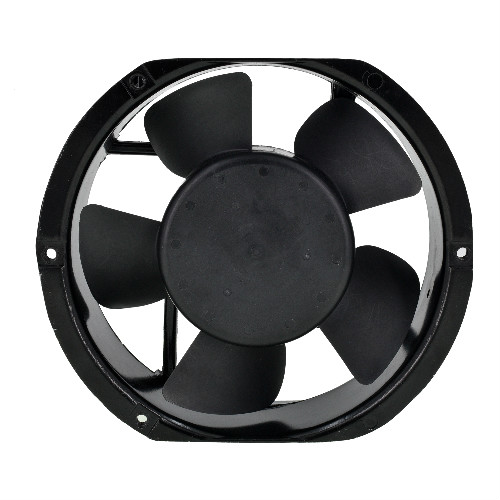

Industrial Brushless Axial Ventilator Exhaust Fan 170X150X51mm

With demanding technological features, you can see a drop-off in performance due to heat. AC fans are an excellent choice to maintain just the right amount of cooling for these components.

Facebook Twitter Pinterest LinkedIn 分享

Description

High Quality 220/50Hz Axial Cooling Fan with CE Certificate. 5 blades designed to focus airflow and provide highly efficient ventilation for the fan.

About this item

Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

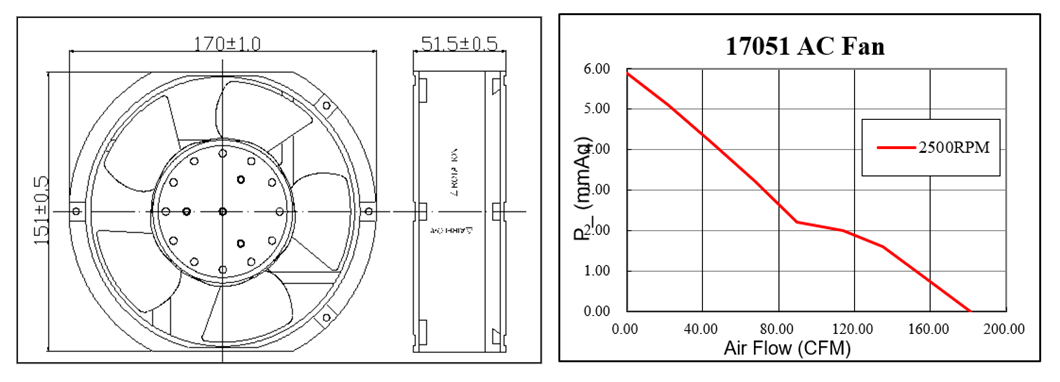

Dimension of outer the frame is 170 mm(L) x 150 mm(W) x 51 mm(H) / The size of fan in inch is 6.69 in(L) x 5.90 in(W) x 2.0 in(H); The center to center distance beween the mountiong holes is 170.0 ± 1.0 mm / 6.69 in.

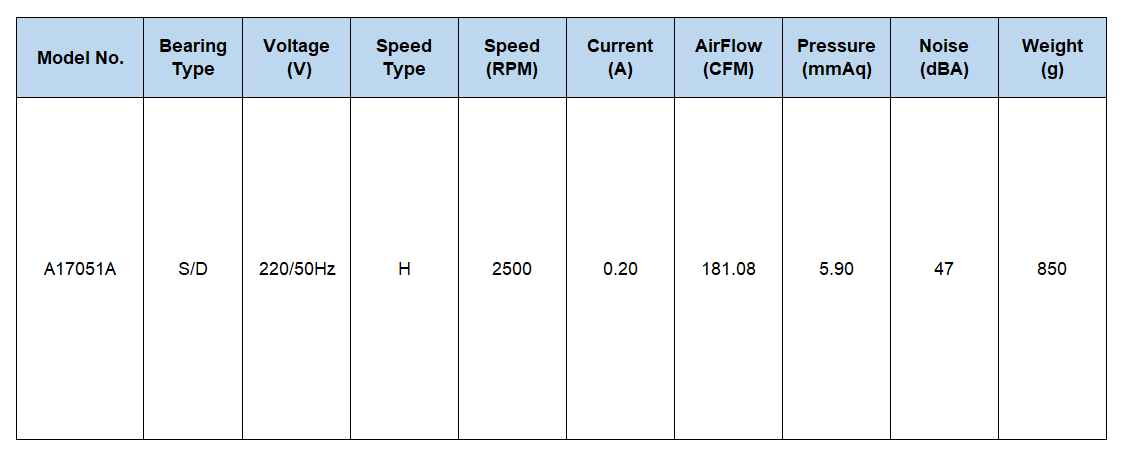

Operating Voltage Range: AC 220/50Hz | Current: 0.20 Amp | Speed: 2500 RPM | Airflow: 181.08 CFM | Noise: 47 dBA | Pressure: 5.9 mmAq.
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

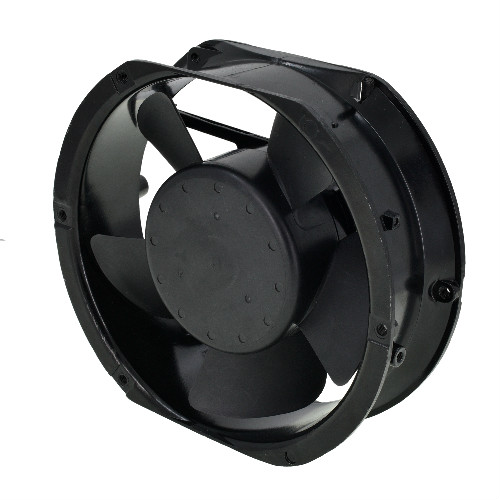

AC AXIAL FAN 170x150x51mm(6.69"x5.90"x2.0")

170x150x51mm ac cooling fan

General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

17051 AC 110V 220V Axial Fan

low nise axial fan for cooling

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

Typical voltage values for AC fans are 220V;
170x150x51mm, high performance compact axial fan for cooling;
Brushless design, lower noise, high speed and long serve life;
With high-efficiency inlet designs, lubricated maintenance-free ball bearings;
All our products are approved by UL/CE, as well as in compliance with RoHS requirement.

More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Type	Model	Size	Type	Model	Size
AC Axial Fan	A08025	80x80x25mm(3.15"x3.15"x0.98")	AC Axial Fan	A13538	135x135x38mm(5.31"x5.31"x1.49")
	A09225	92x92x25mm(3.62"x3.62"x0.98")		A15050	150x150x50mm(5.90"x5.90"x1.97")
	A11025	110x110x25mm(4.33"x4.33"x0.98")		A17051A	170x150x51mm(6.69"x5.90"x2.0")
	A12025A	120x120x25mm(4.72"x4.72"x0.98")		A17051B	170x150x51mm(6.69"x5.90"x2.0")
	A12025B	120x120x25mm(4.72"x4.72"x0.98")		A18060	180x180x60mm(7.08"x7.08"x2.36")
	A12038A	120x120x38mm(4.72"x4.72"x1.49")		A20060	200x200x60mm(7.87"x7.87"x2.36")
	A12038B	120x120x38mm(4.72"x4.72"x1.49")		A22060	220x220x60mm(8.65"x8.65"x2.36")

Application

DC/AC axial fans with many models can be used for cooling, ventilation and heat dissipation in freezers, refrigerators, air purifiers, cabinets, power supply and ect.

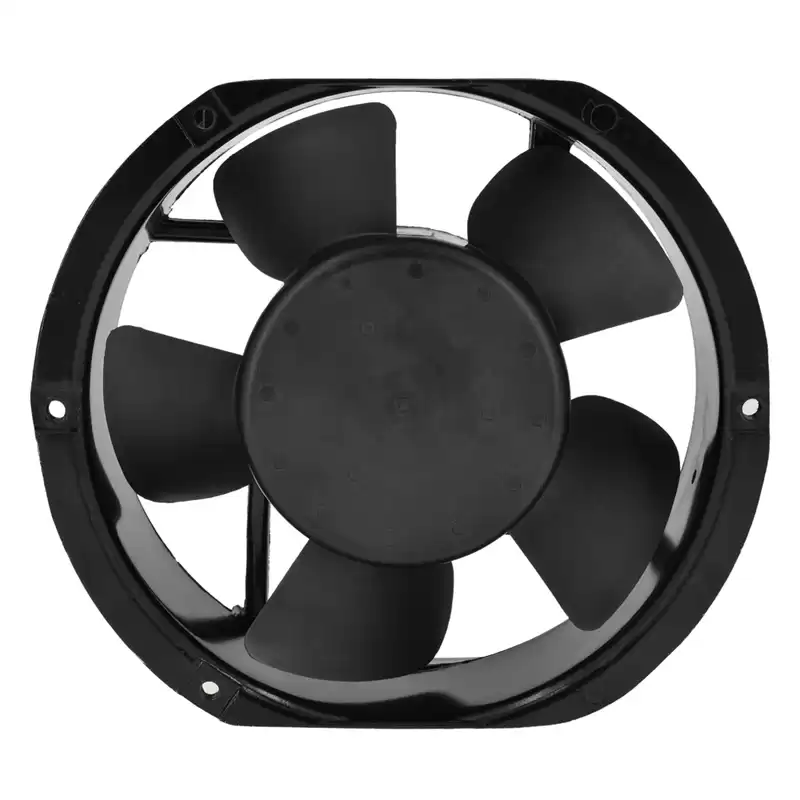

110V 220V AC Axial Ventilation Fan

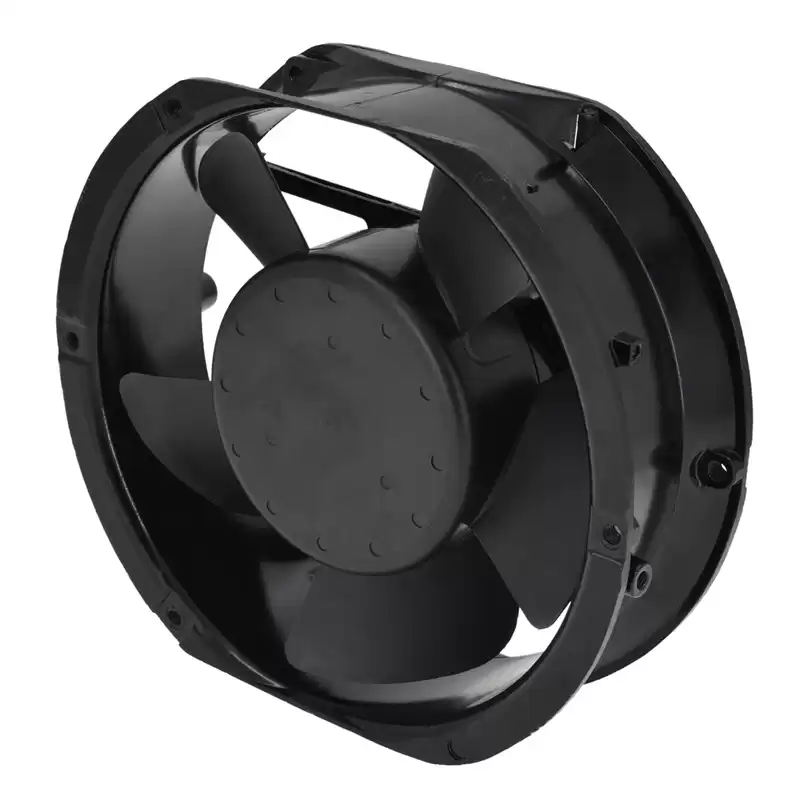

High RPM AC Axial Cooling Fan

Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
