Industrial Heavy-Lift Long-Range Altitude-Optimized Transport Drone

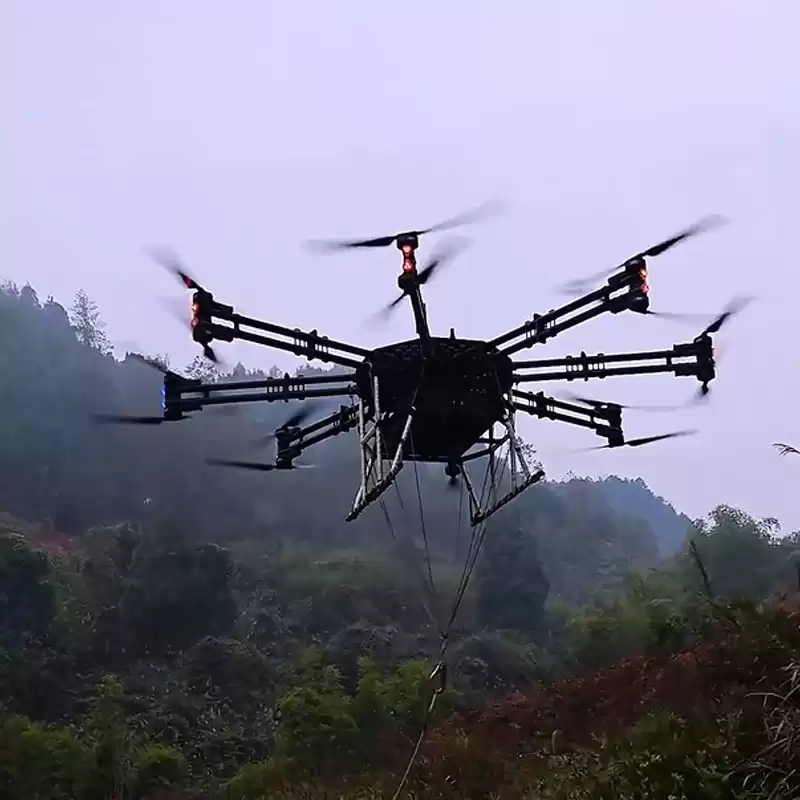

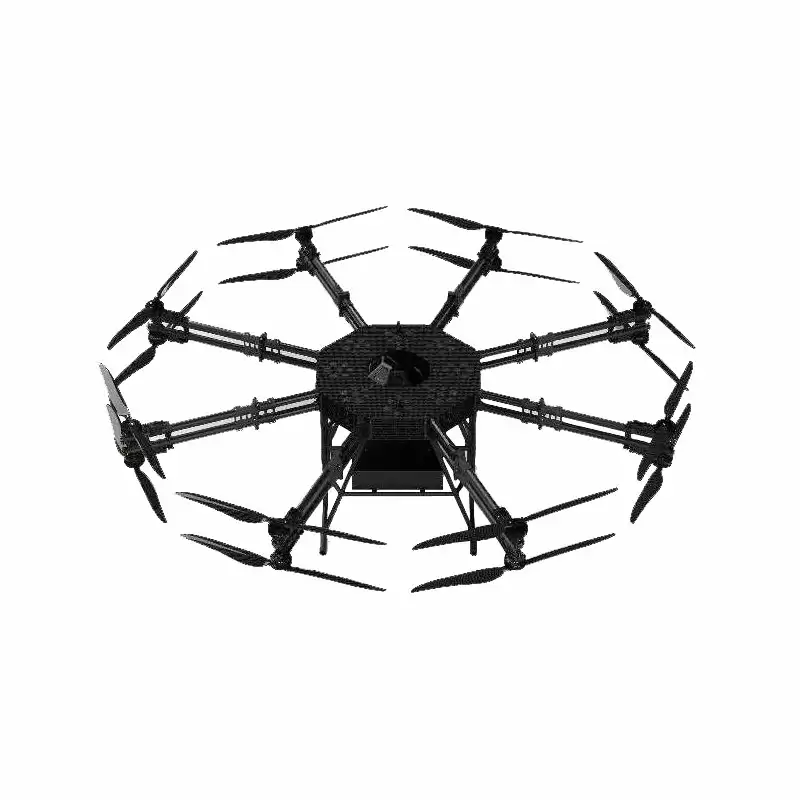

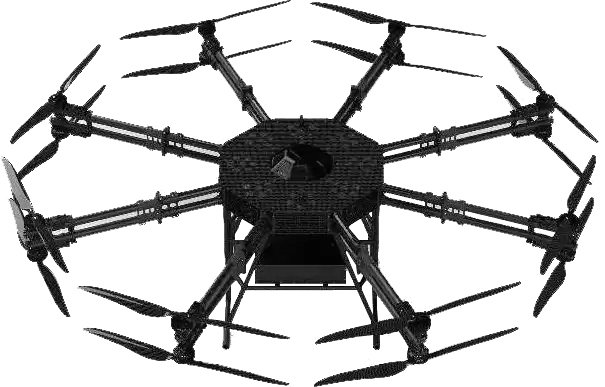

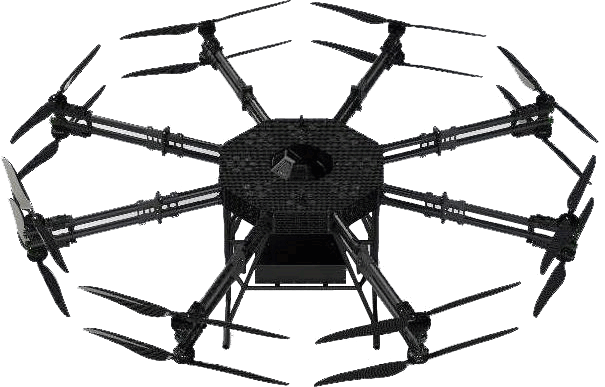

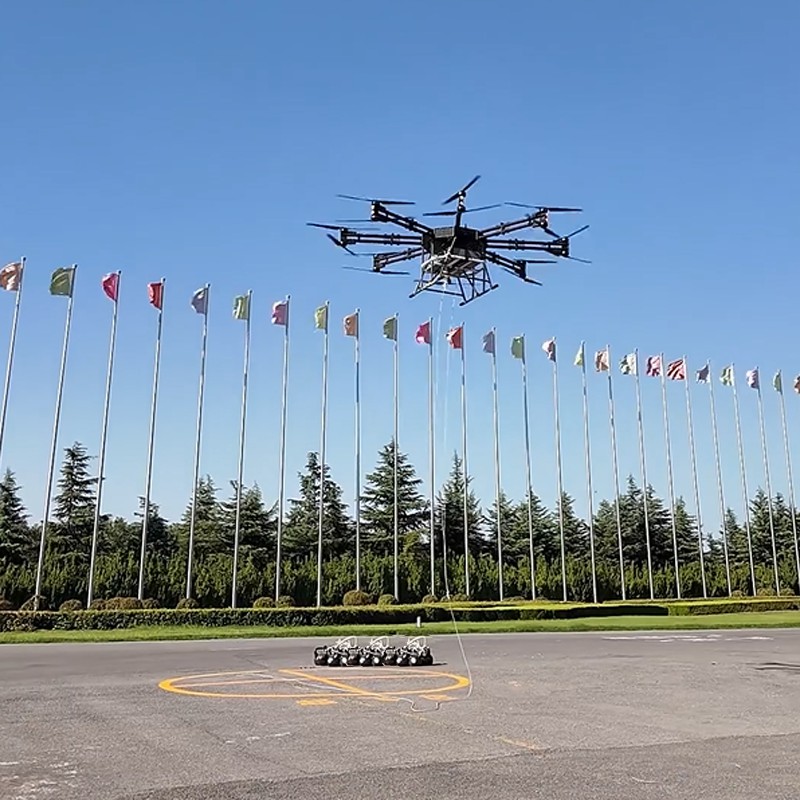

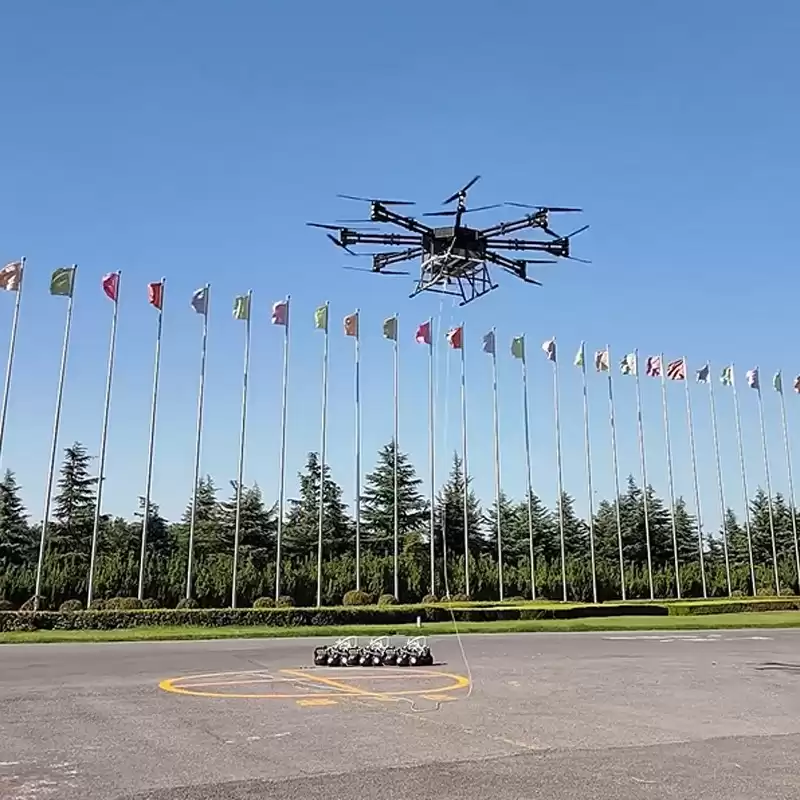

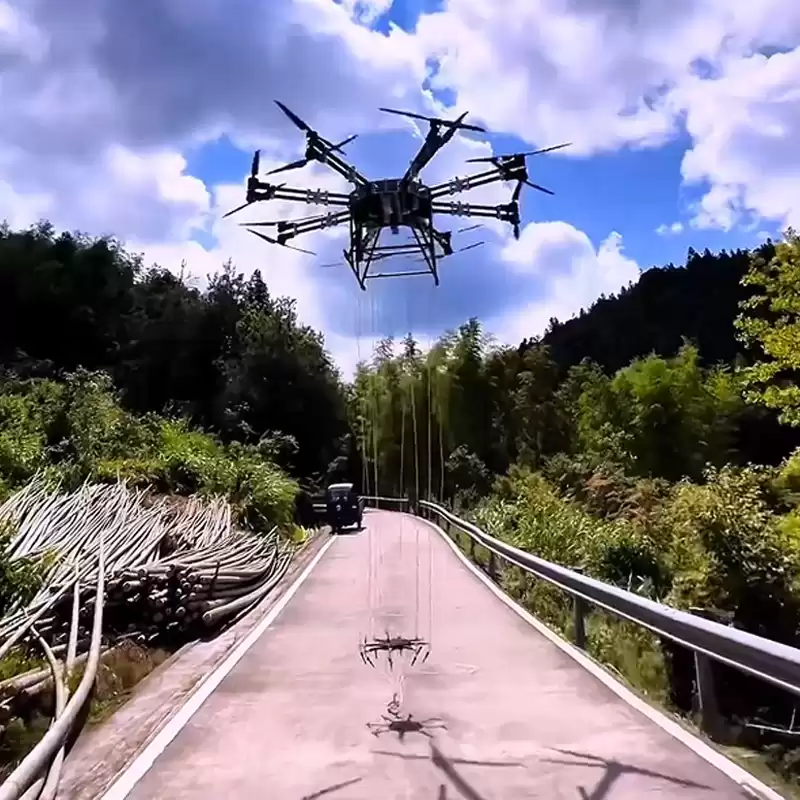

The YS-06 transport drone adopts a high-strength composite material fuselage and is equipped with a multi-axis and multi-rotor design, featuring strong load capacity and stable flight performance. This model is suitable for areas with restricted traffic such as mountainous regions and emergency rescue tasks, and can complete the transportation and precise delivery of heavy materials. The drone has precise takeoff and landing capabilities as well as strong wind resistance, to make them suitable for complex working environments. It can still maintain stable flight in high-altitude areas, and to meet the transportation demands of the plateau. Its long-range and long-distance control capabilities further expand the application scenarios, and enabling it to reliably carry out heavy-load transportation tasks, with outstanding overall performance.



Product parameters



YS-06

Expanded size

4060*4060*1280mm

Model

8-axis 16-rotor

Fuselage weight

≤270kg (Smart Battery 1)

≤300kg (Smart battery 2

Max takeoff weight

700kg

Max net tensile force (sea level)

≥400kg

Max safe load capacity

280kg

Battery weight



135kg smart battery 1

165kg smart battery 2

Battery capacity

22.5° Smart battery 1

27° Smart Battery 2

Charging ambient temperature

40℃

Idle hovering duration

40-minute smart battery 1

60min Smart battery 2

Rated battery endurance

12-minute smart battery 1

18-minute smart battery 2

Wind resistance level

≥Level 6

Max horizontal speed

≥25m/s

Max lifting speed

±8m/S

Max working altitude

≥6000m

Working voltage

68V~100.8V

Working temperature

-20℃~55℃

The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
