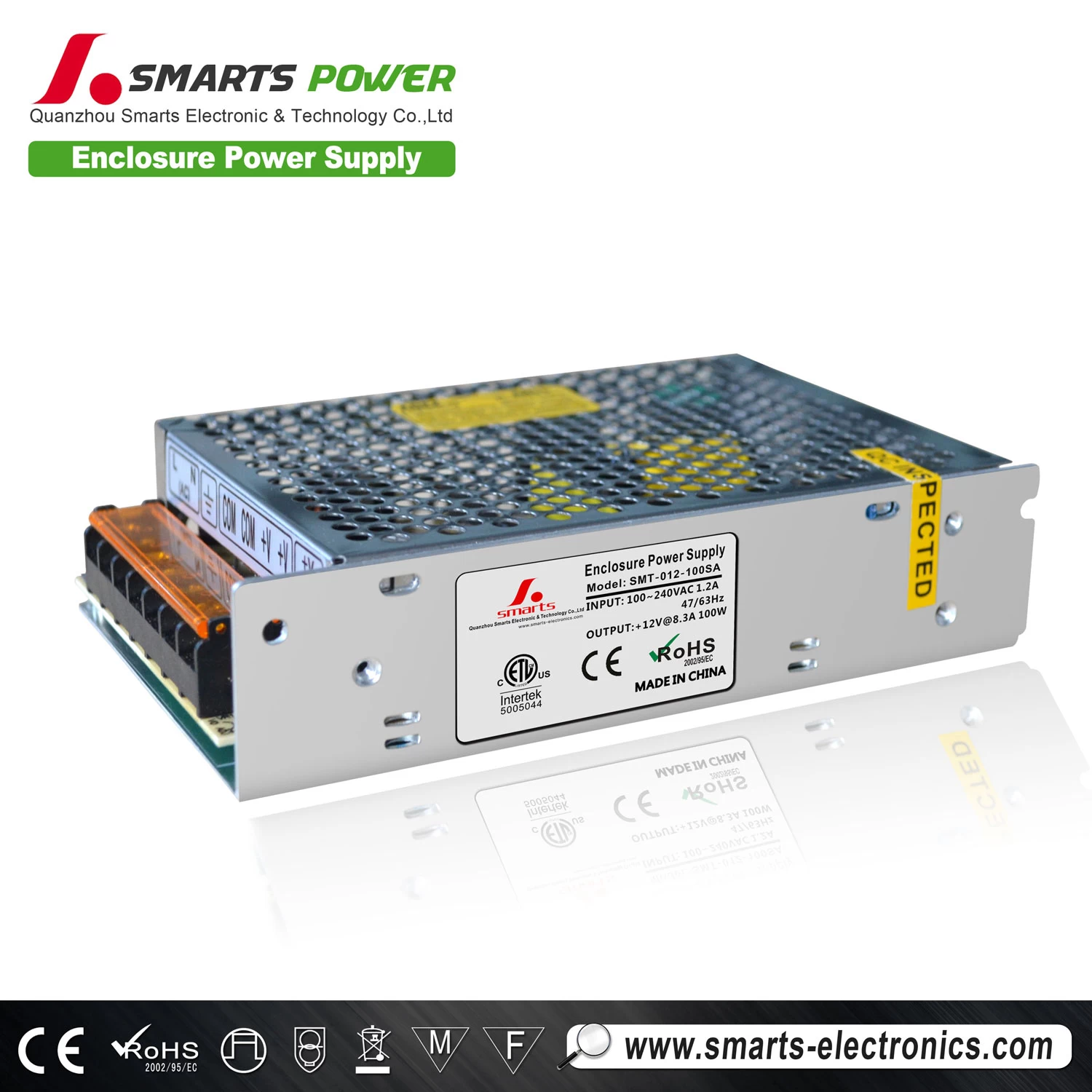

industrial power supply 12v 100w

industrial power supply 12v 100w



industrial power supply 12v 100w

Product Description

Product parameters:

Model

SMT-005-100SA

SMT-012-100SA

SMT-015-100SA

SMT-024-100SA

SMT-036-100SA

SMT-048-100SA







output

DC voltage

5V

12.5V

15V

24V

36V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Rated current

20A

8.33A

6.6A

4.17A

2.78A

2.08A

Current range

0~20A

0~8.33A

0~6.66A

0~4.17A

0~2.78A

0~2.08A

Rated power

100W

100W

100W

100W

100W

100W

Ripple&noise

100mvp-p

150mvp-p

150mvp-p

150mvp-p

150mvp-p

150mvp-p

DCvoltage ADJ.range

± 10%

±10%

±10%

±10%

±10%

±10%





input

Voltage range

100~240Vdc

frequency

47~63HZ

AC current

3.2A/115VAC,1.6A/230VAC

efficiency

83%

82%

82%

83%

82%

83%

Inrush current

Cold start current 18A/115VAC,36A/230VAC

Leakage current

< 1mA/240VAC



protection

overload

Rated output power115%~150% start over load protection

protection type:cutoff output,recovery after restart power

Over voltage

6.8~8.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

33.2~35.6V

54.8~56.6V

protection type:hiccup mode,auto-recovery after fault condition is removed

environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard



EMC standard

Comply with EN55022,CLASSA

others

Dimension

160*88*34mm (L*W*H)

Weight/packing

0.65kg/20pcs/13.5kg/0.0318 m³

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation



Features:

  • Constant voltage design with high accuracy.
  • International wide input voltage.
  • output voltage 5v/12v/24v/36v/48v selectable.
  • Wattage: 15w-600w.
  • High efficiency, save energy, protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC.
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Overcurrent, overvoltage, overheat, short curcuit protection:Auto-recovery
  • Start,raise,stable time:  500ms,30ms,40ms/230VAC,500ms,30ms,16ms/115VAC
  • Cooling by free air convection.
  • 100% full load burn-in test.
  • Brand electrotronic components.
  • ROHS material.
  • Well match with LED guardrail lamp, Flood light, light word, street lamp etc, For LEDs series-parallel.

Environment :

  • Working Temperature : -25 ~ +50°C
  • Working Humidity : 20 ~ 90% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety :

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Application:

  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels
