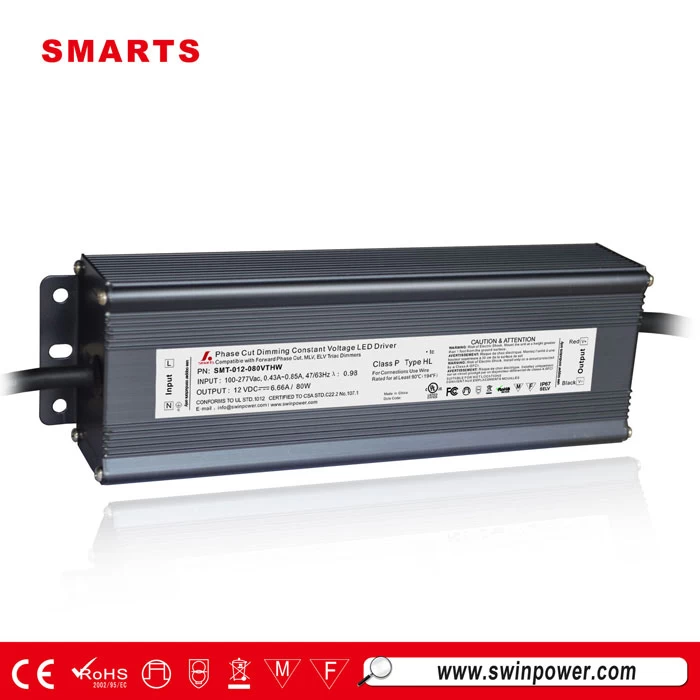

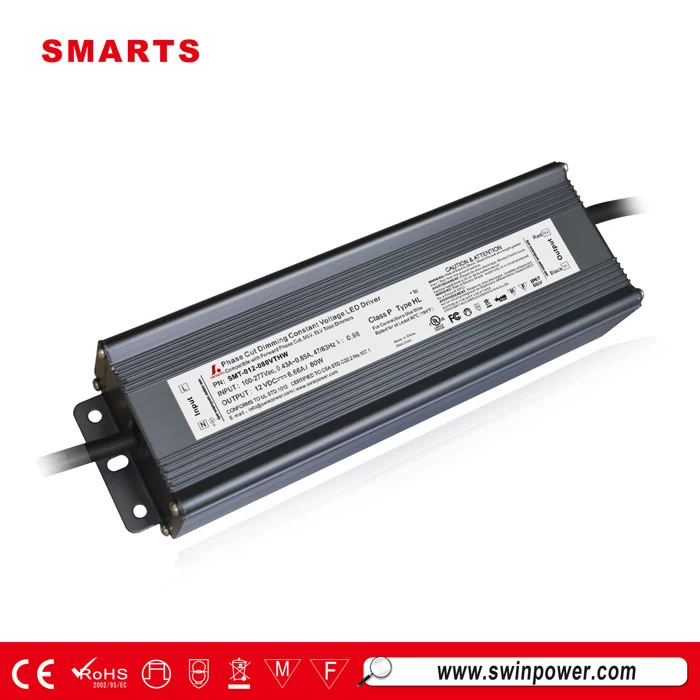

industrial power supply 80w 6.67a 100-277v power supply with 7 years warranty
277vAC dimmable led driver are UL CE ROHS approval.it is widely used in various industries, such as:INdoor LED illuminating lights,LED Neon,LED City Decoration,LED Lighting Advertising,LED Display,Safety Protection Apparatus,Telecommunications.......
Specification
|
model
|
SMT-012-080VTHW
|
SMT-024-080VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Rated current
|
6.67A
|
3.33A
|
|
|
Load Regulation
|
±1%
|
|
|
Rated power
|
80W
|
80W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
|
Full Load Efficiency（Typ.）
|
>82%
|
>83%
|
|
|
AC Current（Typ.）
|
0.9A/110VAC
|
|
|
Inrush Current （Typ.）
|
14A, 50%, 780us
|
|
|
Leakage current
|
<0.50mA
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
|
Over voltage
|
≦140VAC(90~135V) , ≦285VAC(170~277V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
|
|
Others
|
Weight
|
About 0.35Kg
|
|
|
Size
|
230*70*46mm（L*W*H）
|
|
|
packing
|
10PCS/CTN
（L*W*H）
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Label
|
|
Mechanical Specification
Input Rubber wire 3*18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output Rubber wire, 2*16AWG Red to LED Positive side (+) , Black to LED Negative side (-).
Dimming Operation
The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase/triac dimmer.
Usually matching with Forward phase , leading edge , Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Simple Connection Diagram
Connecting Diagram
What's the series of power supply do you have?
Answer: We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
