Industrial Untrafine Powder Grinding Planetary Ball Mill

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • Certificate CE, IOS, ROHS, SGS, UL Certificate
  • Warranty Two years limited warranty with lifetime technical support

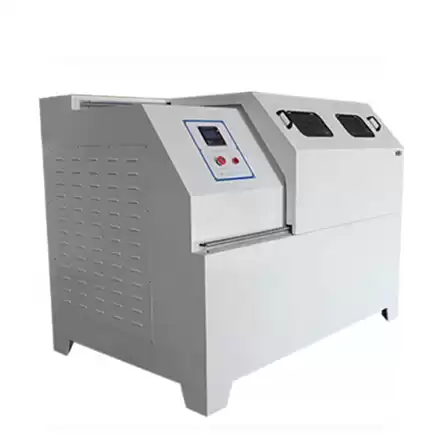

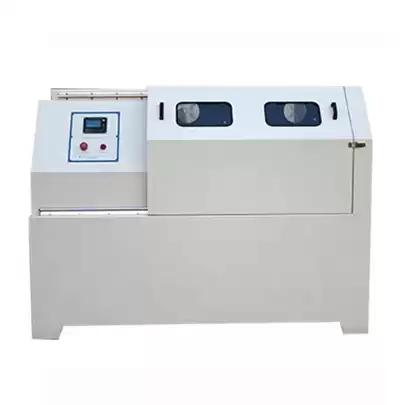

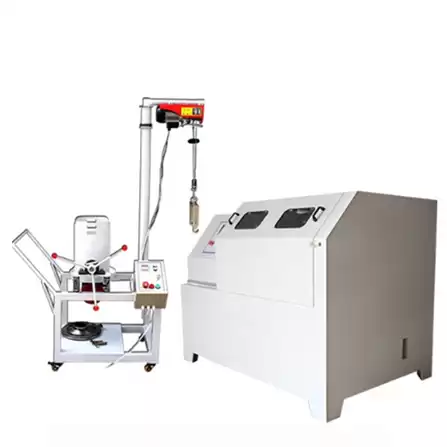

Industrial Untrafine Powder Grinding Planetary Ball Mill



Overview of Industrial Planetary Ball Mill

Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tmax planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.



Working Principle of  Industrial Planetary Ball Mill

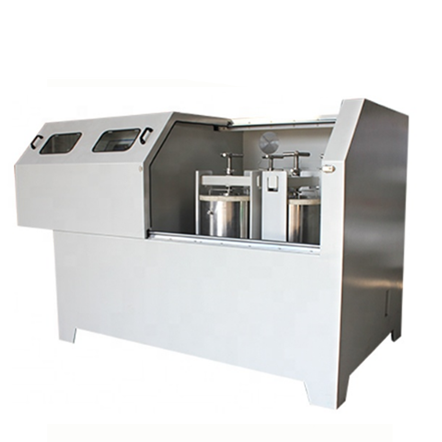

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.



Features of  Tmax Industrial Planetary Ball Mill

1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.

2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tmax Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

 Specification

Drive Mode

Gear drive

Operate Mode

Two or four grinding jars working together

Maximum Loading Capacity

2/3 of the total volume of milling jars

Feeding Size

Soil material≤10mm,other materials≤3mm

Output Granularity

Smallest granule reaches 0.1μm

Rotational Speed Ratio

1:2

Max.Continuous Operating Time

72 Hours

Materials of Jar

Stainless steel.agate,nylon,corundum,zirconia,etc



Type

Specification

Volume of Each Matched Pot

Qty

XQM-2

2L

50ml-500ml

4 set

XQM-4

4L

250ml-1L

4 set

XQM-6

6L

lL-1.5L

4 set

XQM-8

8L

1L-2L

4 set

XQM-10

10L

1L-2.5L

4 set

XQM-12

12L

1L-3L

4 set

XQM-20

20L

2L-5L

4 set

XQM-40

40L

5L-10L

4 set

XQM-60

60L

10L-15L

4 set

XQM-100

100L

20L-25L

4 set



Model

Power supply

Motor power

Converter power

Operating time setting

(min)

Positive and negative alternating operation time(min)

Adjustable speed

Revolution

(rpm)

Adjustable speed

Rotation

(rpm)

Noise

<db

XQM-2

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-4

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-6

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-8

220V 50HZ

1.5KW

1-9999

1-999

35-290

70-580

60db

XQM-10

220V 50HZ

1.5KW

1-9999

1-999

35-290

70-580

60db

XQM-12

220V 50HZ

1.5KW

1-9999

1-999

35-290

70-580

65db

XQM-20

380V 50HZ

4KW

1-9999

1-999

25-215

50-430

65-db

XQM-40

380V 50HZ

5.5KW

1-9999

1-999

20-195

40-390

68db

XQM-60

380V 50HZ

7.5KW

1-9999

1-999

27-174

40-260

68db

XQM-100

380V 50HZ

11KW

1-9999

1-999

27-160

40-240

68db

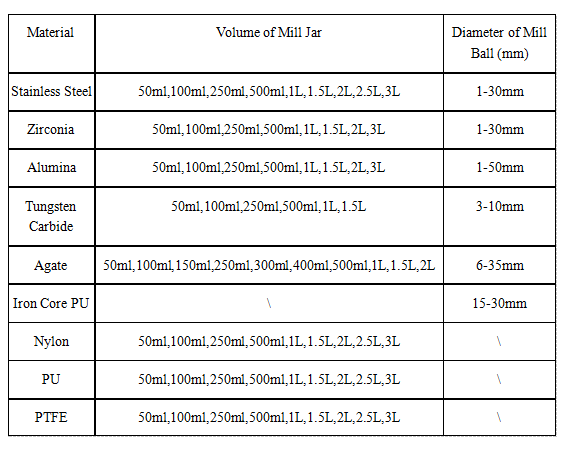

Accessories of Mill Jars & Balls For Industrial Ball Mill


 Besides the planetary ball mill machine, our factory provides all kinds of mill potslike stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.






We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.



Planetary Ball Mill

Planetary Ball Mill



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
