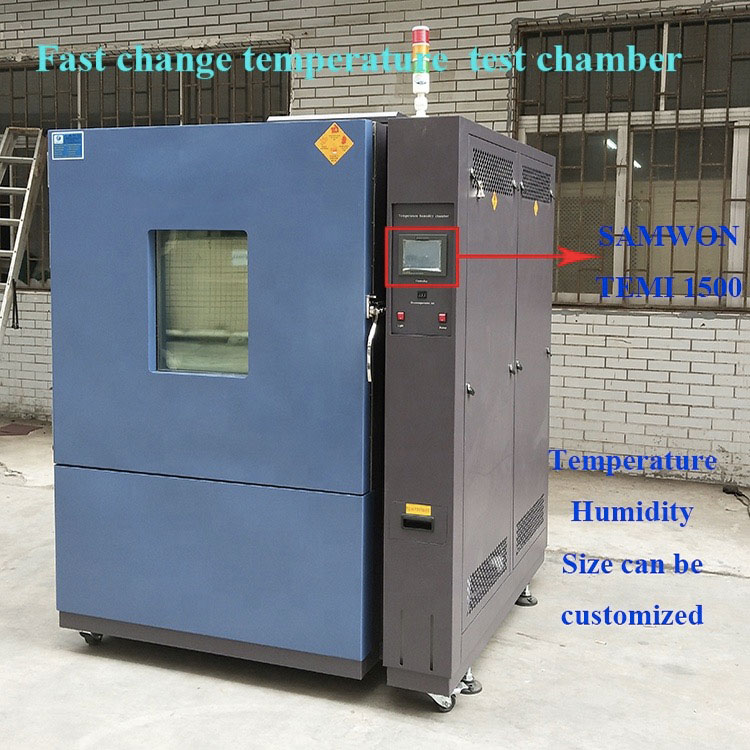

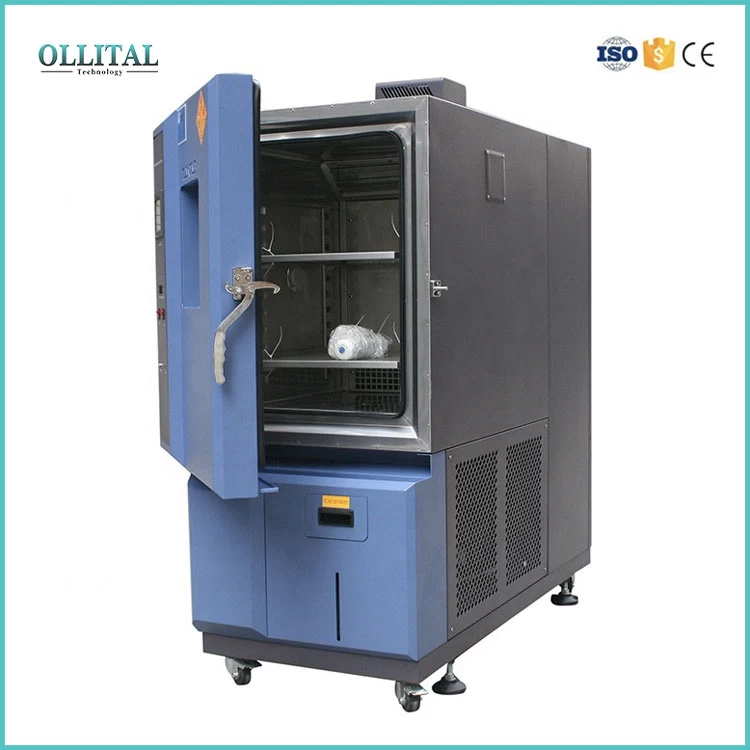

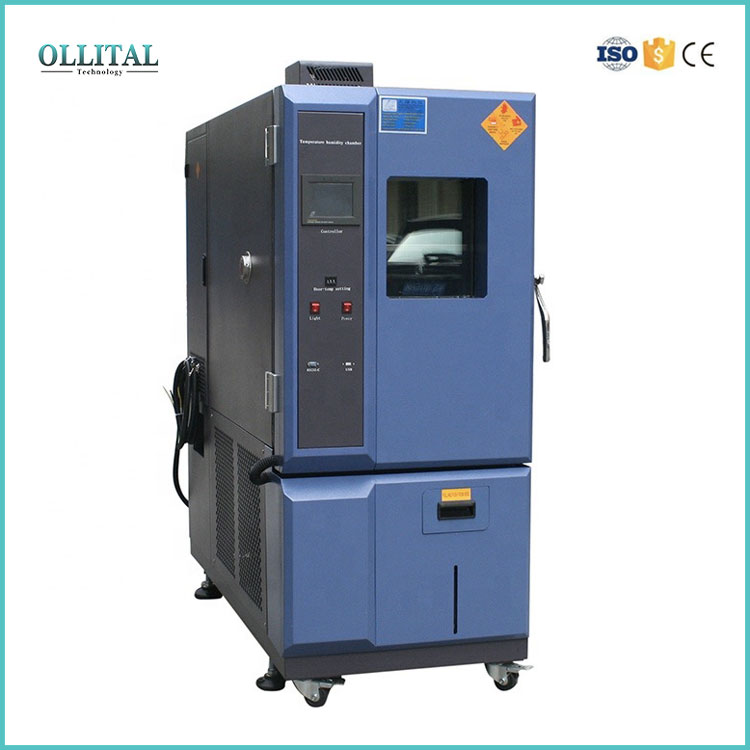

Industry and Laboratory Rapid-Rate Temperature Cycle Environmental Test Chambers
|
Model
|
YICT-225
|
YICT-306
|
YICT-408
|
YICT800
|
YICT-1000
|
|
Inner chamber size w×h×d(cm)
|
50×75×60
|
60×85×60
|
50×85×80
|
100×100×80
|
100×100×100
|
|
|
Exterior chamber size w×h×d(cm)
|
Depends on inner chamber size
|
|
Testing temperature range
|
-70~150℃(KS);-40~150℃(KL);-20~150℃(KR)
|
|
Fast change temperature range
|
-70℃ kinds:-50~+85℃(KS);-40℃ kinds:-20~+85℃(KL);-20℃ kinds:0~+85℃(KR)
|
|
Heating-up&Cooling-down speed
|
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min(Linear or Non-linear)
|
|
Performance
|
Temp.fluctuation
|
±2.0℃
|
|
Temp.uniformity
|
±1.5℃
|
|
Temp.resolution
|
0.01℃
|
|
Heating-up time
|
-70~150℃<60min;-40~150℃<50min;-20~150℃<35min
|
|
Cooling-down time
|
+20~ -70℃<70min;+20~ -40℃<55min;+20~ -20℃<35min
|
|
Material
|
Exterior chamber material
|
Cold-rolled steel+Powder coating
|
|
Interior chamber material
|
SUS#304 Stainless steel
|
|
Insulation
|
PU fiberglass wool
|
|
System
|
Wind circulation
|
Cooling fan
|
|
Heating system
|
SUS#Stainless steel high-speed heater
|
|
Refrigeration system
|
Imported tecumseh compressor+fin type evaporator+
air(water)cooling system
|
|
Other components
|
Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable)
|
|
Safety protection device
|
Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lamp
|
|
Power supply
|
AC 3phase380V 60/50Hz
|
|
Customization service
|
Non-standard or special requirements are all welcome
|
-
The refrigeration units are supplied by Tecumseh(France).
-
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
-
P.l.D auto counter enables continuous immediate temperature and humidity error correction.
-
5 cm port is centered on the left side of the chamber for ease of cable routing.
-
Mist-free viewing window and interior light provide a hassle free viewing workspace.
-
Swivel casters provide easy mobility and flexibility in a variety of laboratory conditions.
-
Four-tiered safety protection system
WHY CHOOSE OLLITAL
1) Direct factory with 10+ years manufacturing experience in test equipment.
2) More than 3000 m² factory area with 3 production workshops.
3) Independent R&D, production, sale system.
4) Products are in accordance with ASTM, IEC, ISO, JIS and other international standard.
5) We maintain close relationships with numerous international companies, such as UL (in Dubai), Intertek (In Dubai), LG (In Korea), SGS, SANYO, Vestel , etc.
