Inline High Shear Mixer Pump for Cheese

Premixes can be prepared in a fraction of the time taken by conventional methods. Agglomerate-free mix, giving improved texture and stability. Improved yield and batch-to-batch consistency.



Inline High Shear Mixer Pump for Cheese


High Shear Emulsifier



Product introduction

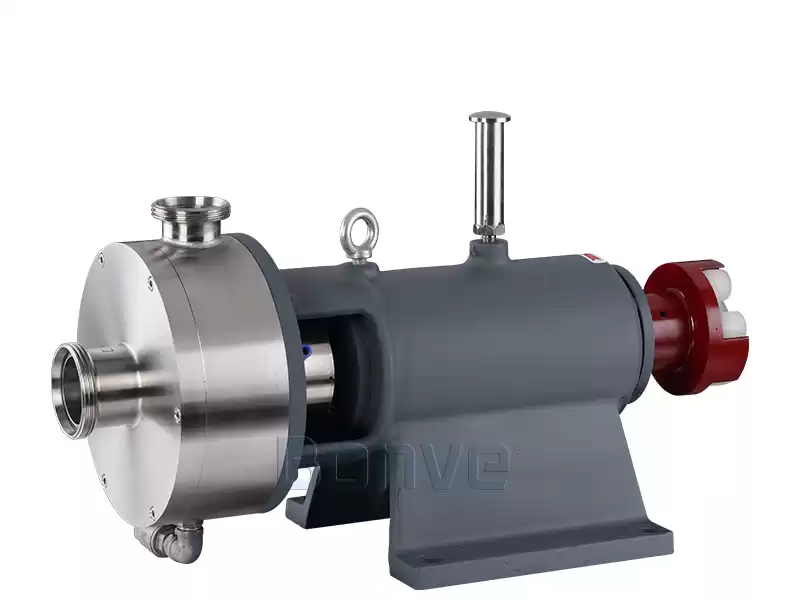

Bonve inline high shear mixer pump is an efficient type machine with mixing, dispersion, breaking, dissolution, refinery, homogenization, emulsifying and pumping. The machine can greatly simplify the traditional productions and upgrade the production efficiency and product quality.

It is widely used in petrochemical, refinery chemistry, consumer chemicals, biology pharmaceutics, foods processing, paper-making, environmental protection, paint and so on.


Application for cheese

Processed Cheese is a mixture of cheese, water and other permitted additional ingredients. In the processing process, cheese spread type products are cooked at high temperatures and sterilized before the product is transferred to packaging. For spread products, this is usually combined with inline mixerhomogenizer. However, a long processing times is usually required to complete the hydration. Our Inline High Shear Mixer Pump for Cheese may help you: The high speed rotation of the rotor blades creates strong suction, and the material is subjected to intense shear in the restricted area of the workhead.


Working Principle

The main parts are stators and rotors. At centrifugal and fluid forces created by high running of the rotors, the stators exercise on the materials with strong power shearing, centrifugal pressing, breaking, fluid friction, turbulent. The processed materials (solid, fluid and gas phase) are quickly refined, homogenized, dis-aggregated and emulsified. The repeat of this process can result in stable and high-quality products.




Product line: FHM1. FHM2 and FHM3 series

Bonve inline high shear mixer pumps are mainly divided into 3 series based on different numbers of rotor and stator. There are FHM1, FHM2 and FHM3 series.


FHM1 series is equipped with one set multi-layer stator and rotor. Required to be used in the cyclic processing of medium and small batch production. For short distance transmission, homogeneous and emulsion.
FHM2 and FHM3 series are an extension of the FHM1 series. The working chamber is composed of two-stage and three-stage rotor and stator. For applications that require greater and quicker homogenizing and emulsifying, FHM3 is used. It can be used in the cyclic process sing of medium and large-scale production.



Main technical parameters:


Model

(FHM1 series)

Electrical Power

(Kw)

Rotation Speed

(rmin)

Flow rate

(m3h)

Discharge pressure

(Mpa)

Diameter of inletoutlet

FHM1100

2.2

2900

0-3

0-0.05

DN4040

FHM1120

4

2900

0-4

0-0.1

DN4040

FHM1140

5.5

2900

0-5

0-0.1

DN5040

FHM1165

7.5

2900

0-8

0-0.15

DN5040

FHM1185

15

2900

0-15

0-0.15

DN6550

FHM1200

22

2900

0-20

0-0.15

DN8065

FHM1220

30

2900

0-30

0-0.15

DN8065

FHM1240

37

2900

0-50

0-0.2

DN10080


Model

(FHM2 series)

Electrical Power

(Kw)

Rotation Speed

(rmin)

Flow rate

(m3h)

Discharge pressure

(Mpa)

Diameter of inletoutlet

FHM2100

3

2900

0-3

0-0.05

DN4040

FHM2120

5.5

2900

0-4

0-0.1

DN4040

FHM2140

7.5

2900

0-5

0-0.1

DN5040

FHM2165

11

2900

0-10

0-0.15

DN5040

FHM2185

22

2900

0-15

0-0.15

DN6550

FHM2200

30

2900

0-20

0-0.15

DN8065

FHM2220

37

2900

0-30

0-0.15

DN8065

FHM2240

45

2900

0-50

0-0.2

DN10080


Model

(FHM3 series)

Electrical Power

(Kw)

Rotation Speed

(rmin)

Flow rate

(m3h)

Discharge pressure

(Mpa)

Diameter of inletoutlet

FHM3100

5.5

2900

0-3

0-0.1

DN4040

FHM3120

7.5

2900

0-4

0-0.15

DN4040

FHM3140

11

2900

0-5

0-0.2

DN5040

FHM3165

18.5

2900

0-10

0-0.3

DN5040

FHM3185

30

2900

0-20

0-0.4

DN6550

FHM3200

45

2900

0-30

0-0.5

DN8065

FHM3220

55

2900

0-40

0-0.5

DN8065

FHM3240

90

2900

0-60

0-0.6

DN10080

Remarks:

1. Above dates are tested by water. For product with poor liquidity or require a higher discharge pressure, Bonve lobe pump is advised to be installed before the homogenizer for transferring.

2. Port size can be changed as needed. Flange connection as starndard, clamp and thread as optional.

3. Motor matched is Siemens, ABB or equivalent brand. Normal type with 3ph380V50Hz as standard.

4. MOC: SS316 as standard, SS304, 316L and others as optional.  150°C (302°F) anti-heat seal.

5. Bonve reserves the right to change specifications without prior notification.



Applications





Working process


For various processes, different equipment is used to match and optimize the combination, so that the system achieves the best working effect. The common process flow diagram is as follows:




Selection Guideline


Your industryapplication



 Processed medium’s name



 Medium’s feature

 Sanitary (     ) Corrosive (     ) Poisonous (     )

 Medium’s proportion

 Liquid % ____   Density____  Viscosity____ PH value____

 Solid %  ____   Solid size ___

 Processing requirement

 Mixing dissolving    (     )          Dispersed suspension         (     )

 Emulsification          (     )          Homogeneity                      (     )

 Reaction                    (     )          Powder liquid mixing         (     )

 Working type

 Continuous circulation work (     )    Continuous non-circulation work (     )

 Batch type                              (     )

 Working temperature



 Particle size

 Before processing _______

 After processing  ________

 Handling capacity required



 Delivery headpressure required



 Vessel’s dimension



 Existing pipe size and connection type



 The existing process equipment and the existing problems
