Bonve One-stage (FHM1) inline high shear emulsifying mixers is an efficient type machine with mixing, dispersion, breaking, dissolution, refinery, homogenization and emulsifying. It is an ideal machine to be instead of colloid mill, ball mill and high pressure homogenizer. The machine can greatly simplify the traditional productions and upgrade the production efficiency and product quality.
WORKING PRINCIPLE

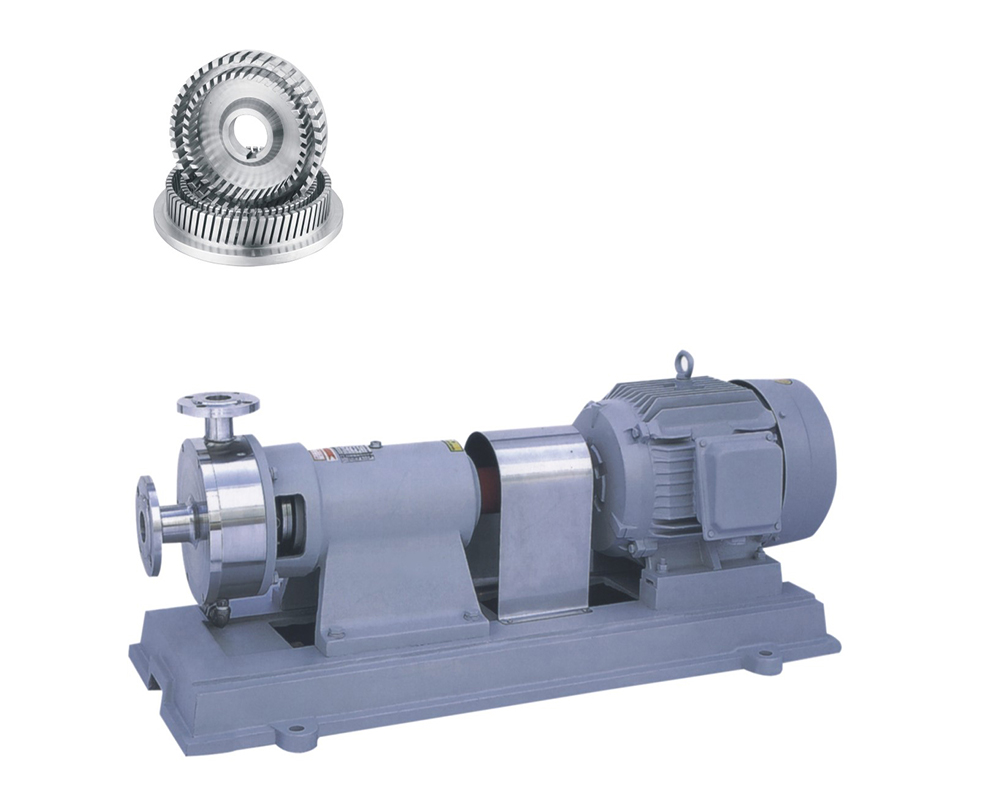

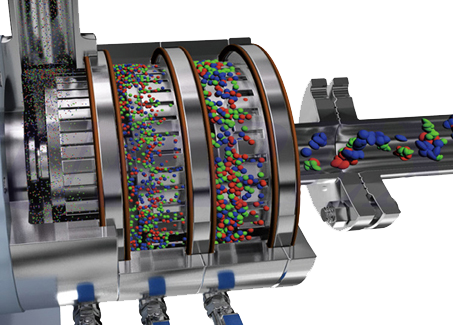

The main parts are stators and rotors. At centrifugal and fluid forces created by rapid turning of the rotors, the stators exercise on the materials with strong power shearing, centrifugal pressing, breaking, fluid friction, turbulent. The processed materials (solid, fluid and gas phase) are quickly refined, homogenized, dis-aggregated and emulsified. The repeat of this process can result in stable and high-quality products.
APPLICATIONS
Refined chemistry: Pigment, dyestuff, plastic auxiliaries, textile auxiliaries, adhesives, resin emulsion, hot melt adhesive, sealing compound, glue, pulp, finishing agent, surface active agent, carbon black disperse, adhesive-proof agent, mold release agent, defoaming agent, fluorine cleaning agent, polishing agent, leather auxiliaries, pigment paste, wax emulsion, bactericide, coagulant, etc.
Petrochemistry: Lubricant, heavy oil emulsion, diesel oil emulsion, modified asphalt, catalyzer, wax emulsion etc.
Biology & Pharmaceuticals: Injection, antibiotic, medical emulsion, medical paste, health products, mini-capsule emulsion, cell breaker, etc.
Paint & ink: Printing ink, paint, emulsion paint, building coating, nanometer coating, photocureable coating, coating auxiliaries, carbon black disperse, print ink, glaze, bentonite, etc.
Farm chemicals: Pesticide, herbicide, medicinal butter, fertilizer, pesticide adjuvant, etc.
Nanometer materials: Disperse and dis-aggregation for nanometer medium, etc.
Food stuff industry: Juice, jam, ice-cream, milk products, food addictive, tea drink, chocolate, bean milk, essence, milk, etc.
Consumer chemistry:Fluid detergent, skim cream, lip paste, face foam, silicon lio emulsion, household essence, skin care, cosmetics, etc.
Paper making: Pulp, filling, fry strength agent, wet strength agent, sizing agent, filtering agent, anti-foaming agent spreading, water treatment chemicals, etc.
TECHNICAL PARAMETERS
|
Model
|
Electrical
Power
(Kw)
|
Rotation
Speed
(r/min)
|
Handling
Capacity
(m3/h)
|
Discharge
pressure
(Mpa)
|
Dia. of inlet/outlet
mm
|
|
FHM1/140
|
5.5
|
2900
|
2
|
0.1
|
DN40/32
|
|
FHM1/165
|
7.5
|
2900
|
5
|
0.15
|
DN50/40
|
|
FHM1/185
|
11
|
2900
|
10
|
0.15
|
DN65/50
|
|
FHM1/200
|
15
|
2900
|
15
|
0.15
|
DN80/65
|
|
FHM1/220
|
22
|
2900
|
20
|
0.15
|
DN80/65
|
|
FHM1/240
|
30
|
2900
|
40
|
0.2
|
DN100/80
|
|
FHM1/260
|
37
|
2900
|
60
|
0.2
|
DN125/100
|
|
FHM1/300
|
45
|
2900
|
80
|
0.25
|
DN125/100
|
Notes:
1. Above dates are tested by water. Electrical power will be varified according to different liquid properties.
2. Port size can be changed as needed. Flange connection as starndard, clamp and thread as optional.
3. Standard contact material is SS316. Others pls inform.
4. Motor equipped with pumps are ABB brand, with standard power supply of 3Ph/380V/50Hz.
5. Bonve reserves the right to change specifications without prior notification.

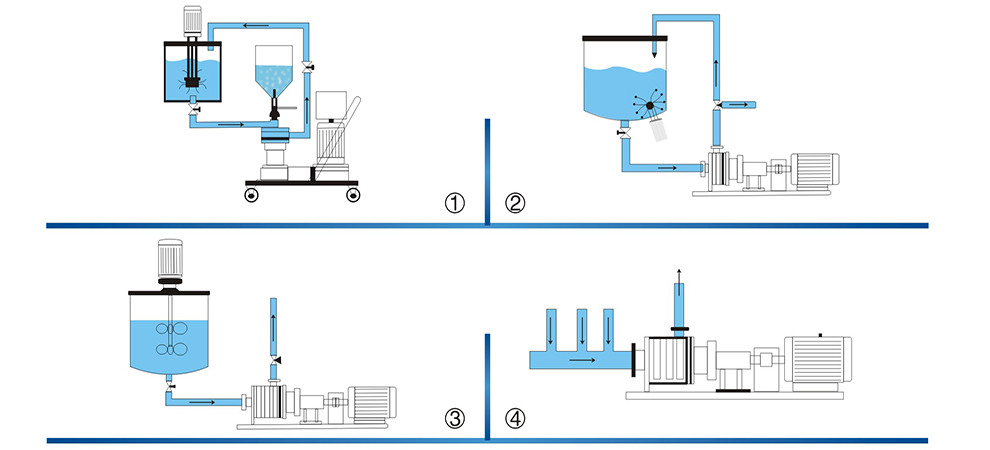

WORKING PROCESSING DIAGRAM
① High shear mixer working with power liquid homogenizing mixer
② Bottom type high shear mixer working with FHM1 homogenizing mixer
③ Low speed agitator working with FHM3 homogenizing mixer
④ Multi-pipe FHM3 homogenizing mixer continuous production process
SELECTION GUIDELINE
|
Your industry/application
|
|
|
Processed medium’s name
|
|
|
Medium’s feature
|
Sanitary ( ) Corrosive ( ) Poisonous ( )
|
|
Medium’s proportion
|
Liquid % ____ Density____ Viscosity____ PH value____
Solid % ____ Solid size ___
|
|
Processing requirement
|
Mixing dissolving ( ) Dispersed suspension ( )
Emulsification ( ) Homogeneity ( )
Reaction ( ) Powder liquid mixing ( )
|
|
Working type
|
Continuous circulation work ( )
Batch type ( )
|
|
Working temperature
|
|
|
Particle size
|
Before processing ____
After processing _____
|
|
Handling capacity required
|
|
|
Delivery head/pressure required
|
|
|
Vessel's dimension
|
|
|
Existing pipe size and connection type
|
|
|
The existing process equipment and the existing problems
|
|
For a quick quotation, please email cathy@bonvepumps.com to ask about selection guideline. Your inuqiry will be welcome and get our prompt reply. Thanks for your interest and love for Bonve One-stage inline high shear emulsifying mixers.
