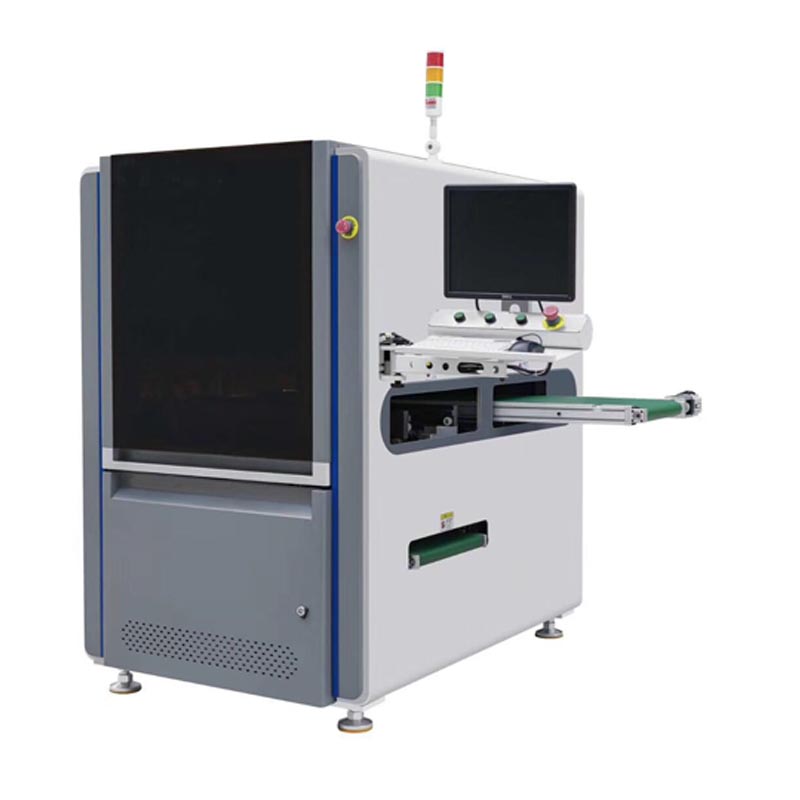

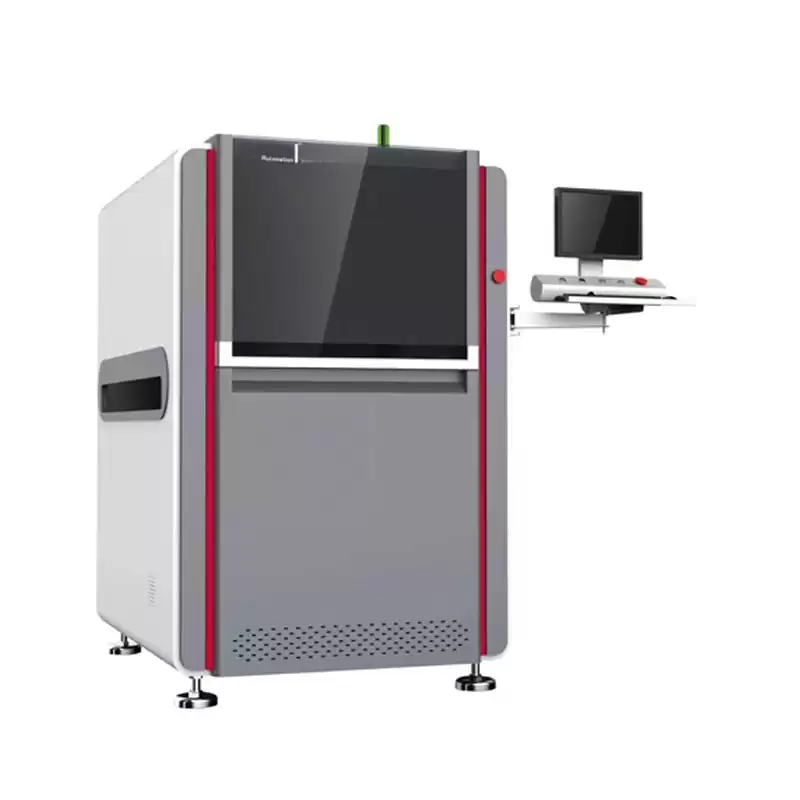

Inline PCB Depaneling Router Without Fixture

Full automatic inline PCB depaneling router system, with loader and unloader for ATE test line, high speed spindle, low stress to separate PCBA and ensure prevision and cleanliness, high volume production helper, no fixtures required!




Inline PCB Depaneling Router Description:

This inline PCB depaneling router is a full automatic router machine which could connect PCB loader and test line to realize automatic working without any workers. The machine saves a lot of labor management cost for manufacturers. And tab boards without frame is workable for this inline PCB depaneling router, customized fixtures are available for precise depaneling.


Inline PCB Depaneling Router System Specifications:

Model Number

SMTIR812

Machine Size

1060(L)x1356(W)x1570(H)mm

Machine Weight

Approx 1000kgs

Max PCB Size

350x350mm (standard)

PCB Thickness

0.4-6mm

Transmission Height

900±50mm

Transmission Direction

Left -> Right

Transportation Speed

1500mm/s

Feeding Mode

Section type transportation guide rail

Rail Width Adjustment

Automatic

Communication Signal

SMEMA

PCB Positioning

Upper and lower guide rail clamping

Picking System

360 degree rotary clamp system+Vacuum Suction Nozzles

Cutting Spindle

SycoTec 60000rpm/min(standard)

Cooling Type

Self cooling

Automatic Tool Change

Yes

Break Knife Checking

Yes

Cutting Accuracy

±0.01mm

Routing Bit

0.8-3.0 Diameter, right rotation

Repeat Accuracy

±0.02mm

Coordinate Moving Speed

1000mm/s

Unloading Mode

ESD Belt

Waste Collection Way

Outlet track

Procedure Programming

Gerber Drawing Import/Editing Program by Visual

Air Supply

5-8kgs/cm2

Power Supply

AC380V, 50/60Hz, 3KW


Inline PCB Depaneling Router Features:

1. Cutting path full closed loop, real-time error tracking, feedback, compensation, China's first high-end intelligent system.
2. Using imported split PLC, breaking the traditional computer-based board PLC control card, higher stability and stronger anti-interference.
3. Simple operation and higher safety performance.
4. With the bottom dusting configuration, with the gland function, the vacuuming effect is better.
5. Automatically identify barcodes and retrieve cutting programs.
