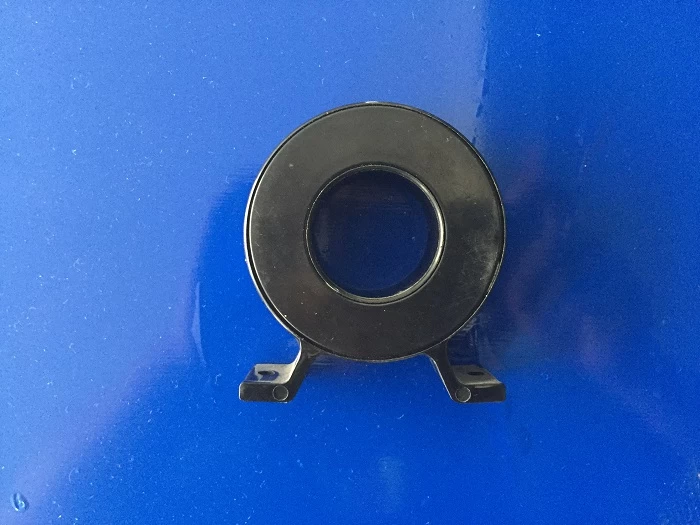

Inverter Transformers Core OFN-IT-080050020

Usually the Hi-power arc welding inverter's single-ended pulse transformers require the transformer cores with low high frcqucncy loss, high Bs and low Br so that to achicvc bigger A B.



1. Material of Core:Fe-base nanocrystalline alloy ribbon
2. Dimensions of Core:

3. Finish Dimensions:

4. Magnetical Test:(AQL 0.65)
Test of Iron loss and AL according to GB/T 19346-2003( The test standard for Fe-base nanocrystalline alloy in China)
4.1 Para testar:

4.2 Teste de perda:
Magnetic Induction Density:B=0.5T
Frequency:f=20kHz
Test Equipment:2010SA AC soft magnetic tester
Iron Loss:pFe≤25W/kg
OFN-IT-080050020 Iron Loss:PFe≤8.5W

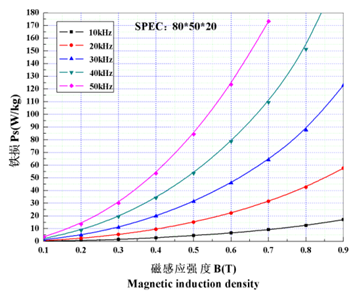

The Loss of OFN-IT-080050020 in different working point.
