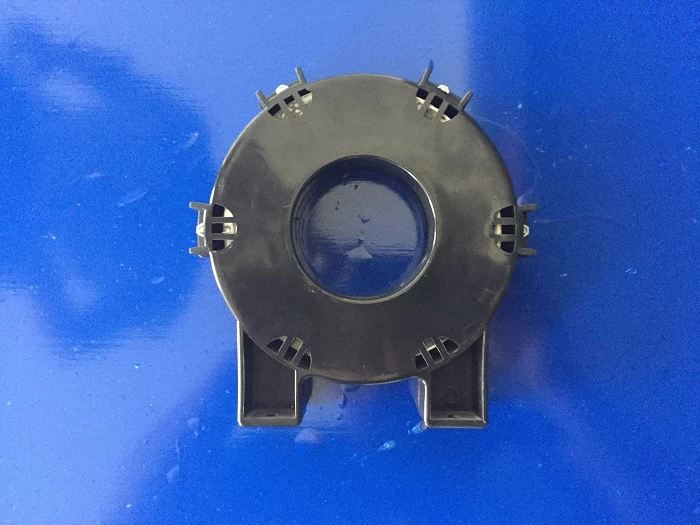

Inverter Transformers Core OFN-IT-120060030

Inverter Welding machine power supply

1. Material of Core:Fe-base nanocrystalline alloy ribbon

2. Dimensions of Core:

3. Finish Dimensions:

4. Magnetical Test:(AQL 0.65)

Test of Iron loss and AL according to GB/T 19346-2003( The test standard for Fe-base nanocrystalline alloy in China)

4.1 AL Test:

4.2 Loss Test:

Magnetic Induction Density:B=0.5T

Frequency:f=20kHz

Test Equipment:2010SA AC soft magnetic tester

Iron Loss:pFe≤25W/kg

OFN-IT-100060020 Iron Loss:PFe≤34.5W

The Loss of OFN-IT-100060020 in different working point.
