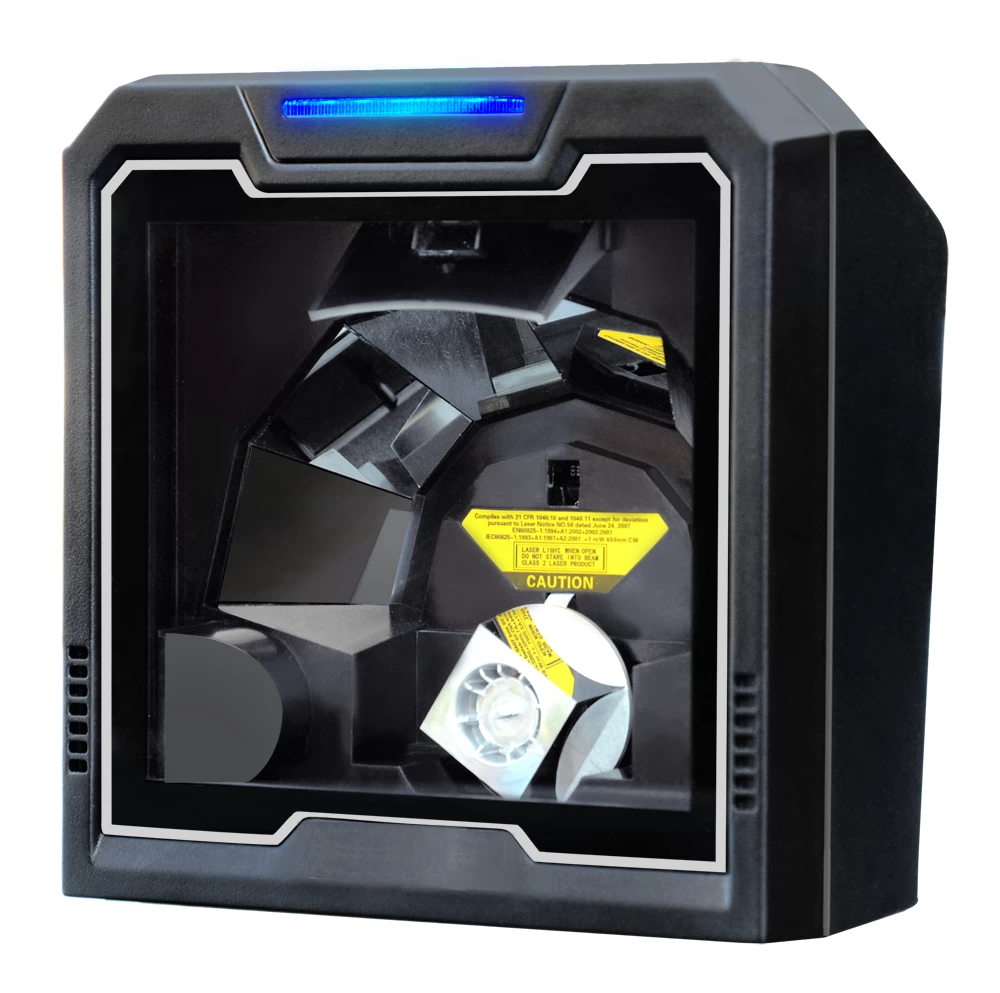

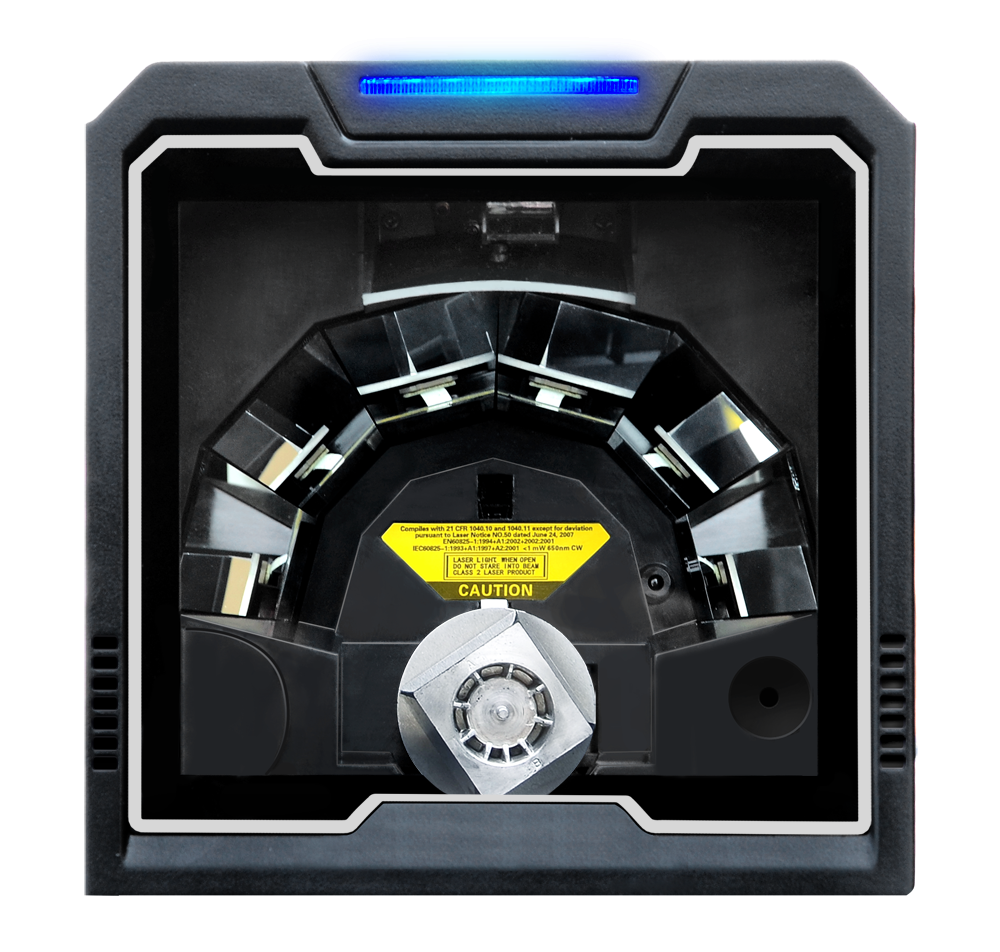

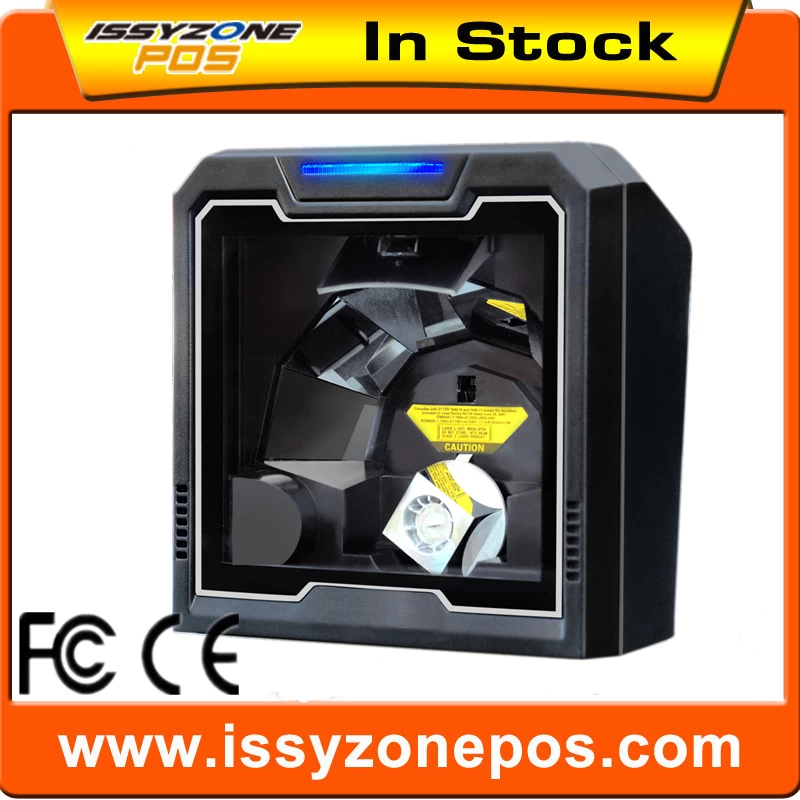

IOBC008 1D 48 Lines Omnidirectional Barcode Scanner

Performance Parameters
Light Sources	650nm laser(Safe visible laser diode)
Supported Symbologies	UPC/EAN/JAN, UPC-A &UPC-E, EAN-8 & EAN-13, JAN-8 & jan-13, ISBN/ISSN, Code39(with full ASCII),CodabarNW7), Code 128 & EAN 128, Code93,Interleaved 2 of 5(ITF), Addendum 2 of5, IATA Code,MSI/Plessy, RSS 14, Code 32(Iralian Pharmacode),RSS Limited, RSS Expanded,China Post Code
Reading mode	Multi-line laser
Scan lines	48 lines
Scan Angle	Dual optical routes 48 directional
Scan Speed	2620 times/s
Scan Distance	0~1000mm@ (13mil UPC/EAN 100%, PCS=90%)
Precision	4 mil (0.127mm)
Print of Contrast	≥20%（UPC/EAN 100%)
Visual Indicator	LED Instructions Blue+Red LED Instructions
Sound	Tone and volume adjustable tone speakers
Interface	USB、PS2、RS232
Physical Parameters
Dimensions	152mm152mm80mm
Weight	610g
Material	ABS+PC
Cable Length	2M(Straighten)
Environmental Parameters
Operating Temperature	-10℃~50℃
Storage Temperature	-20℃~60℃
Relative Humidity	5%~95%(Non-condensing)
Drop/Shock Resistance	Withstands multiple times 1.5 meters drops to concrete
Electrical Parameters
Voltage	DC9V±10%
Current	430mA
