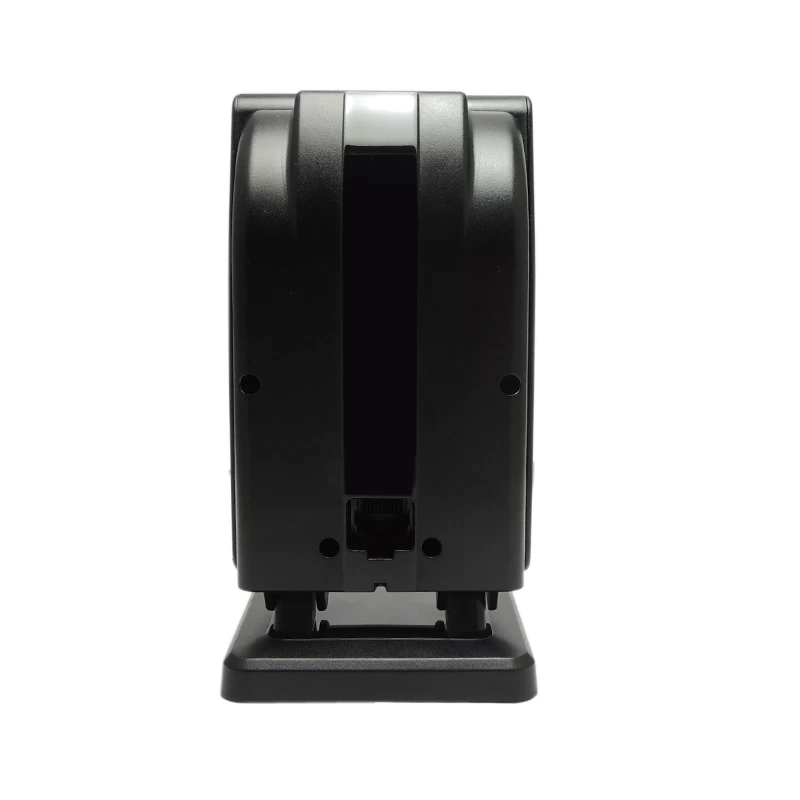

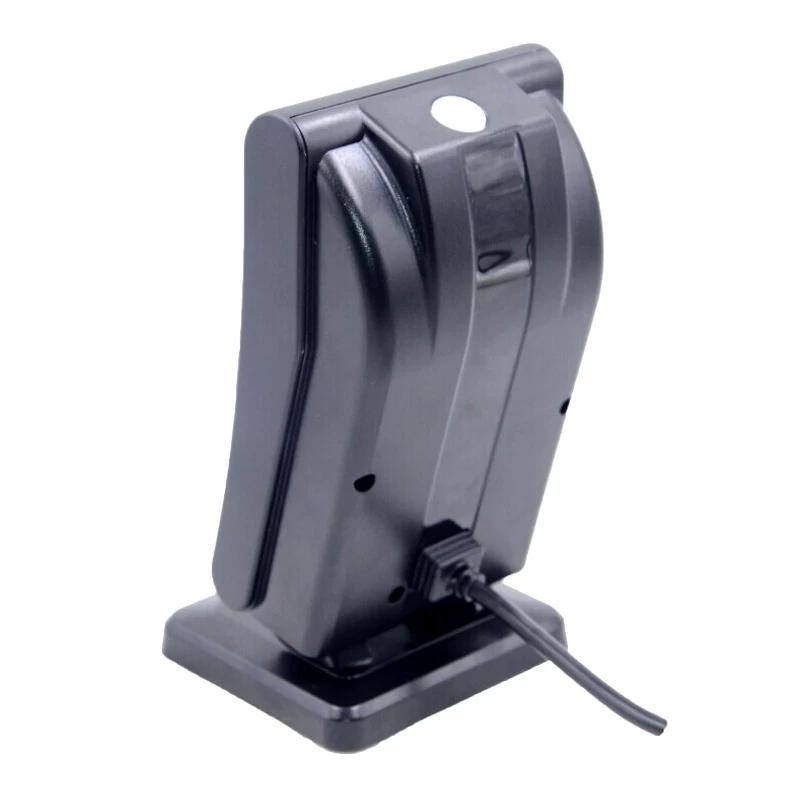

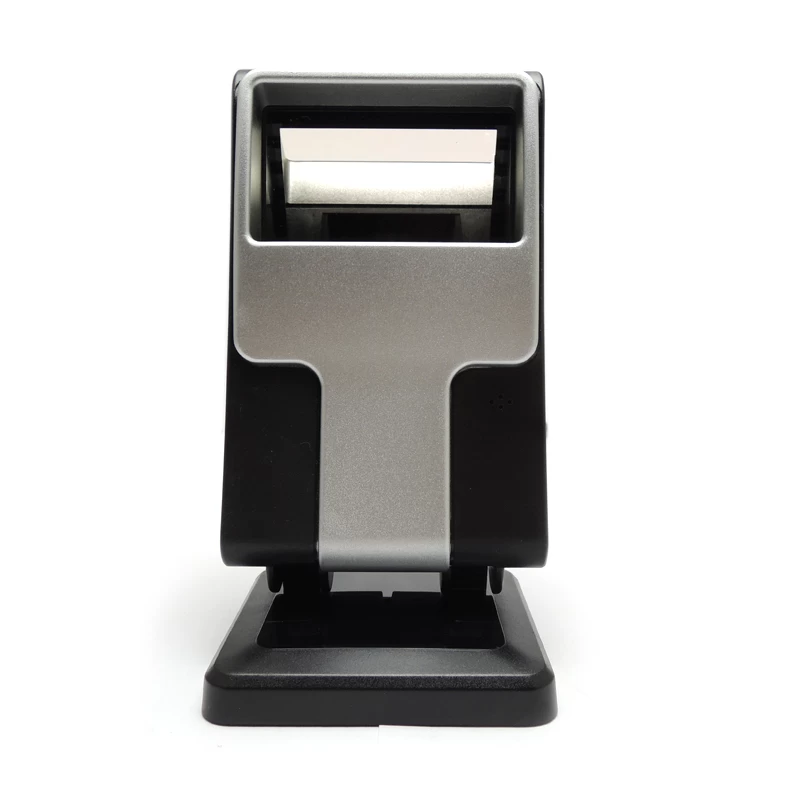

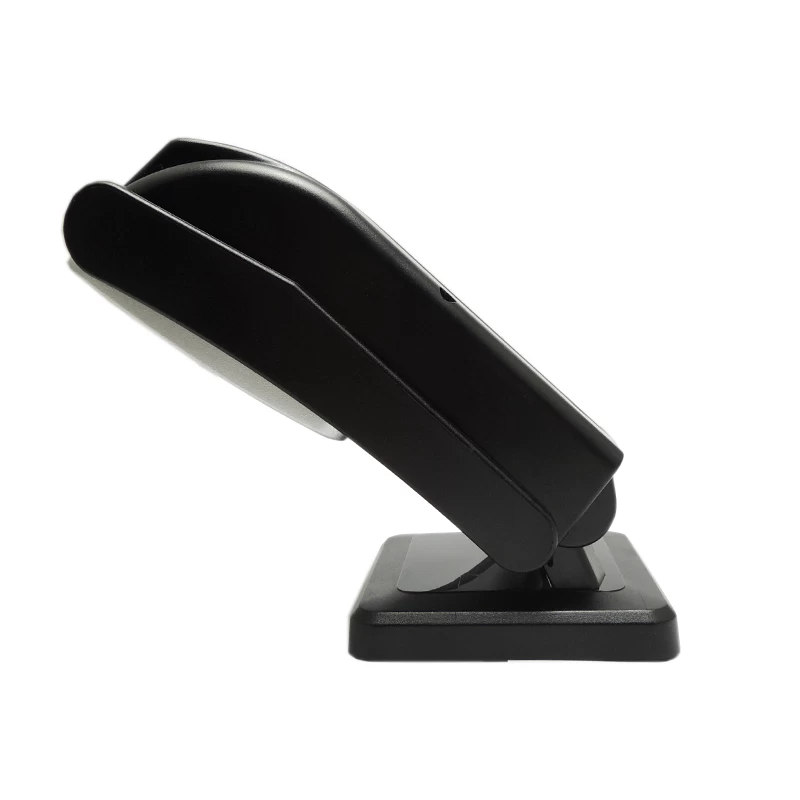

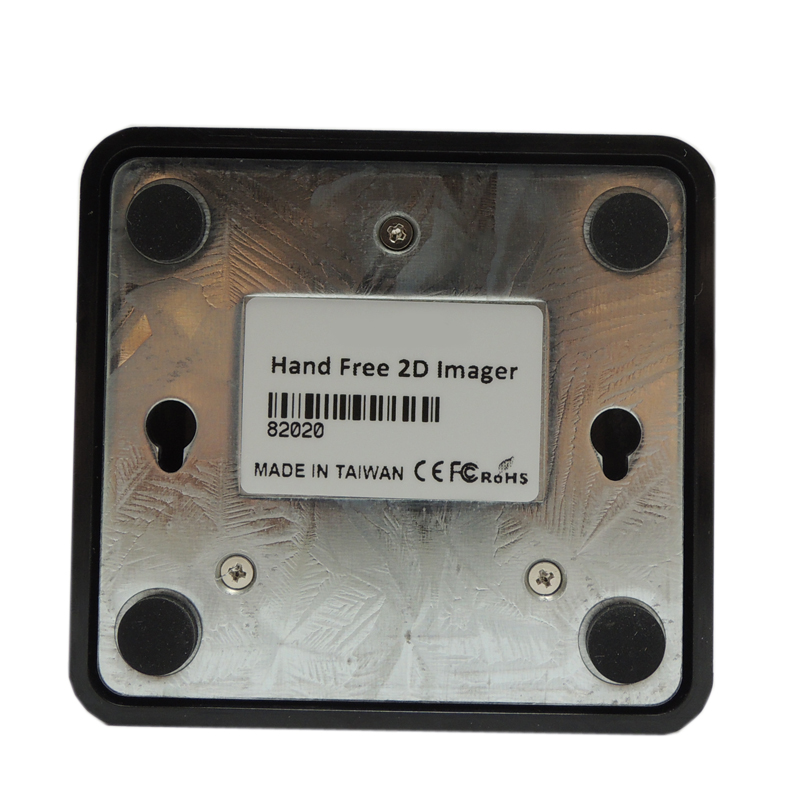

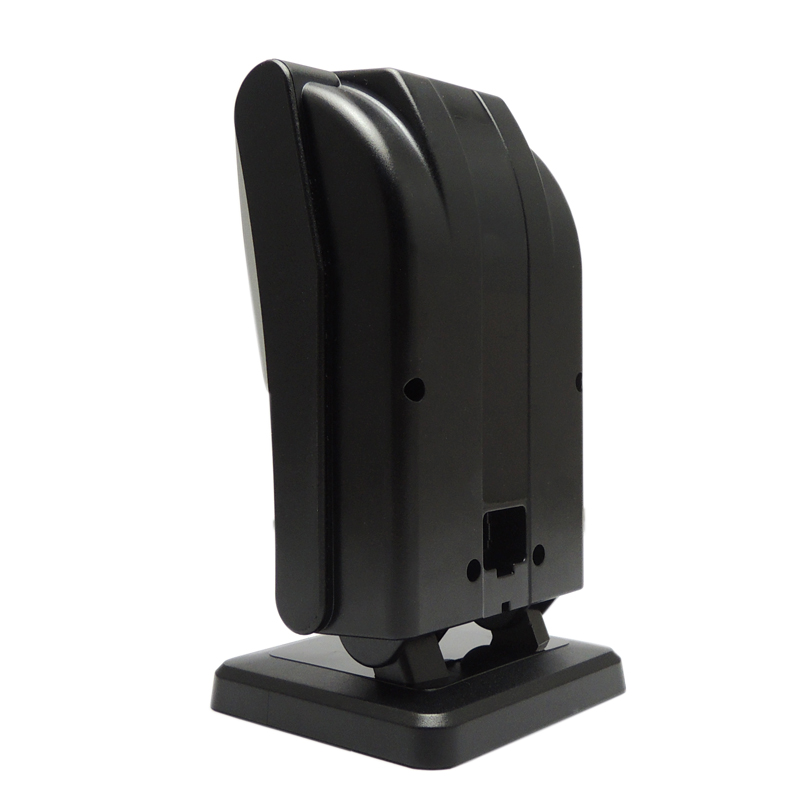

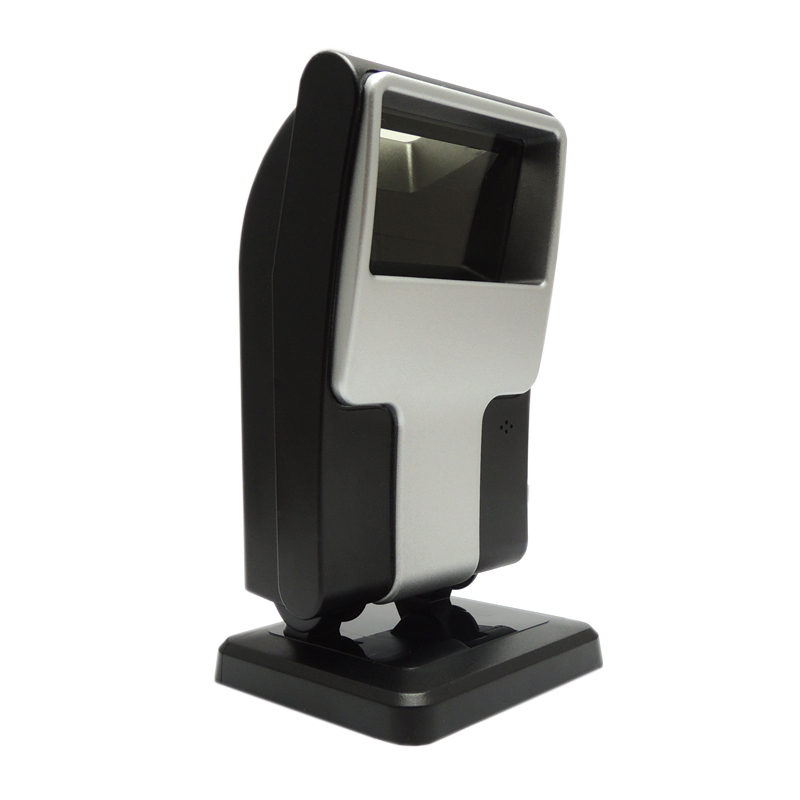

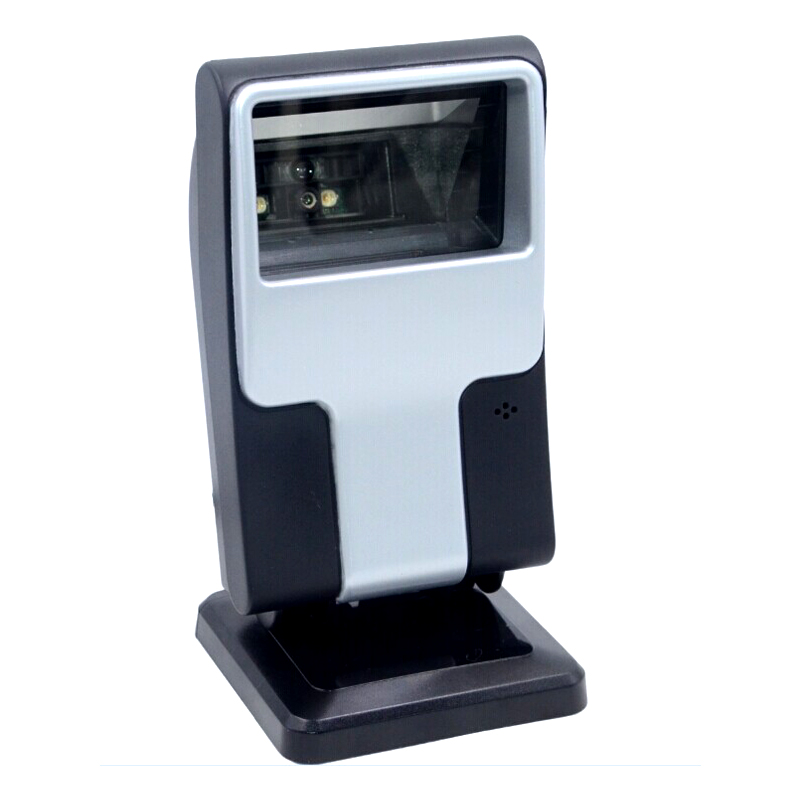

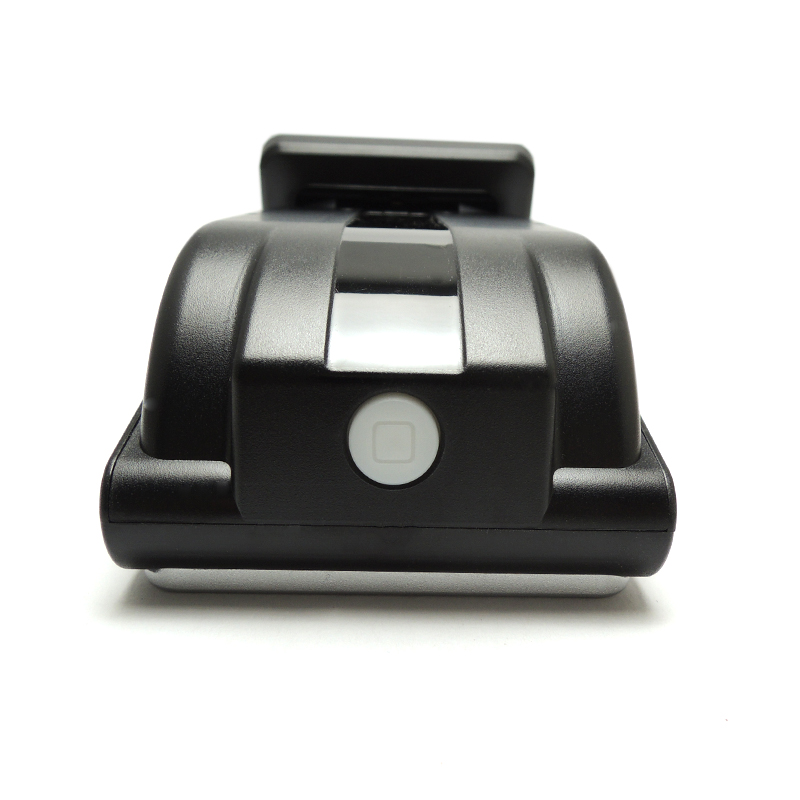

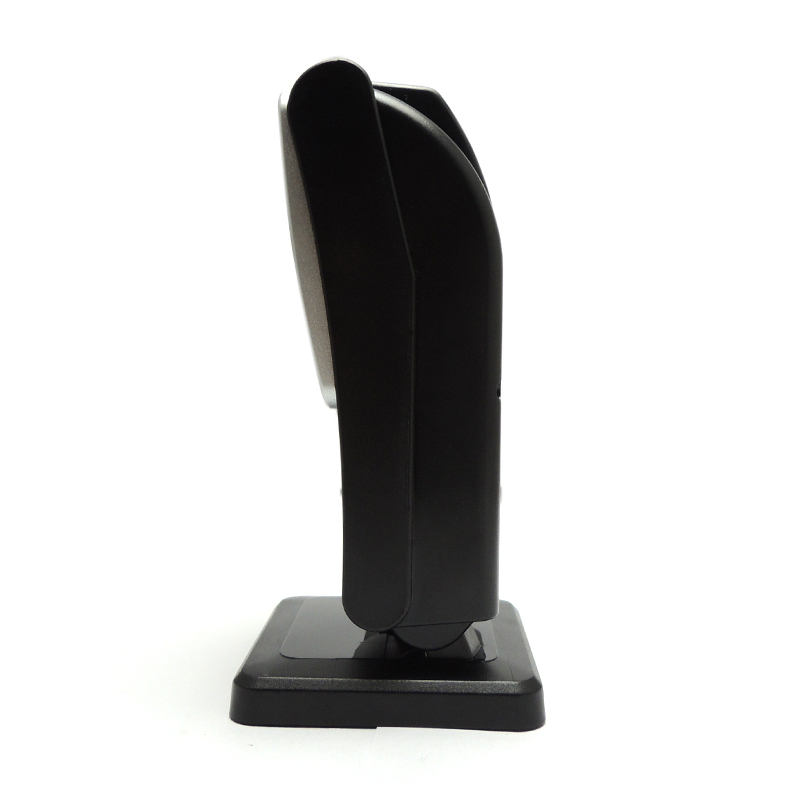

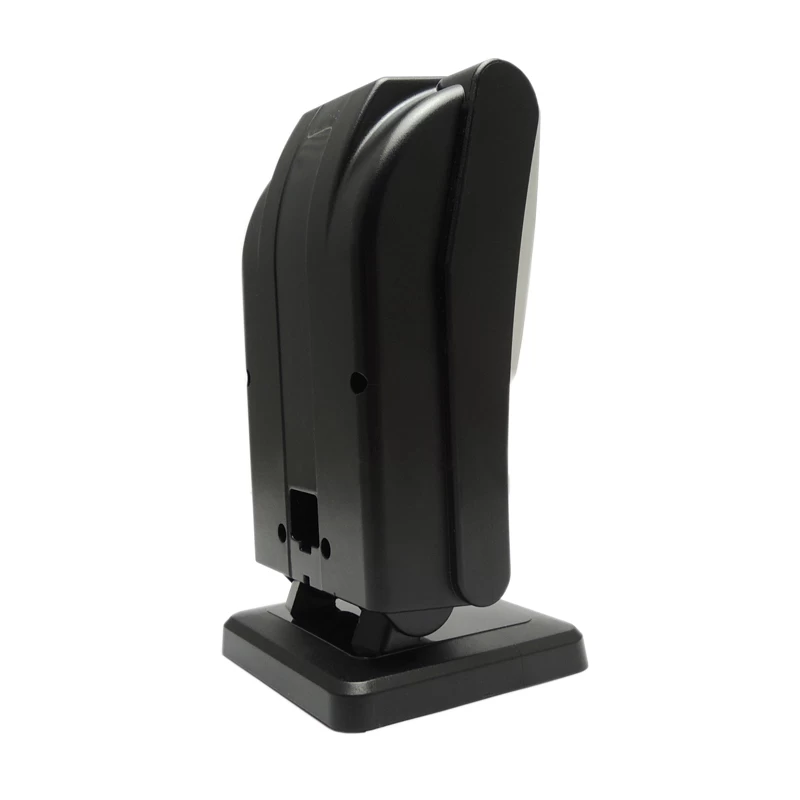

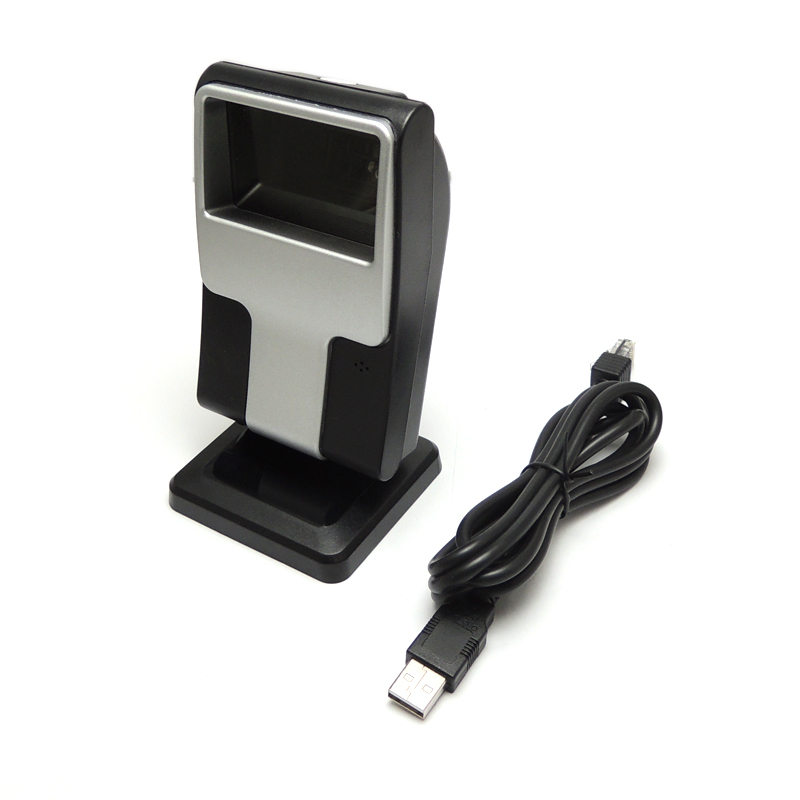

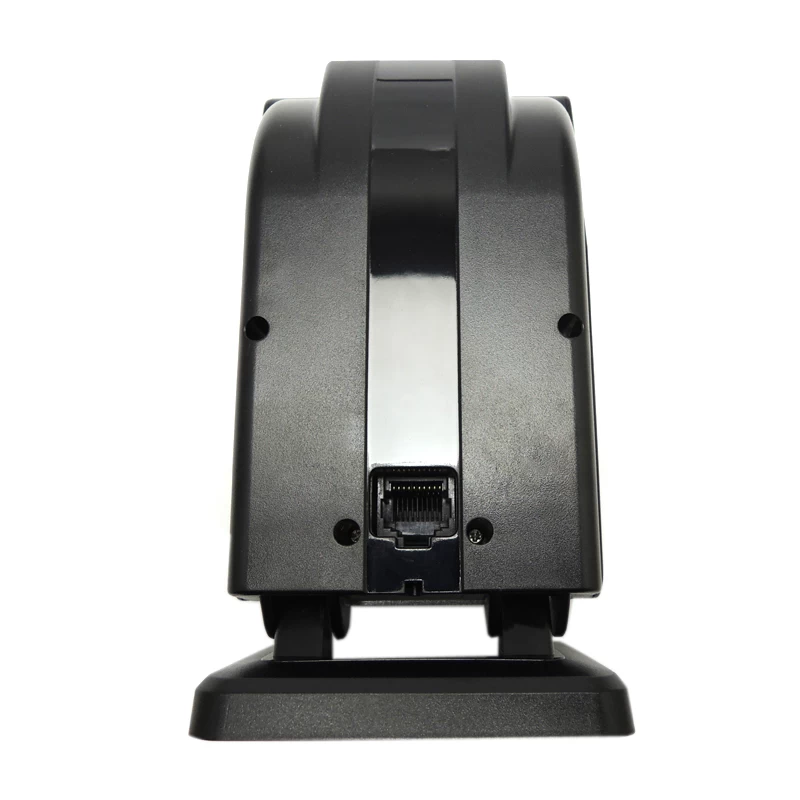

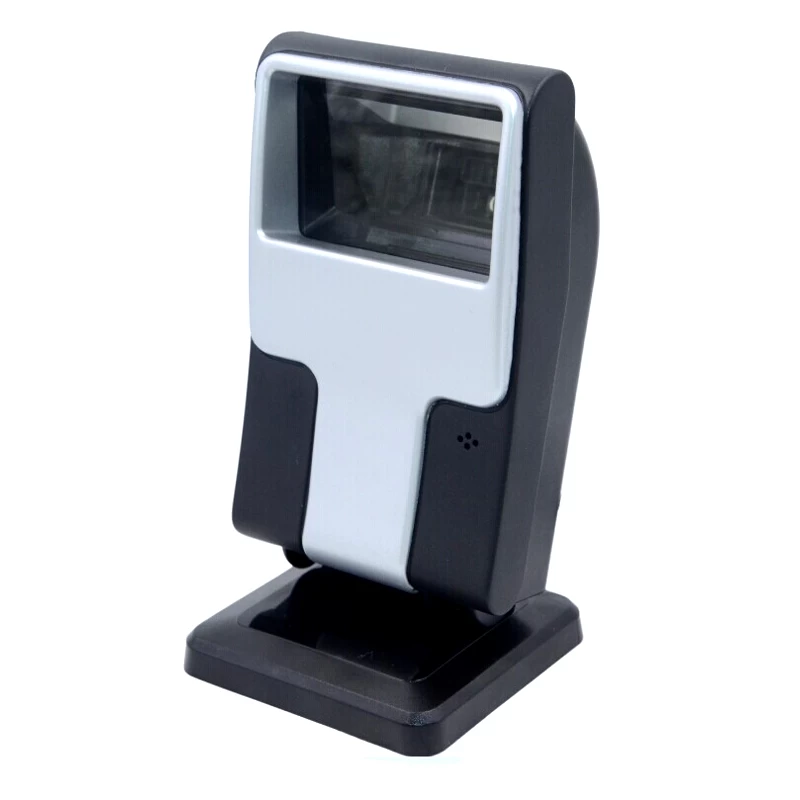

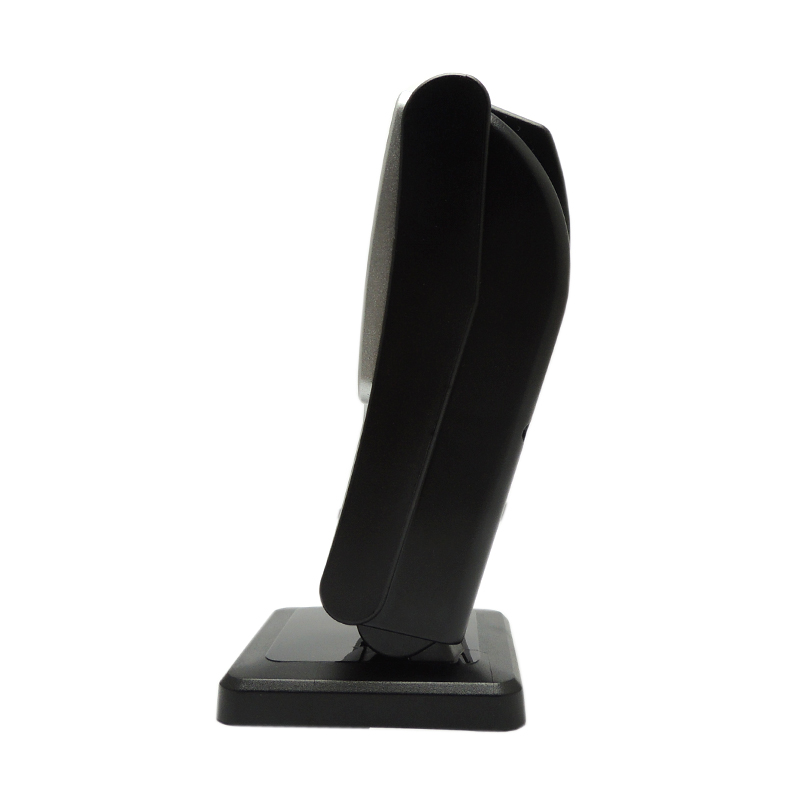

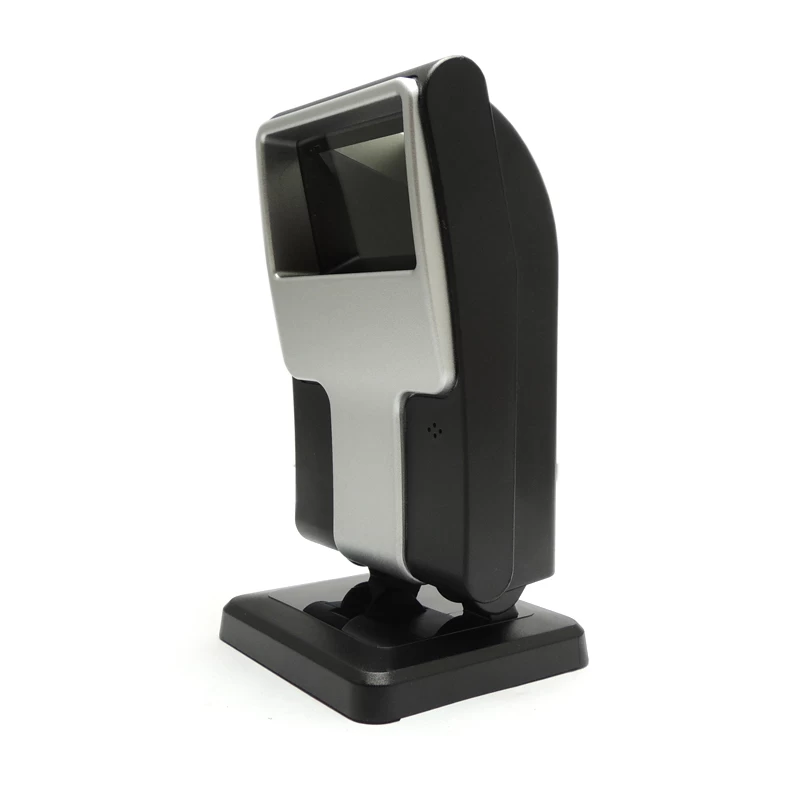

IOBC019 2D QR Code Reader Desktop Type QR Scanner Hand Free

ITEM

IOBC019 2D barcode scanner

Introduction

Feature

Read 4 mil minimum barcode resolution
Auto-sense function saves power for improve life time
Read all 1D standard and 2D barcodes
Multi-interface solutions

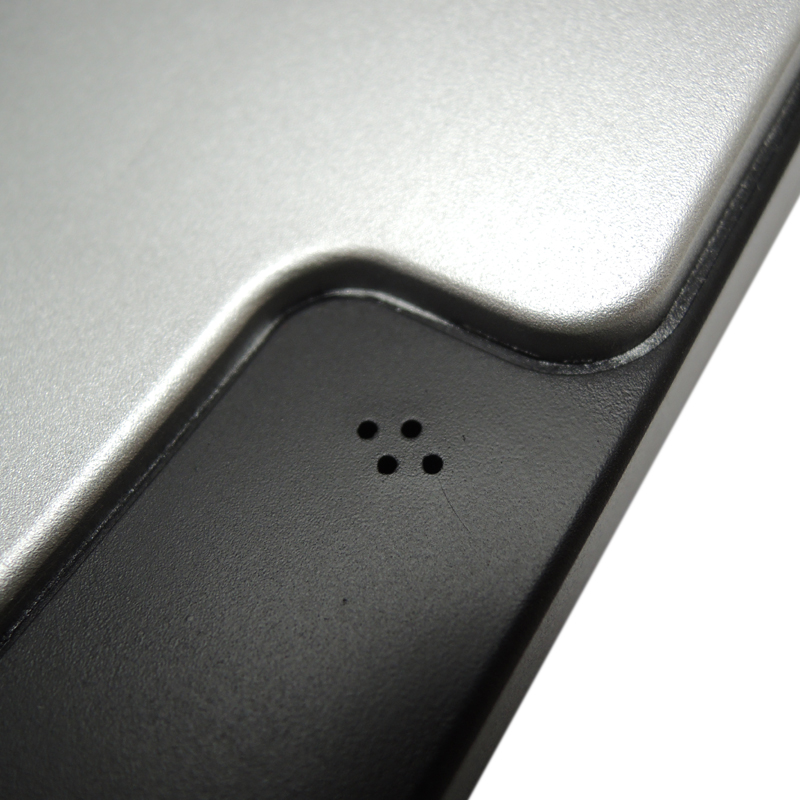

With LEDs and speaker for scanning confirmation

SPECIFICATIONS

Optical

Optical System

752 H x 480 V pixels (Wide VGA)

Light Source

Aiming Pattern: single dot, 625nm LED

Illumination: 630nm LEDs

Resolution

4 mil (Code 39), 7.5 mil (Data Matrix), 5 mil (PDF 417)

Focusing Distance

Up to 267mm

Field of View

Horizontal: 46.1º; Vertical: 30.4º

Indicator

LEDs, Speaker

Electrical

Voltage

DC 5V

Scanning Currents

<260mA

Environment

Operating temperature

0 °C to 40 °C (32ºF to 104ºF)

Operating humidity

5% ~95% RH(non-condensing/non-freezing)

Shock resistance

1.5m drops

Physical

Weight

300g (incl. cable weight)

Dimensions

140mm (L) x 73mm (W) x 70mm (H)

Housing Material

PC + ABS plastic

General

Interface

USB HID / RS-232 / USB-COM

UPC/EAN/(UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplemental, ISBN, ISSN, Coupon Code), Code 39, Code 39 Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codeabar/NW7, Interleaved 2 of 5, Descrete 2 of 5, IATA Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1Databar, (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)

Readable Codes 1D

PDF417 (and variants)

PDF417 (Standard, Macro), MicroPDF417 (Standard, Marco), Composite Code (CC-A, CC-B, CC-C)

Readable Codes 2D

MaxiCode, Data Matrix, Data Matrix inverse, QR Code, QR Inverse, Micro QR Code, Aztec Code, Aztec Inverse, Postal Code

Postal

U.S. Posnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB
