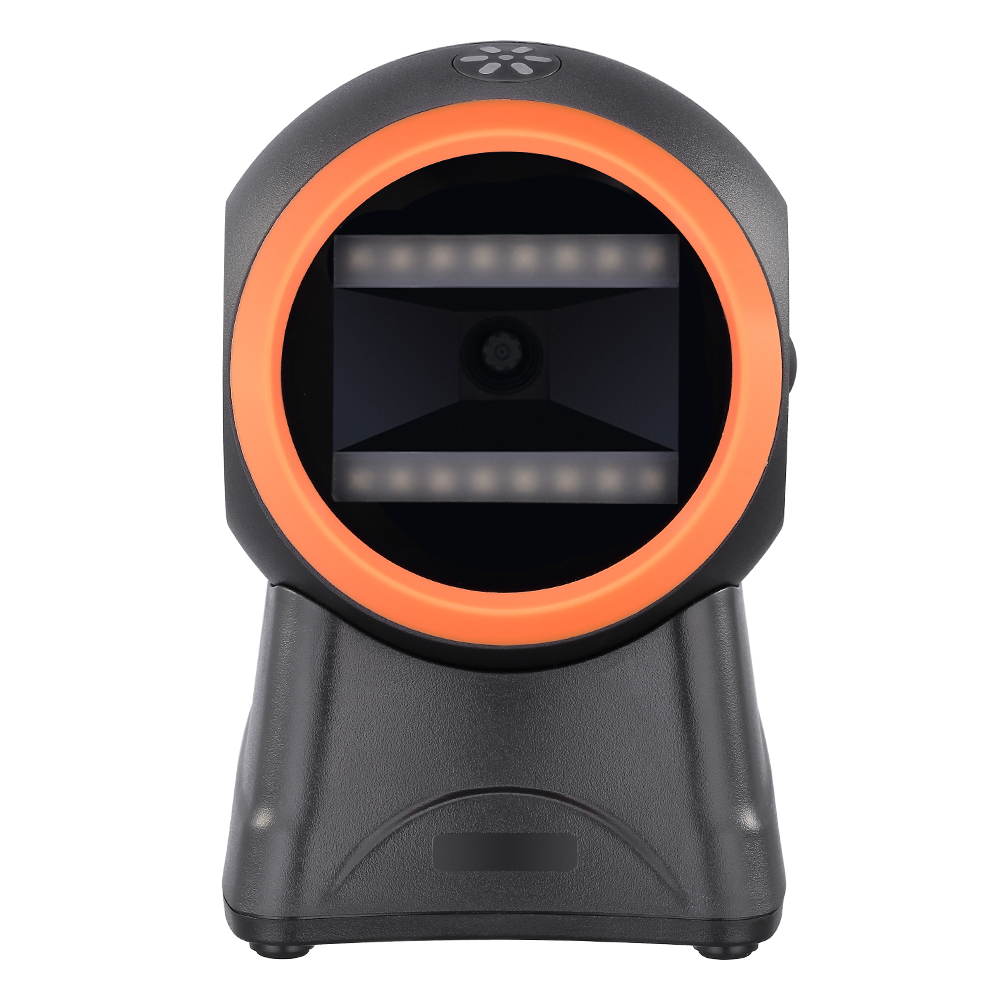

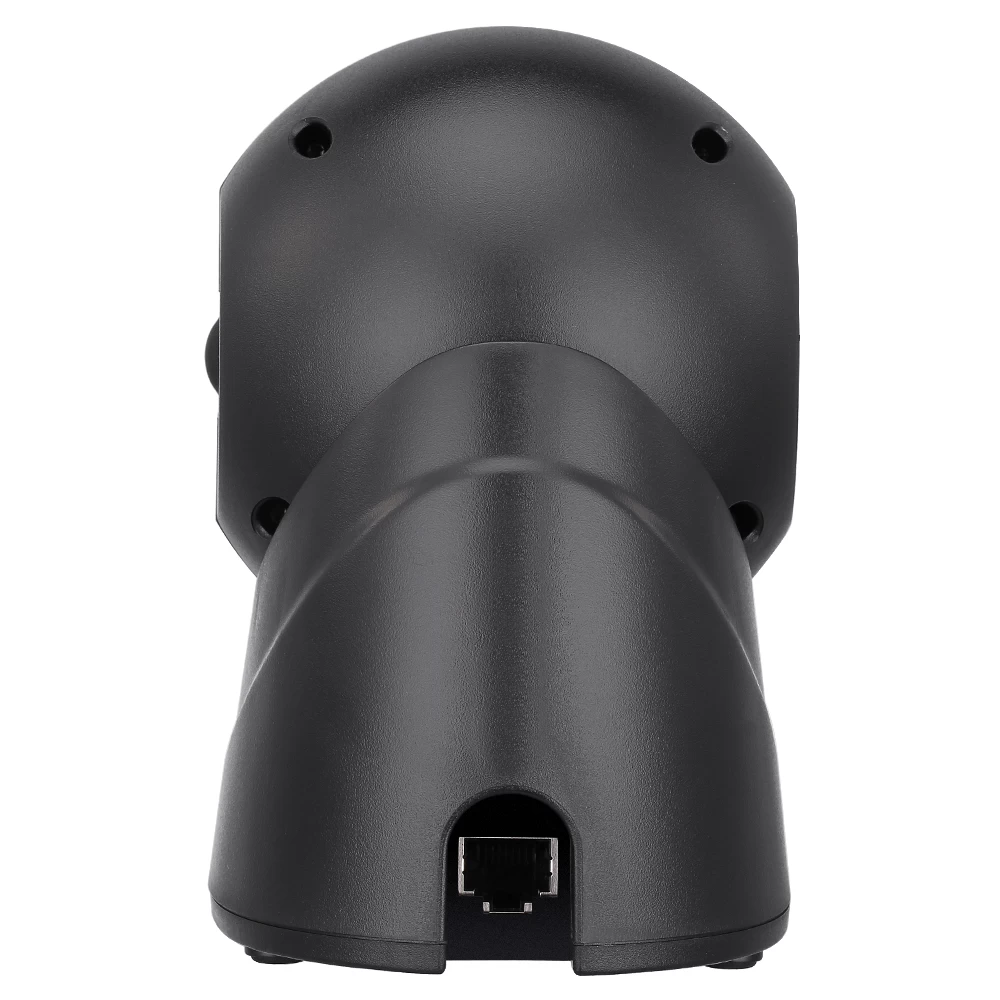

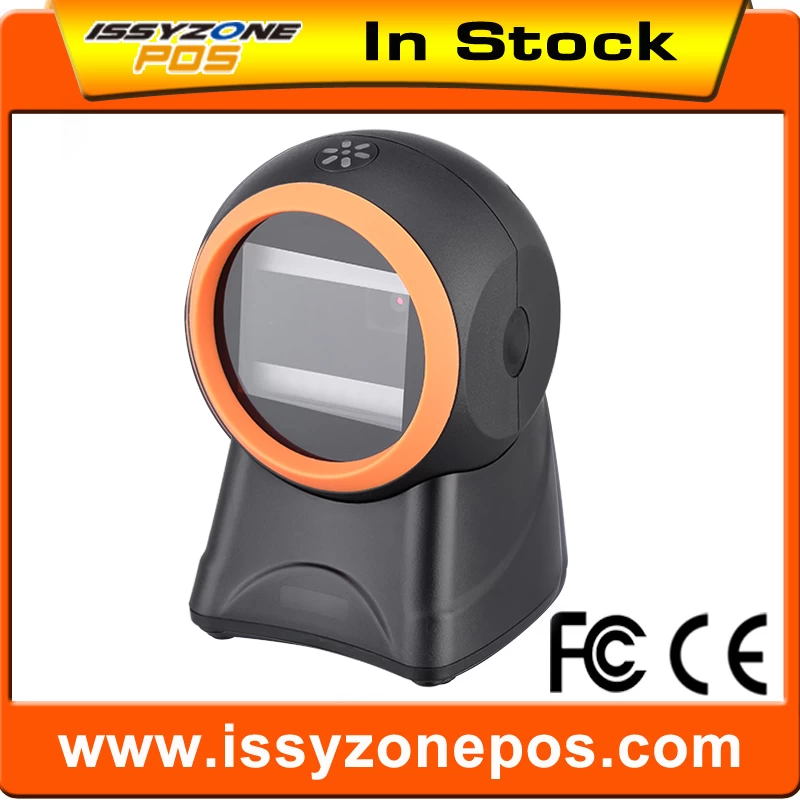

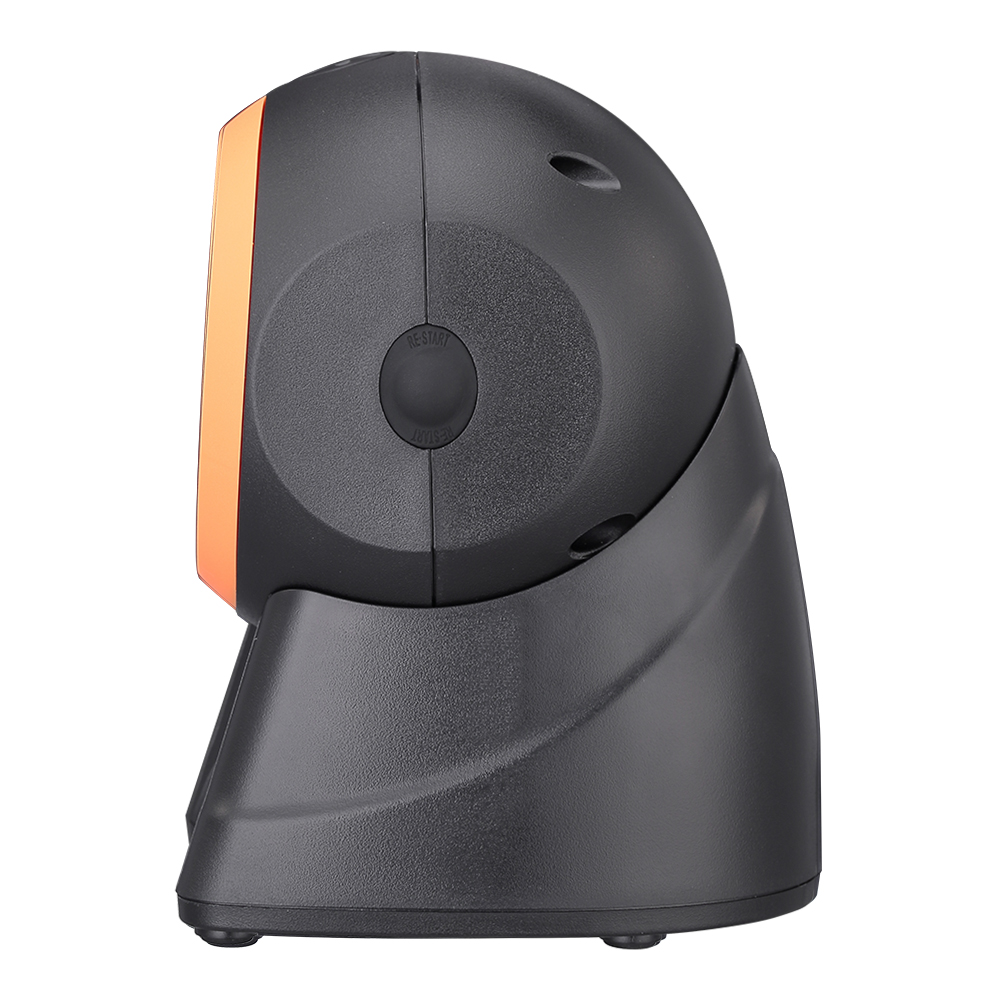

IOBC039 2D Omnidirectional Barcode Scanner

Feature
Light Resource	617nm red LED
Pixel	1280 pixels(H)x 800 pixels(V)
Port/Interface	USB (standard)
Supported Symbologies	1D: UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode), RSS 14,RSS Limited, RSS Expanded
Supported Symbologies	2D:Data Matrix, QR Code, Micro QR Code Aztec Code MaxiCode
Presicion	0.127mm(5mil)@Code 39, PCS=90%
Depth of scan field	0 mm - 160 mm @UPCA -13 mil 100％，PCS 90％
Operation	Manual
Decode Error Rate	0 Error
Print Contrast Signal	≥30° (UPC/EAN 100% , PCS 90%)
Scan Angle	48° (H) x 30° (V)
Mechanical/ Electrical
Voltage	5VDC±10%
Current	170mA
Environmetal
Operation Tempereture	0℃~50℃
Storage Temperature	-40℃-70℃
Humidity	5%-95%
Applicable scope
Comercial POS system(Supermarkets)	Warehousing and logistics
	Libraries
	Banks and Telecom
	Transportaion
	Postal service
	Industrial and manufacturing management
Packing list
scanner × 1
User's guide × 1
cable × 1
