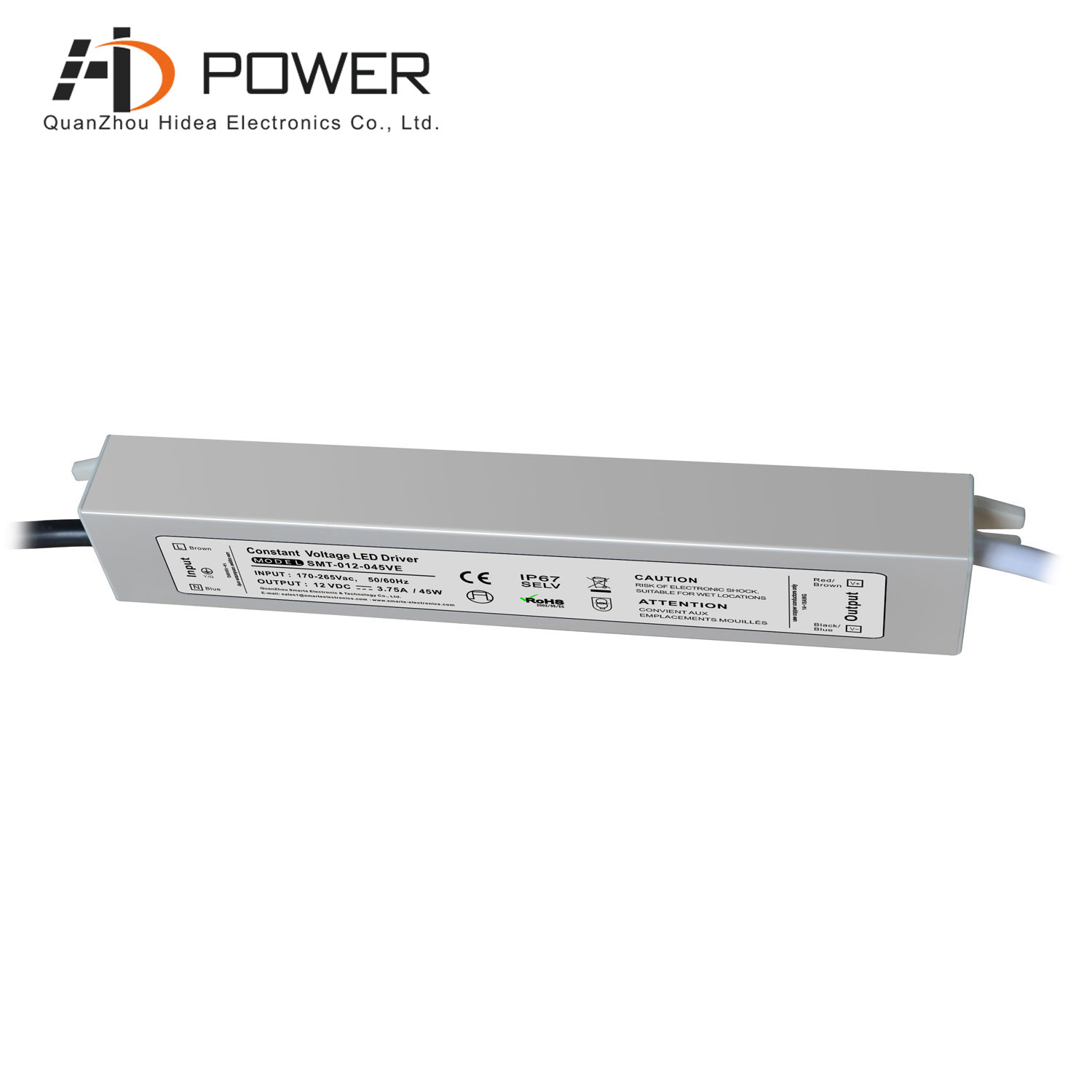

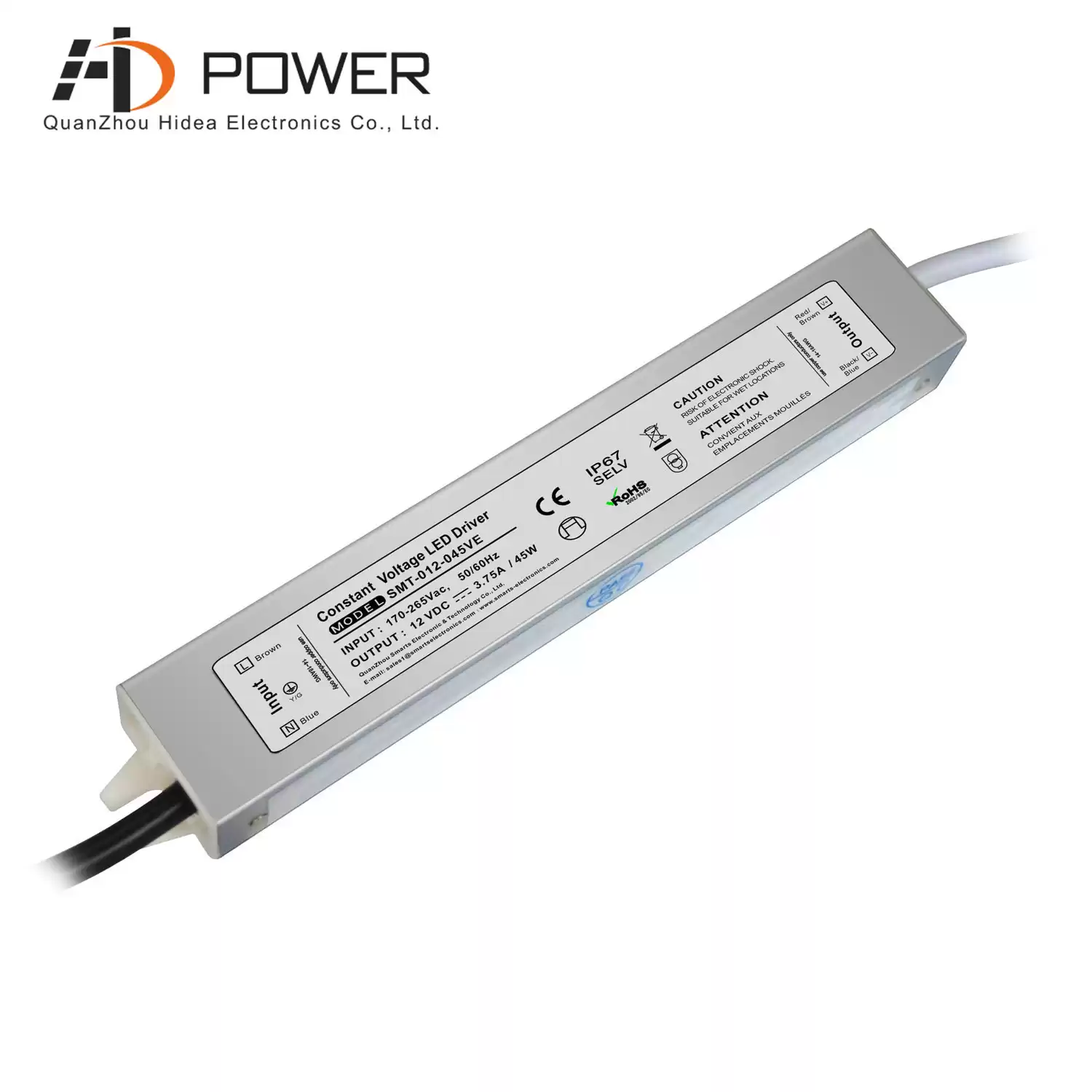

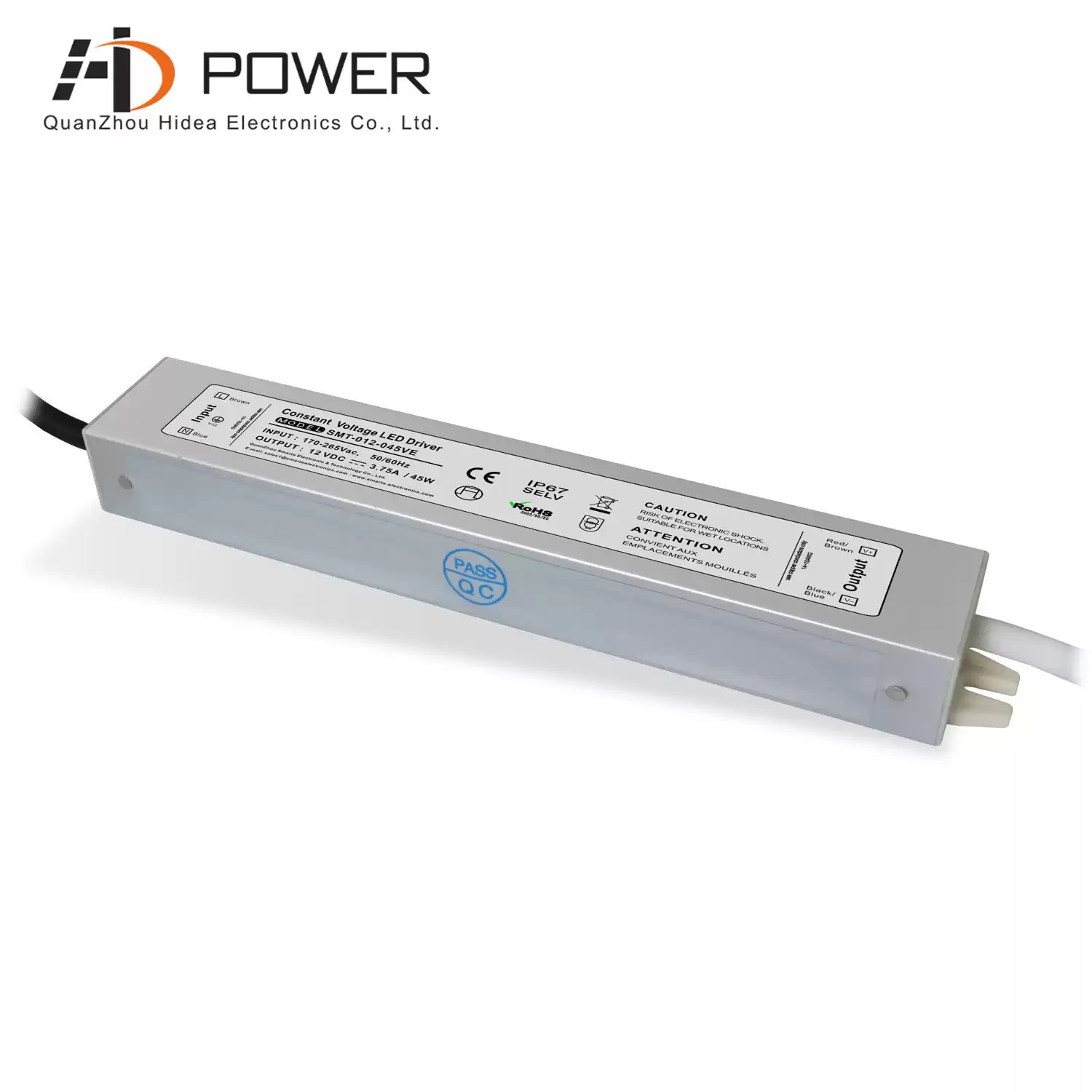

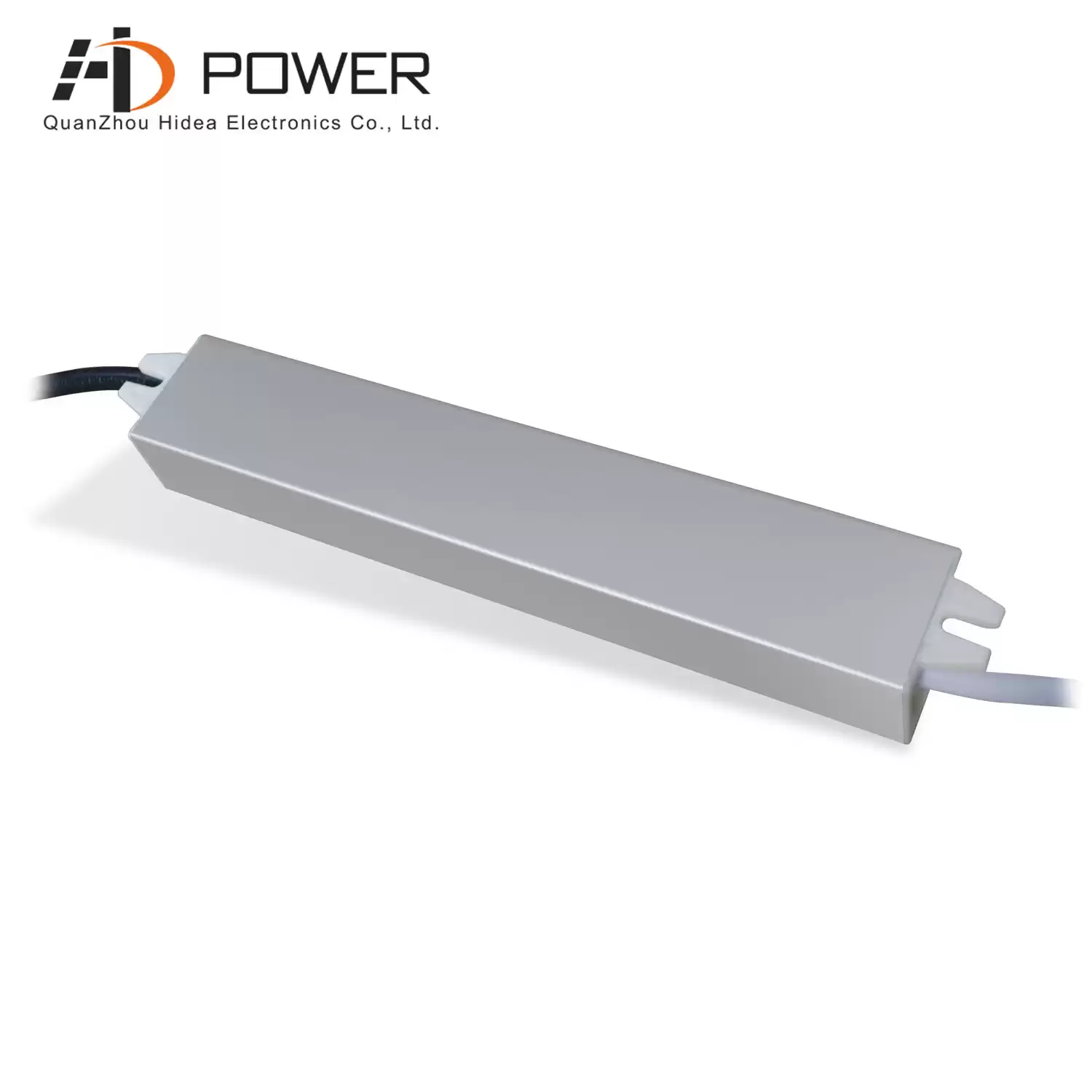

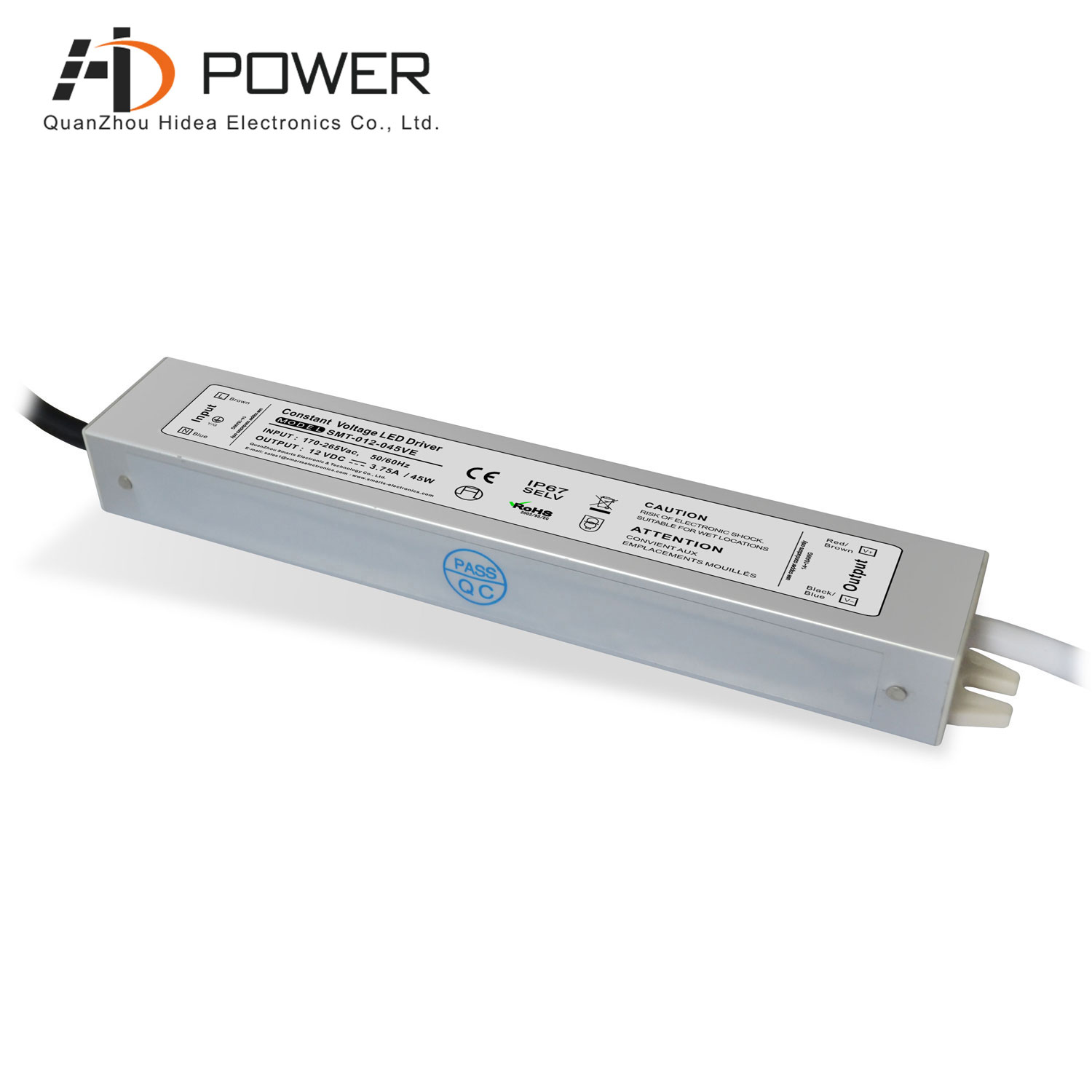

ip67 45W waterproof led power supply 12v transformer led strip light DRIVER ac to dc
The LED DRIVER of Waterproof IP67 is effective waterproof and dustproof. The warranty period is two years. It has short circuit/overload/overload protection, safe and reliable, and can match with Amplighting's 45W LED Spotlight of AMPLIGHTING.
Specification
|
MODEL
|
SMT-012-045VE
|
SMT-024-045VE
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
3.75A
|
1.875A
|
|
CURRENT RANGE
|
0-3.75A
|
0-1.875A
|
|
RATED POWER
|
45W
|
45W
|
|
RIPPLE&NOISE(max)
|
<650mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
|
INPUT
|
VOLTAGE RANGE
|
100-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
no PFC
|
|
EFFICIENCY(Typ.)
|
》86%
|
|
AC CURRENT(Typ.)
|
0.45A/220VAC
|
|
PROTECTION
|
Short circuit
|
Hiccpe mode,recovers automatically after condition is removed
|
|
Overload
|
4.3A
|
2.3A
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
INGRESS PROTECTION
|
IP67 design for indoor or outdoor installations
|
|
STORAGE TEMP
|
-40~+80℃
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13;SELV;IP67 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
|
|
NOTE
|
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Low Voltage Device Type
SMT-012-045VE waterproof and constant pressure LED Power Supply has passed CE certification, which is in line with European safety lighting rules and can be connected with AQ Lighting 45W LED Strip.
Related Products
|

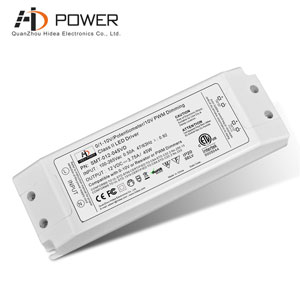

0 10V 45W IP20 DIMMABLE LED DRIVER Plastic Shell Easy Installation
