Parameter Specification:
|
|
|
CPU
|
Model
|
MediaTek MT6572,ARMV7 Processor rev 3(V71)
|
|
Speed
|
Dual core 1.4 GHz
|
|
Memory
|
RAM
|
512M
|
|
ROM
|
4GB
|
|
Available space
|
1.2GB
|
|
Extended Capacity
|
32GB
|
|
Display
|
Screen Size
|
3.5 inch
|
|
Touch screen
|
Capacitive touch screen
|
|
Resolution
|
320×480
|
|
Operating system
|
Android 4.2
|
|
|
3G
|
Support Network and
phone call and SMS
|
3G (850Mmhz and 2100mhz)and GMS/GPRS/EDGE (850/900/1800/1900mhz)
|
|
Hardware parameters
|
Wifi
|
IEEE 802.11 n/b/g
|
|
Bluetooth
|
Bluetooth V4.0
|
|
GPS Position
|
GPS Position/navigation
|
|
NFC
|
HF 13.56MHZ, Protocol Support：ISO14443A, ISO14443B,ISO
15693,MIFARERead / write mode, etc.
|
|

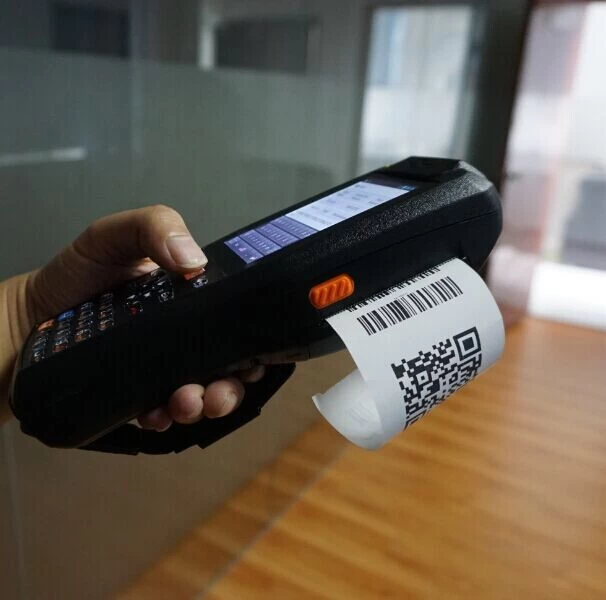

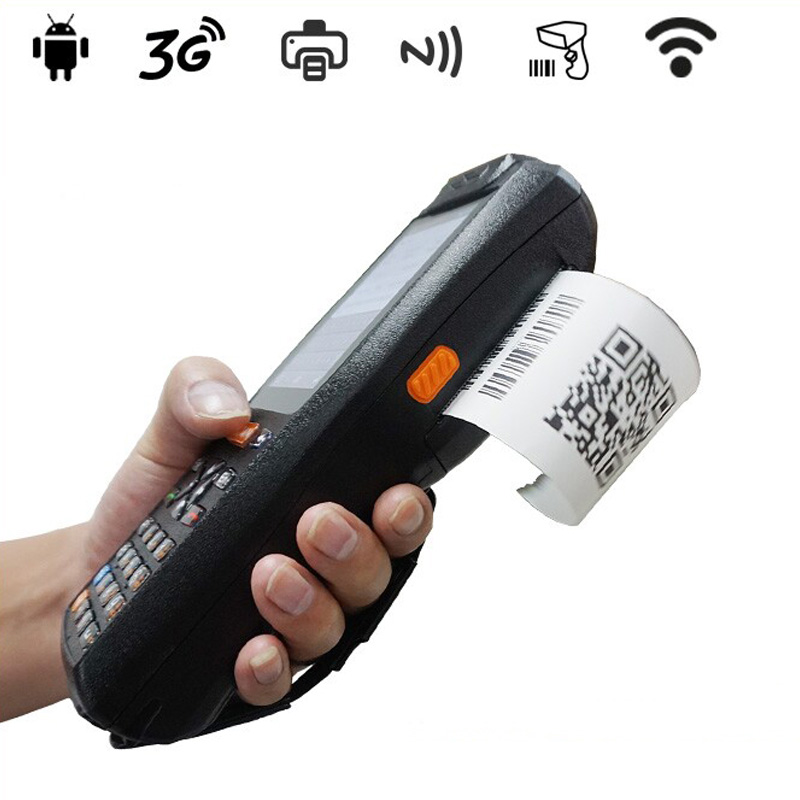

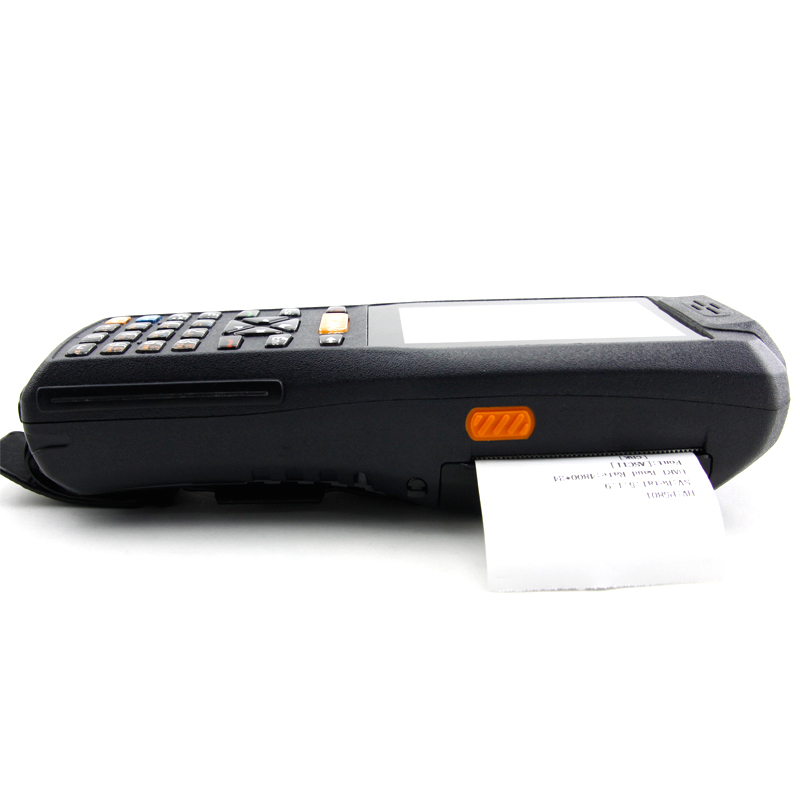

Thermal
printer
|
Built-in 58mm thermal printer
Paper roll size:58mm(width)*30mm (dia)
Printing speed:60mm/s
Print context: Characters,barcode,symbol,numbers etc.
|
|
Camera
|
Built-in 5MP camera ,can take photos and scan 1D and 2D barcode
|
|
PSAM
|
2 PSAM card slot for payment security
|
|

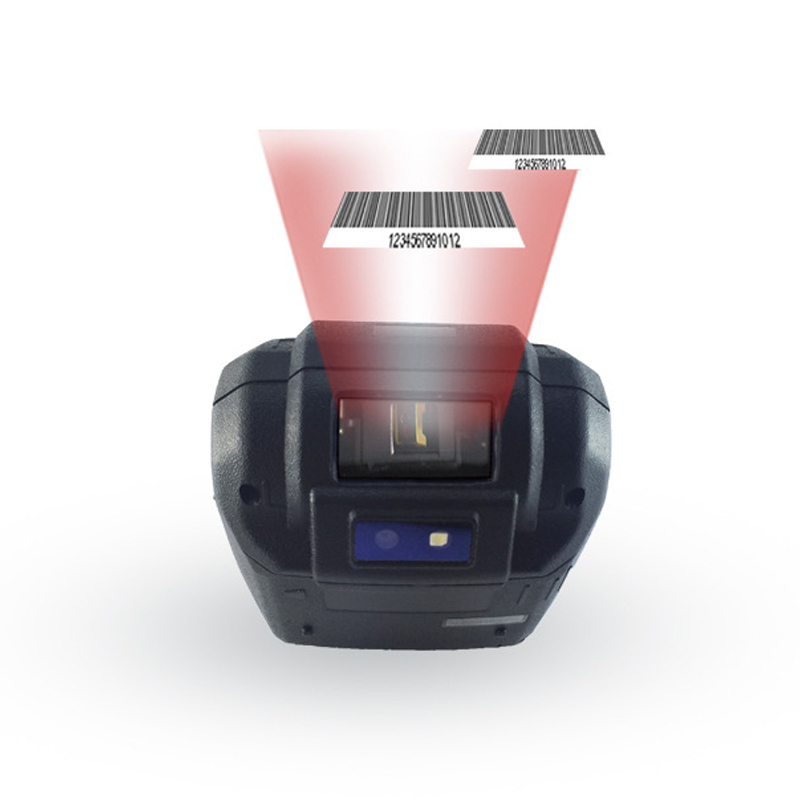

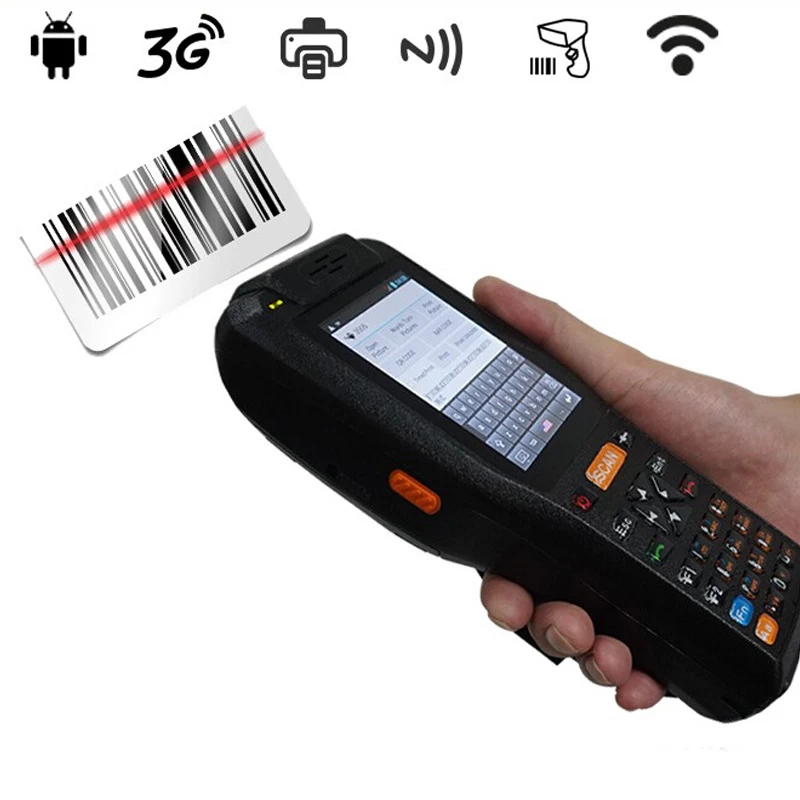

Barcode scanner(optional)
|
1D laser barcode scanner and 2D imager (QR code) scanner for
optional
|
|
Language
|
Support any languages
|
|
Secondary development
|
Provide free SDK (secondary development kit)
|
|
Video Player
|
Support for audio and video playback
|
|
Speaker
|
Built-in speakers 8 ohms 0.5W Diameter 50MM
|
|

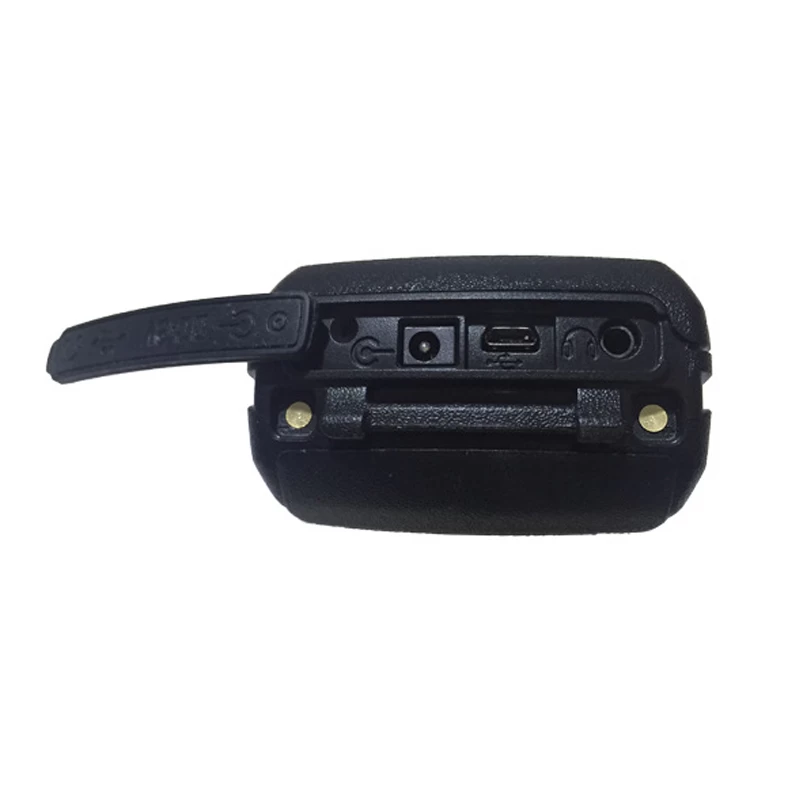

I/O
|
OTG output
|
Can be accessed by U
disk, mouse and other
USB devices
|
|
Micro USB port
|
Can be accessed 5PIN
USB data cable, support
and PC data connection
|
|
Power Interface
|
Can be accessed DC9V,
2A DC power adapter
|
|
SIM card
|
Standard SIM card
inserted
|
|
Panel buttons
|
27 function keys +2 side keys
|
|
|
Battery
|
Battery capacity
|
7.4V
3700mAH lithium battery
|
|
Charging time
|
4.5hours
|
|
Standby time
|
7 days
|
|
Playback time
|
9-15 hours
|
|
Accessories
|
Power adapter, micro USB data line,OTG cable,printing paper roll
|
|
Size and Weight
|
Product Size：
|
220*85*59mm
|
|
Weight：
|
570g
|
