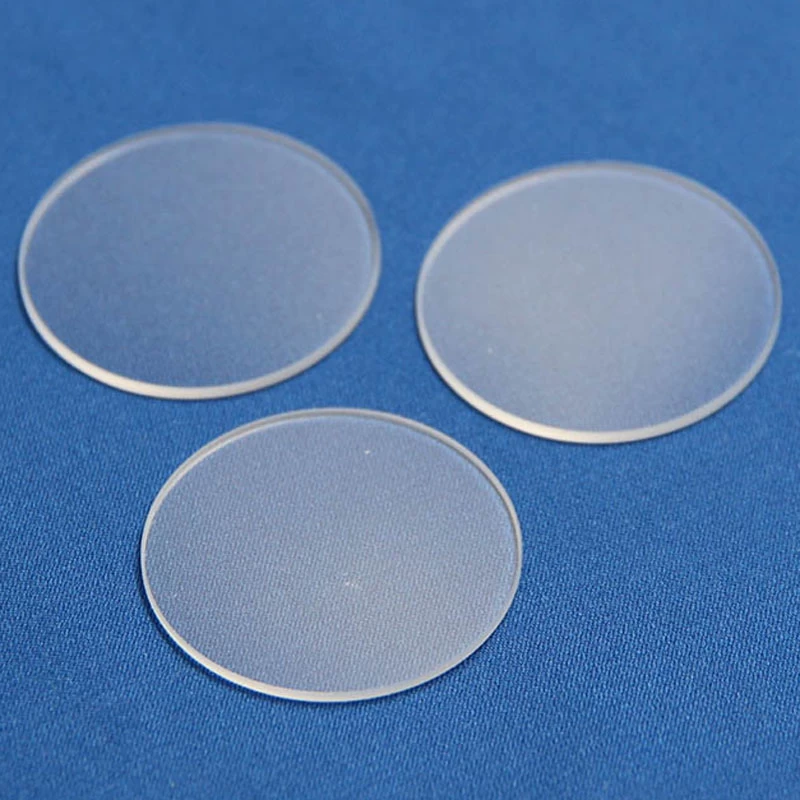

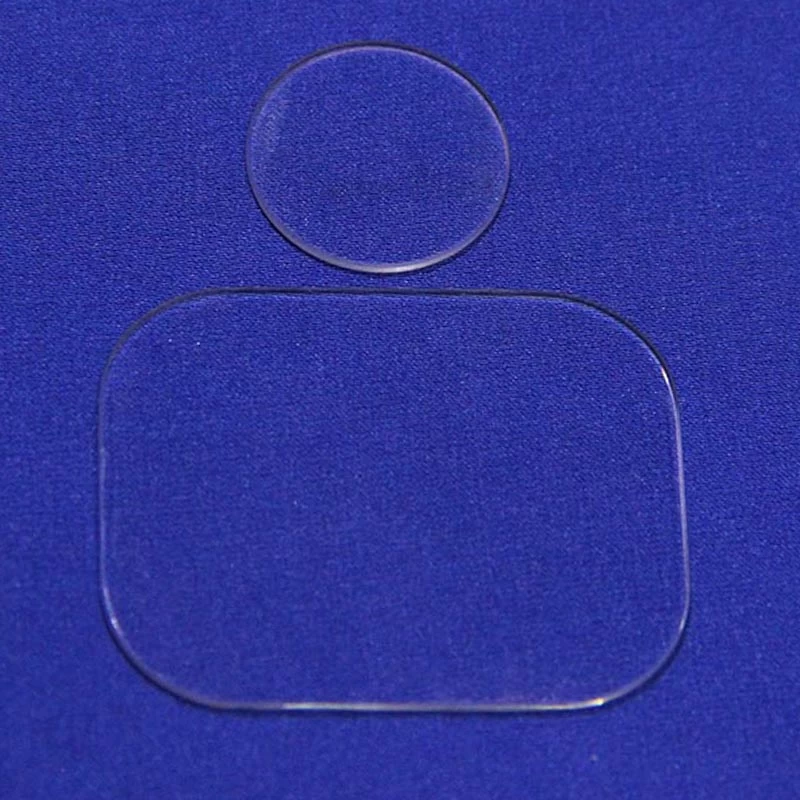

IR Windows Barium fluoride (BaF2) Windows
Barium fluoride (BaF2) shows good optical transmission over wide spectrum range, which can be used as UV-IR windows in 0.15μm~12.5μm. It also presents excellent scintillation properties, which is widely used in high energy physics, nuclear physics and nuclear medical instruments.
WTS make customized coated and uncoated BaF2 windows.
Note:When handling BaF2, please always wear gloves as it is a hazardous material.
BaF2 Windows SPECIFICATION:
|
Material:
|
BaF2
|
|
Dimension Tolerance:
|
+0.0, -0.1mm
|
|
Thickness Tolerance:
|
± 0.1mm
|
|
Surface quality:
|
80/50
|
|
Clear Aperture:
|
>85%
|
|
Flatness:
|
λ per 25mm
|
|
Parallelism:
|
3'
|
|
Bevel:
|
<0.25mm X 45°
|
|
Coating:
|
Upon requirement
|
|
|
BaF2 Main Properties and Performance
|
|
Transmission range (μm)
|
0.15~12.5
|
|
Transmittance
|
＞90% （0.35~9μm, 3mm）
|
|
Refractivity(2.58μm)
|
1.4626
|
|
Reflection Loss at 2.58μm
|
6.8%(both faces)
|
|
Radiation length(cm)
|
2.06
|
|
Emission peak (nm)
|
310(slow); 220(fast)
|
|
Decay constant(ns)
|
620(slow); 0.6(fast)
|
|
Light output[NaI(TI)=100%]
|
20%(slow); 4%(fast)
|
|
Knoop hardness (kg/mm2)
|
82 with 500g indenter
|
|
Solubility at 23℃(g/100gH2O)
|
0.17
|
|
Cleavage plane
|
-111
|
|
Density (g/cm3)
|
4.89
|
|
Melting Point (℃)
|
1280
|
|
Typical Sizes:
|
|
|
Round Shape
|
Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0;
|
|
Diameter(mm):
|
Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
|
|
Square Shape:
|
5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ;
|
|
WxH(mm)
|
20.0x20.0; 25.0x25.0; 50.0x50.0
|
|
Thickness(mm):
|
0.5; 1.0; 1.5; 2.0; 3.0;
|
|
|
4.0; 5.0; 6.0; 8.0; 10.0
|
