IR Windows Magnesium Fluoride (MgF2) Windows

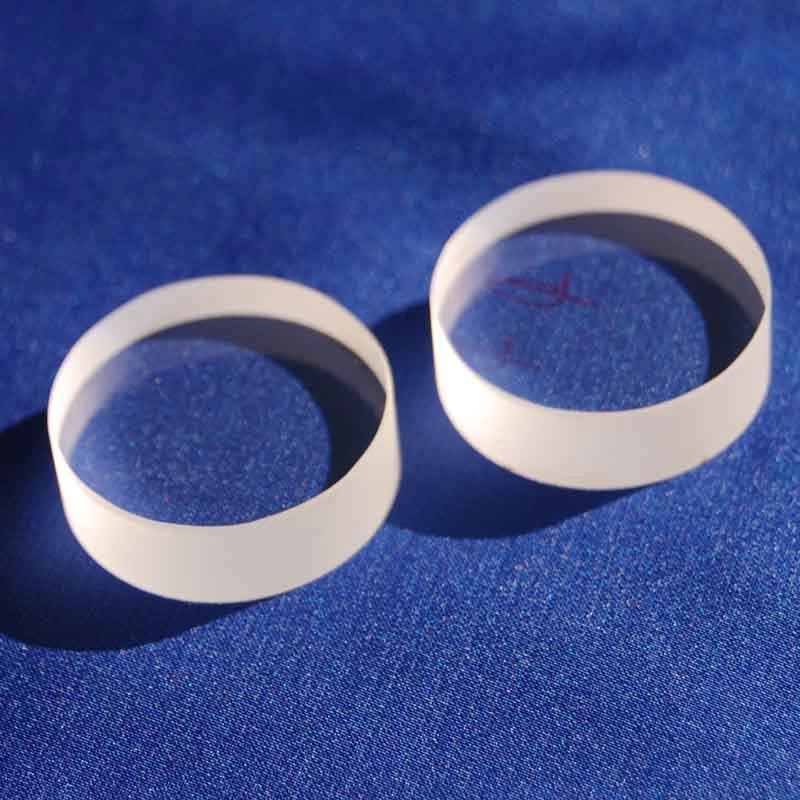

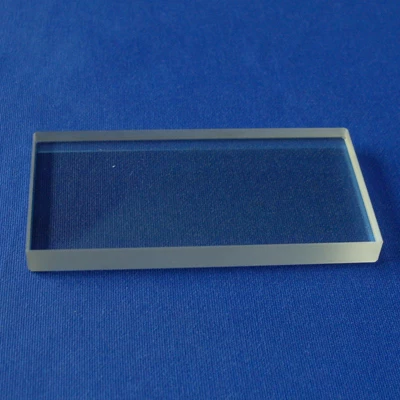

MgF2 has excellent transmission from deep in the ultraviolet region to the mid-infrared. MgF2 windows are extremely durable and introduce minimal aberrations. It is particularly useful for Excimer laser application.
MgF2 is one crystal with Orientation. WTS offer C-Axis and random Orientation MgF2 windows.
MgF2 Windows SPECIFICATION:
|
Material:
|
MgF2
|
|
Dimension Tolerance:
|
+0.0, -0.1mm
|
|
Thickness Tolerance:
|
± 0.1mm
|
|
Surface quality:
|
80/50
|
|
Clear Aperture:
|
>85%
|
|
Flatness:
|
λ per 25mm
|
|
Parallelism:
|
3'
|
|
Bevel:
|
<0.25mm X 45°
|
|
Coating:
|
Upon requirement
|
|
MgF2 Main Properties and Performance
|
Transmission range (μm)
|
0.11~7.5
|
|
Refractivity (0.7μm)
|
n0=1.37608 ne=1.38771
|
|
Reflection Loss at 0.6μm
|
5.2%(both faces)
|
|
Thermal expansion coefficient (℃-1)
|
13.7(//axis c), 8.9(⊥axis c)
|
|
Thermal conductivity at 300K (Wm-1K-1)
|
0.3
|
|
Knoop Hardness (kg/mm2)
|
415
|
|
Solubility (g/100gH2O·0℃)
|
0.0002
|
|
Density (g/cm3)
|
3.18
|
|
Melting Point (℃)
|
1255
|
|
Typical Sizes:
|
|
|
Round Shape
|
Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0;
|
|
Diameter(mm):
|
Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
|
|
Square Shape:
|
5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ;
|
|
WxH(mm)
|
20.0x20.0; 25.0x25.0; 50.0x50.0
|
|
Thickness(mm):
|
0.5; 1.0; 1.5; 2.0; 3.0;
|
|
|
4.0; 5.0; 6.0; 8.0; 10.0
|
