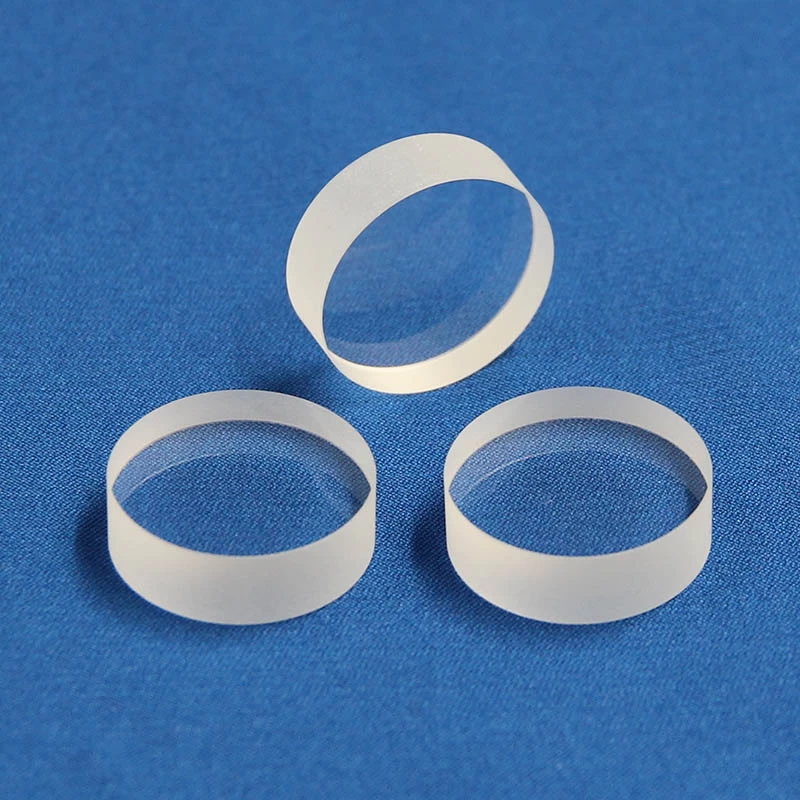

IR Windows Zinc Sulfide (ZnS) Windows
Zinc Sulfide (ZnS) is grown by chemical vapor deposition(CVD) method. It exhibits exceptional fracture strength and hardness leading to its frequent choice for military applications or other harsh environments. It is often used in the range of 3-5um and 8-12um. MultiSpectral grade ZnS(MS) is treated after growth to eliminate microscopic voids and efects which occur in the regular grade ZnS, thus extending the usefulness of this material to the visible region.
WTS offer CVD ZnS and Cleartran ZnS material windows, lenses etc. products.
ZnS Windows SPECIFICATION:
|
Material:
|
Zinc Sulfide (ZnS)
|
|
Dimension Tolerance:
|
+0.0, -0.1mm
|
|
Thickness Tolerance:
|
± 0.1mm
|
|
Surface quality:
|
60/40
|
|
Clear Aperture:
|
>85%
|
|
Flatness:
|
λ per 25mm
|
|
Parallelism:
|
3'
|
|
Bevel:
|
<0.25mm X 45°
|
|
Coating:
|
AR Coated or Up Requirement
|
|
Typical Sizes:
|
|
|
Round Shape
|
Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0;
|
|
Diameter(mm):
|
Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
|
|
Square Shape:
|
5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ;
|
|
WxH(mm)
|
20.0x20.0; 25.0x25.0; 50.0x50.0
|
|
Thickness(mm):
|
0.5; 1.0; 1.5; 2.0; 3.0;
|
|
|
4.0; 5.0; 6.0; 8.0; 10.0
|
