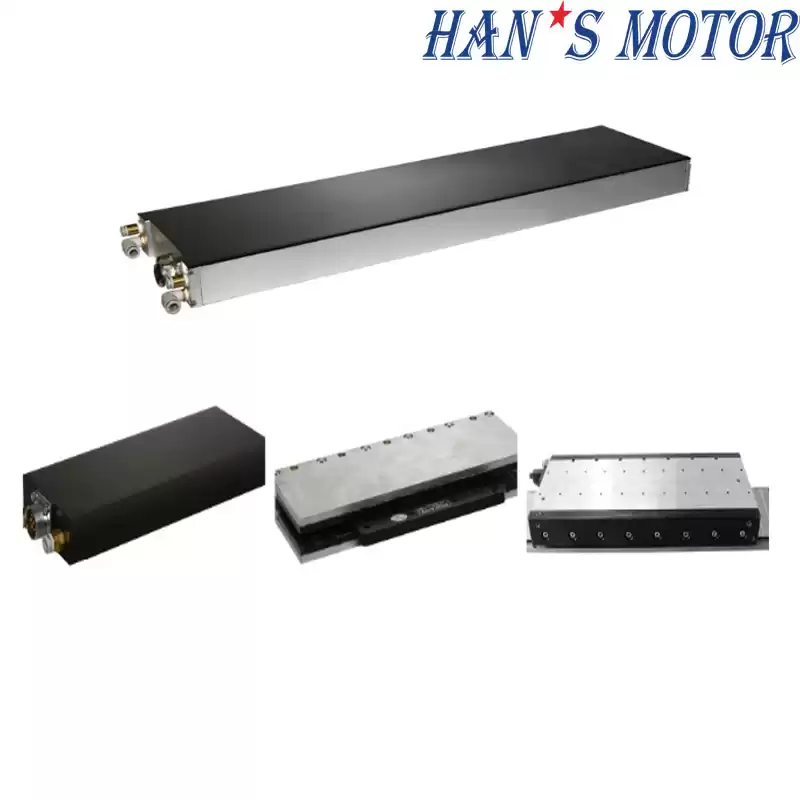

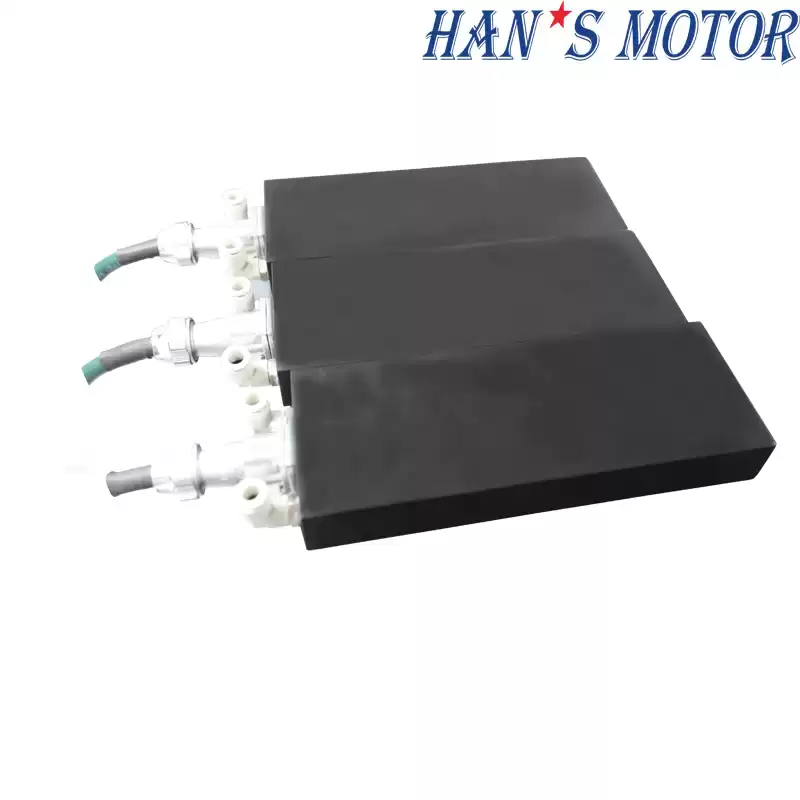

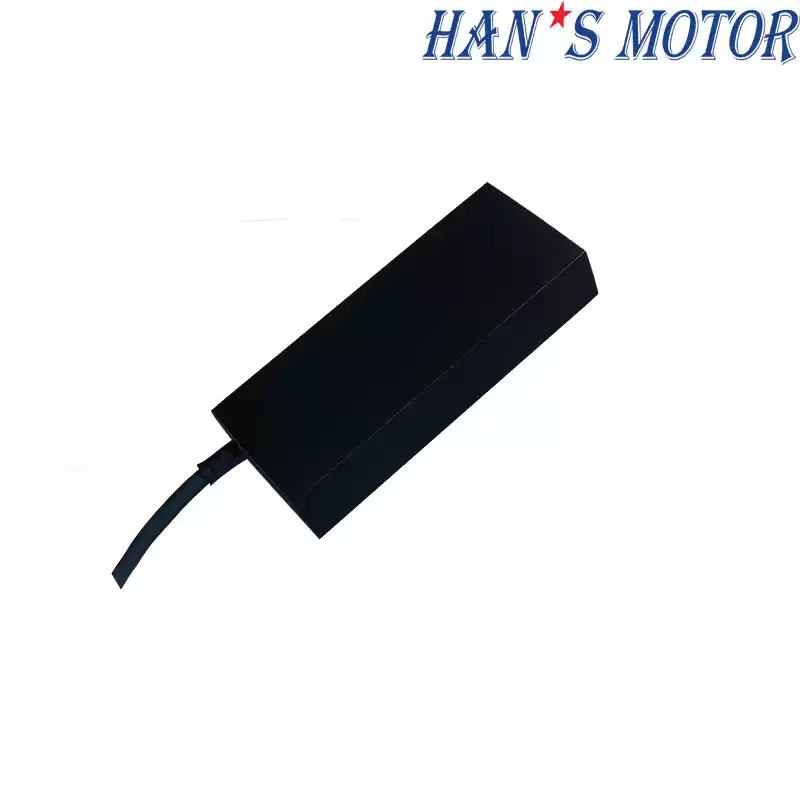

Iron Core Linear Motor LSMFL-100 Continuous Thrust 629 ~ 1653N Linear Engines

Features:

1. Low cogging effect

2. High thrust, high rigidity

2. Water cooling/Natural cooling structure

3. Standardization, modularization, high reliability

5. Customizable development



Product name: Iron Core Linear Motor LSMFL-100 Continuous Thrust 629 ~ 1653N Linear Engines


Specifications

Mover Spec: LSMFL10xxxx-x-H-NC-N-C00.5


103A-S  103B-S
203A-S
303A-S
303B-P
403A-S 403A-P
Performance Parameters
 Symbol     Units
Series
Series
Series
Series
Parallel Series
Parallel
Continuous Force (Tmax)
Fc      N
157 157 314 472 472 629 629
Peak Force
Fp      N
413 413 827 1237 1237 1653 1653
Motor Constant (25℃)
Km25 N/Sqrt(W)
21.7 21.4 30.0 37.3 36.9 43.3 43.3
Max.Continuous Power Dissipation
Pc      W 72 74 150 220 225 290 290
Continuous Current (Tmax)
Ic     Arms
4.0 2.6 4.0 4.0 7.8 4.0 8.0
Peak Current (1S)
Ip     Arms
12.0 7.8 12.0 12.0 23.4 12.0 24.0
Force Constant (25℃,±5%)
Kf   N/Arms
39.0 60.4 78.5 118.0 60.5 157.0 78.6
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
13.0 20.1 26.0 39.3 20.0 52.4 26.2
Resistance(25℃,±5%)P-P
R      Ω
2.2 5.3 4.4 6.7 1.8 8.8 2.2
Inductance(25℃,±20%)P-P
L     mH
12.0 29.0 24.0 36.0 9.7 48.0 12.0
Max Coil Temperature
Tmax     ℃
120 120 120 120 120 120 120
Polar Distance (N-N) (360℃ Electrical cycle)

    mm
20 20 20 20 20 20 20
Magnetic Attraction
Fa     kN
0.9 0.9 1.7 2.6 2.6 3.4 3.4
Max.DC Bus Voltage
Ubus      V
600 600 600 600 600 600 600
Vmax,Fc@Vbus=310Vdc

    m/s
7.9 5.0 3.7 2.4 4.9 1.7 3.7
Vmax,Fp@Vbus=310Vdc

    m/s
4.4 2.6 1.9 1.1 2.6 0.6 1.9
Vmax,0@Vbus=310Vdc

    m/s
9.6 6.2 4.7 3.1 6.2 2.3 4.7
Vmax,Fc@Vbus=537Vdc

    m/s
14.1 8.9 6.8 4.4 8.9 3.2 6.8
Vmax,Fp@Vbus=537Vdc

    m/s
7.9 4.9 3.7 2.3 4.9 1.6 3.7
Vmax,0@Vbus=537Vdc

    m/s
16.7 10.8 8.3 5.5 10.8 4.1 8.3
Mover Mass
Mp      Kg
2.0 2.0 3.8 5.5 5.5 7.3 7.3
Stator Mass within unit length
Ms     Kg/m
7.0 7.0 7.0 7.0 7.0 7.0 7.0

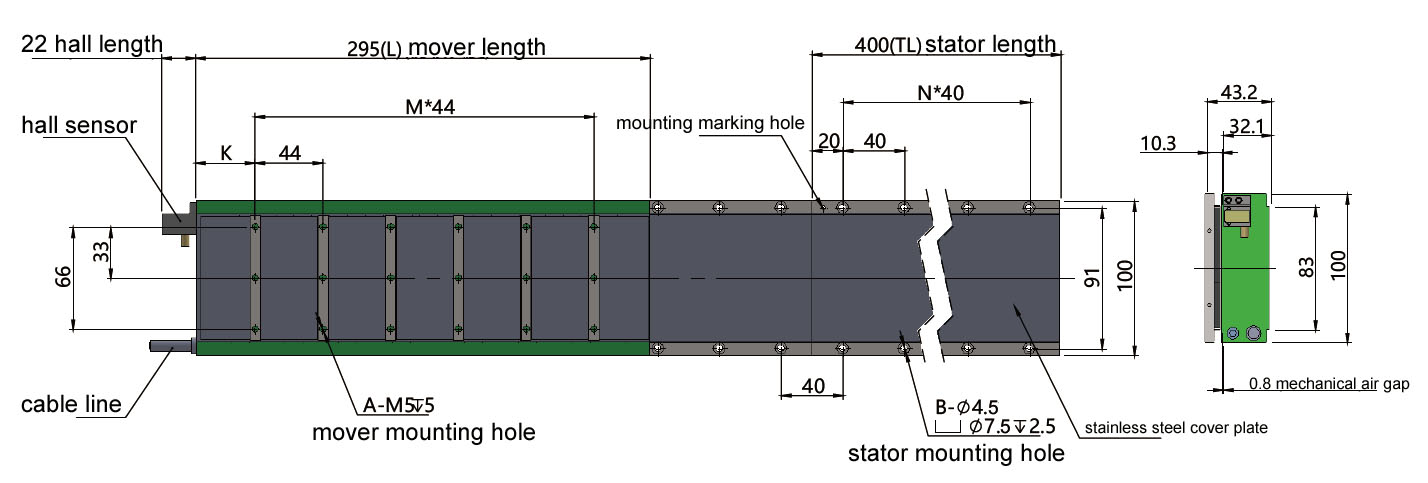

Dimension

linear motor metro

Mover Length
Mover model
 Mover length L
       M         Mover mounting hole A
        k
LSMFL10103A-S-H-NC-N-C00.5
85 1 6 21.5
LSMFL10103B-S-H-NC-N-C00.5
85 1 6 21.5
LSMFL10203A-S-H-NC-N-C00.5
155 2 9 34.5
LSMFL10303A-S-H-NC-N-C00.5
225 4 15 25.5
LSMFL10303B-P-H-NC-N-C00.5 225 4 15 25.5
LSMFL10403A-S-H-NC-N-C00.5
295 5 18 38.5
LSMFL10403A-P-H-NC-N-C00.5
295 5 18 38.5

Remarks:  1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10<Ic≤12A/ 12<Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
               2. Optional temperature sensor.


Stator Length
Stator model
Stator length TL
    N     Stator mounting hole B
LSMFJ2A-W100-L40 40 0 2
LSMFJ2A-W100-L80 80 1 4
LSMFJ2A-W100-L200
200 4 10
LSMFJ2A-W100-L320
320 7 16
LSMFJ2A-W100-L400
400 9 20

Suitable for any mover of this series.

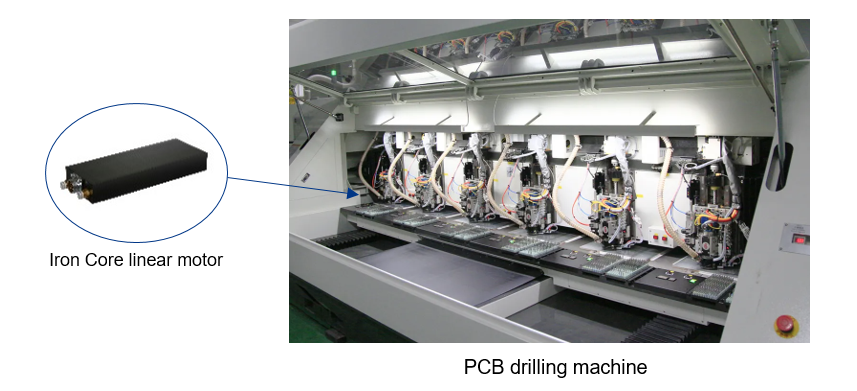

Application Case:

cnc linear motor

Industry Applications:

linear motor metro


Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
