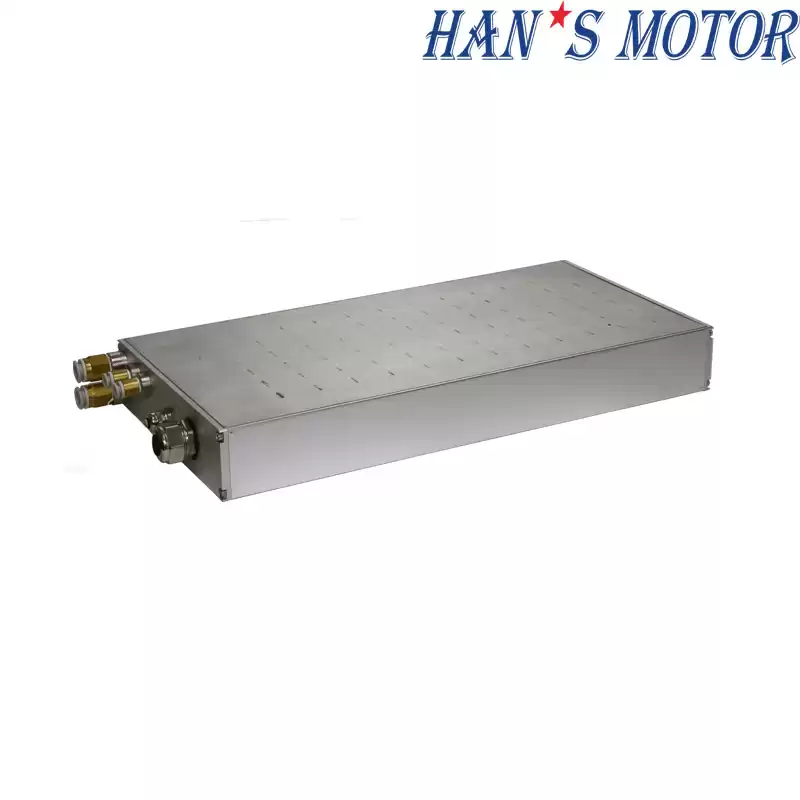

Iron core water cooling linear motor with thrust range 3000~4000N for cnc machine tool

Features:

1. Core technology

2. Low cogging effect

3. Water cooling structure

4. High thrust, high ridigity

5. High reliability, long service life



Product name:Iron core water cooling linear motor with thrust range 3000~4000N for cnc machine tool


Specifications

Mover Spec.:LSMH10201A-P-H-WC
PERFORMANCE PARAMETERS
      Symbol
       Units

Continuous Force (Tmax)
Fc N 3000
Peak Force
Fp N 4000
Motor Constant (25℃)
Km25
N/Sqrt(W)
74.3
Max.Continuous Power Dissipation
Pc W 2238
Continuous Current (Tmax)
Ic Arms
19.7
Peak Current (1S)
Ip Arms
27.6
Force Constant (25℃,±5%)
Kf N/Arms
157.0
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
52.3
Electrical Resistance(25℃,±5%)P-P
R
2.8
Inductance(25℃,±20%)P-P
L mH 21.0
Max Coil Temperature
Tmax
120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 32.0
Minimum flow of cold water
Wmin
L/min
6.5
Temperature difference between inlet and outlet
△T

7.0
Pressure drop (stator loop series)
△P
Bar
3.0
Magnetic Attraction
Fa
kN 12.0
Max.DC Bus Voltage
Ubus
V 600
Vmax,Fc@Vbus=310Vdc

m/s
2.8
Vmax,Fp@Vbus=310Vdc

m/s
2.3
Vmax,0@Vbus=310Vdc

m/s
4.1
Vmax,Fc@Vbus=537Vdc

m/s
1.6
Vmax,Fp@Vbus=537Vdc

m/s
1.2
Vmax,0@Vbus=537Vdc

m/s
2.7
Mover Mass
Mp Kg 18.0
Stator Mass within unit length
Ms Kg/m 15.0

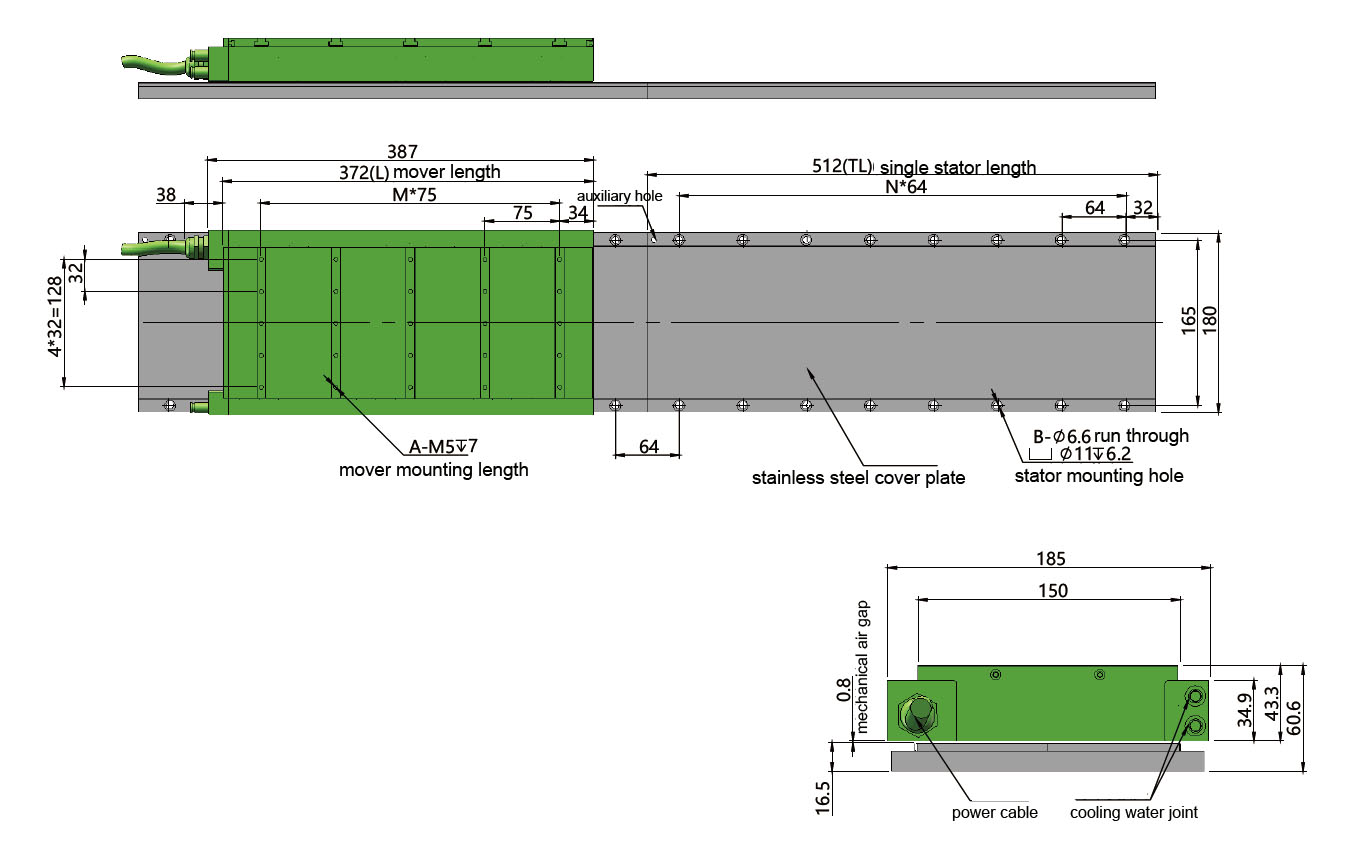

Dimension

magnetic linear motor

Mover Length
Mover model
Mover length L
      M       Mover mounting hole A
LSMFH10201A-P-H-WC
372 4 25

Remarks:  1. Standard cable length is 7m, maximum outer diameter of motor cable is 14mm, minimum bending radius within chain is 140mm, the length can be customized if there are special requirements.
               2. Optional temperature sensor.


Stator Length
Stator model
Stator length TL
    N     Stator mounting hole B
LSMH203A 64 0 2
LSMH204A
256 3 8
LSMH205A
512 7 16

Suitable for any mover of this series.

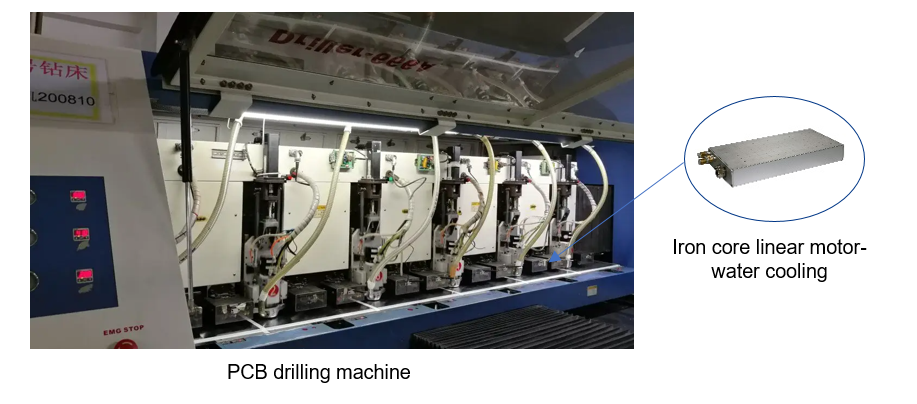

Application Case:PCB Drilling Machine

linear induction motor

Industry Applications:

HANS MOTOR applications


Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
