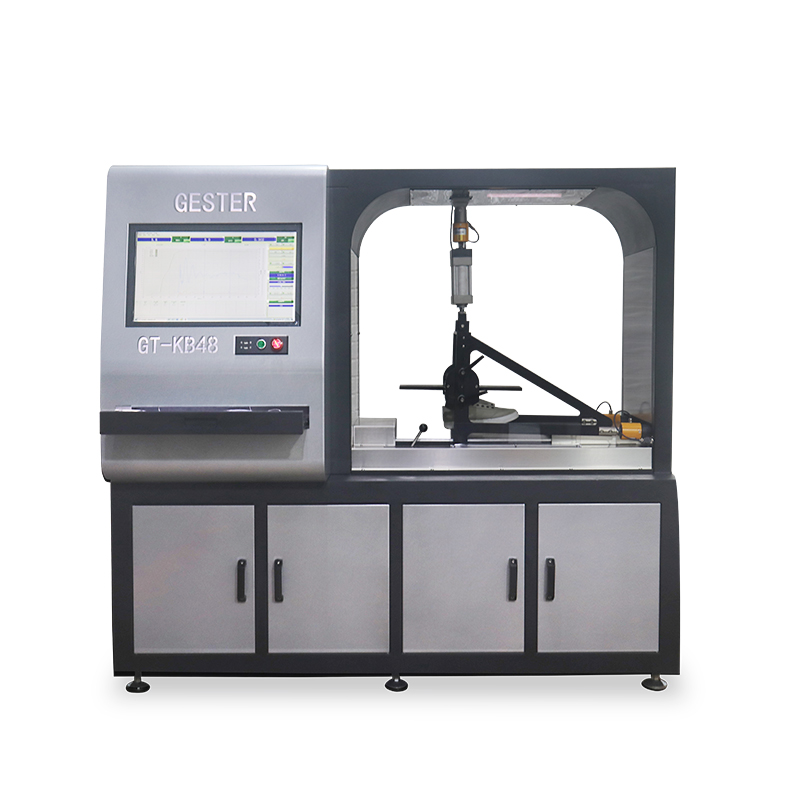

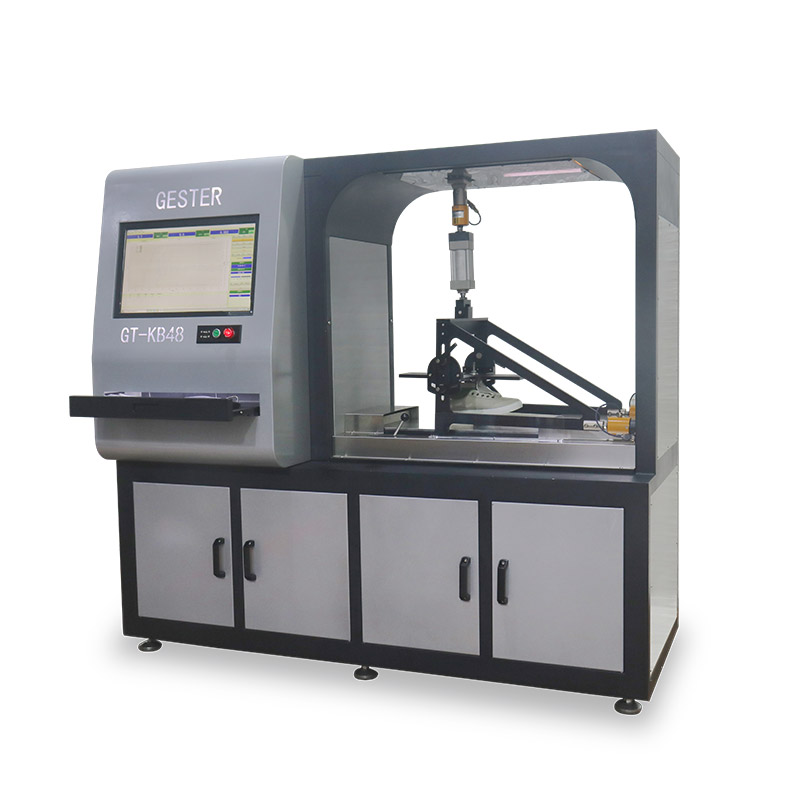

Slip Resistance Tester GT-KB48
Product Introduction
|
Application:
Slip Resistance Tester: Apply a predetermined load by different mediums like wood, PVC, ceramic tile or specified and set specified friction times and speed, which is to measure the sole friction coefficient, and then judge the slip resistance of shoes.
Standards:
ISO 13287, GB/T 28287, ASTM F2913, SATRA TM 144
|

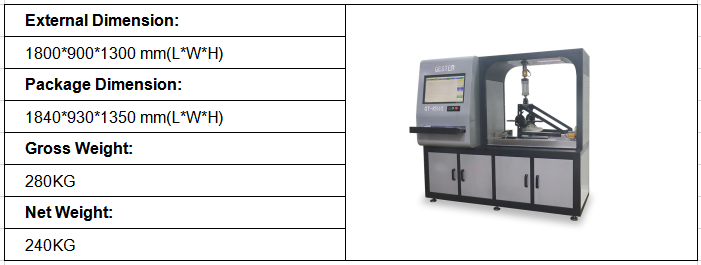

Dimensions
Principle

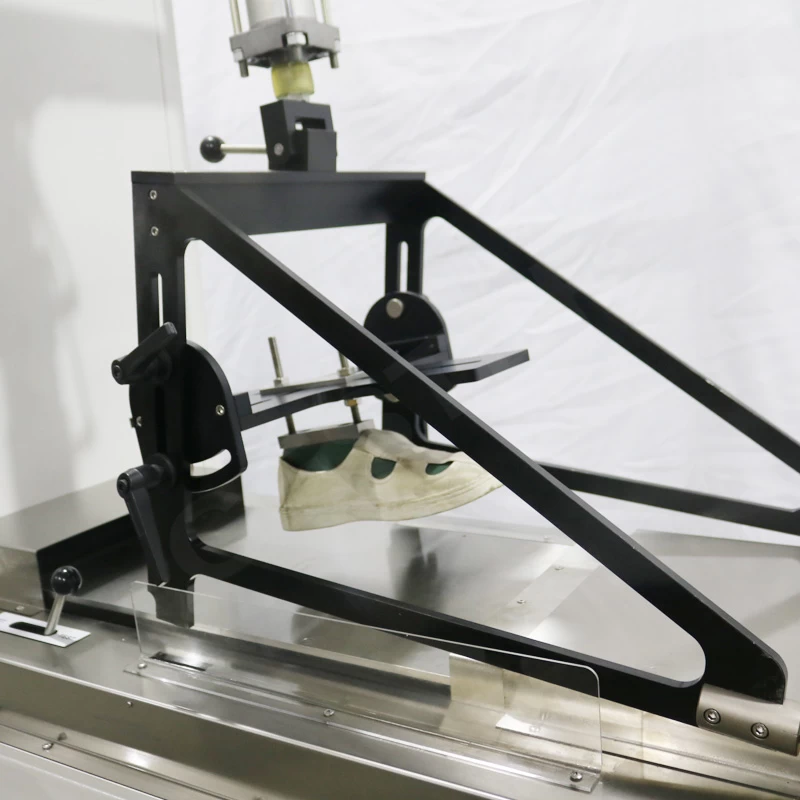

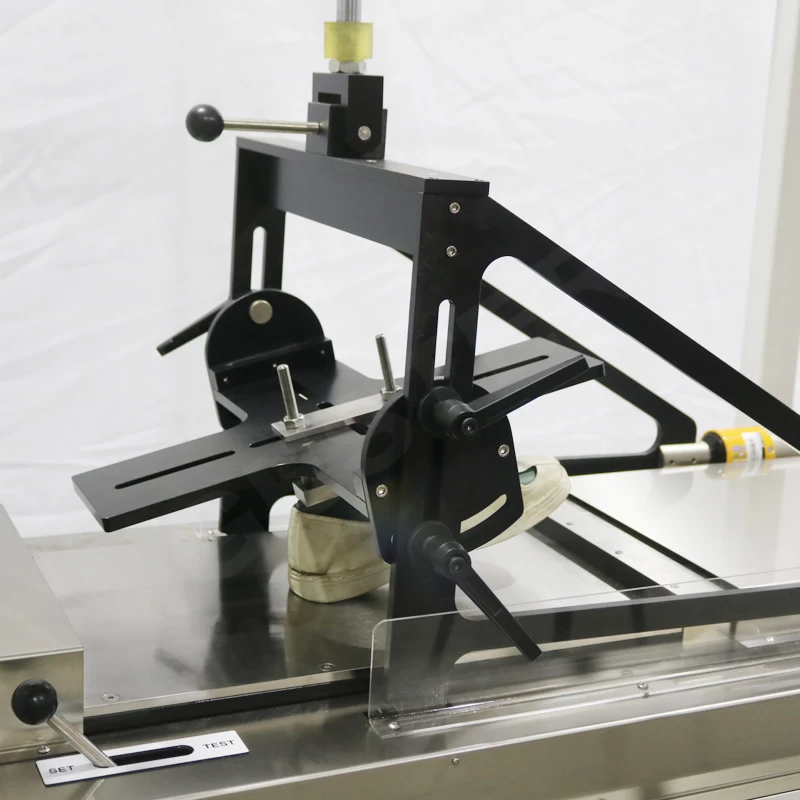

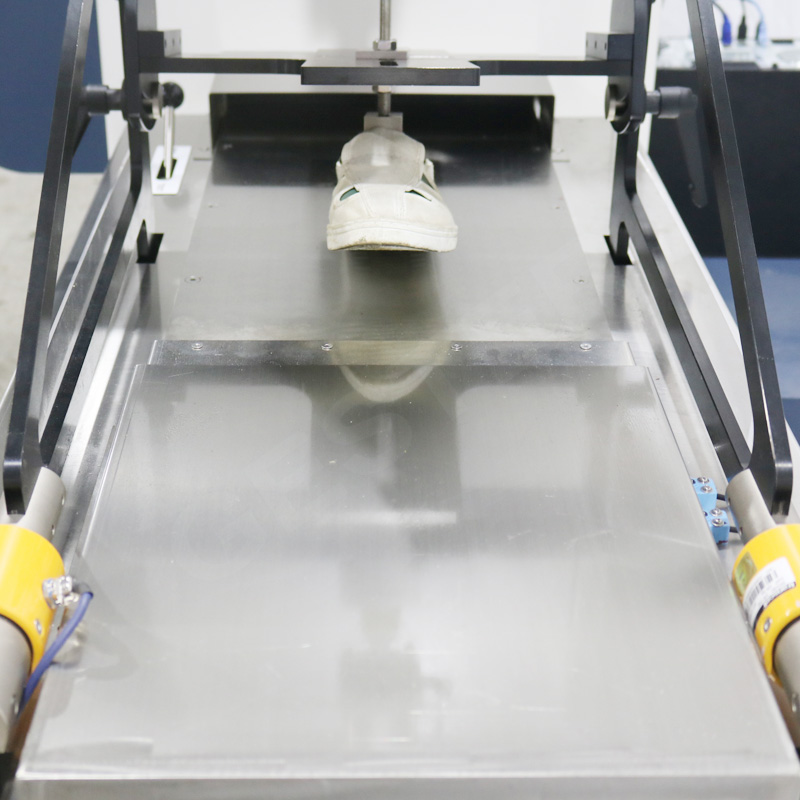

Place specimen on test stand, and glycerin as a lubricant, exert a certain load, and move test bench in horizontal direction compared with sample by lateral traction forces, to measure dynamic friction and calculate kinetic coefficient of friction.
Key Specifications
Model
|
GT-KB48
|
Vertical load cell range
|
1000N
|
Horizontal load cell range
|
1000N
|
Sliding speed
|
(0.3±0.03)m/s
|
Static contact time
|
0.5s
|
Test normal force
|
500±25N, For footwear of European size 40 (UK size 6.5) and above
|
400±20N, For footwear of European size below 40 (UK size 6.5)
|
Wedge angle gauge
|
7°
|
Control method
|
Computer-controlled
|
Monitor
|
19-inch
|
Test floor
|
Pressed ceramic tile floor, stainless steel plate
|
Power supply
|
AC 220V 50/60HZ
|
Dimensions
|
180×90×130 cm
|
Weight
|
240 kg
|
Standards
|
ISO 13287, GB/T 28287, ASTM F2913, SATRA TM 144
|
Standards accessories
|
2pcs
|
7°Wedge angle gauge
|
2pcs
|
Shoe last fixture
|
2pcs
|
Prosthetic foot fixture
|
1pc
|
180×90×90mm calibration rubber fixture
|
1pc
|
Stainless steel plate
|
1pc
|
100×70mm steel block
|
1pc
|
Power line
|
Optional accessories
|
Optional
|
SATRA Pressed ceramic tile floor
|
