Specification

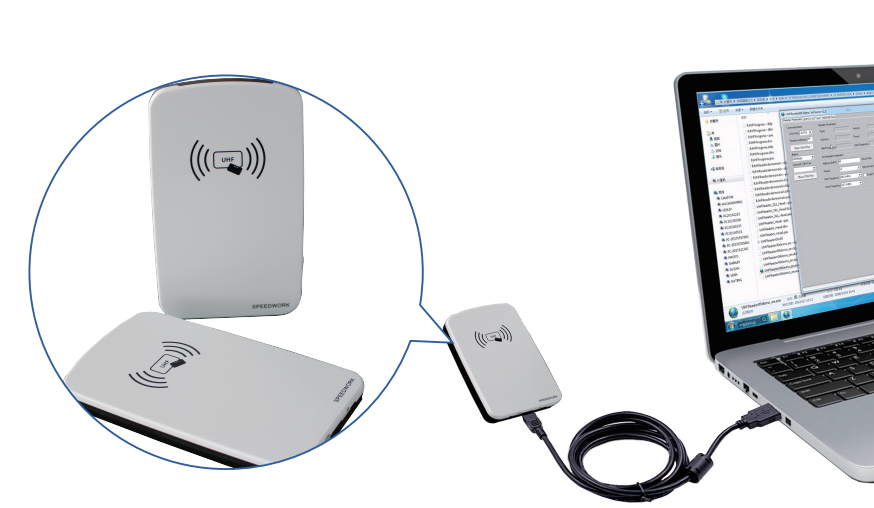

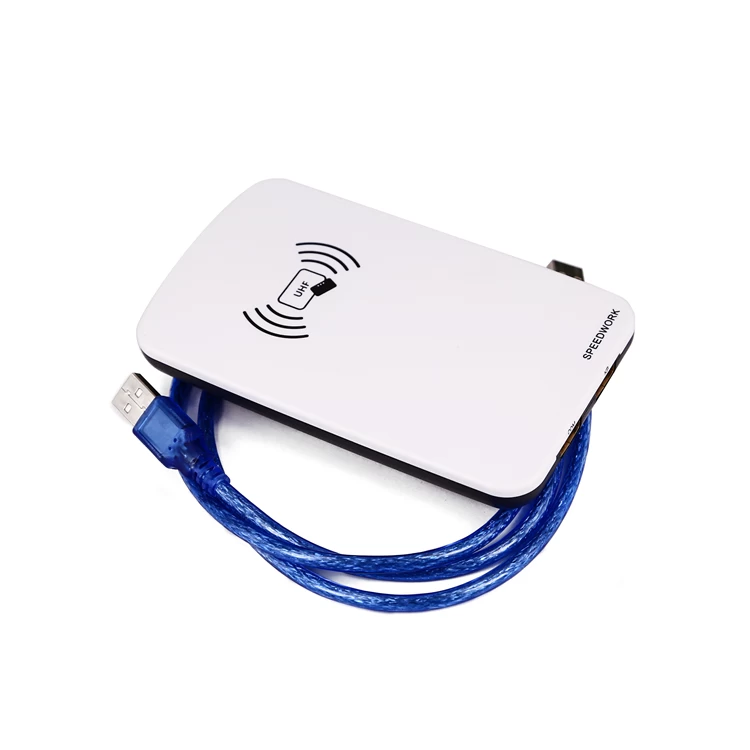

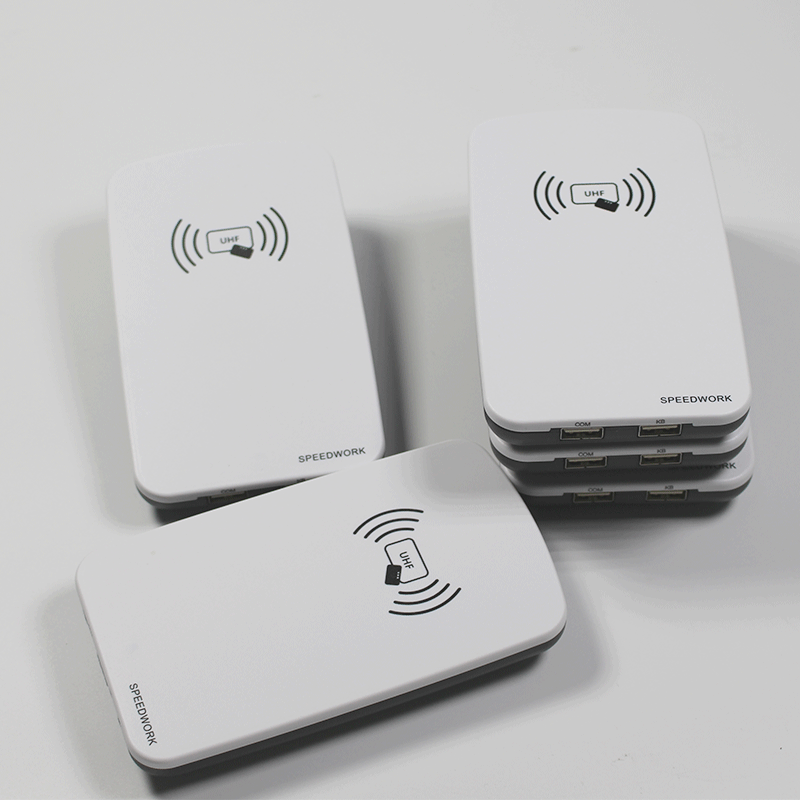

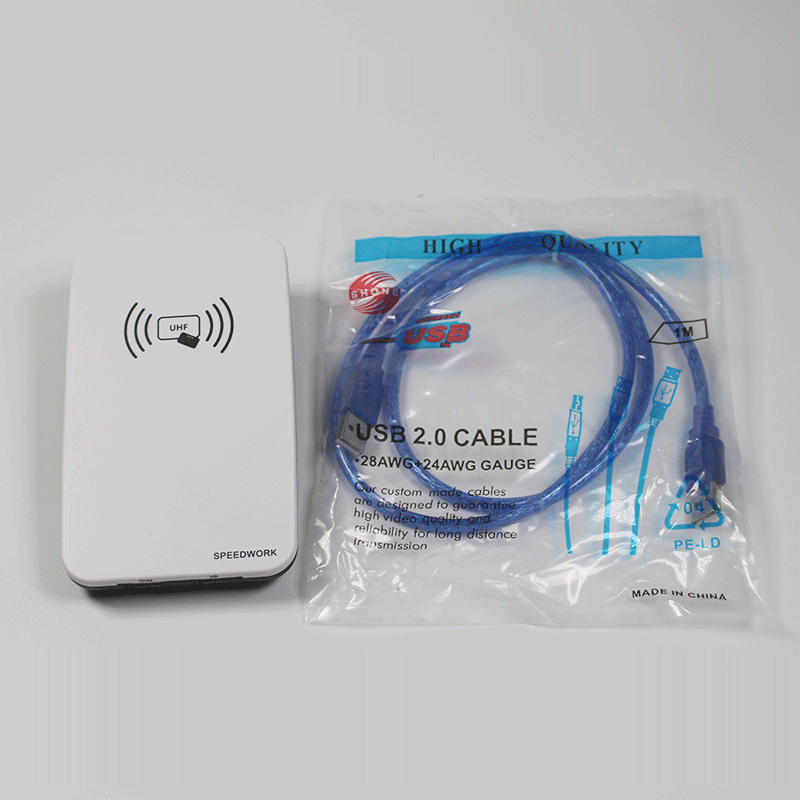

JT-6210 is Double USB fixed Desktop UHF RFID reader, and the reader's default working frequency band is 860-960MHZ supports ISO18000-6C (EPC C1 GEN2) protocol.
Features
☆ Support USB cable firmware upgrade
☆ Support hex, ASCII, Wiegand 26,34 etc format output (can be customized )
☆ Support continuously write tag and export/import excel file
☆ Built-in dual feed ceramic antenna, stable reading and writing
☆ Double USB interface ,the input of serial port on the left, the output of keyboard on the right
☆ 0-80CM reading distance
☆ Support batch card writing ( EPC, User, password)
☆ Provide C++,C# and java
|
Physical Parameters:
|
|
Size
|
142mm x 85mm x 20mm
|
|
Weight
|
0.2kg
|
|
Material
|
ABS
|
|
Antenna
|
Built-in
|
|
Performance parameters:
|
|
Working frequency
|
902~928mhz or865~868mhz
|
|
Supporting protocol
|
EPC C1 GEN2 ISO18000 - 6C
|
|
Radio power
|
0 - 17 dbm
|
|
Reading range
|
0 - 60cm
|
|
Writing range
|
0 - 10cm
|
|
Communication interface
|
USB
|
|
Key board output
|
support
|
|
Power
|
USB supply
|
|
Environment Parameters:
|
|
Working temperature
|
- 20 ℃ - 55℃
|
|
Store temperature
|
- 20 ℃ - 55℃
|
Application:
Desktop USB card reader JT-6210 is widely used in a variety of RFID systems. The main applications are:
1, logistics and warehousing management: the flow of goods and storage management and mail, parcels,transport luggage, such as the flow management;
2, intelligent parking management: car park management and charging automation;
3, the production line management: the identification of the production process sentinel;
4, other areas: library management, attendance management, asset management systems.
