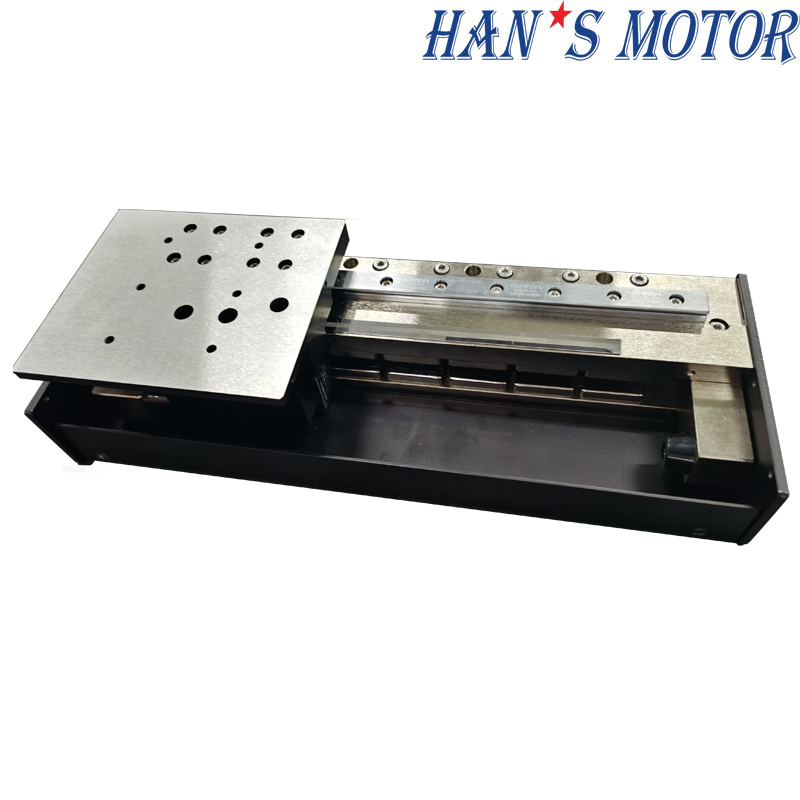

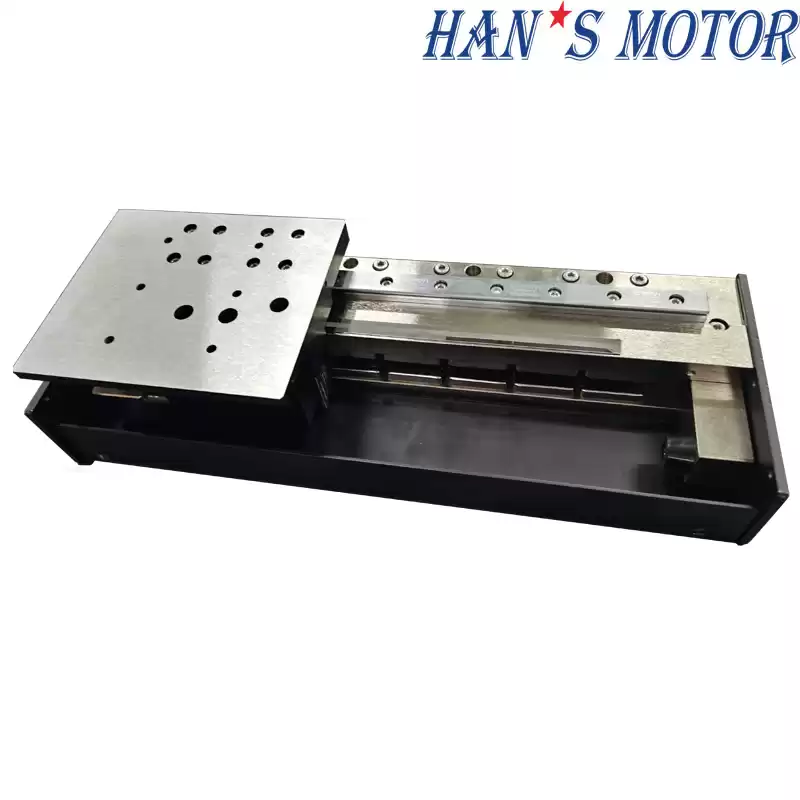

Products Name: HAN'S MOTOR CNC Kit Cross Slide Table Linear Stage Module LMB170 series
Product Specifications
Motor Model/Parameter
|
Motor Parameters
|
|
Performance
|
Unit
|
Data
|
|
Continuous Force (Tmax）
|
N
|
120
|
|
Peak Force
|
N
|
900
|
|
Max. Load
|
kg
|
90
|
|
Effective Stroke
|
mm
|
100-2500
|
|
Resolution
|
μm
|
0.5
|
|
Max.Speed（1）
|
mm/s
|
2000
|
|
Repeat accuracy
|
μm
|
±1
|
|
Weight
|
kg
|
4.5
|
|
Working environment temperature
and humidity
|
0-40℃、20-80%RH
|
Stage Performance Paramater
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
6
|
8
|
8
|
10
|
10
|
12
|
14
|
14
|
16
|
18
|
18
|
20
|
|
N
|
2
|
3
|
3
|
4
|
4
|
5
|
6
|
6
|
7
|
8
|
8
|
9
|
|
Stage Total Length (mm)
|
470
|
570
|
670
|
770
|
870
|
970
|
1070
|
1170
|
1270
|
1370
|
1470
|
1570
|
Note (1): According to the actual load, the maximum speed maybe cannot be reached, so the specific speed should be communicated with the engineer

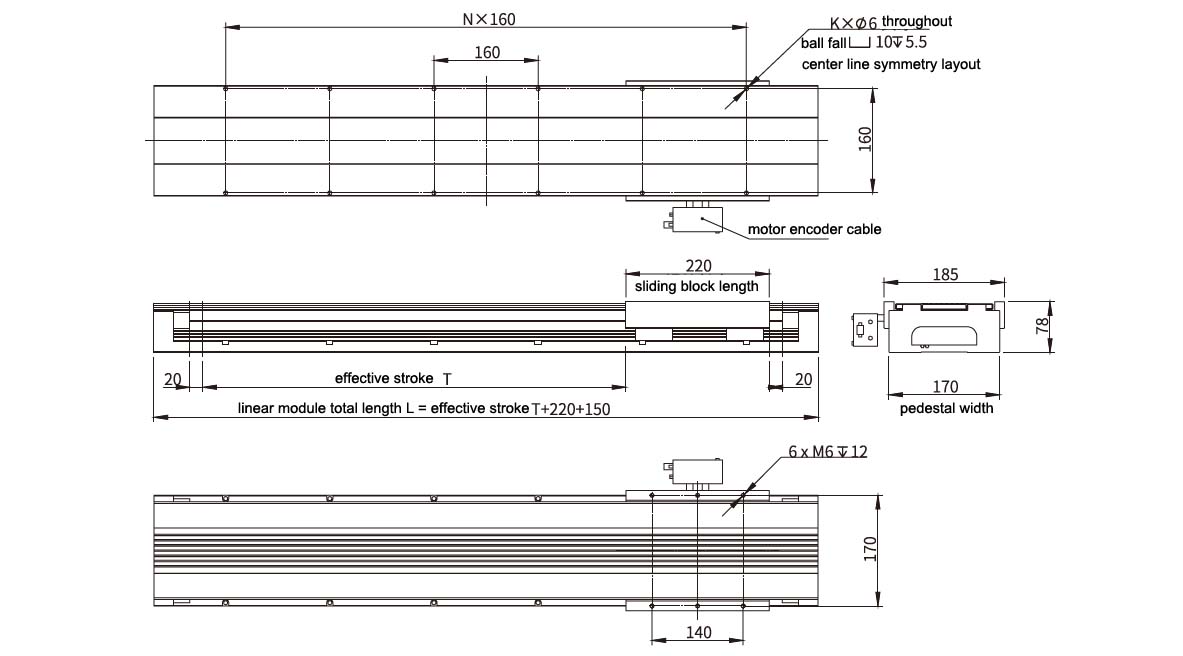

Dimension
Characteristics:
1. Linear bearings and guides provide low friction, smooth, accurate motion for nearly any moment or normal loading condition.
2. High positioning accuracy
and repeat positioning accuracy by increasing the preload,
also the rigidity is greatly enhanced
3. Easy to measure the function of positioning
accuracy, positioning repeatability and moving parallelism.
4. Professional processing and outstanding design,
it shows the specialty of high precision and strong stiffness.
5. Superior materials selection and easy maintenance: Sand blasting and anodic
oxidation on machine parts.
Dust-proof and moisture-proof which
make the maintenance easily and increase the usage life greatly.
Why choose us?
Q1: What’s property of your company?
A: We are an integrated company specializing in manufacturing linear motors, DDR
torque motors,
motor modules, motion stages, AC servo systems, variable
frequency drives and so on.
And share the global marketing system of Han's Group.
Q2: What about the technical design?
A: This linear motor motion stage is being developed
continuously to respond to the market requirements while it is evaluated as
excellent direct acting actuator and the results are built up as drive shaft of
the automated production equipment.
Q3: How about your company’s quality control?
A: HAN’S motor has strong design with R&D capabilities, high production
capabilities and excellent service team based on Quality Management System
Certification.:ISO9001:2000
Applications:
Mainly used in precision positioning, glue
dispensing, rubber coating, painting, oil-spraying, handling & palletizing,
grasping& moving, cutting & welding, CNC machining, automatic
assembly, cleaning equipment etc.
