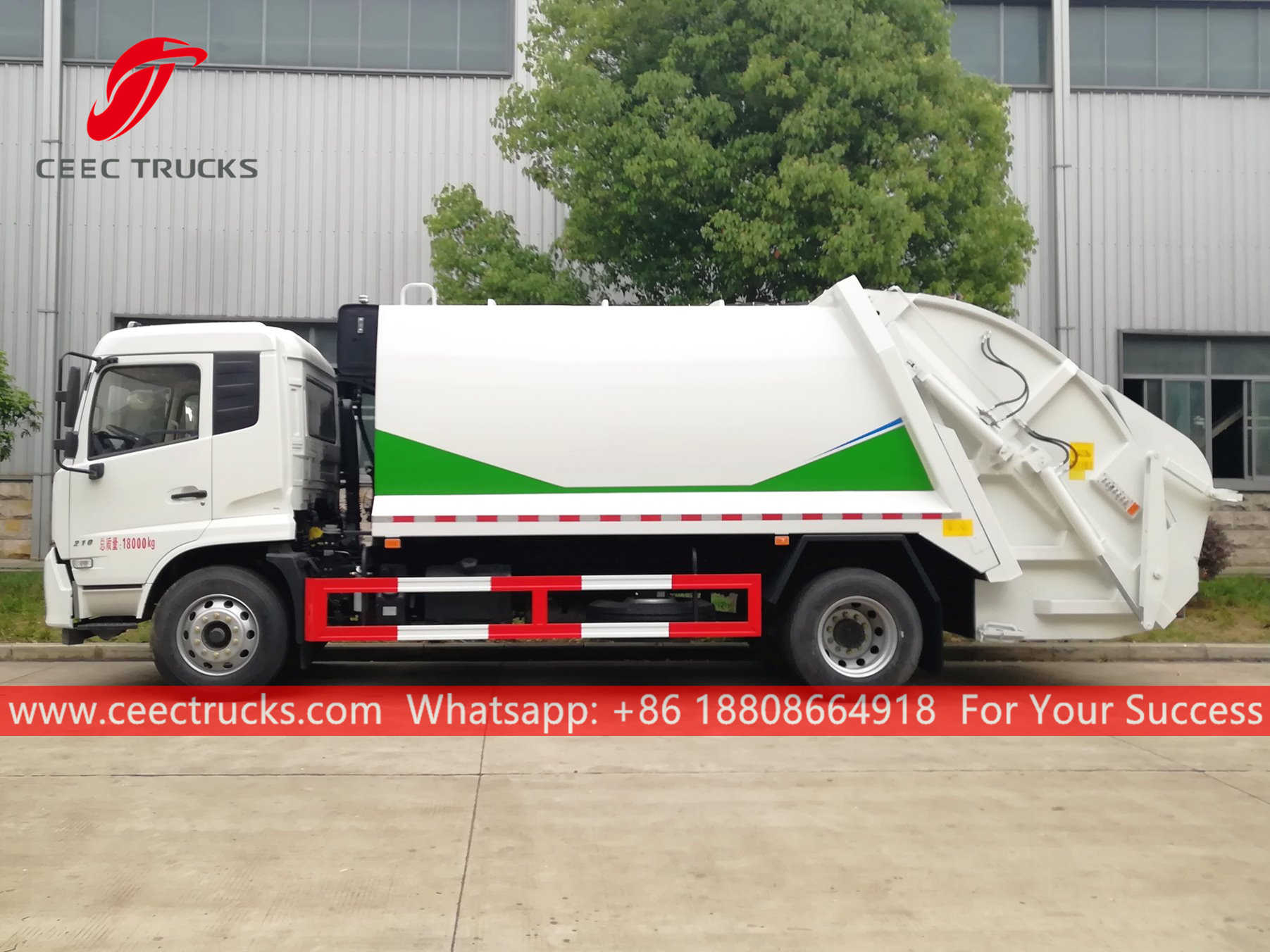

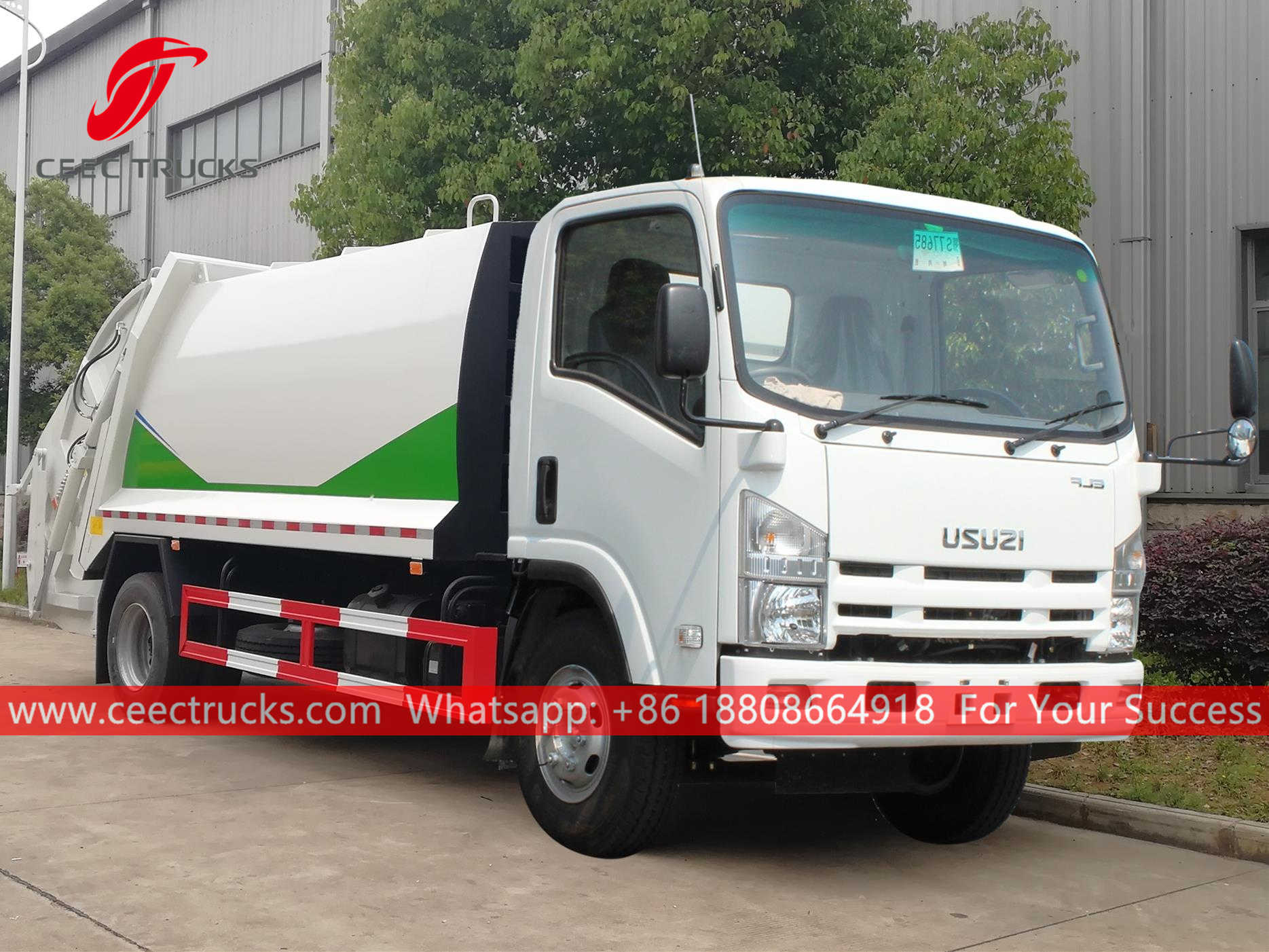

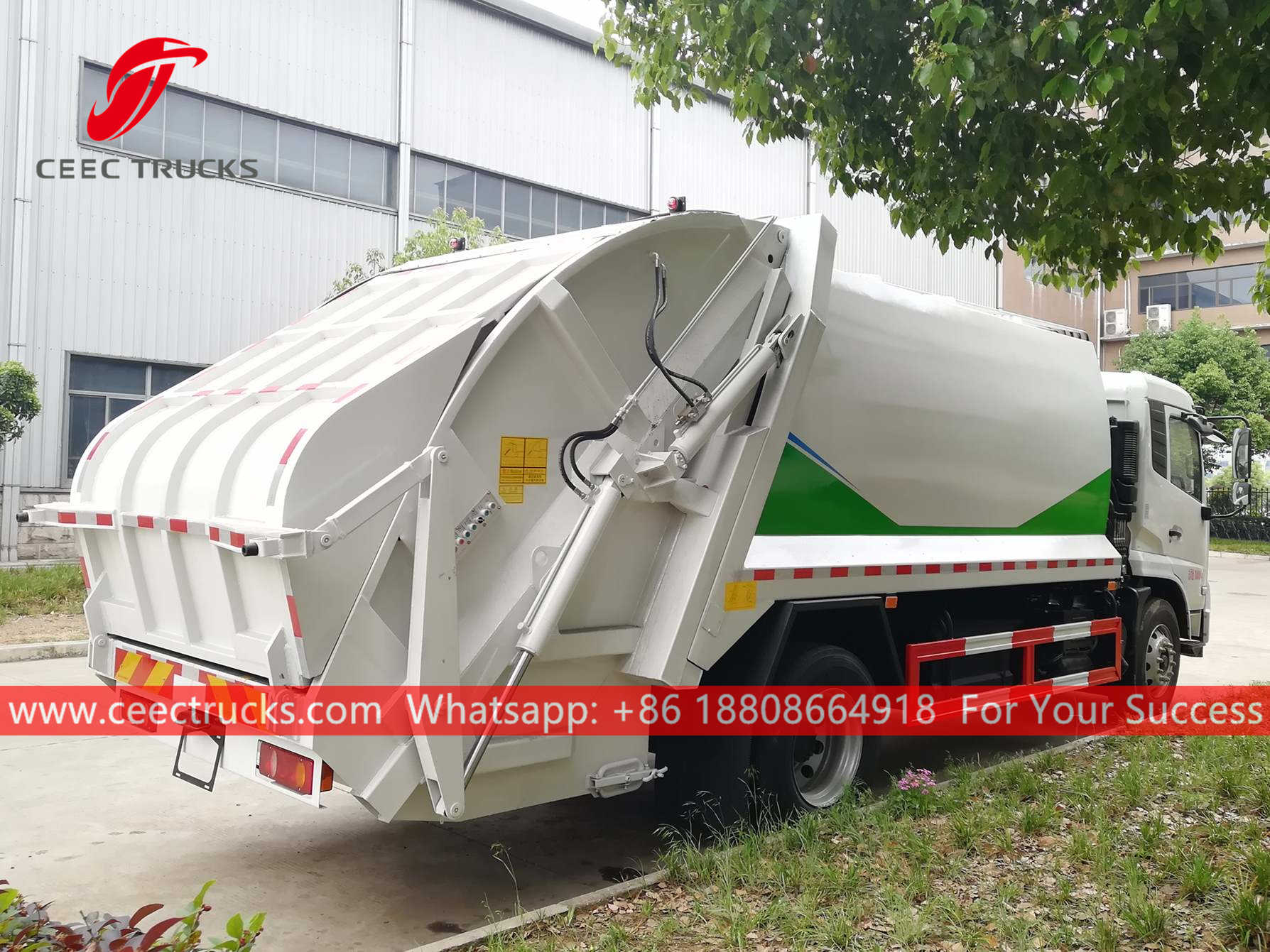

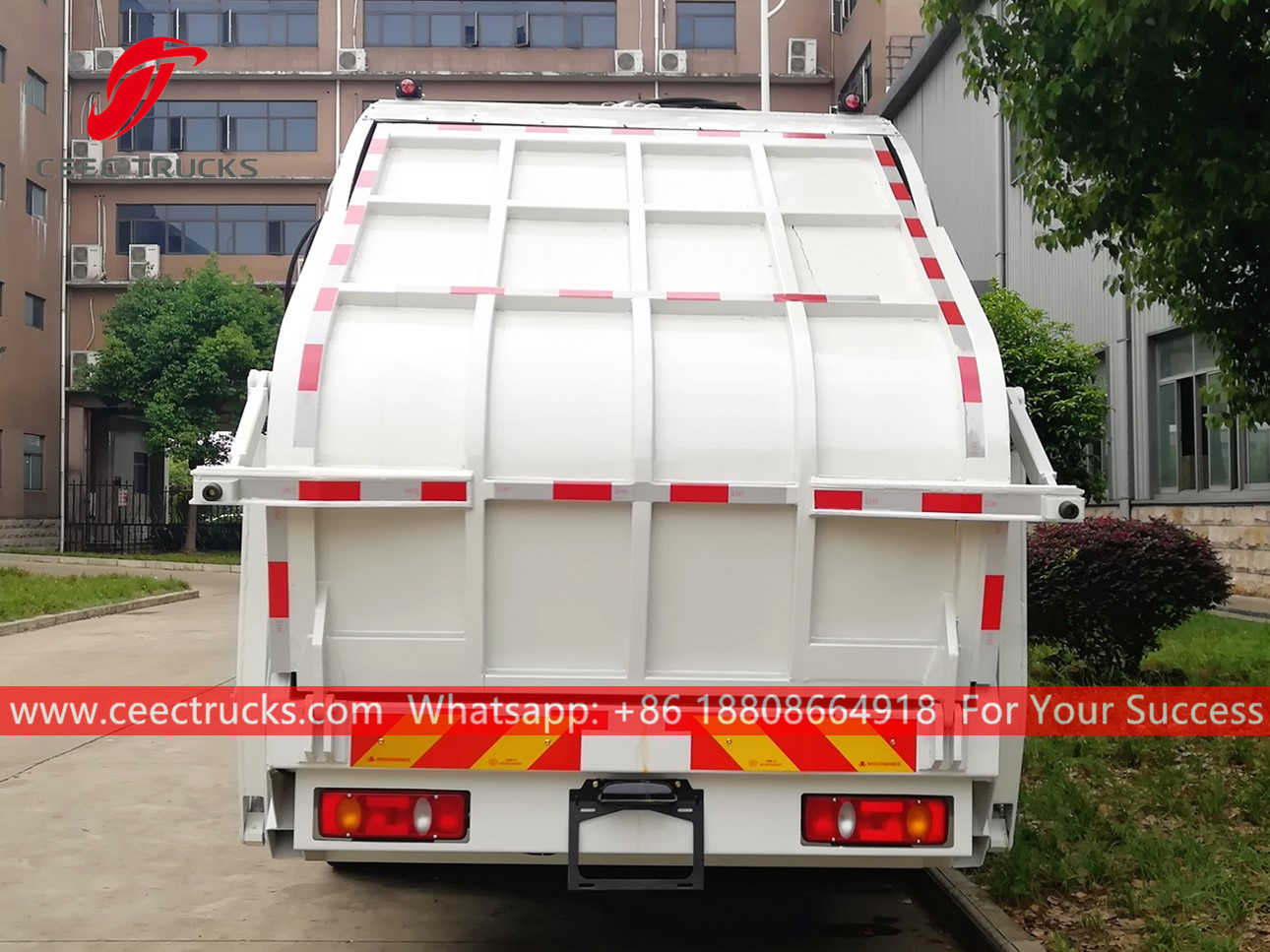

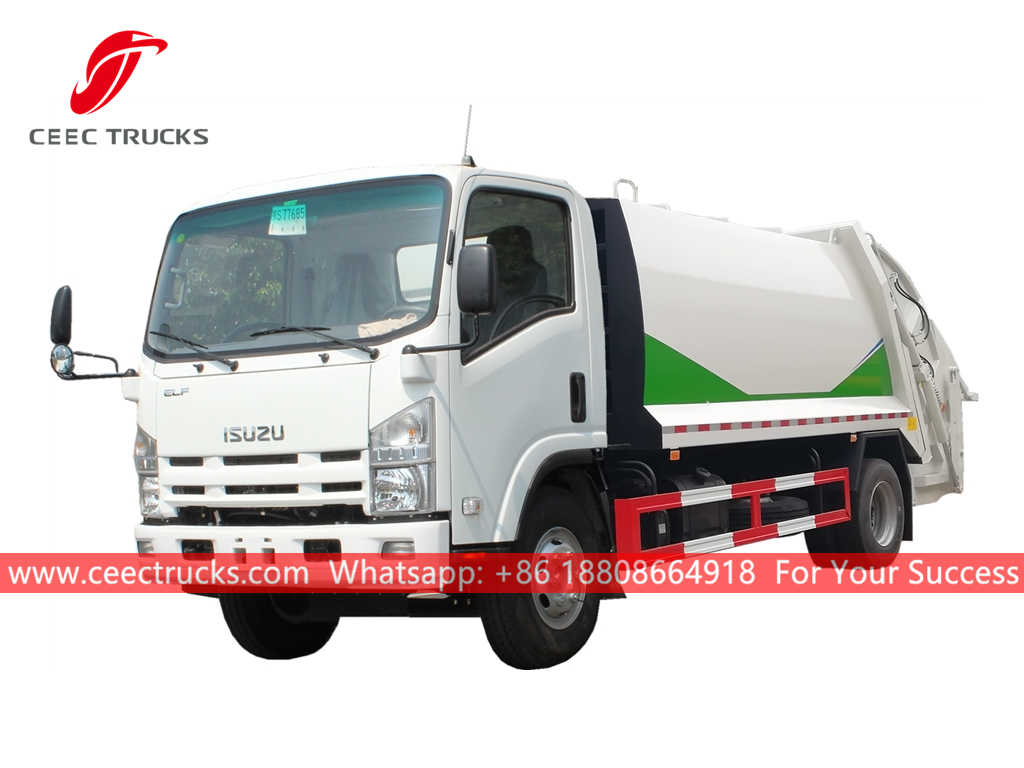

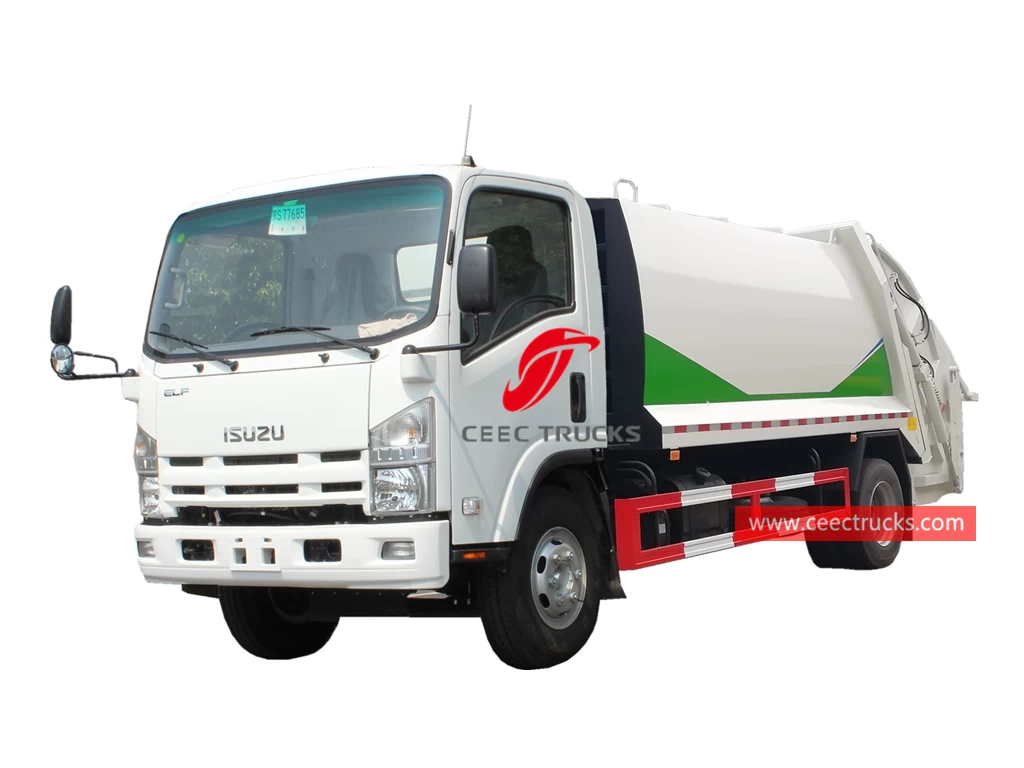

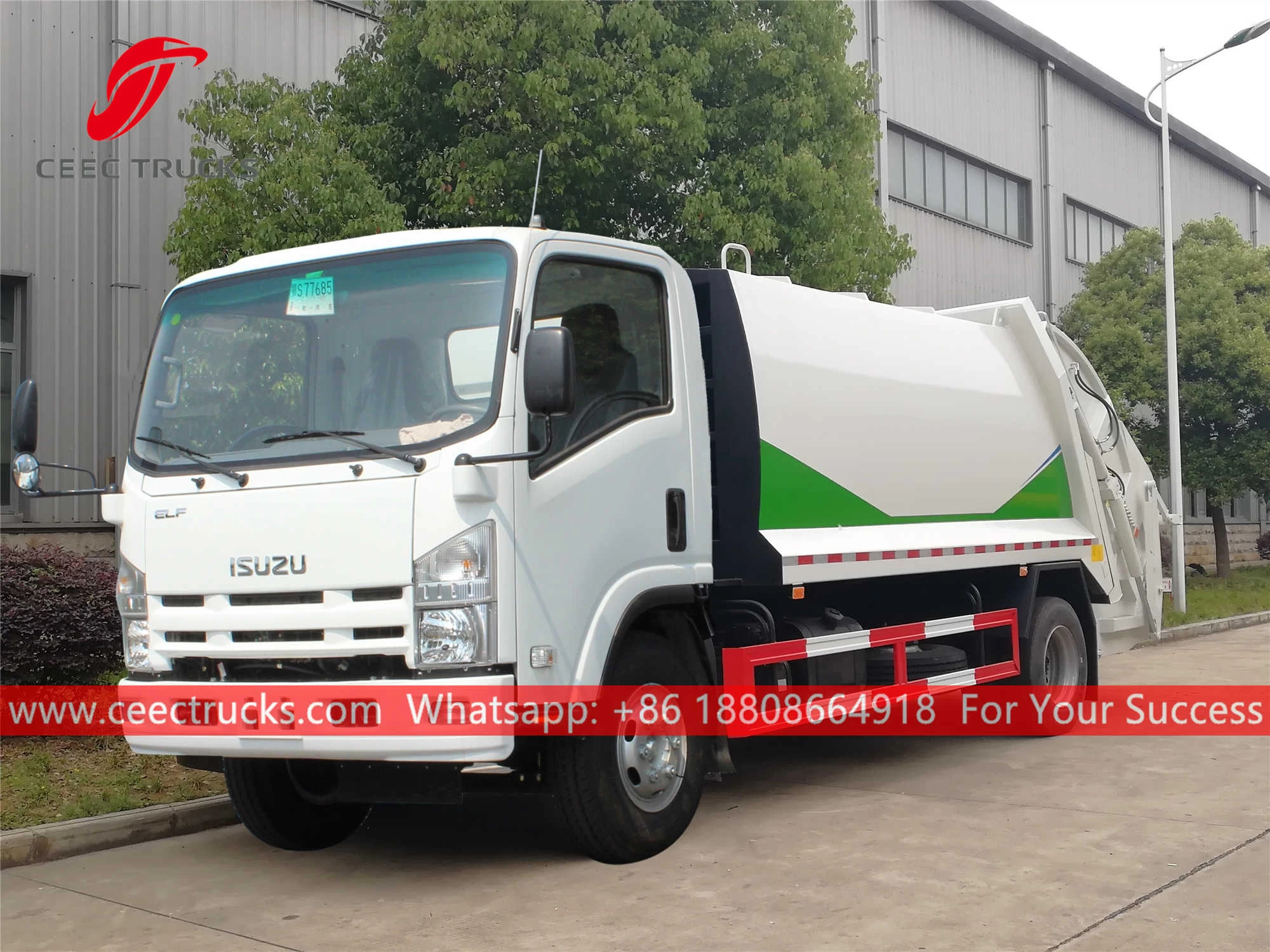

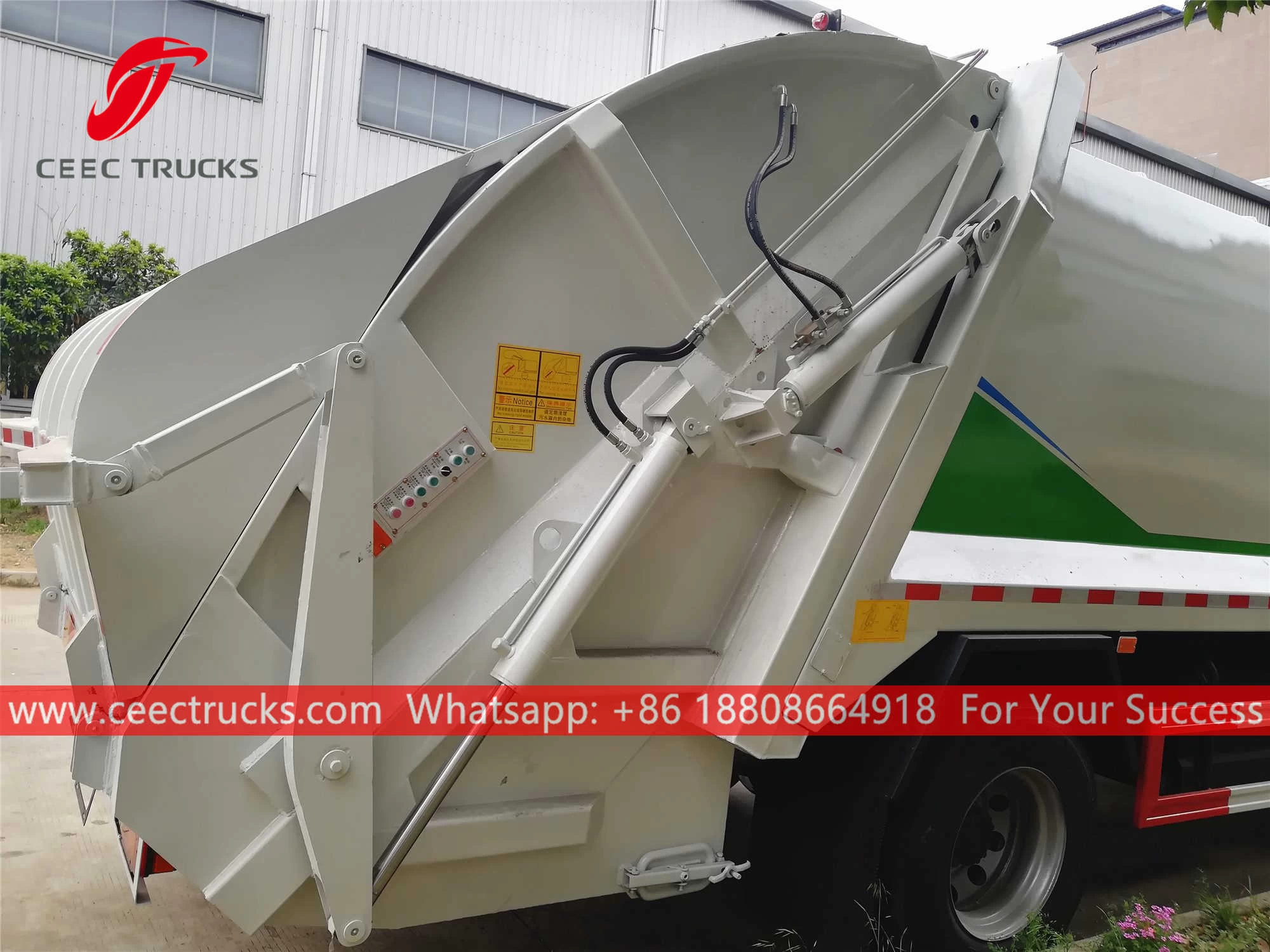

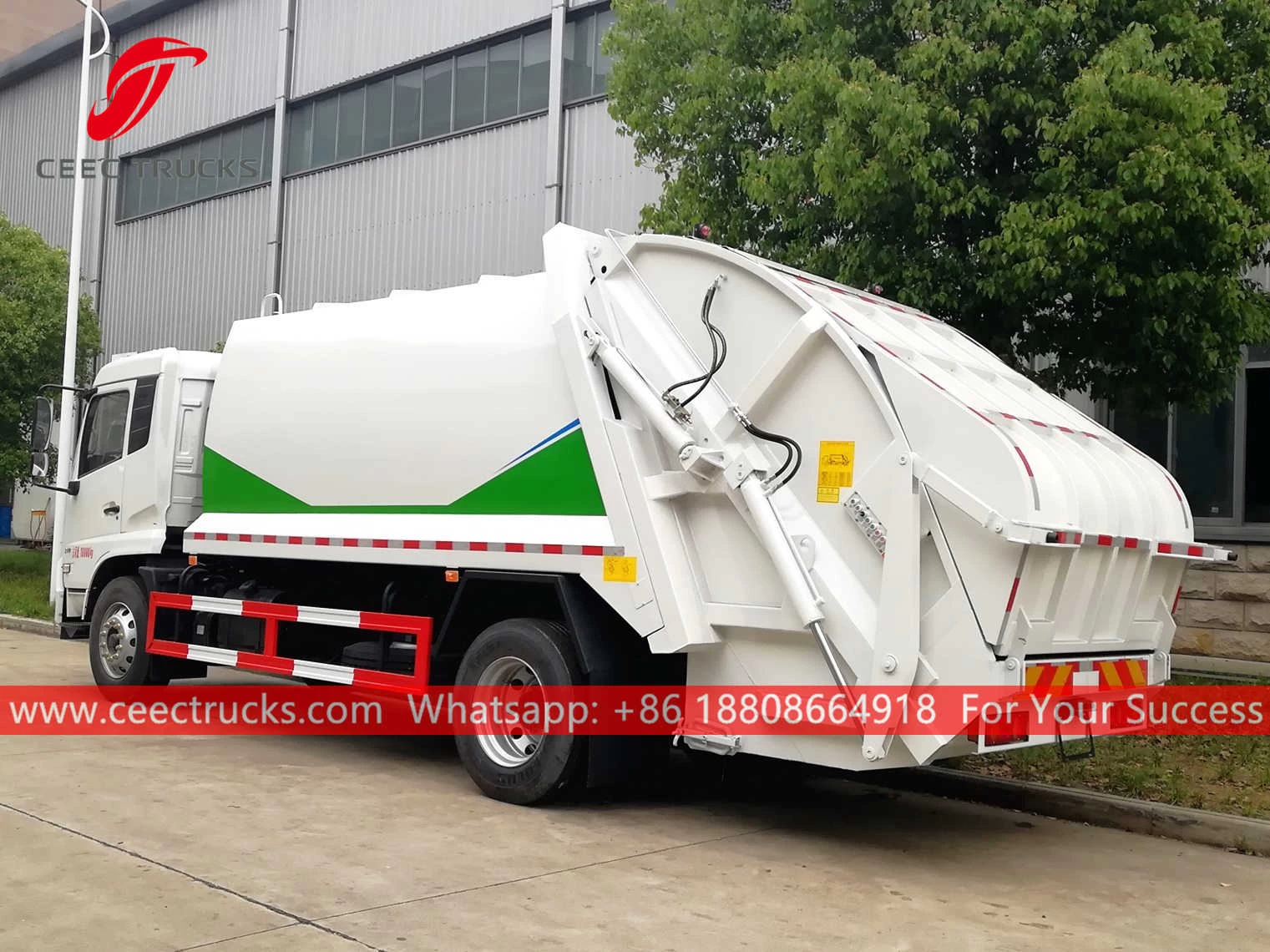

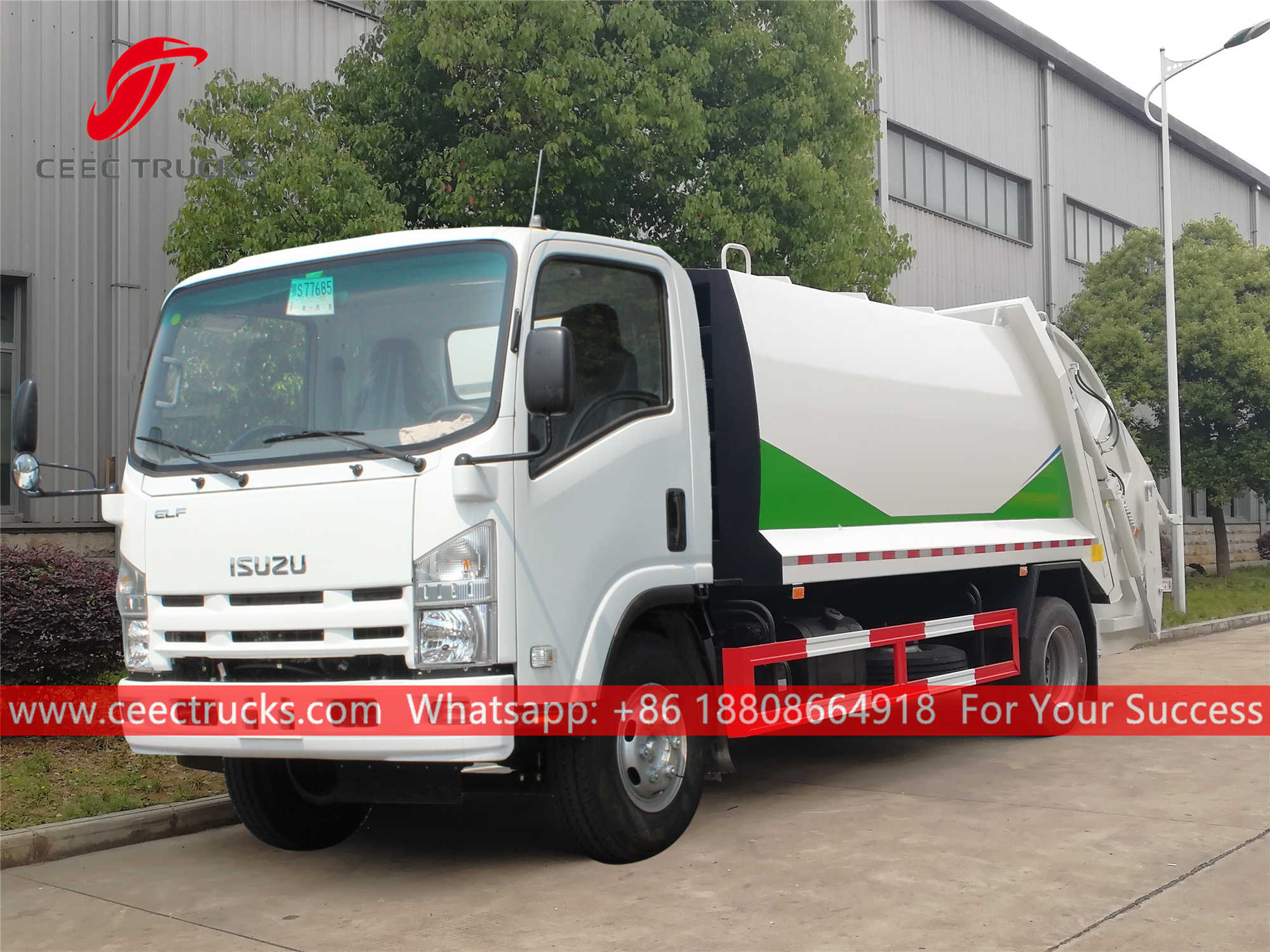

ISUZU 10CBM Rear loader

ISUZU 10cbm refuse compression vehicle, the truck chassis use ISUZU 190HP diesel engine, MLD 6-shift transmission gear. PLC control box for easy operation. All painting and logos based on clients requirement.




 Applications:



ISUZU Rear Load Rubbish Truck (also called garbage compactor truck, ISUZU rear loader, brand new waste compression vehicle, back loading refuse truck, rubbish collector, compressed refuse truck manufacturer) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.



 Specifications:



ISUZU Garbage compactor (10 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

7500 * 2300 * 2850 mm

GVW / Kerb Weight

10,000kg / 5,120kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

190 HP (139 KW)

Displacement

5199 ml

Emission Standard

Euro 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

3815 mm / 2

Tire Specification

8.25-16

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

10 cbm

Fill Hopper capacity

1.2 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

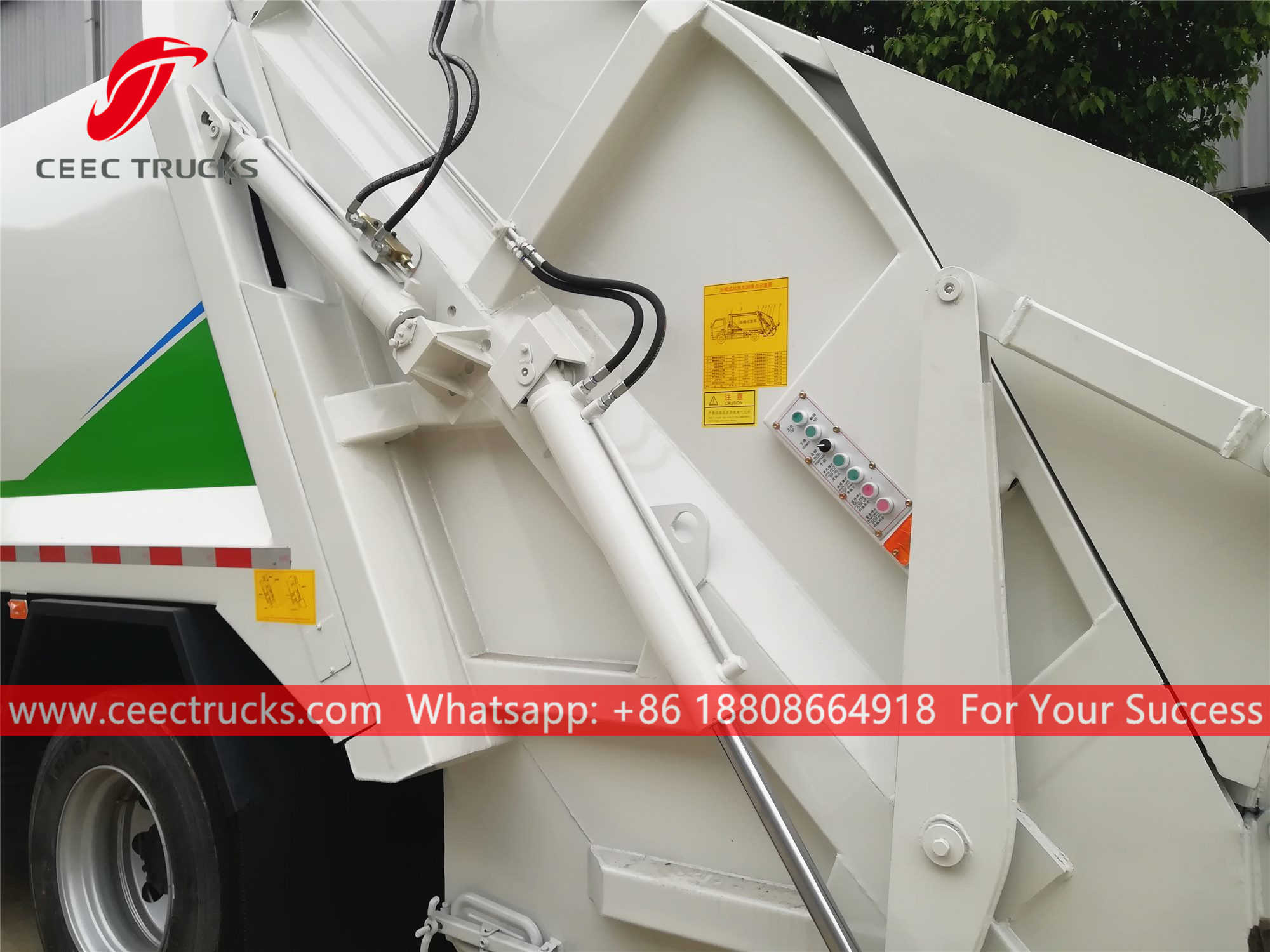

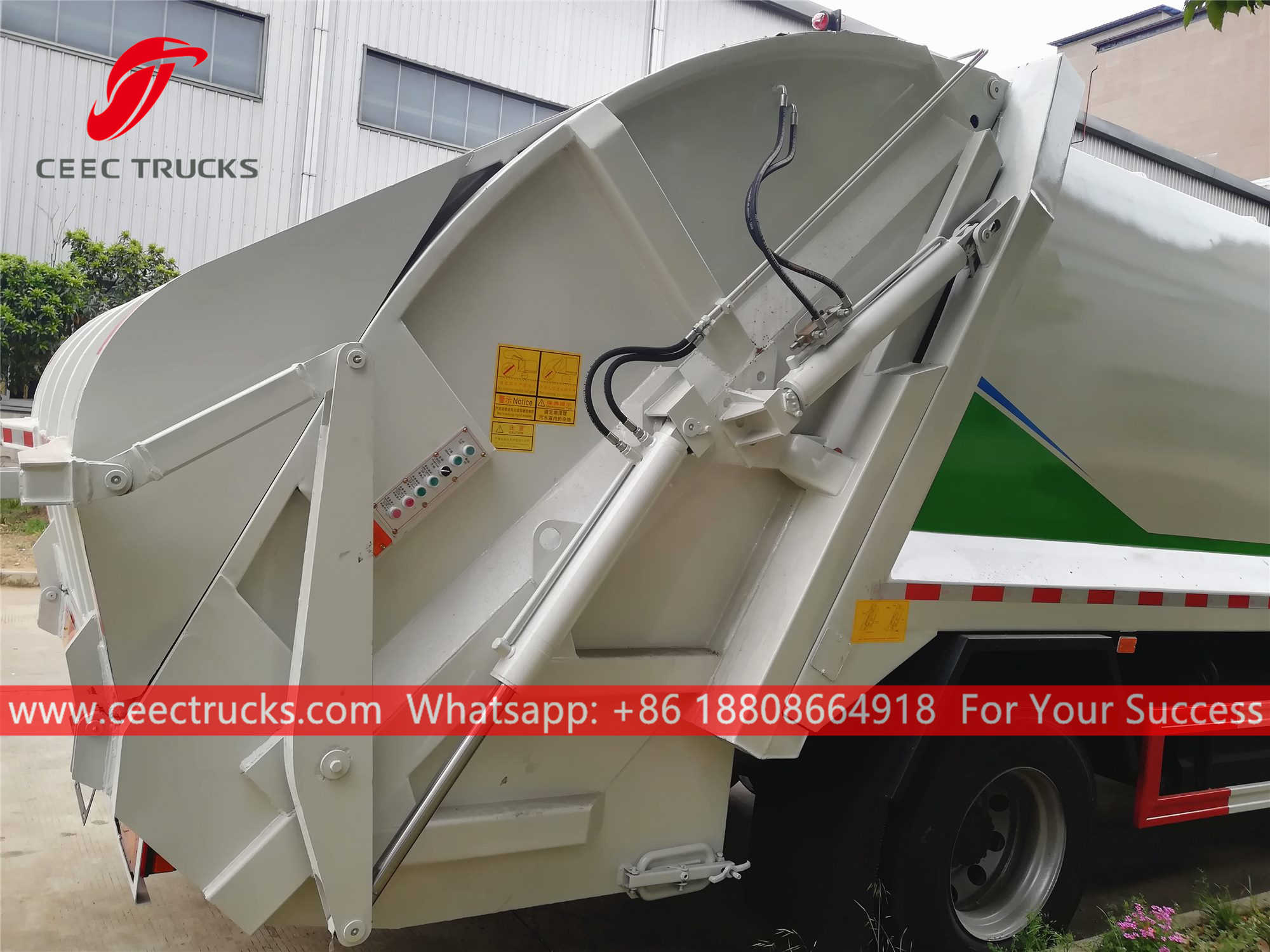

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.



(High technology Rear load garbage truck manufacturer, best quality refuse compactor trucks)



Key words: Garbage compression vehicle, rear loader, waste compactor truck
