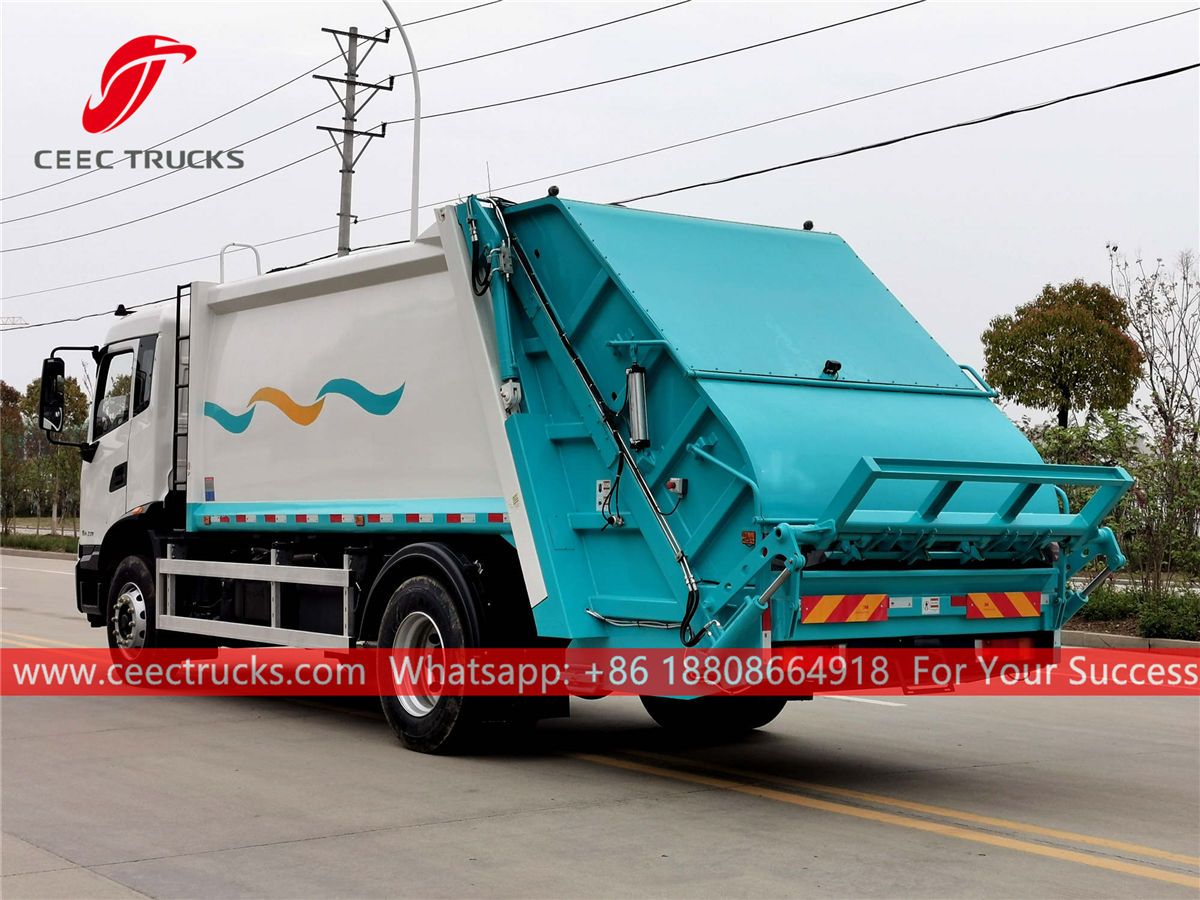

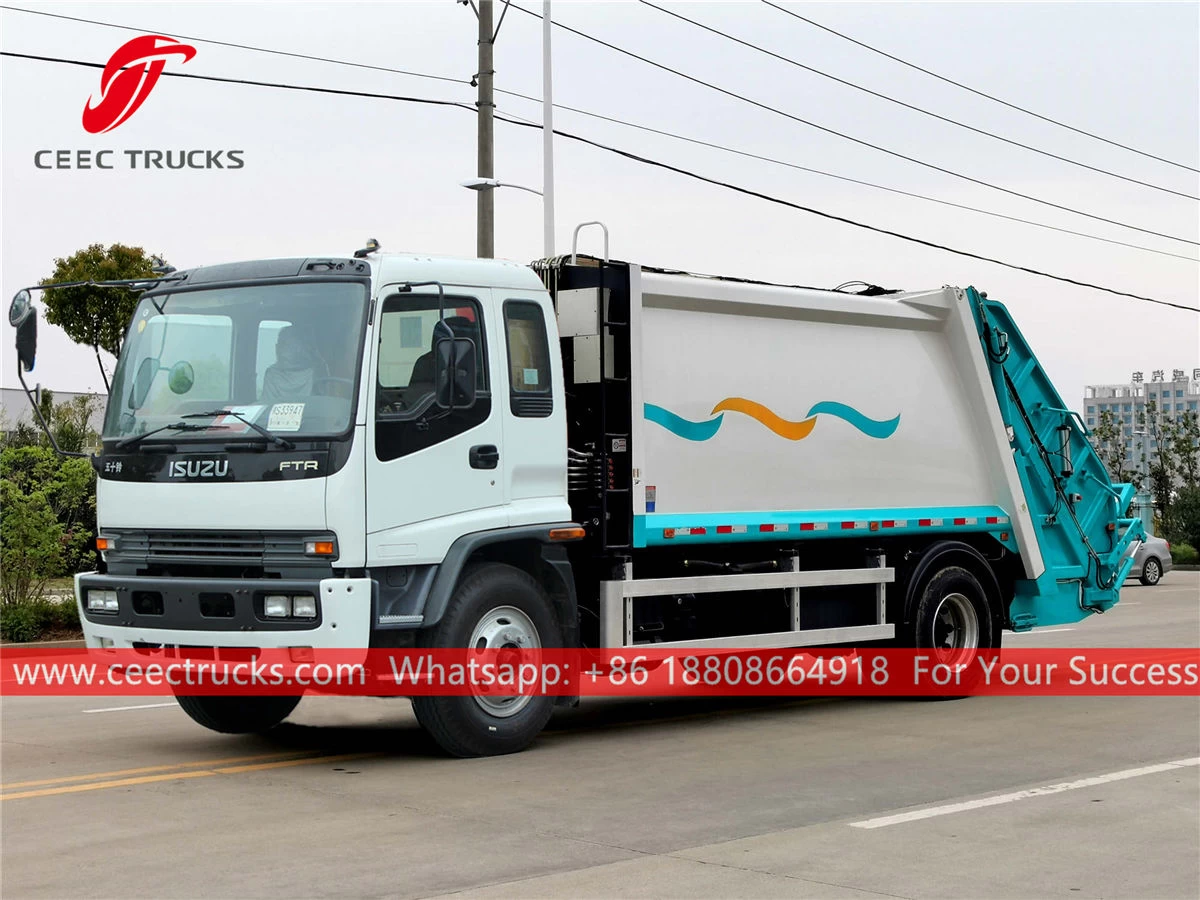

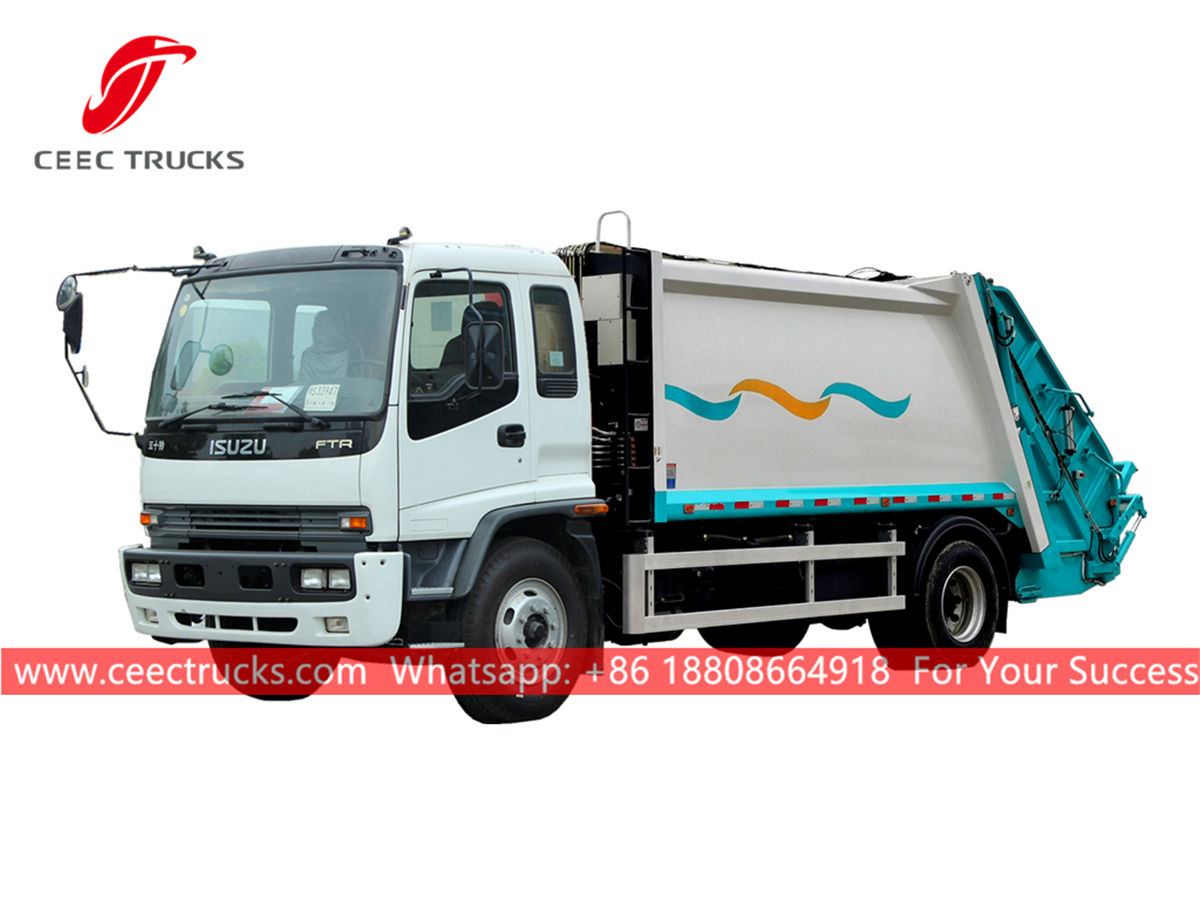

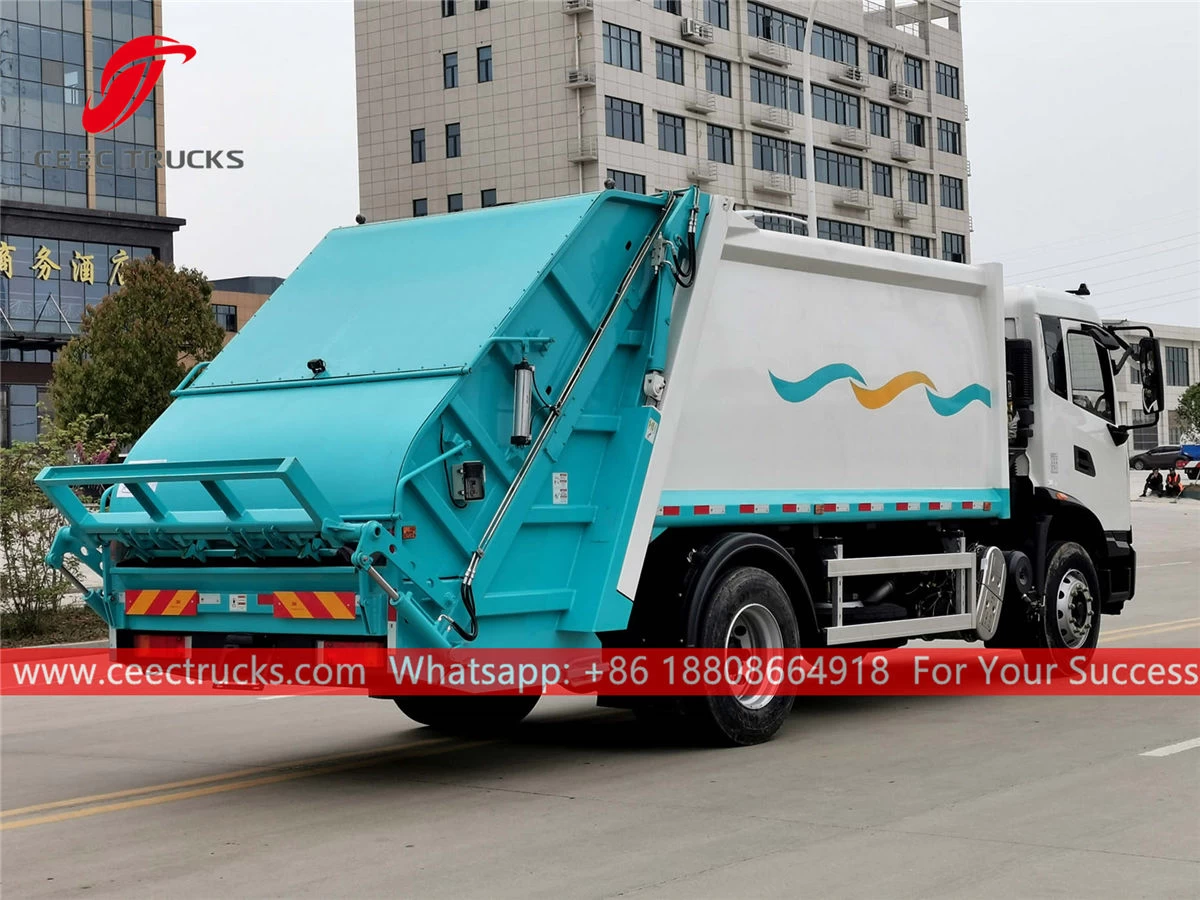

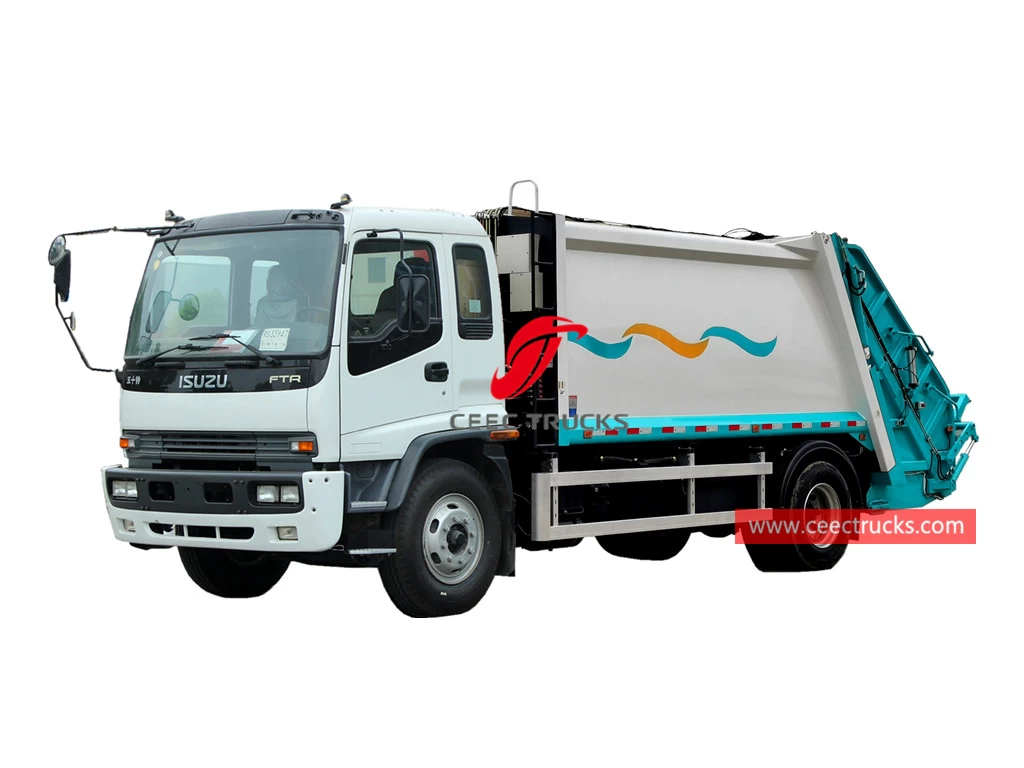

ISUZU 12CBM Garbage compactor

ISUZU 12cbm rubbish compression truck, the truck chassis use ISUZU 205HP diesel engine, MLD 6-shift transmission gear. PLC control box for easy operation. All painting and logos based on clients requirement.




New design ISUZU refuse compactor for sale

 Applications:



ISUZU 12CBM Compressing garbage truck (also called refuse compressor truck for sale, ISUZU rear-load waste truck, brand new trash compression vehicle, compressed rubbish truck, ISUZU garbage disposal truck, garbage compactor manufacturer in China) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.



 Specifications:



ISUZU Refuse compactor (12 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

8750 * 2520 * 3040 mm

GVW / Kerb Weight

18,000kg / 9,400kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

205 HP (151 KW)

Displacement

5199 ml

Emission Standard

Euro 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

4500 mm / 2

Tire Specification

10.00R20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

12 cbm

Fill Hopper capacity

1.2 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

Control system

Electrically Hydraulic control

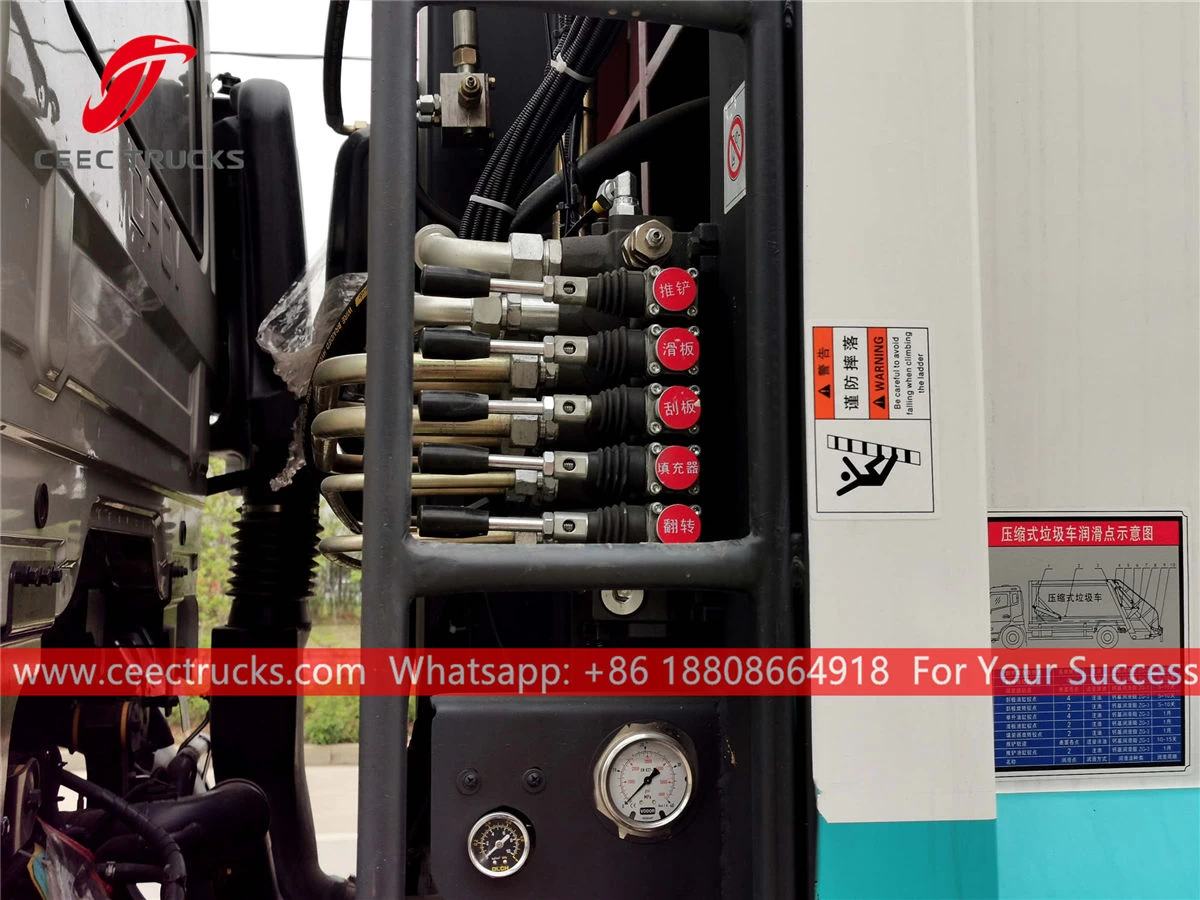

Manual hydraulic control

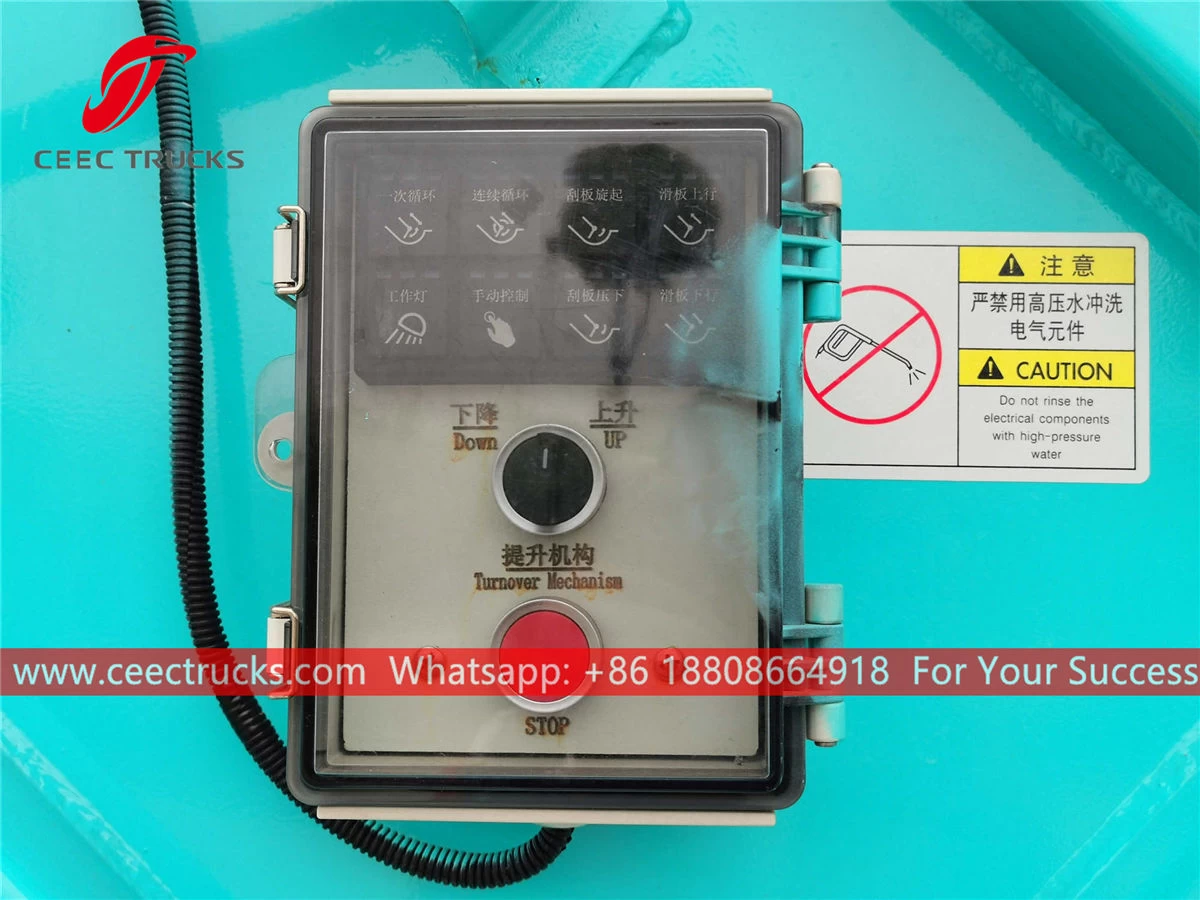

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

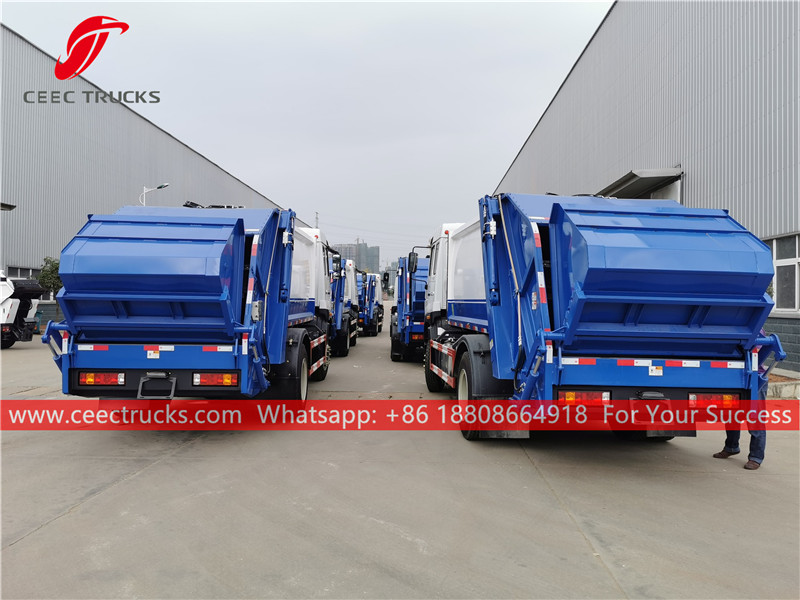

8 unit refuse compressor trucks are ready for shipment

(High technology rear loader garbage truck manufacturer, best quality waste compression trucks)
