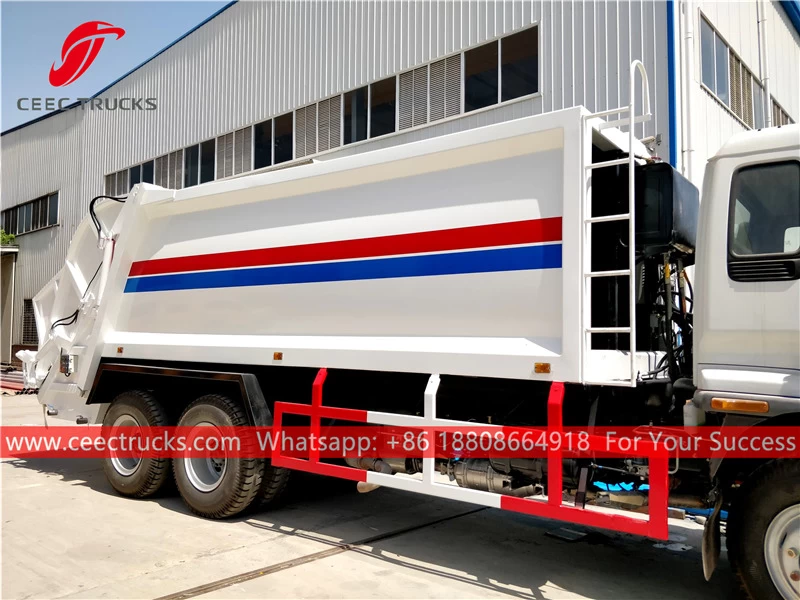

ISUZU 16CBM Waste compactor truck

ISUZU 20cbm compression waste vehicle, the truck chassis use ISUZU 300HP diesel engine, FAST 9-shift transmission gear. PLC control box for easy operation. All painting and logos based on clients requirement.

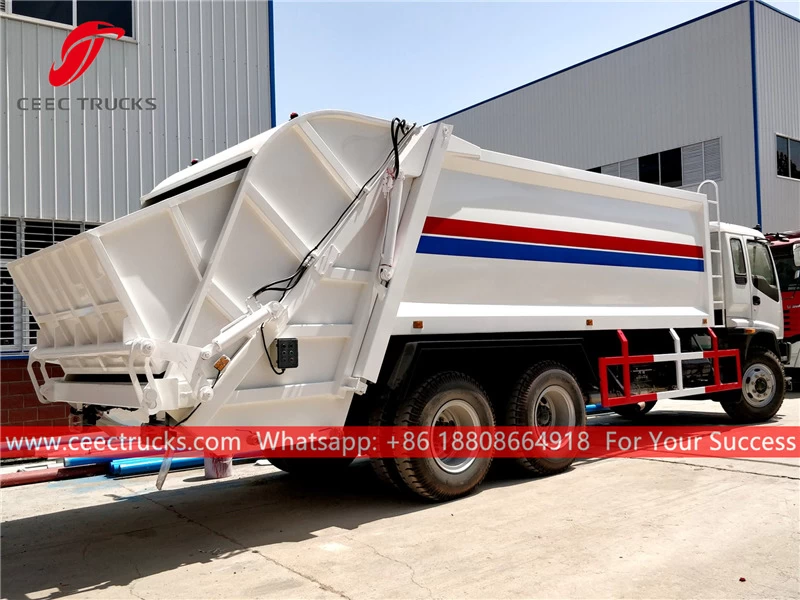

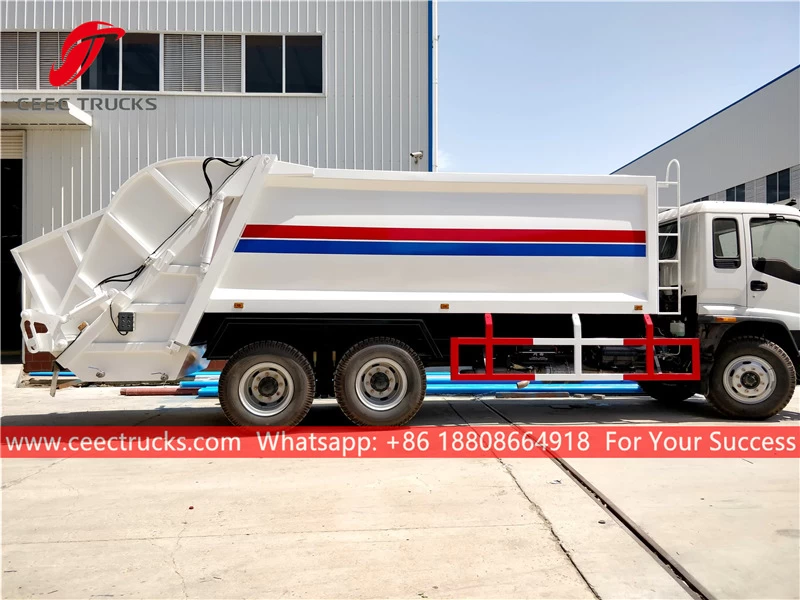

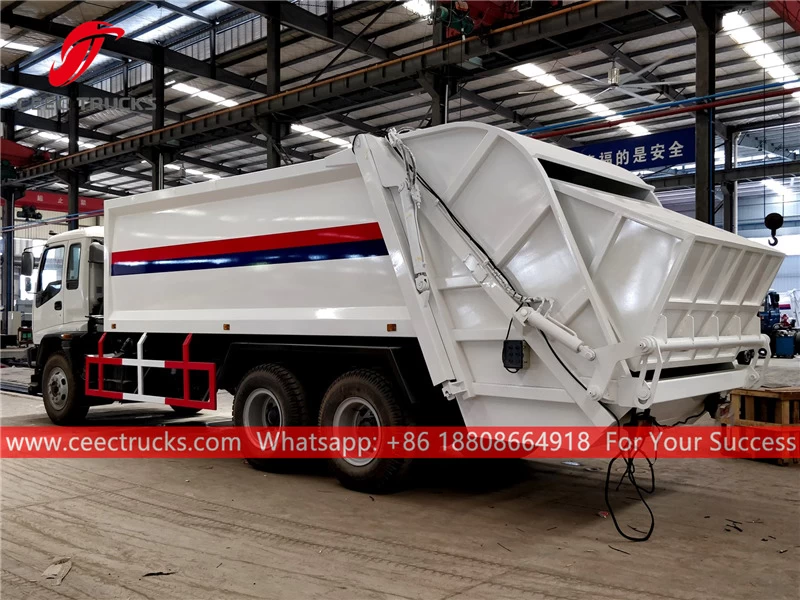

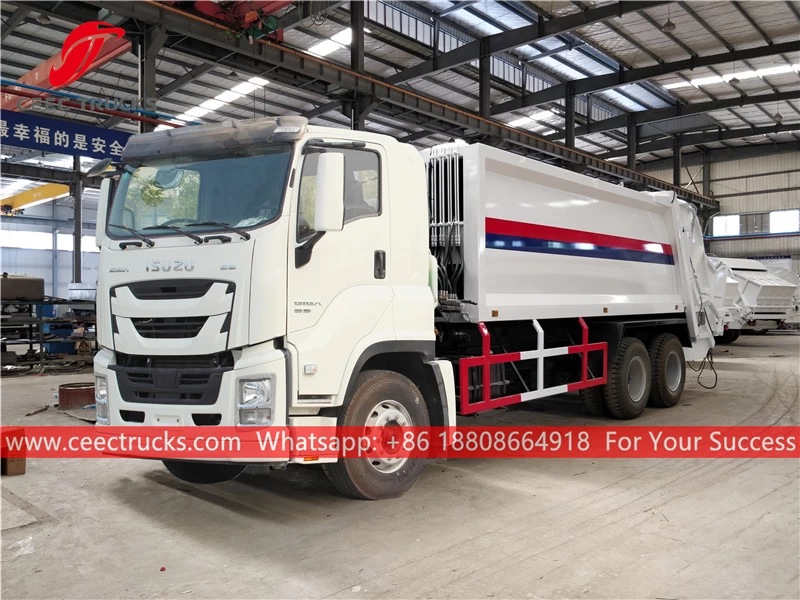

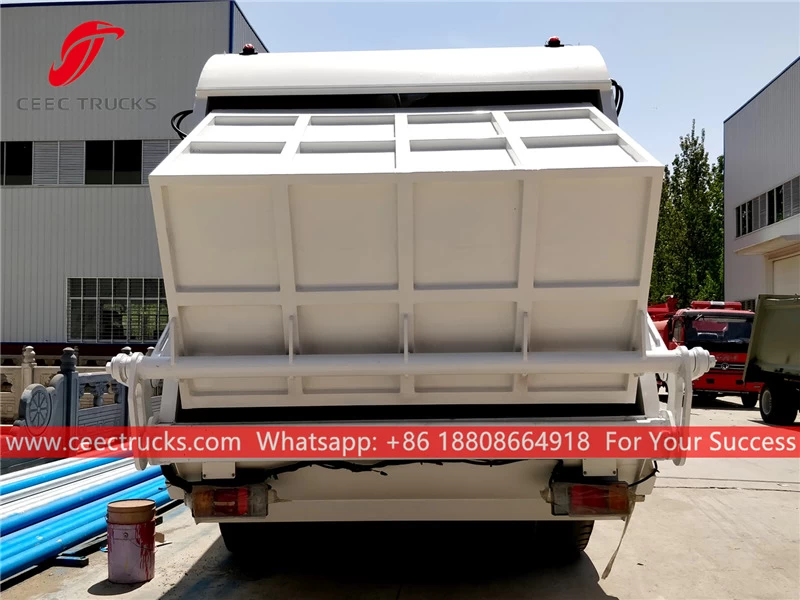

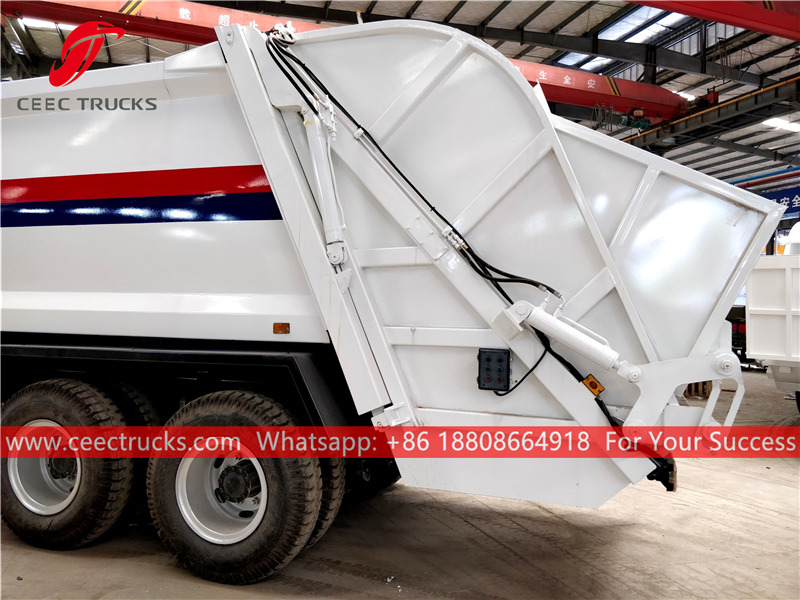

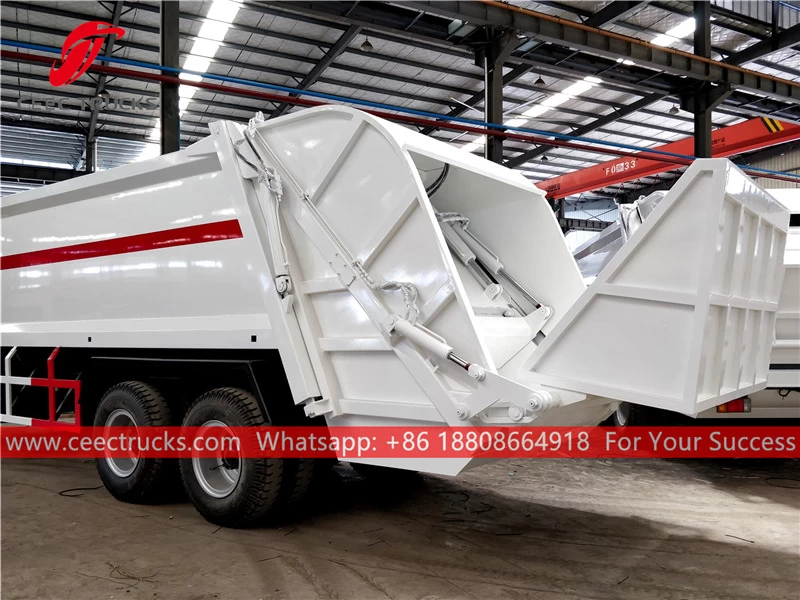

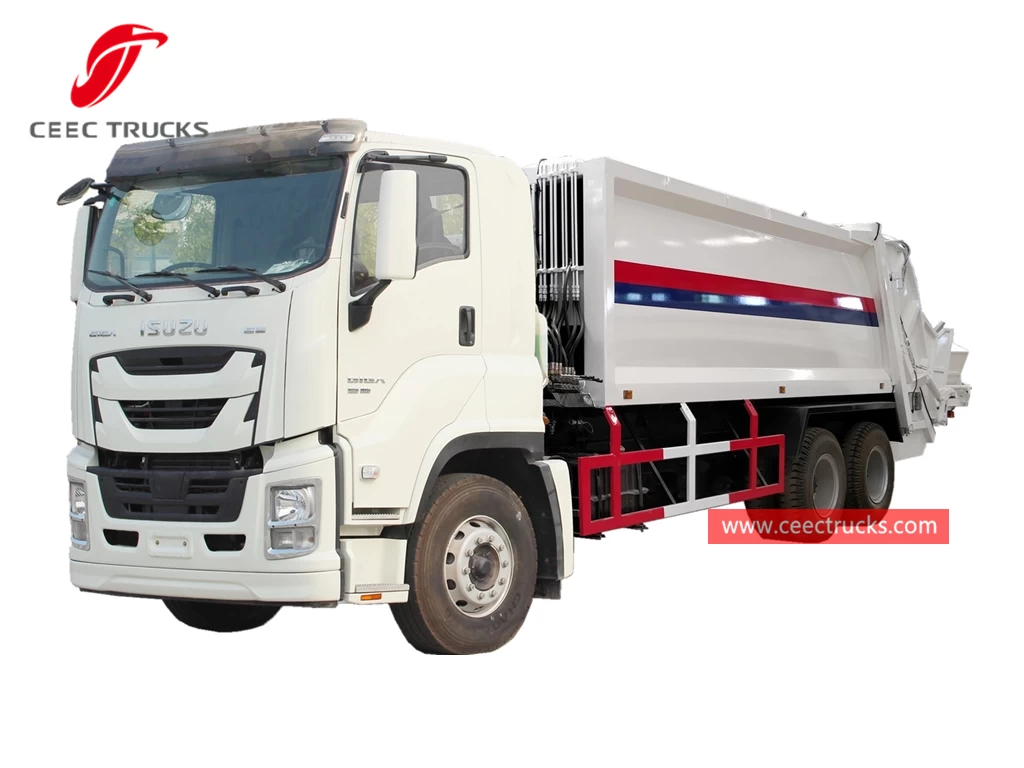

ISUZU GIGA 16CBM Rear loader

 Applications:



ISUZU GIGA Rubbish Compactor Truck (also called waste compactor truck, ISUZU refuse truck manufacturer, high quality garbage compressing truck, back-load compressed trash truck, Chinese waste collection truck, compression trash vehicle) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS  garbage compression truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.



 Specifications:



ISUZU GIGA dustbin lorry (16 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

9900 * 2500 * 3180 mm

GVW / Kerb Weight

25,000kg / 10,120kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

300HP

Displacement

7999 ml

Emission Standard

Euro 5

Chassis

Drive Type

6X4, (left hand drive)

Transmission

FAST 9 speed levers with 1 reverse

Wheelbase/No. of axle

5100+1300mm / 3

Tire Specification

11.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

16 cbm

Fill Hopper capacity

2.4 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

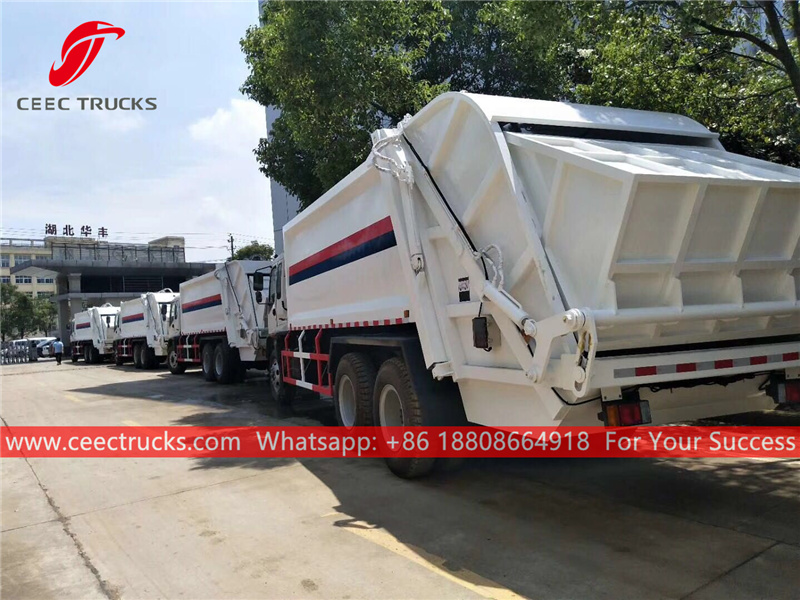

30 units ISUZU rear load refuse trucks were exported to Haiti

(High technology back-loading waste truck manufacturer, best quality waste compactor vehicles)



Key words: Back-loading trash truck, rear load rubbish truck, garbage truck with compactor
