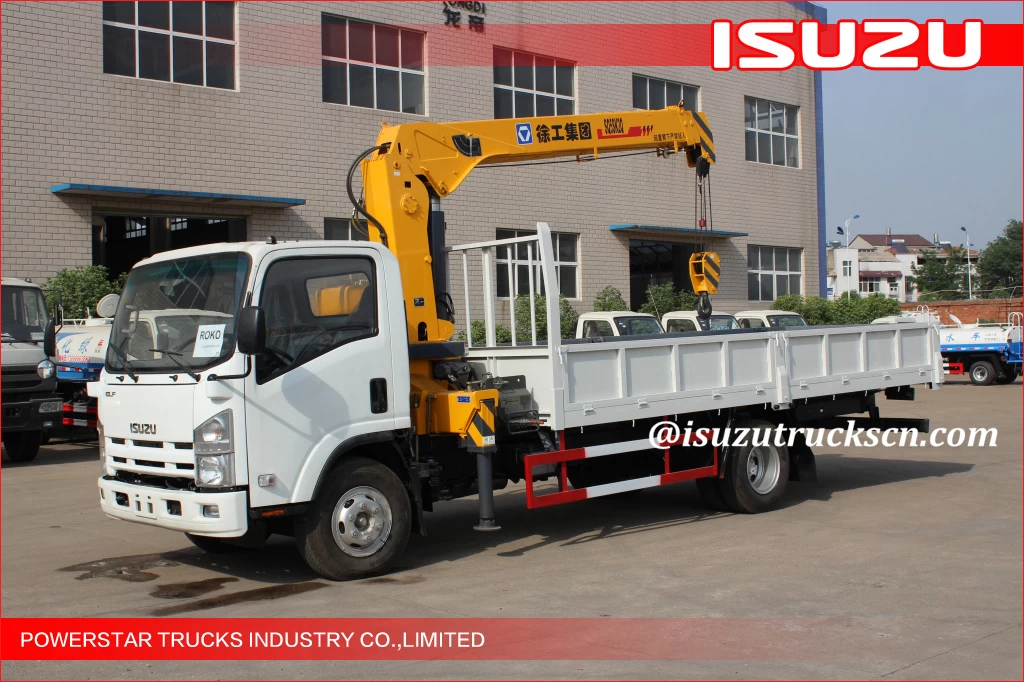

XCMG 5T Max Heavy Things Small Telescopic Boom Truck Mounted Crane



  1. Name: Telescopic boom crane, Telescoping boom crane, Hydraulic truck crane
  2. Max Lifting Capacity: 5 ton
  3. Max Lifting Moment: 12.5 T.M
  4. Max Oil Flow of Hydraulic System: 32 L/min
  5. Max.Lifting height: 13meters
  6. Brand: XCMG
  7. Crane Weight: 2260 kg
  8. Oil Tank Capacity: 90 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.


Telescopic boom crane SQ5SK3Q is lifting capacity is 5tons, moment is 12.5T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.



Specifications:



Model

SQ5SK3Q

Unit

Max Lifting Capacity

5000

kg

Max Lifting Moment

12.5

T.M

Recommend Powe

18

kw

Max Oil Flow of Hydraulic System

32

L/min

Max Pressure of Hydraulic System

20

MPa

Oil Tank Capacit

90

L

Rotation Angle

All Rotation



Crane Weight

2260

kg

Installation Space

900

mm

Choice of Chassis

ISUZU



SQ5SK3Q Lifting capability diagram

Working radius(m)

2.5

3.5

6.5

8.5

11

Lifting capacity(kg)

5000

3120

1310

1120

400

Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
