ISUZU 8 CBM garbage compactor

Myanmar ISUZU 8 CBM garbage compactor trucks equipped Japanese technology 4HK1-TC 190HP engine, MLD 6-shift manual gearbox, upper structure of compactor body material is carbon steel, with 4mm thickness, Germant SIMENS PLC control system, very good performance



ISUZU Garbage compactor truck (also named isuzu waste compactor truck, dongfeng garbage compactor, beiben trash compactor, north benz refuse collection truck, Jac compactor garbage truck). the ISUZU 8 CBM compressed garbage trucks are designed to collection, compression and transportion municipal solid waste.

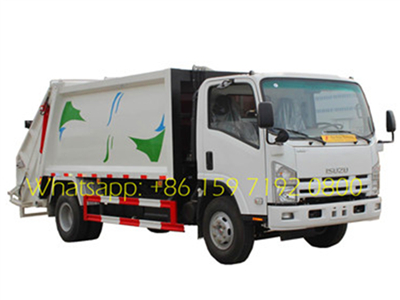

ISUZU 8CBM garbage compactor truck



CEEC produced garbage compactor truck



Isuzu 8cbm Garbage compactor truck is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. ISUZU 8000 Liters compression refuse truck is ideal solution for solid waste collection.The operation system could be manual or electrical control, all equipped with English version guidance for easy operation. Also English version Owner's Manual for quick learning operation.

Below show brief drawing for CEEC TRUCKS produced garbage compactor trucks:


CEEC produced garbage compactor truck drawing



ISUZU 8 CBM Compressed Garbage Truck advanced features list:

---- ISUZU mini 4x2 LHD chassis, 3815mm wheelbase, perfect performance.
---- ISUZU 4HK1-TC engine, super power can be up to 190HP; reliable performance, customer feedback no overhaul within 100,000 km.
---- Carbon steel material compactor body, Nice shape, rational structure, with thickness 4mm
---- High quality hydraulic system with original Italy control valves and SIMENS PLC moudel
---- Over thiree level painting for both inside and outside of the body, Massive, durable, perfect performance
---- 12 months guarantee and 1 yest spare parts for Quick Delivery, Prolonged service life



 ISUZU 8cbm refuse comression trucks



ISUZU 8cbm refuse comression trucks      ISUZU 8cbm refuse comression trucks



ISUZU 8cbm refuse comression trucks



ISUZU 8cbm refuse comression trucks control box      ISUZU 8cbm refuse comression trucks operation joysticks



Similar Key Words:  Garbage compactor truck, ISUZU trash compressor truck, 8 CBM waste compactor, ISUZU rear loader compactor truck, ISUZU 8CBM refuse collection truck, Beiben compactor garbage truck, Dongfeng waste collection vehicle



Product name

ISUZU 8CBM Garbage Compactor Truck   LHD / 4*2

Chassis name

ISUZU brand

Capacity of body

8CBM  (2200Gallons)

Specification

of vehicle

Outside dimension (mm):

7690x2250x2950

Total weight (kg):

14000

Loading weight (kg):

8000

Net weight (kg):

6880

Approach / departure angle (mm):

19/13

Front / rear suspension (mm):

1032/1818

Fuel type :

Diesel

Max. speed (km/h):

105

Engine specs

Model :

ISUZU 4HK1-TCG40

Manufacturer :

ISUZU

Displacement (ml):

5193

Power (kw):

140

Chassis specs

Driving type:

4×2

Wheelbase (mm):

3815

Tread (front/rear):

1506/1442

Displacement standard:

Euro 4

Front / rear axle:

Japanese tech

Gear box:

ISUZU MLD 6-shift gerbox

Brake system:

Pneumatic

Cab:

Single cab

Spring file (front/rear):

8/9+5

Tyre:

8.25-16

Air condition :

equipped

Garbage body feature

Working pressure of hydraulic

16MPa

Garbage body mterial

Carbon steel Q235

Thickness

Side

4mm

Floor

4mm

Lifting the bin time:

20s

Unloading bin time:

12s

Brief introduction

1, The large hydraulic cylinder drive the double arms, to install hydraulic legs to make sure the stability and safety of vehicle during operation.

2, The type of garbage box: sealed, semi-enclosed. The shape of garbage box: rectangular shape, trapezoidal.

3, The characterized of this vehicle: cargo compartment and vehicle body can be separated. One vehicle can work with more one garbage cargo body, recycling transport; improve the transport capacity, especially for short-distance transport, such as the sanitation department.



ISUZU 8cbm refuse comression truck side view



Garbage compactor trucks on sale




5 CBM garbage compactor truck

8 cbm refuse compactor truck

12cbm refuse compression vehicle

ISUZU 20CBM trash compactor trucks

beiben refuse compactor trucks

Engine

4KH1-TC

4HK1-TC

CUMMINS

CUMMINS

WP10.380E32

Model

ISUZU

ISUZU

Dongfeng

Dongfeng

Beiben 2538

Rated Power

120HP

190HP

190HP

240HP

380HP

Payload

5 CBM

8 CBM

12 CBM

20 CBM

22 CBM

Drive Type

4*2

4*2

4*2

6*4

6*4
