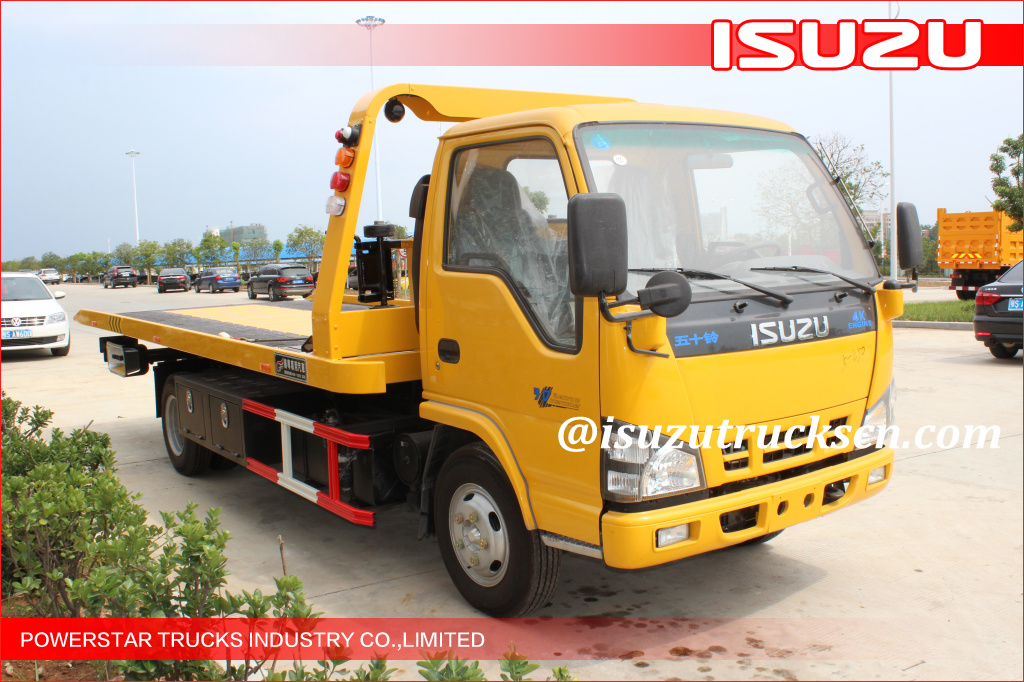

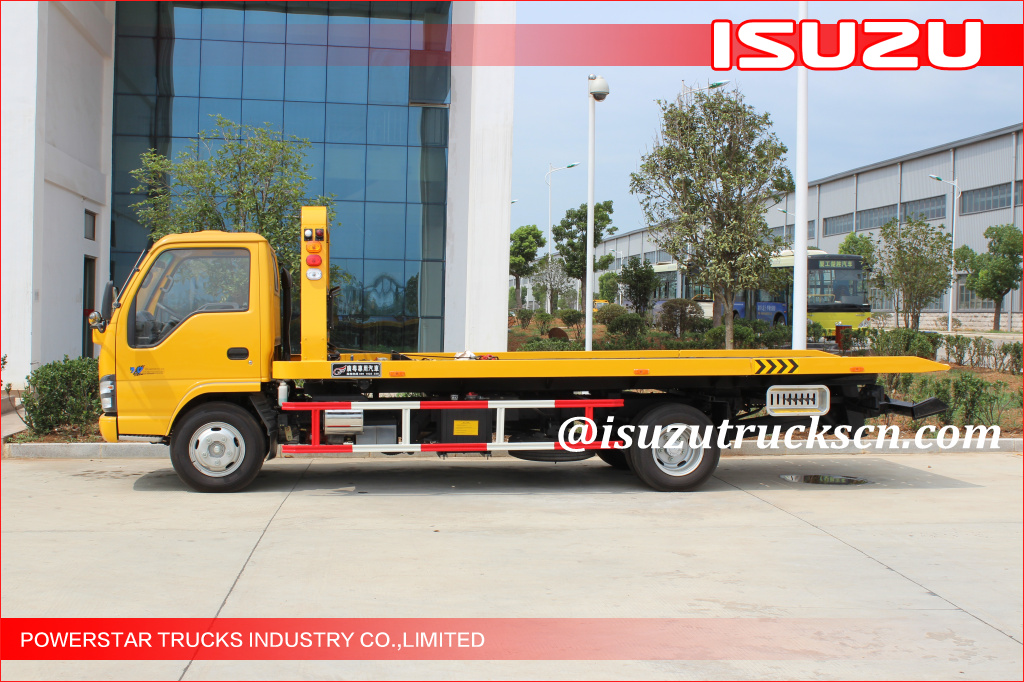

4x2 tow truck Japan small heavy duty truck 3ton wrecker tow truck for sale
Main specification
|
Product model and name
|
PT5070TQZWP heavy duty truck
|
Gross weight(Kg)
|
7300
|
Drive type
|
4X2
|
Curb weight(Kg)
|
4370
|
Overall dimension(mm)
|
7300X2300X2460
|
Approach/departure angle(°)
|
24/14
|
Cab seats
|
2
|
Axle No.
|
2
|
Front/rear hang(mm)
|
1015/2470
|
Axle load(Kg)
|
2580/4720
|
Wheelbase(mm)
|
3815
|
Max speed(Km/h)
|
105
|
|
|
Chassis specification
|
Chassis model
|
ELF
|
Manufacturer
|
ISUZU
|
Brand name
|
ISUZU
|
Dimension(mm)
|
6645X1880X2160
|
Tyre specification
|
7.00-16 14PR
|
Tyre No.
|
6 and 1 for the spare
|
Steel spring number
|
8/6+5
|
Front track base(mm)
|
1504
|
Fuel type
|
Diesel
|
Rear track base(mm)
|
1425
|
Emission standard
|
Euro 4
|
Transmission
|
MSB,5 forward gear,1 reverse gear
|
Cab
|
Single row, luxurious interior trim with seats and power steering with air condition.
|
Engine model
|
Engine manufacturer
|
Displacement(ml)
|
Power(Kw)
|
4KH1-TCG40
|
Qingling ISUZU Engine Co.,Ltd
|
2999
|
88
|
Performance
|
Flat length(mm)
|
5600
|
Flat width(mm)
|
2300
|
Max pulling weight(Kg)
|
4000
|
Max lift weight(Kg)
|
3000
|
Vehicle accessories
|

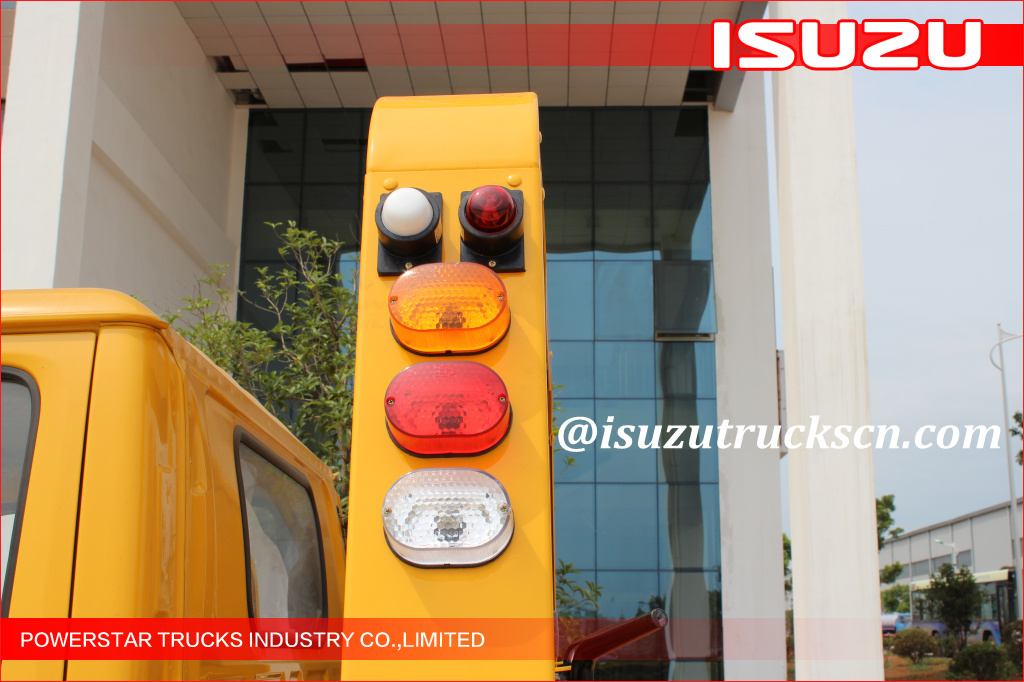

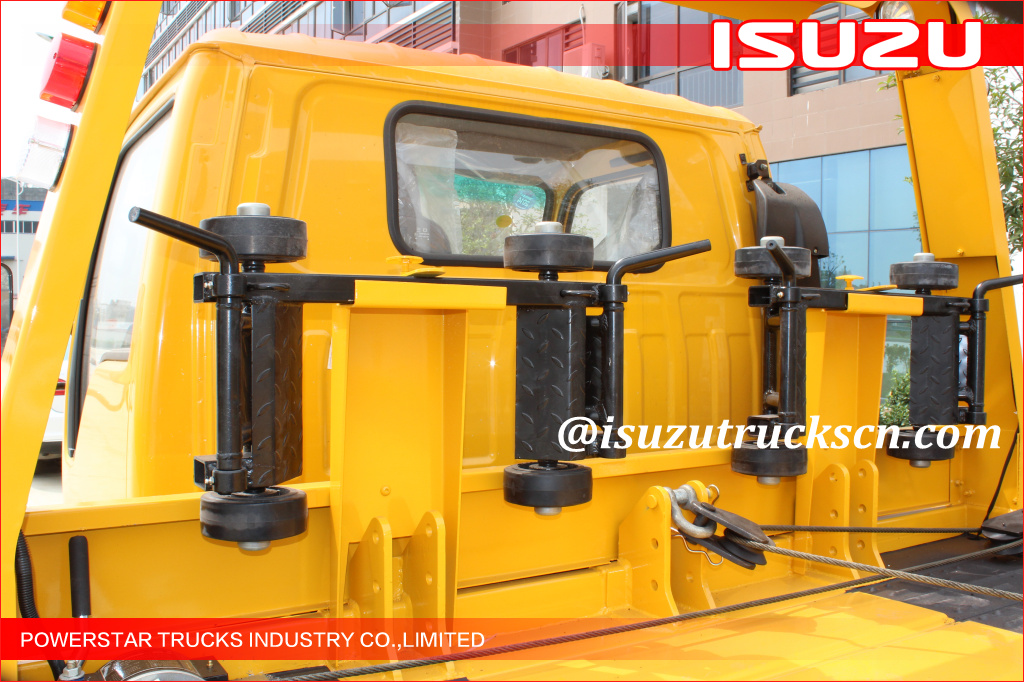

Training wheels, Steel wire rope, Bandage, Alarm lamp, Tyre covers, Jack, Spare tyre, Drivers’ tools
|
Wrecker Truck Instruction
|
The full name of wrecker truck is named road wrecker truck, also called trailer and road rescue truck. It has the powerful function and can carry two cars at the same time. It is the ideal choice for road management department and automobile repair plat to proceed to the road repair and rescue.
|

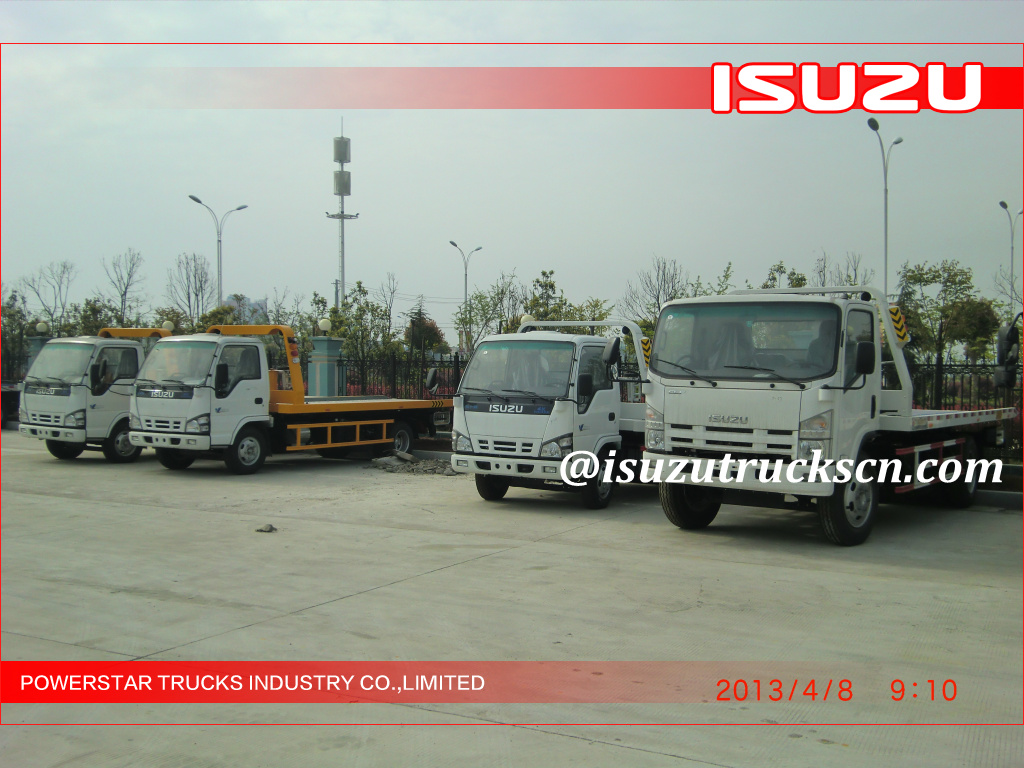

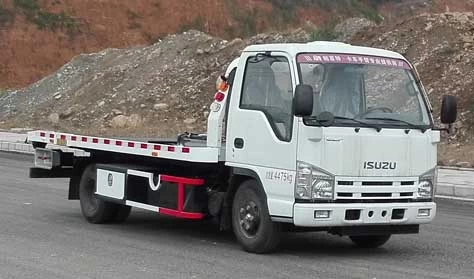

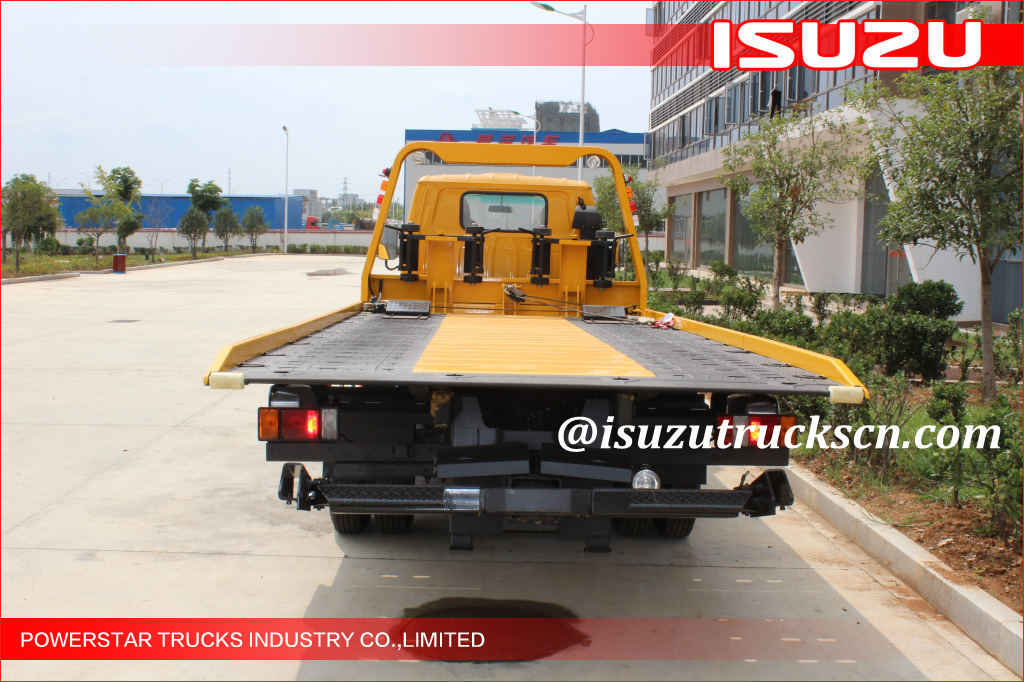

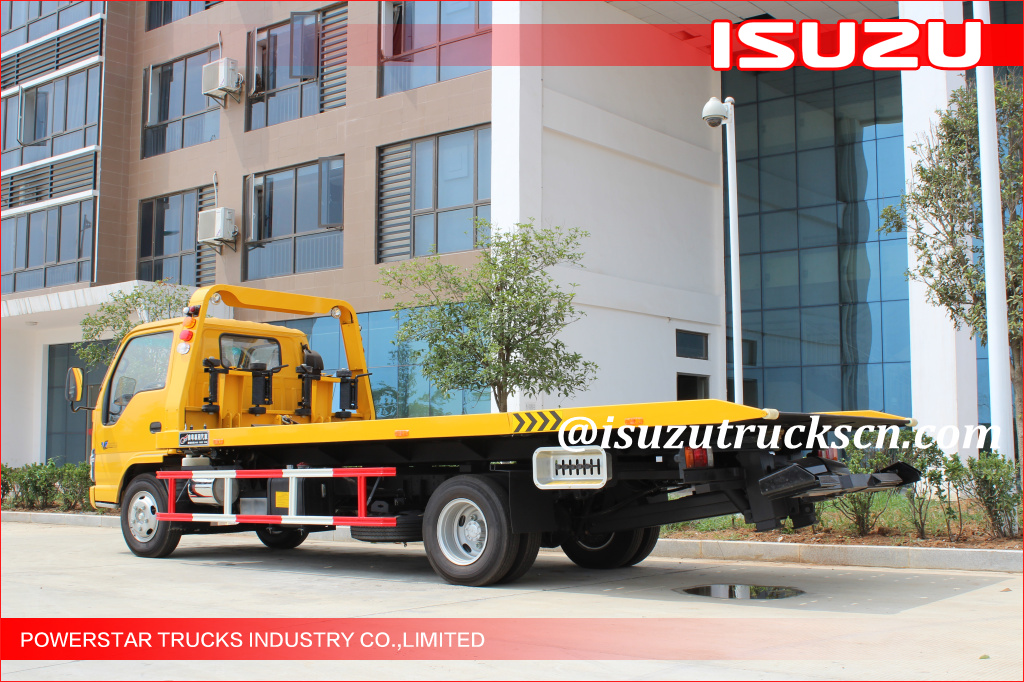

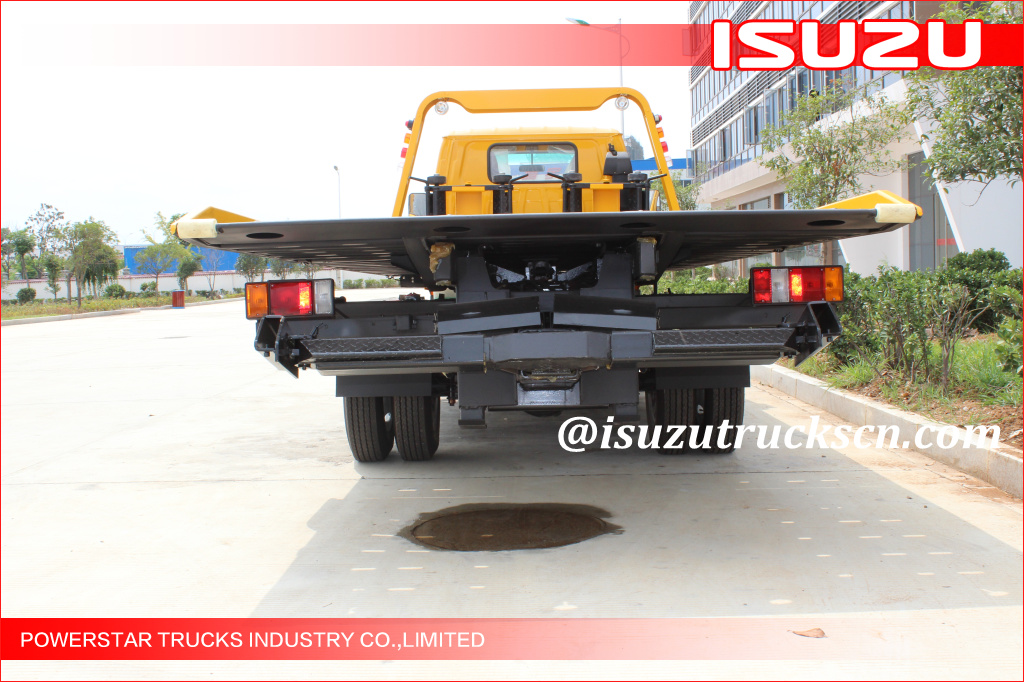

Recently Built Road Wrecker Truck:
