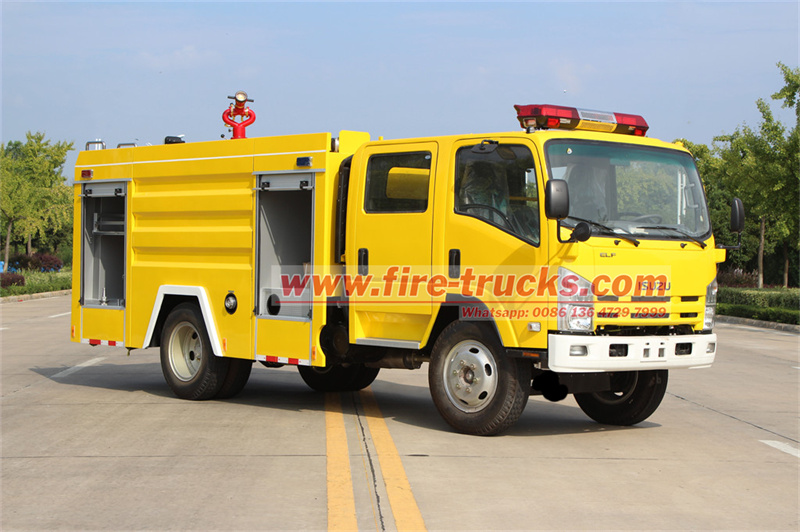

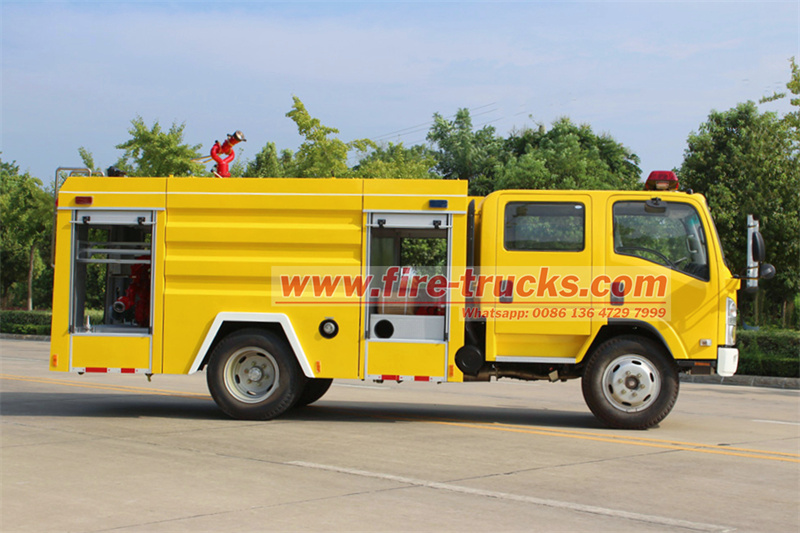

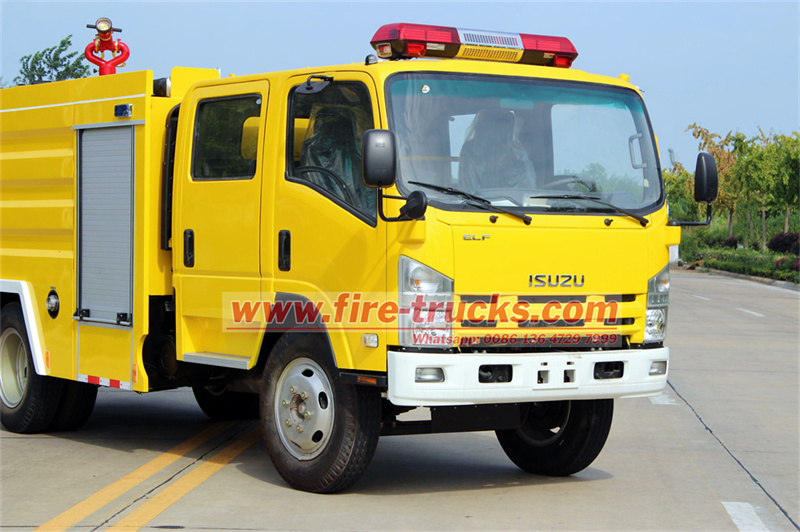

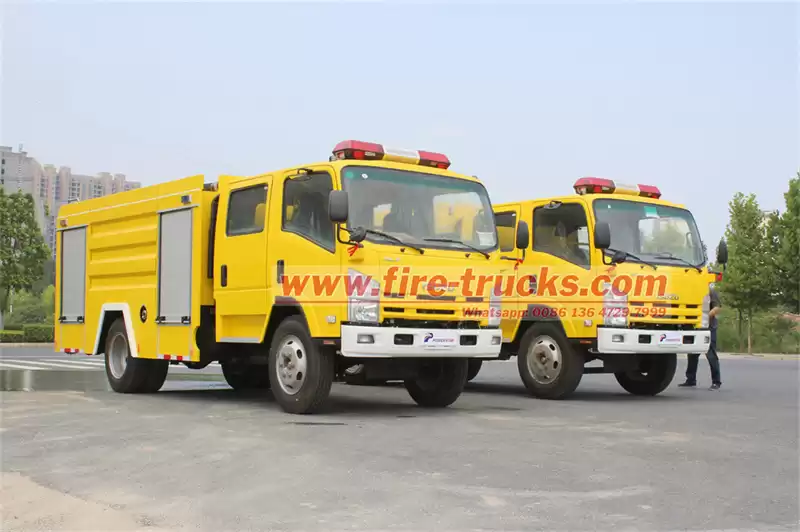

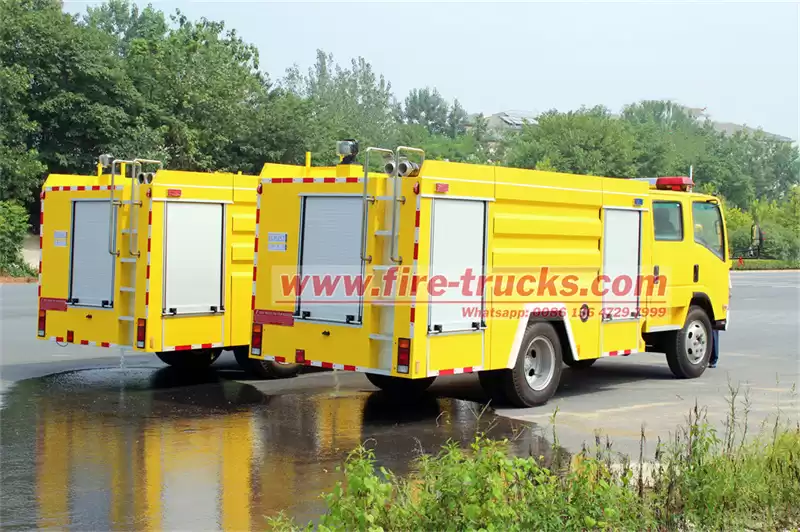

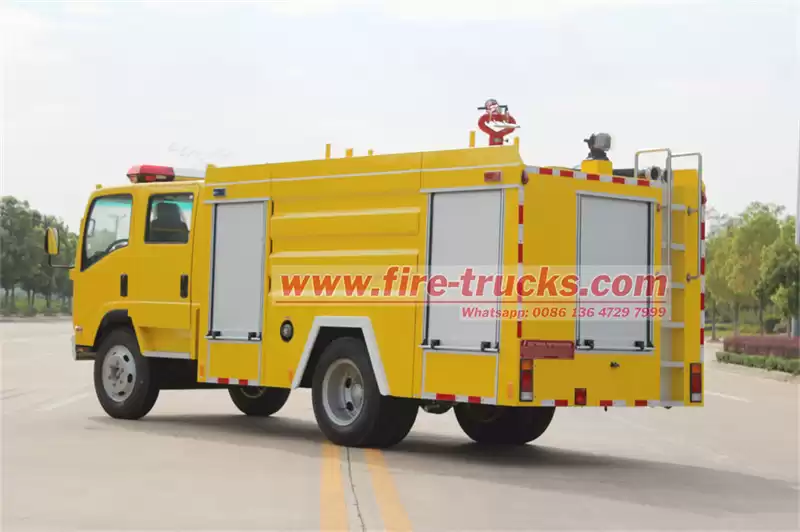

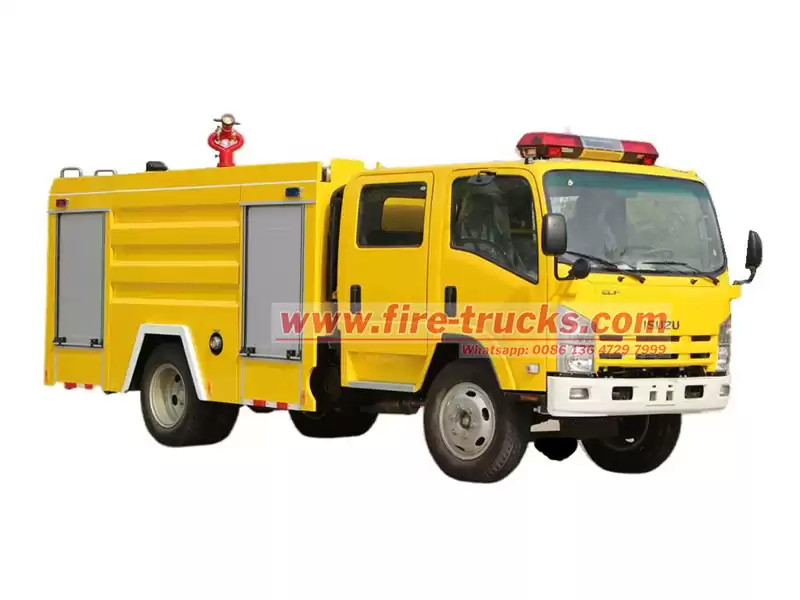

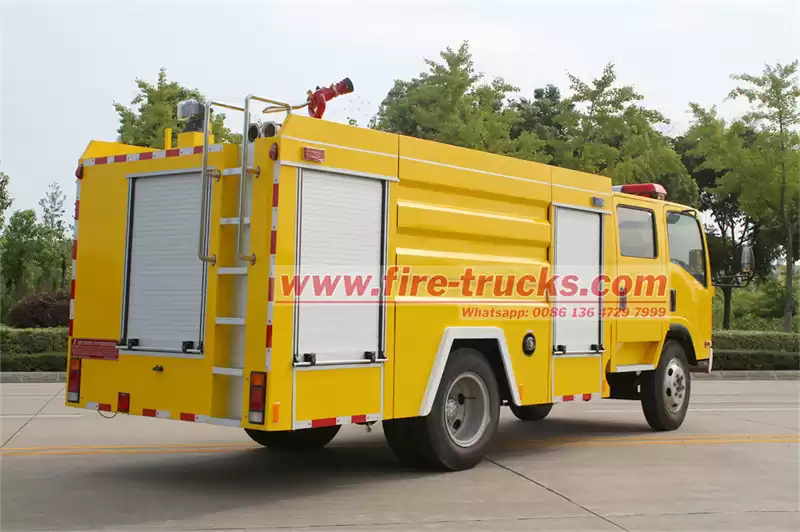

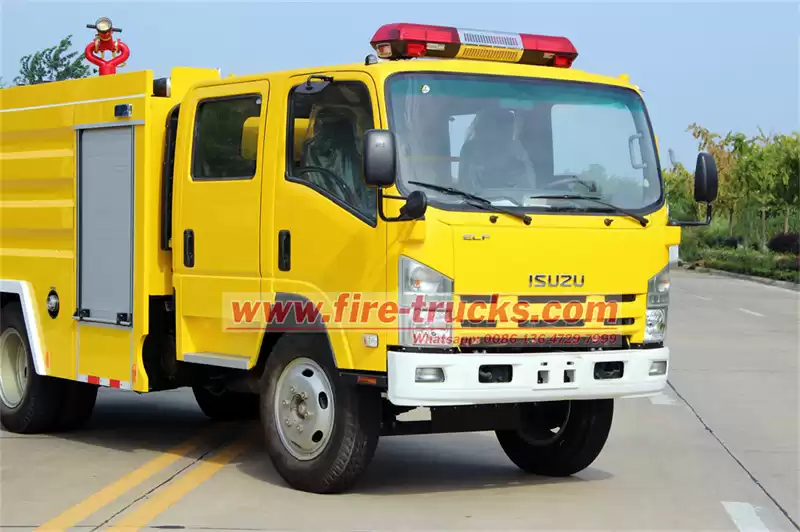

Isuzu ELF light duty fire water truck

The Isuzu NPR Small fire fighting truck is built on the sturdy ISUZU NPR light-duty chassis. It combines excellent power and environmentally friendly emissions. It has all-wheel drive capabilities and can challenge all kinds of bad roads. It is equipped with a 4000-liter large-capacity tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs. This Isuzu mini all-wheels fire water truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility.

  • RemarkOff-road system, light-duty
  • Fire MonitorPL24， Flow Rate 24L/S
  • Fire PumpCB10/30, 1600L/min
  • Engine Model4HK1-TCG61
  • Engine Power190HP
  • Axle drive4x4
  • Wheelbase4175mm
  • Work capacity 3000L Water + 1000L Foam
  • Tanker StructureHigh quality stainless steel
  • Truck ModelPST51103SXF
Facebook Twitter Pinterest LinkedIn 分享

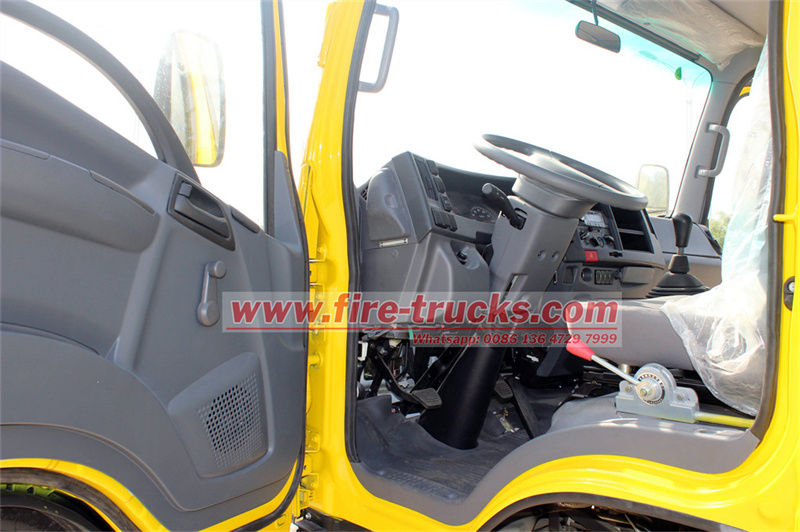

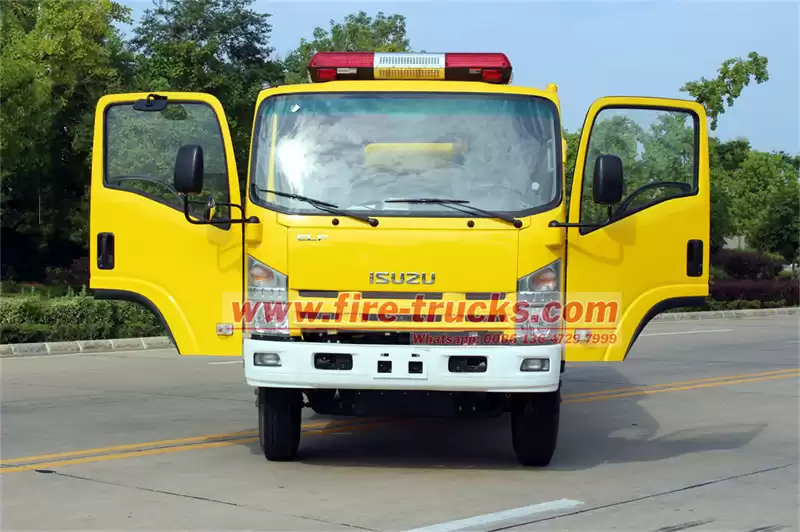

The Isuzu NPR Small fire fighting truck is built on the sturdy ISUZU NPR light-duty chassis. It combines excellent power and environmentally friendly emissions. It has all-wheel drive capabilities and can challenge all kinds of bad roads. It is equipped with a 4000-liter large-capacity tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs. This Isuzu mini all-wheels fire water truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility. The Isuzu NPR mini fire fighting truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions. In addition, the design of the cab also takes into account the convenience and safety of driving.

 ISUZU mini fire fighting truck



● China best fire fighting truck factory

● More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery. any order is welcome

● 24 month quality guarantee term



Specification:



 ISUZU NPR mini fire truck



Isuzu light-duty NPR fire water truck

General

Vehicle Brand

Powerstar TRUCKS

Chassis Model

Isuzu NPR

Overall Dimension

7300 * 2350 * 3150 mm

GVW / Kerb Weight

10,055kg / 5,300kg

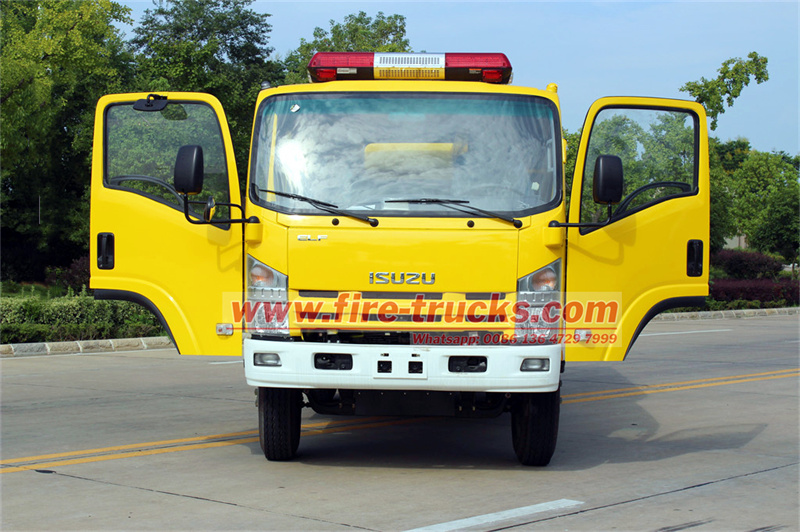

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Model

4HK1

Power

190 HP (139 KW)

Displacement

5197 ml

Emission Standard

Euro 6

Chassis

Drive Type

4X4 (left or right hand drive)

Transmission

6-speed levers with 1 reverse

Wheelbase/No. of axle

4175 mm / 2

Tire Specification

235/75R17.5

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

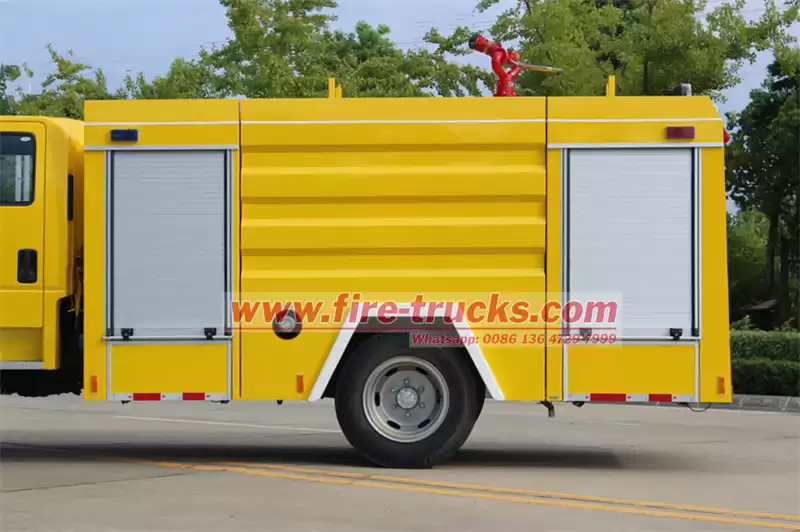

Superstructure

Tank Capacity

3,000 L Water tank

1,000L Foam tank

Tanker Material

Stainless Steel

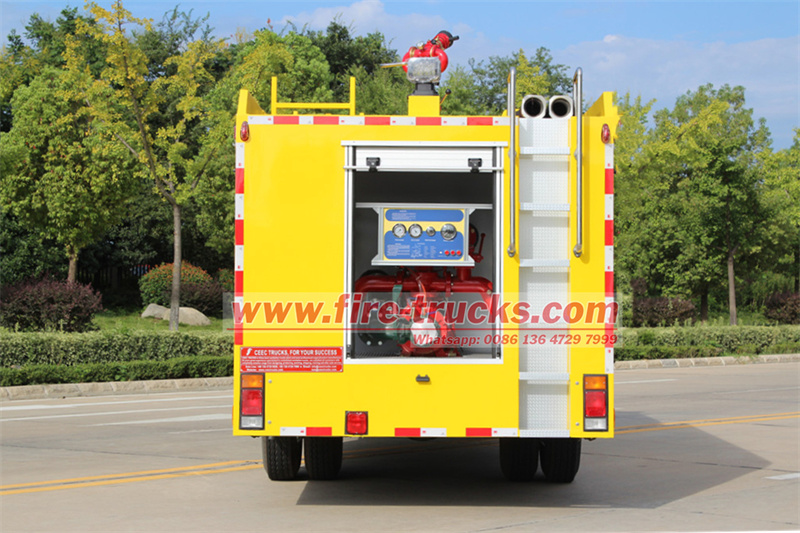

Fire pump

CB10/30, 30L/S

Fire pump location

Center or rear

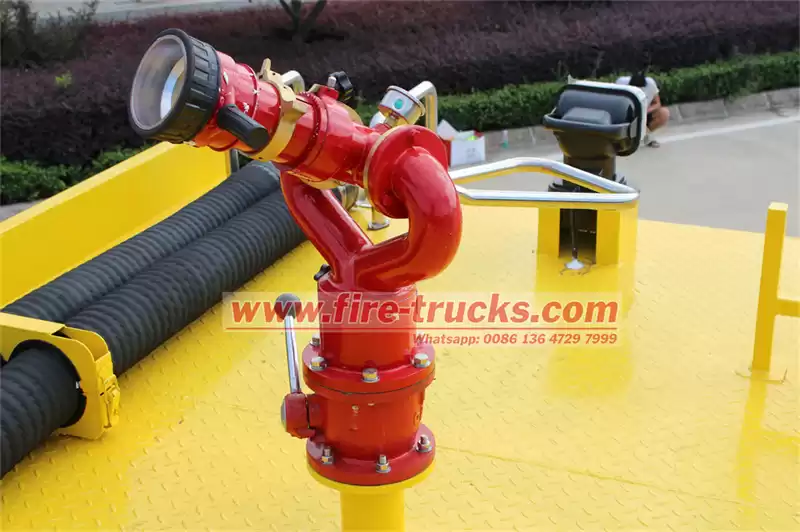

Fire monitor

Water jet distance: ≥45m / Foam jet distance: ≥40m

Control panel

English or Your language

All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Standard carbon steel, stainless steel optional.

** USA or Germany fire pump can be optional



Feature:

  • ISUZU NPR light-duty fire truck

     Powerful power system:

    Equipped with a high-power engine(4HK1) to ensure rapid response under complex road conditions.

    Isuzu All-wheel drive system improves passability on rugged or slippery roads.

  • ISUZU NPR light-duty fire truck

    Efficient firefighting equipment:

    Large-capacity water tank to meet long-term firefighting needs.

    High-pressure water pump to provide strong water flow and range.

  • ISUZU NPR light-duty fire truck

    Strong body structure:

    Adopt high-strength materials to improve impact resistance and fire resistance.

    Roll cage and seat belts to ensure passenger safety.

  • ISUZU NPR light-duty fire truck

    Multifunctional rescue equipment:

    Equipped with hydraulic shears, expanders and other demolition tools for rescuing trapped people.

    Lighting equipment, such as liftable lighting, ensures operation at night or in low-light environments.

  • ISUZU NPR light-duty fire truck

    Humanized design:

    Comfortable cab to reduce fatigue from long-term operation.

    Easy-to-operate equipment layout to improve emergency response speed.



Advantage:

ISUZU NPR light-duty fire truck

1.Firefighting efficiency: Tactical advantages of high flow and long range

Large-capacity water storage system:

The 3000L stainless steel water tank (optional 316L stainless steel) adopts a double-layer explosion-proof structure design with a pressure resistance of 1.2MPa. With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 100 seconds (single water source mode).

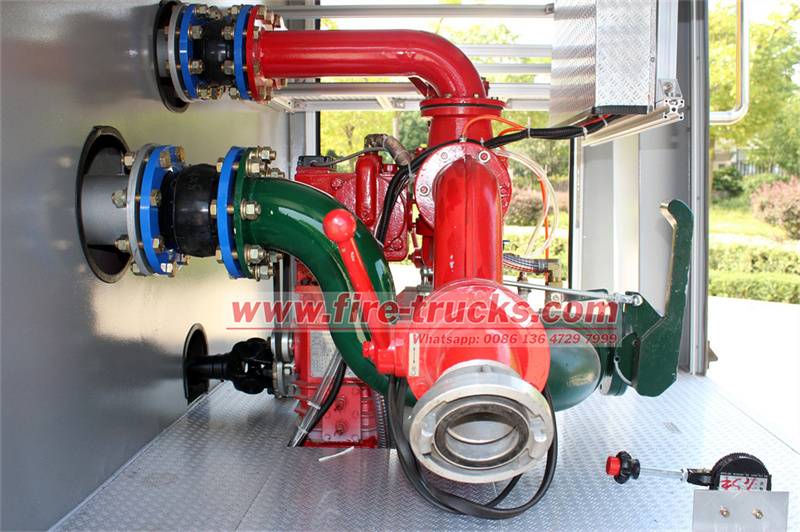

Efficient pump system:

Standard CB10/30 mid-mounted centrifugal pump (30L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 60L/s), water cannon range of 55m (DC)/28m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.

ISUZU NPR light-duty fire truck

2.Comprehensive application scenario advantages

Urban firefighting: compact wheelbase (4175mm) supports 9m turning radius, suitable for narrow streets.

Industrial fires: The foam system is compatible with AFFF/AR-AFFF and can cope with fires in petrochemical facilities. It is suitable for extinguishing various oil fires and polar solvent fires such as alcohols, ketones, and esters.

Field rescue: all-wheel drive system + wading hose (800mm depth) to achieve multi-terrain coverage.
