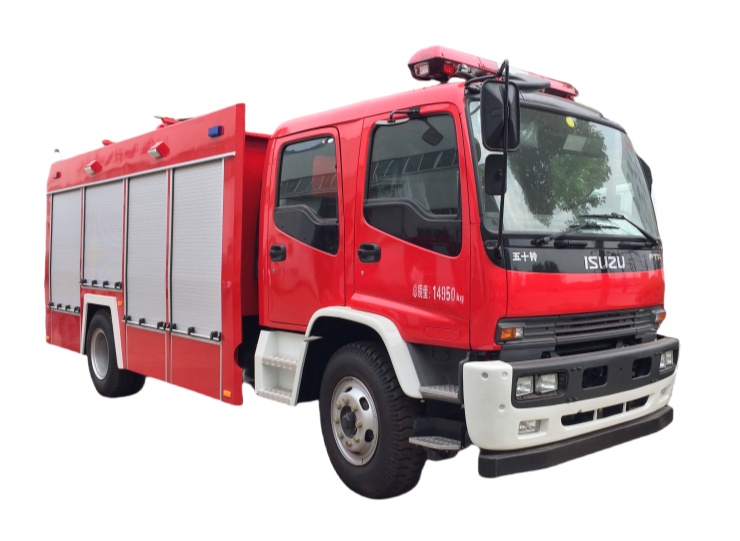

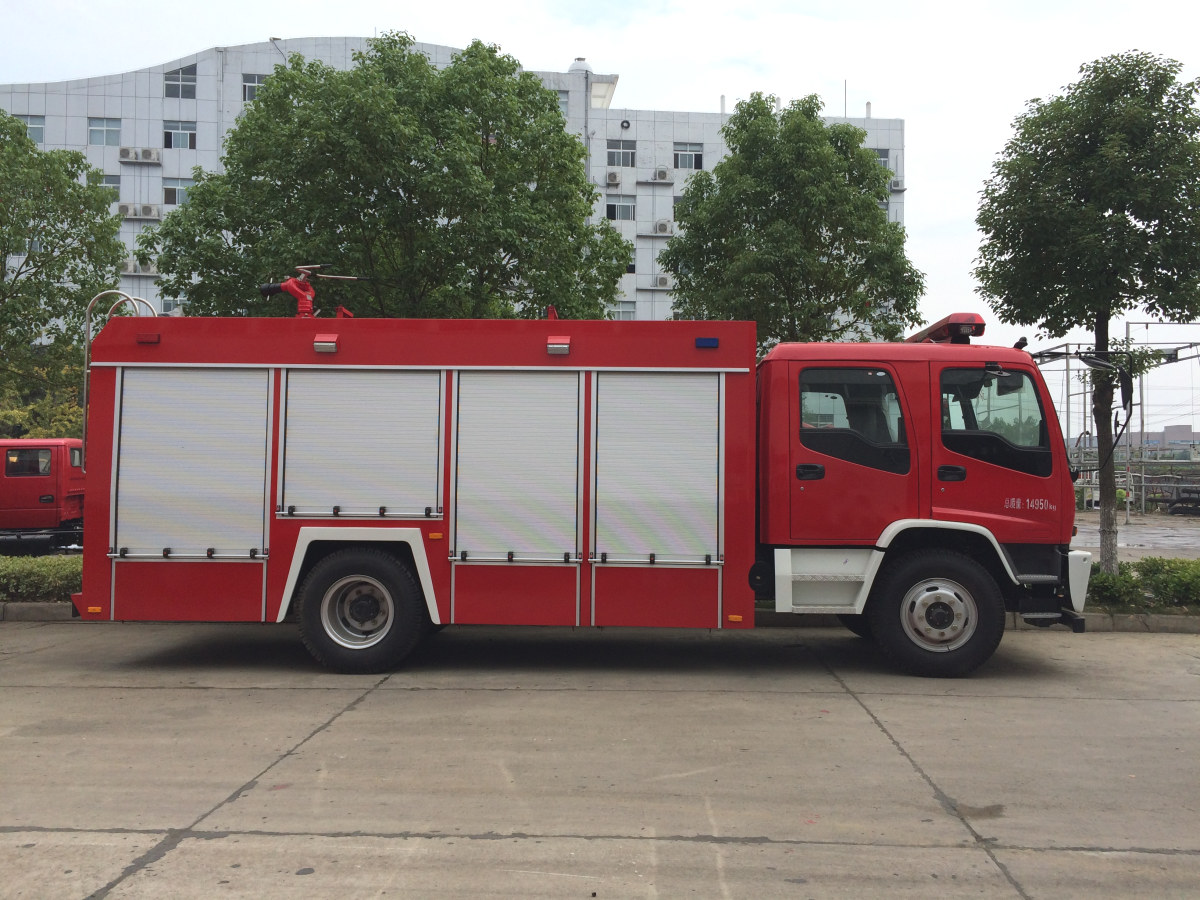

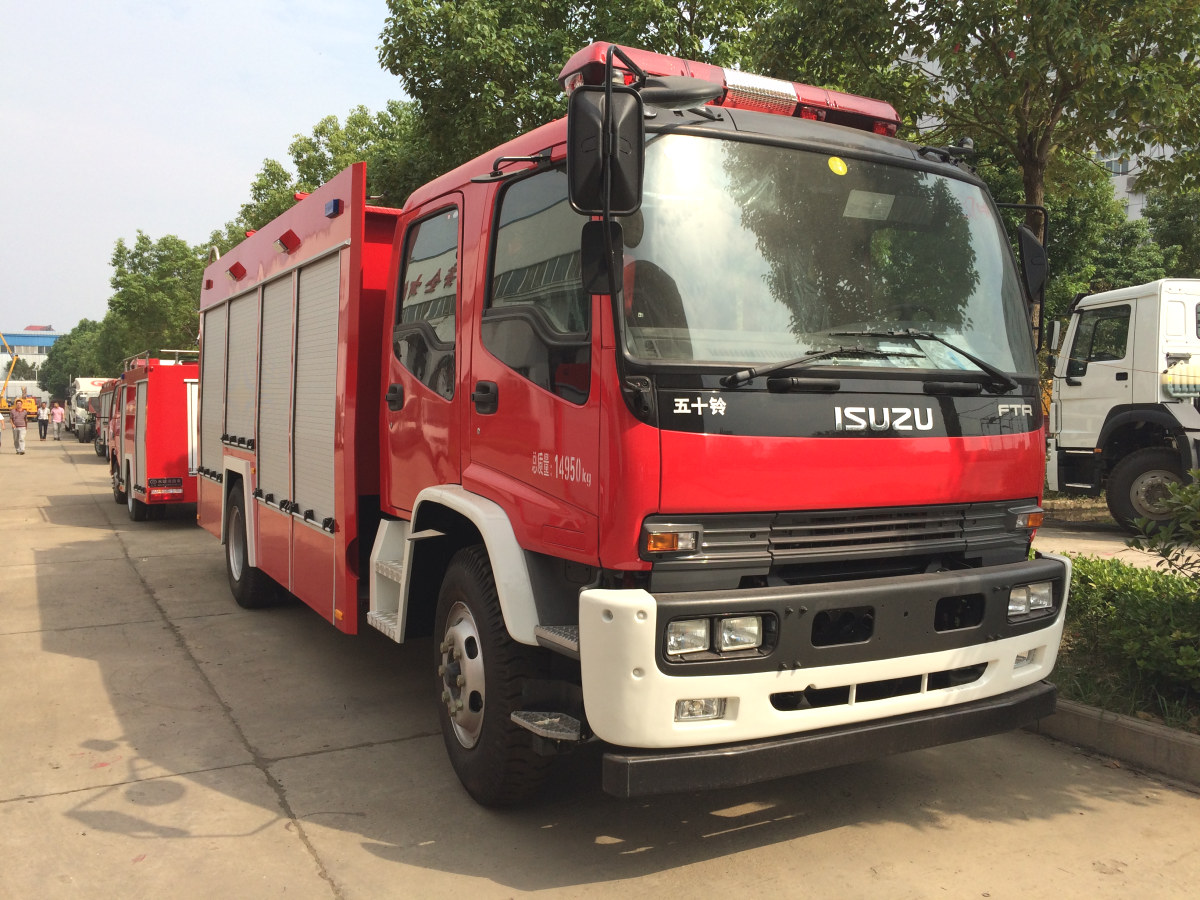

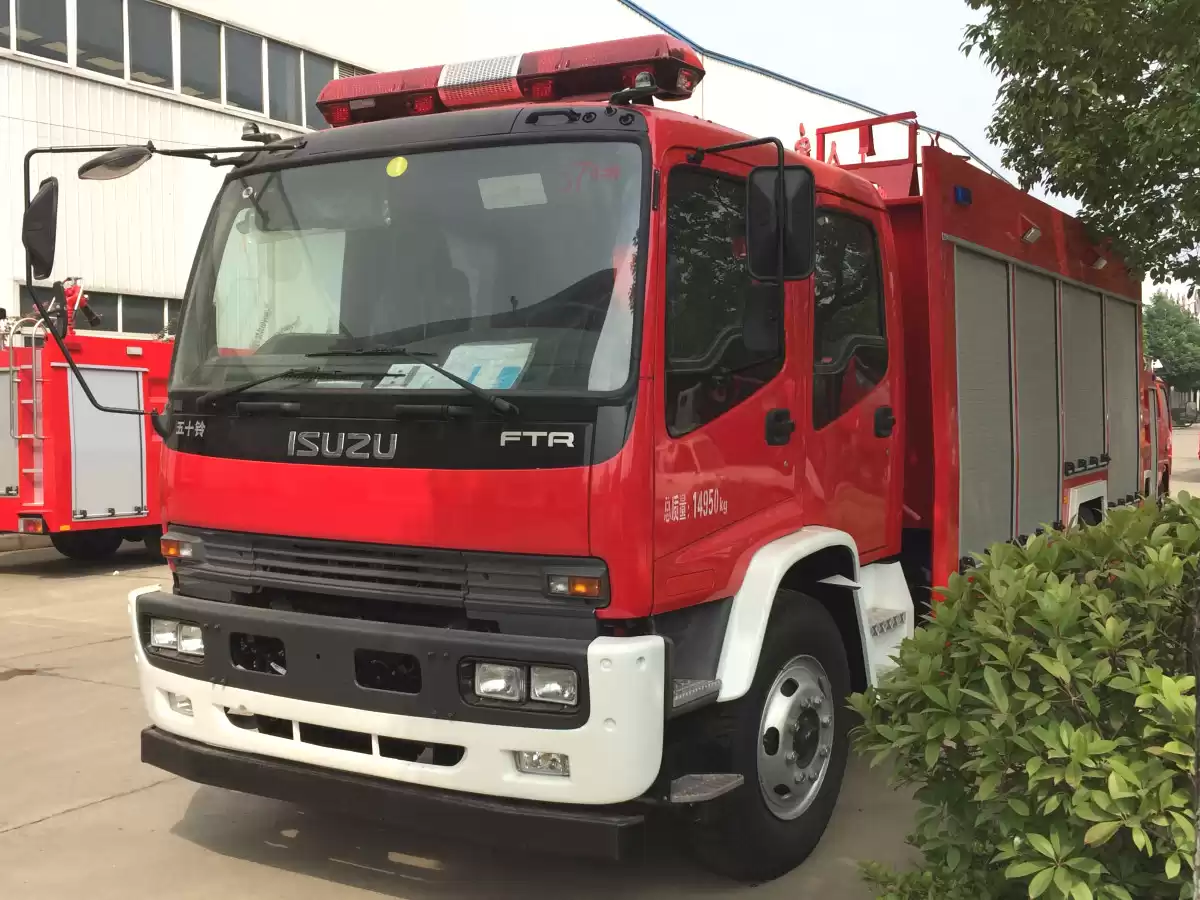

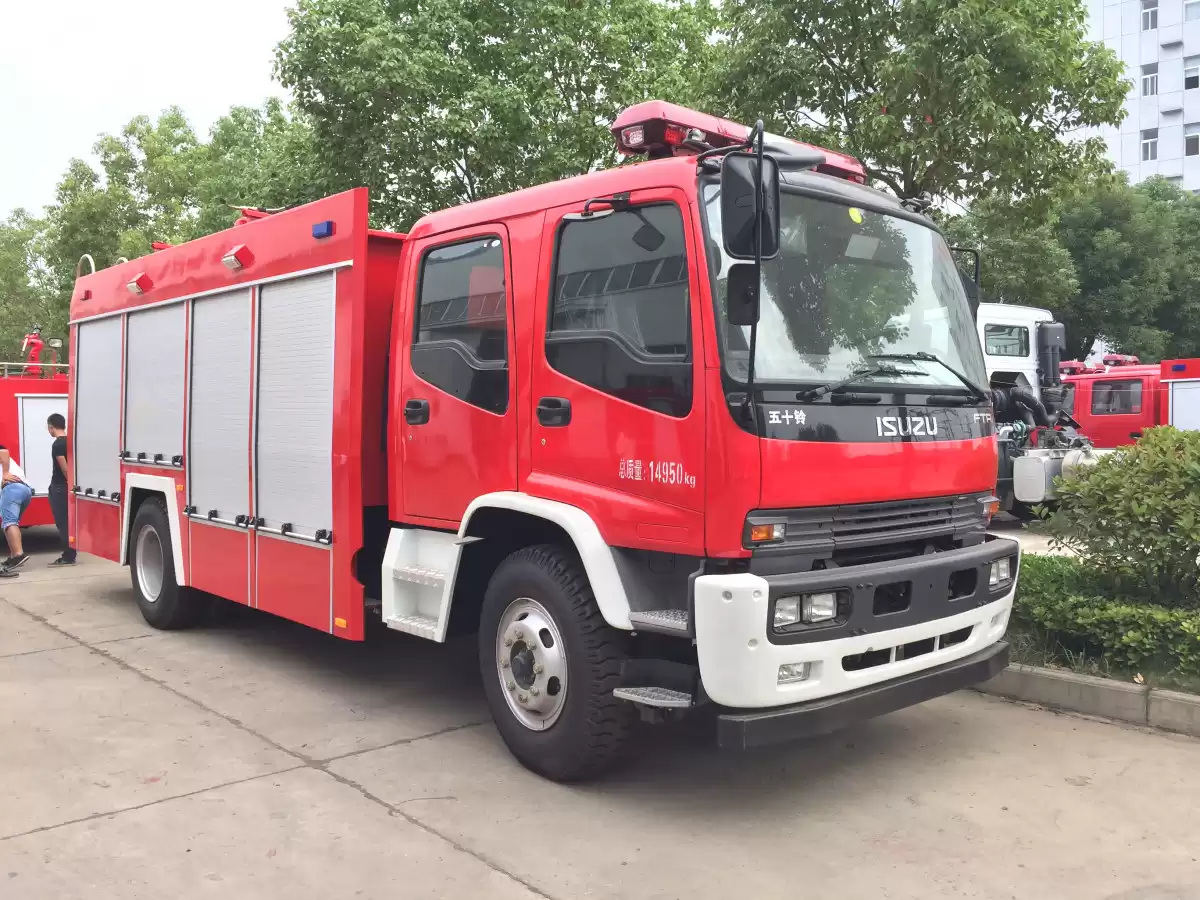

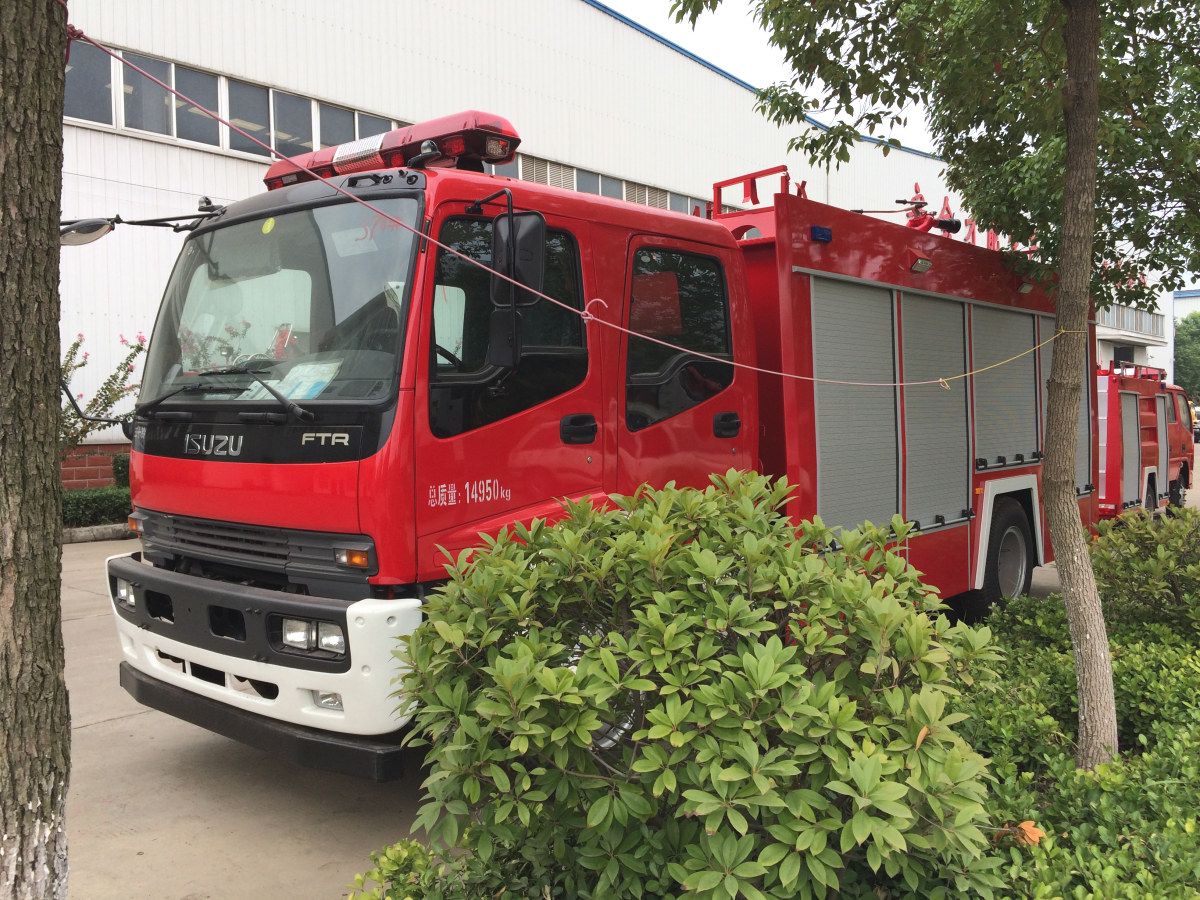

In the field of small and medium-sized fire trucks, the ISUZU FTR FVR water tank fire truck has become an ideal choice for urban firefighting, industrial parks and township emergencies with its excellent power performance, flexible mobility and professional fire-fighting configuration. This model is built on the ISUZU FTR 4×2 chassis, equipped with an ISUZU 4HK1 190 horsepower engine and matched with an ISUZU MLD 6-speed gearbox to ensure strong power and efficient fuel economy.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
1. Powerful and flexible
Efficient engine: It adopts the ISUZU 4HK1 190 horsepower diesel engine, which meets the National VI emission standards. The low-speed and high-torque characteristics enable it to maintain stable output under complex road conditions.
Intelligent gearbox: With the ISUZU MLD 6-speed gearbox, it has smooth gear shifting and strong climbing ability, and is suitable for various terrains such as cities, towns and mountainous areas.
Compact body design: 4×2 drive layout, small turning radius, suitable for fast passage in complex environments such as narrow streets, factory areas and old communities.
2. Professional fire extinguishing system, quick response to fire situation
4 cubic water tank + optional foam tank: The main water tank has a capacity of 4000L, which meets the needs of small and medium-sized fire fighting; users can choose foam tanks according to their needs to achieve water-foam combined fire fighting and improve the ability to fight oil fires.

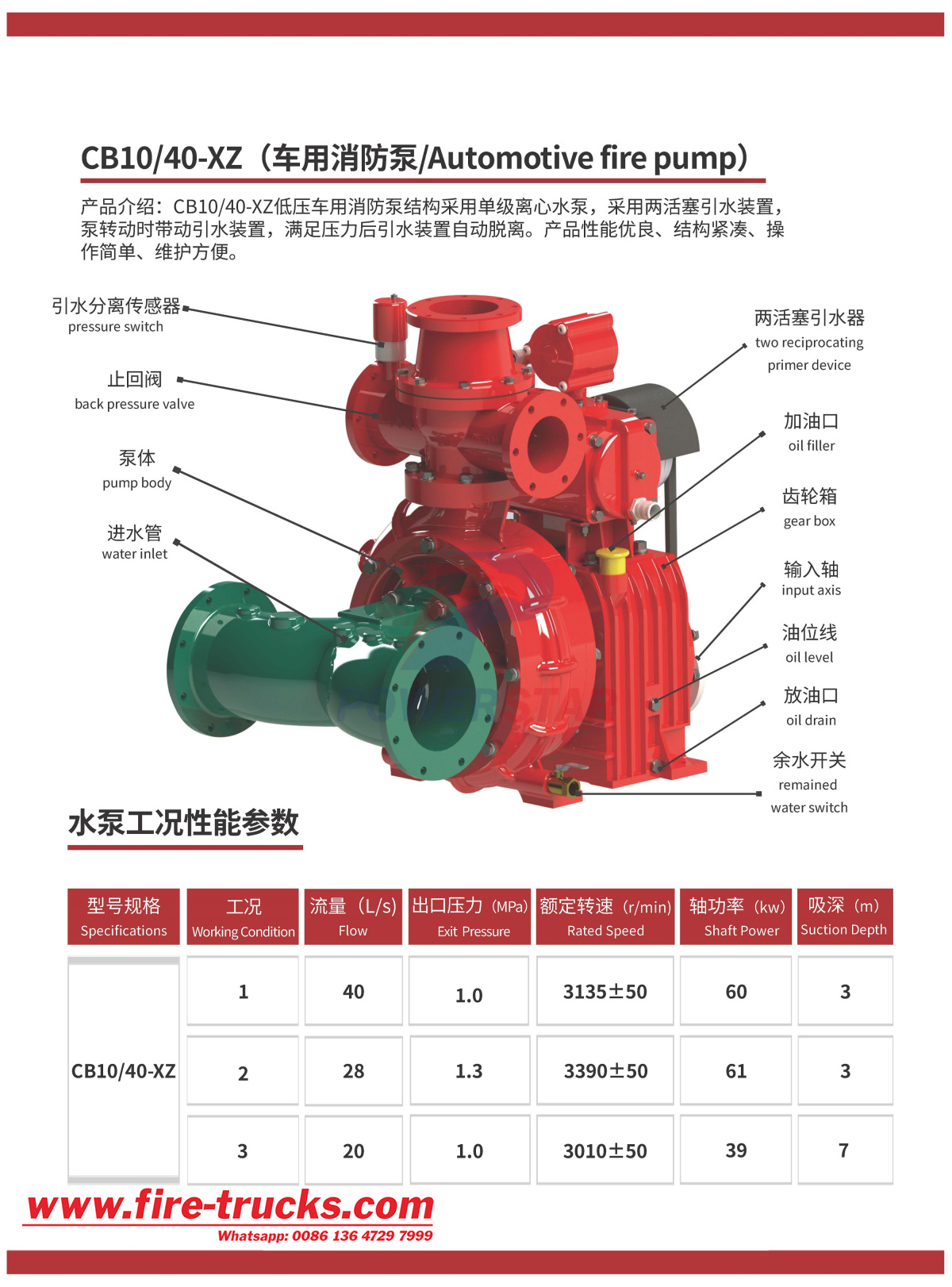

CB10/40 fire pump: It adopts medium and low pressure fire pumps, with a rated flow of 40L/s and a pressure of 1.0MPa. It can quickly establish a high-pressure hose trunk line to improve fire fighting efficiency.

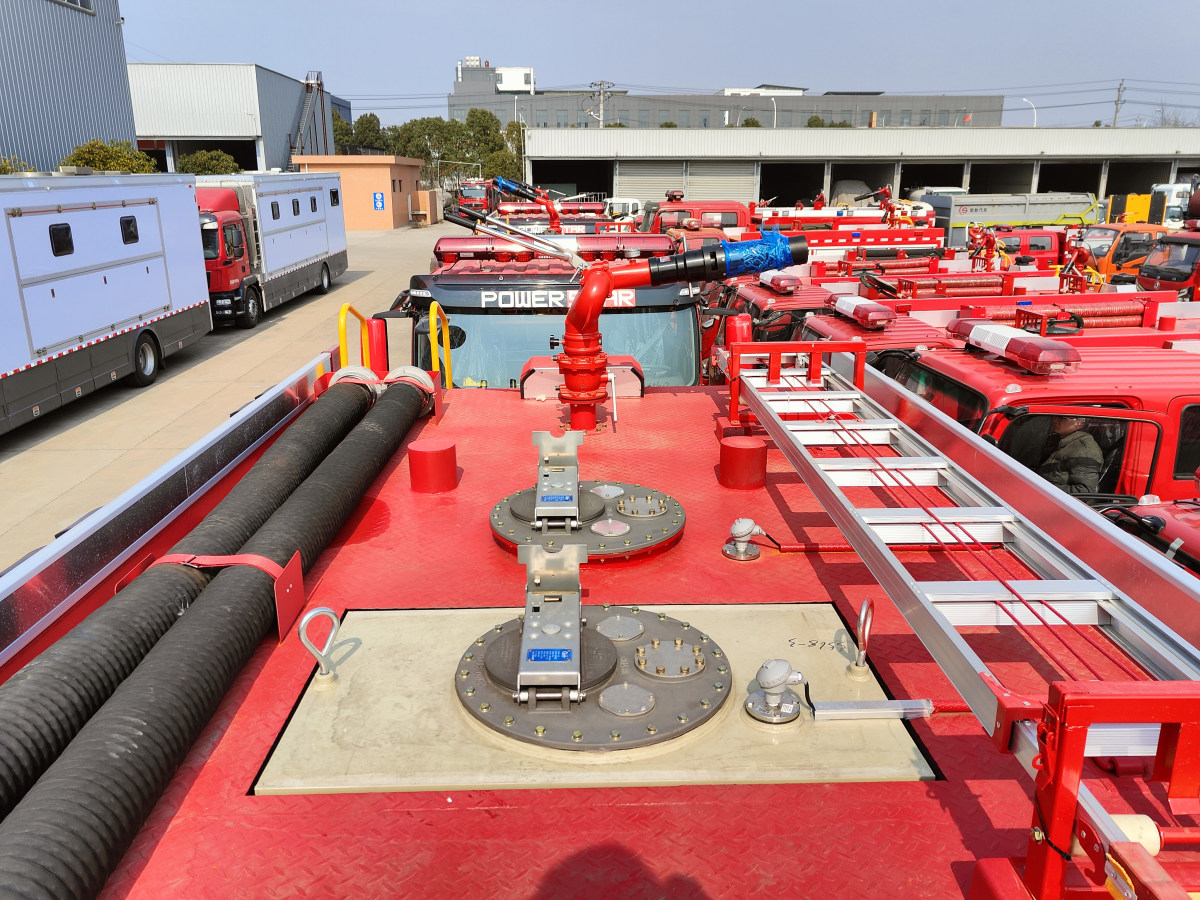

PS30 fire cannon: The range is ≥50 meters, the flow is 30L/s, and the DC/spray mode can be adjusted. It is suitable for long-distance precision fire fighting or personnel protection and cooling.

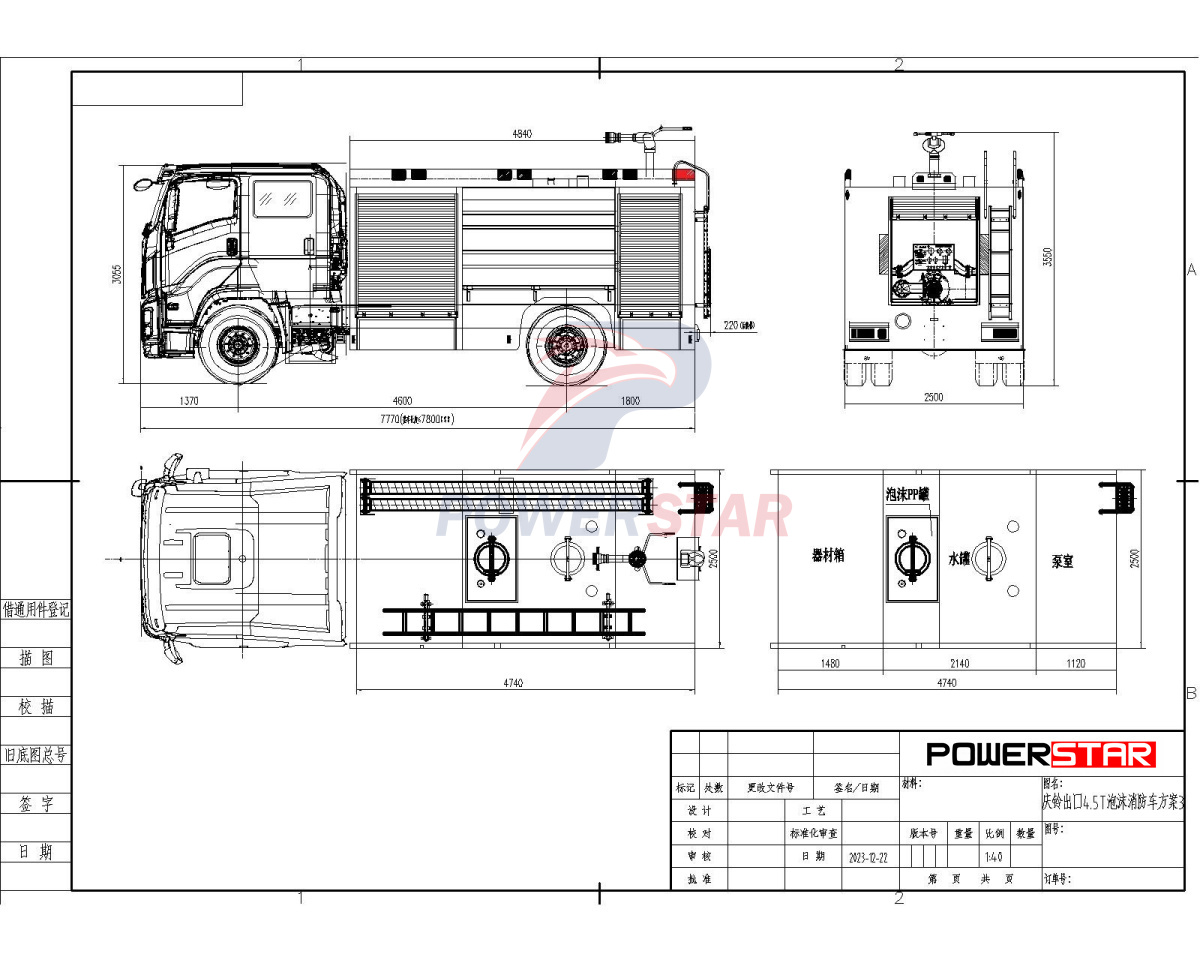

Technical data of 4X2 ISUZU FTR 4x2 4,000L Water tank 5,000L Fire Flighting Truck.
| TECHNICAL SPECIFICATION |
| Main specification |
Chassis brand |
ISUZU |
|
| Chassis model |
ISUZU FTR (FVR optional) |
|
| Overall dimension(L*W*H) |
8500×2480×3434mm |
|
| Water tank volume |
4,000L |
|
| The total quality |
18000(Kg) |
|
| Chassis |
Drive modle |
4x2 LHD |
|
| Axle (front/rear)loading |
HF7/ST16 |
|
| Front/rear suspension |
1500/2339mm |
|
| Wheel Base |
4600mm |
|
| Approach/departure angle |
16/11(°) |
|
| Tyre size & number |
295/80R22.5 with 6 pcs |
|
| Transmission |
Manual type, HW13710 |
|
| Max speed |
90km/h |
|
| Color |
Red and white including tanker , standard . |
|
| Engine |
Model |
ISUZU 4HK1-TC |
|
| Engine Type |
In-line six cylinder, water cooled |
|
| Horse power |
190HP |
|
| Displacement |
5200ml |
|
| Emission |
Euro 5 |
|
| Tank Body |
|
| Tanker Capacity (L) |
Water tank 4,000L (Foam optional) |
|
| Tanker Size: |
1680*2400*1370mm |
|
| Tank material |
High quality Carbon steel Q235 |
|
| Tank Equipped with |
one set of manholes with locking and opening device |
|
| overflow safety device |
|
| liquid level indicator |
|
| 2 sets of sewage outfall by manual valve control. |
|
| Fire pump model |
CB10/40 |
|
| Fire pump pressure |
≥1.0 Mpa |
|
| Fire pump max suction height |
7 m |
|
| Fire pump flux |
40 (L/S) |
|
| Fire pump rated speed |
3000 (r/min) |
|
| Fire pump time of drawing water |
≤35 (s) |
|
| High Pressure Water pump Model |
PS40 |
|
| High Pressure Water pump Rate of flow |
50K/S |
|
| High Pressure Water pump Range |
≥60m |
|
| High Pressure Water pump pressure |
1 Mpa |
|
| High Pressure Water pump rotation angle |
Level≥270degree, |
|
| Other configuration |

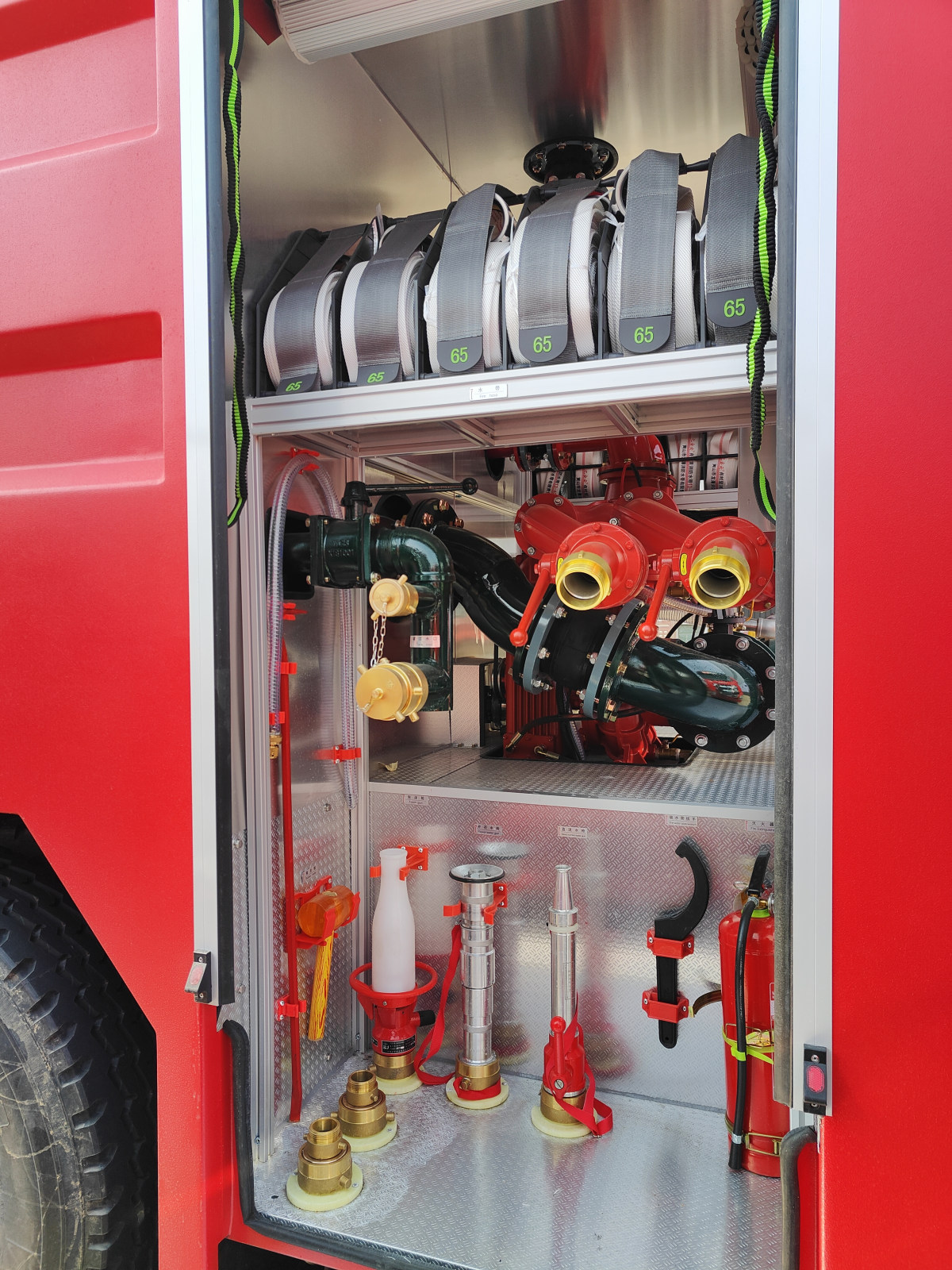

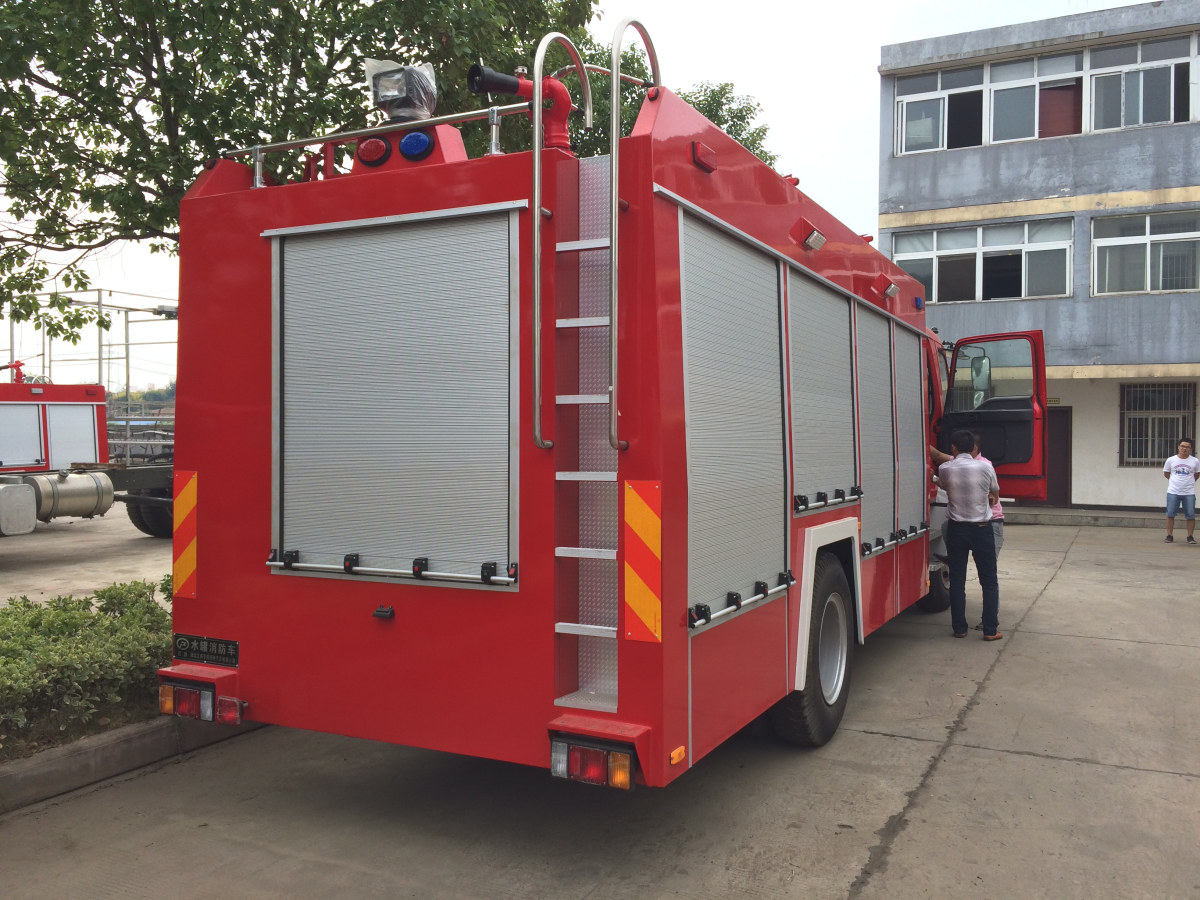

Power extractor control indicator light, 100W alarm, warning light, sign light, indicator light switch and optional reversing system display screen,operating panel,rear the ladder,toolbox,water belt rack,equipment box,Truck body with aluminum alloy rolling door;PTO control indicator installed in cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc. |
1. Fire fighting truck chassis Model: JAPAN ISUZU,SINOTRUK, SHACMAN, DONGFENG, FOTON, tec.
2. Engine Model: ISUZU (120HP -520HP)Dongfeng Cummins (260HP-375HP), Yuchai (290HP-375HP), weichai(270HP-380HP).
3. Drive model: 4x2 , 6x4 , 8x4;
4. Engine: EuroII,III,IV,V Emission standard;
5. Right/Left hand drive ;
6. Fire fighting truck type: water tank, water and foam tank,water,foam and powder.
3. Safe and reliable, humanized design
High-strength tank: The water tank is made of high-quality carbon steel + anti-corrosion coating, and the wave-breaking board design reduces the shaking of water during driving and improves stability.

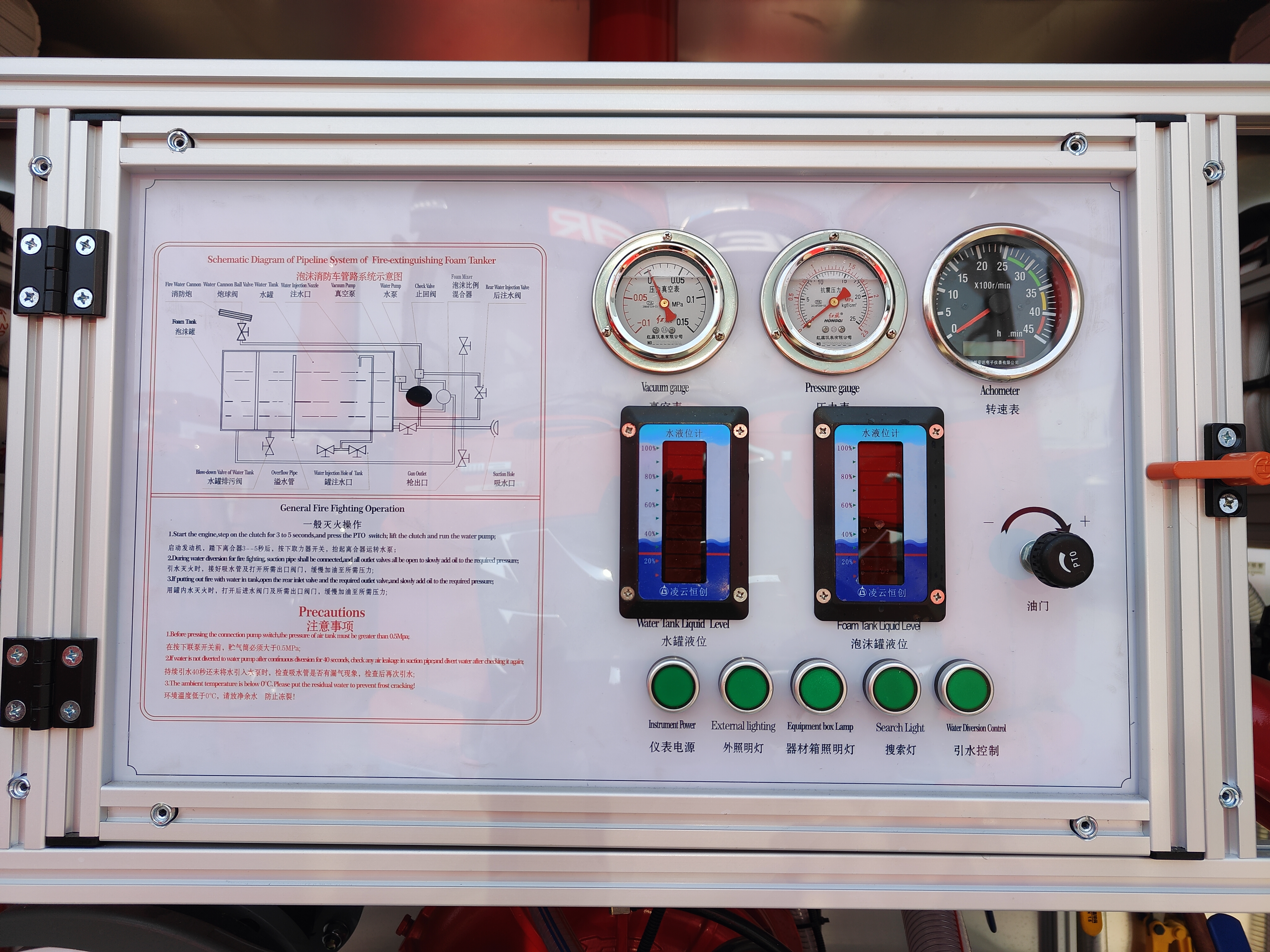

Intelligent control system: The fire pump control panel is integrated in the cab, and one person can complete the water cannon angle, flow adjustment and other operations, improving the emergency response speed.
Safety protection: Equipped with LED warning lights, reversing images and anti-slip pedals, it is safer to operate at night or in bad weather.
4. Applicable in multiple scenarios, economical and practical
This model is not only suitable for fire fighting, but can also be expanded to garden sprinkling, road washing and other purposes, realizing "one car for multiple uses". Its high cost performance and low maintenance cost are particularly suitable for government professional fire brigades, corporate fire stations and township emergency units.
