Applications:
ISUZU FTR Outdoor Show Truck (also called ISUZU Mobile Stage Truck, Led mobile show truck, good quality led advertising truck, mobile stage show vehicle, mobile digital stage truck, LED display truck) is used for mobile performance, advertising, road show and propaganda..

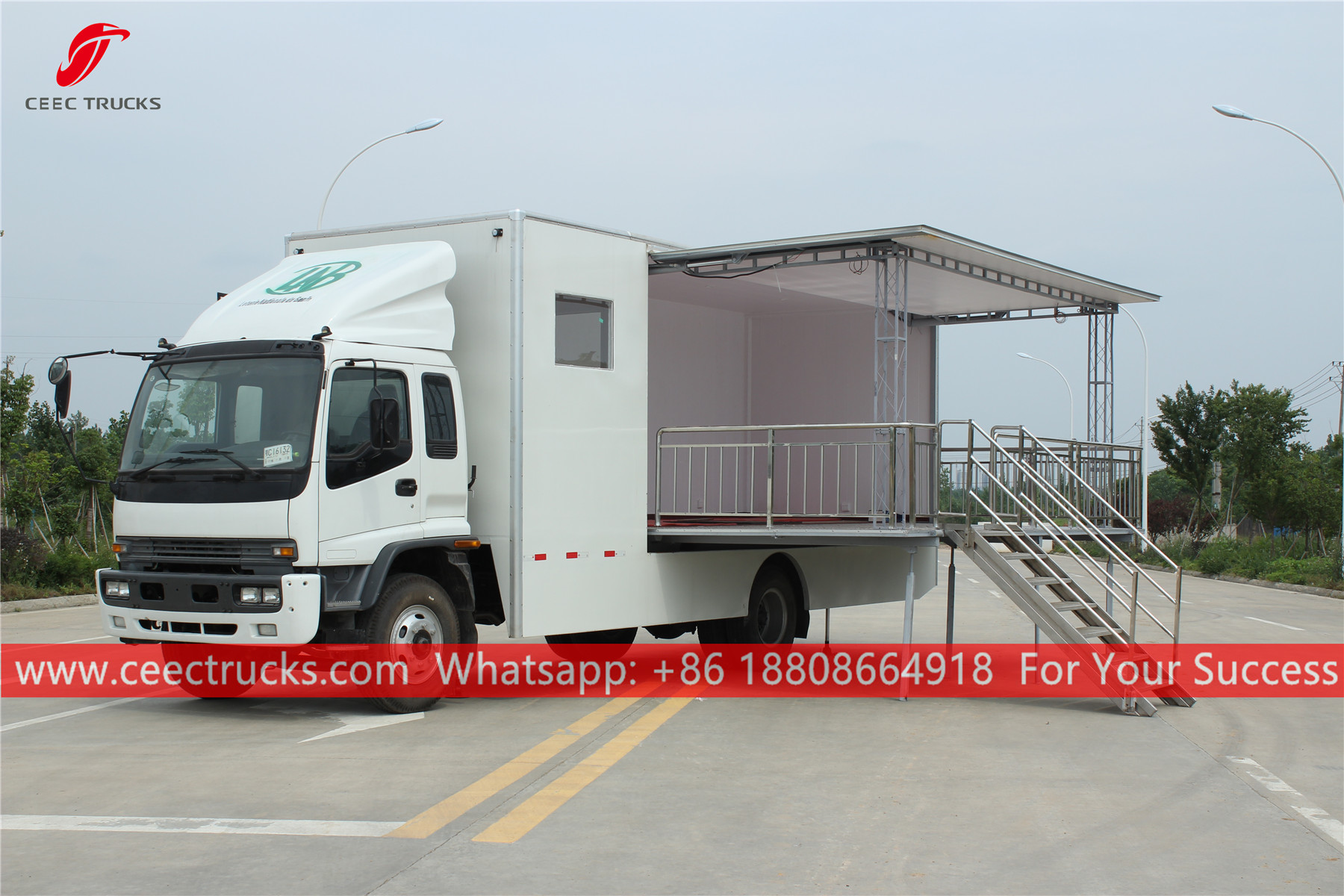

CEEC TRUCKS Stage trucks could be unfold to form stage. Truck body can unfold for three forms, one side unfolding, two side unfolding, three side unfolding. The stage space can be 18cbm or 24cbm or 36cbm for your choice.
Key Features:
---- ISUZU chassis ensures perfect performance on driving
---- ISUZU engine, super powerful, no overhaul within 100,000 km.
---- High strength van box, nice shape and rational structure.
---- Anti-slip stage board, strong and durable.
---- Variety stage extension methods, could be customized according to requirements.
---- Easy operation and easy maintenance.
Specifications:
|

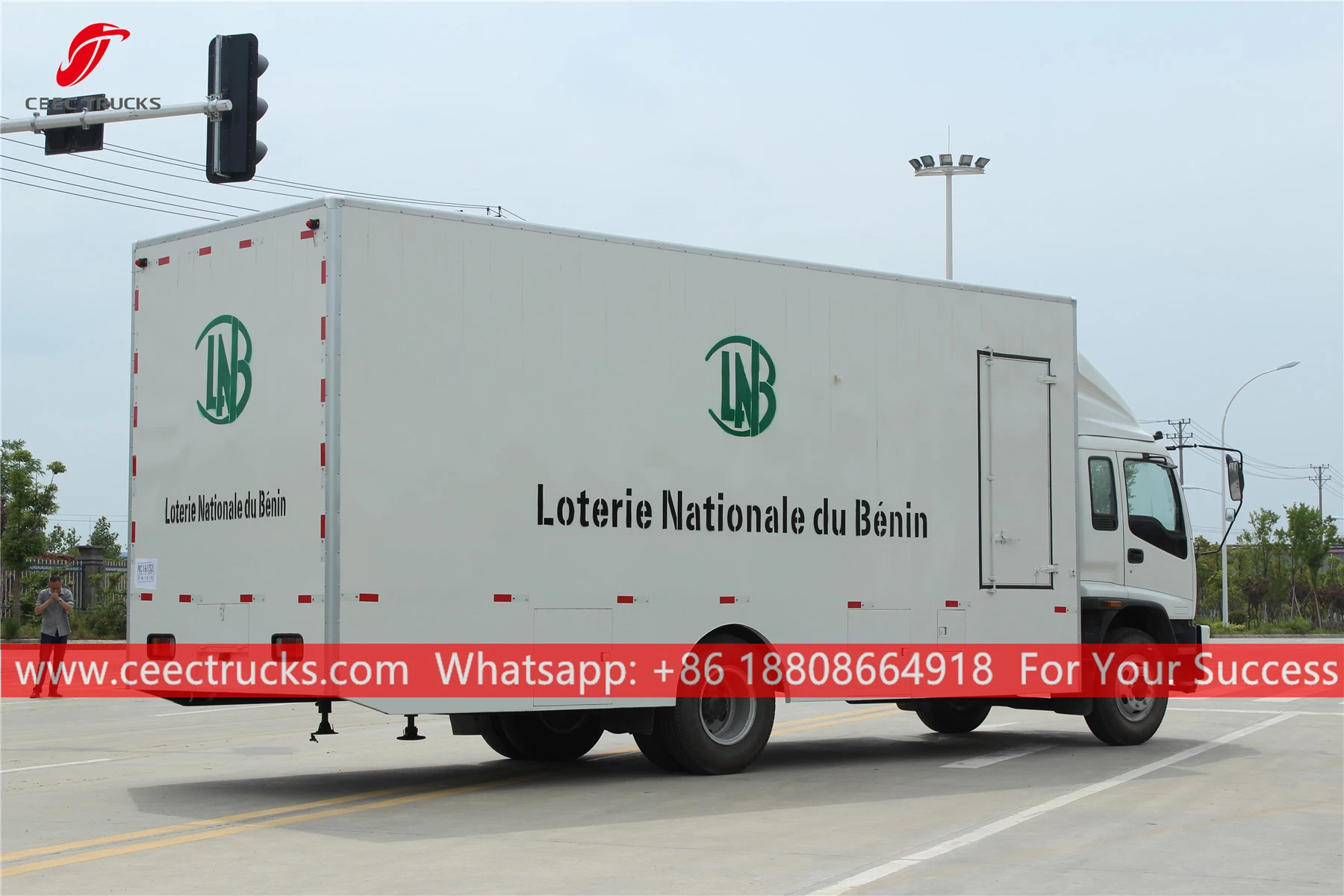

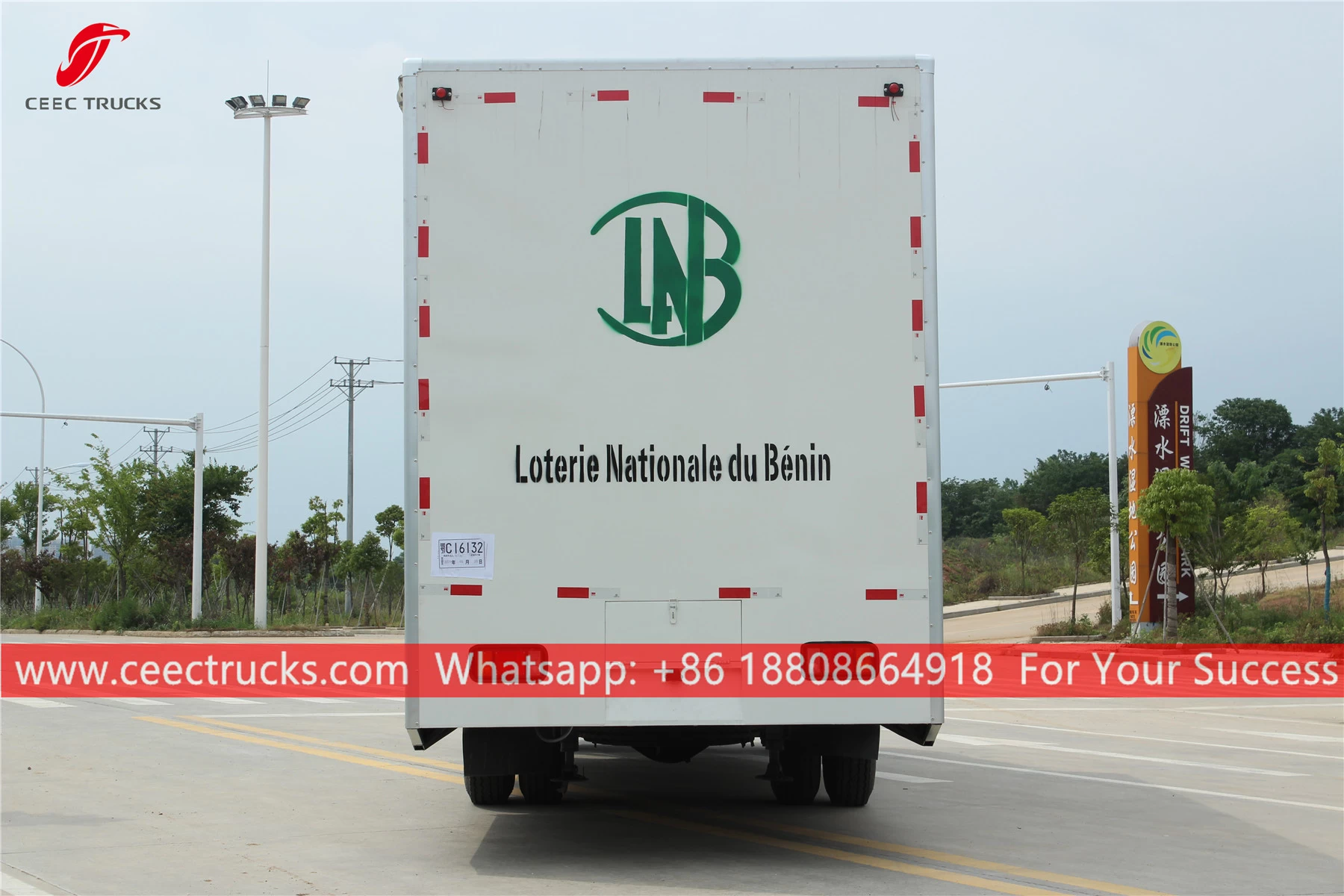

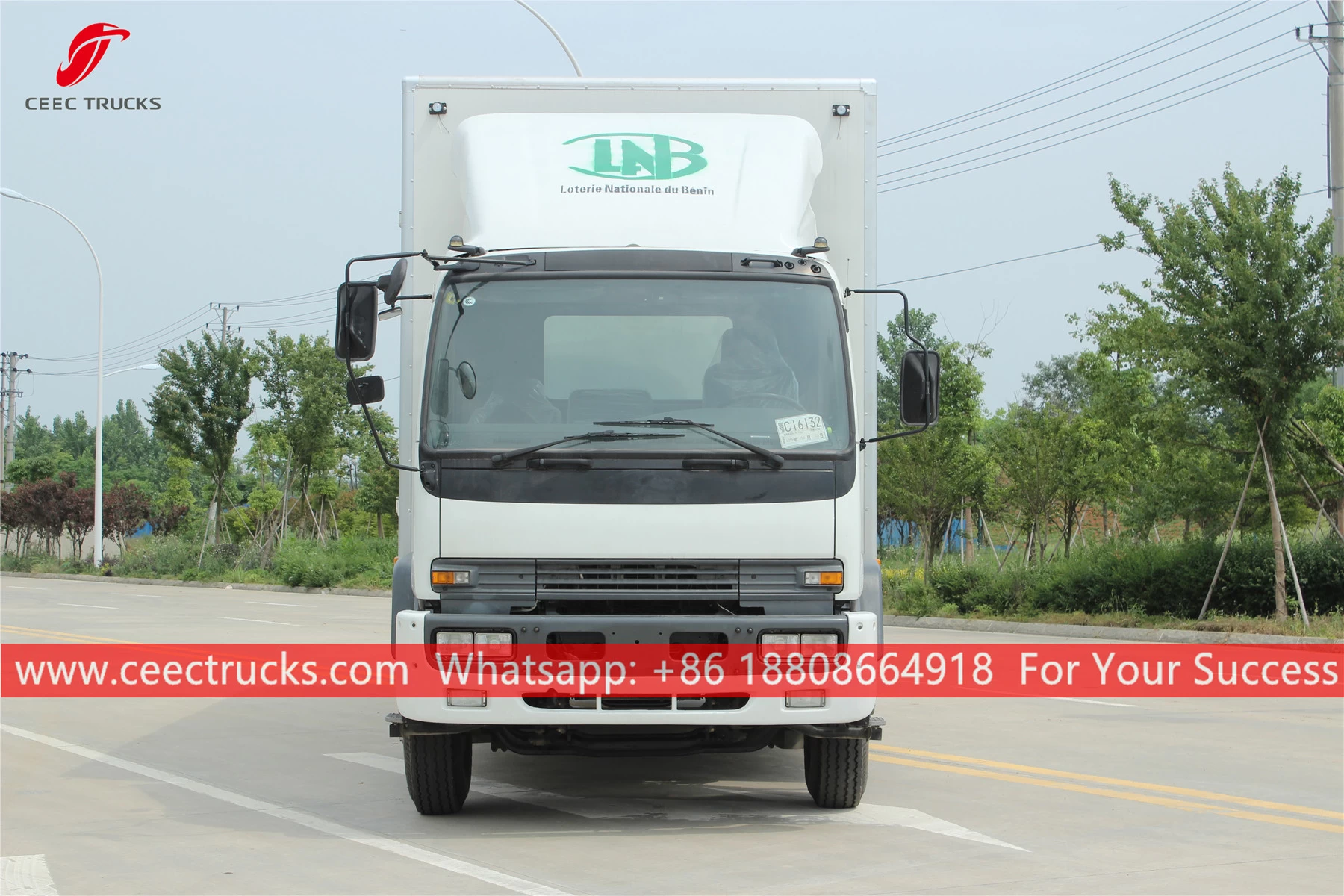

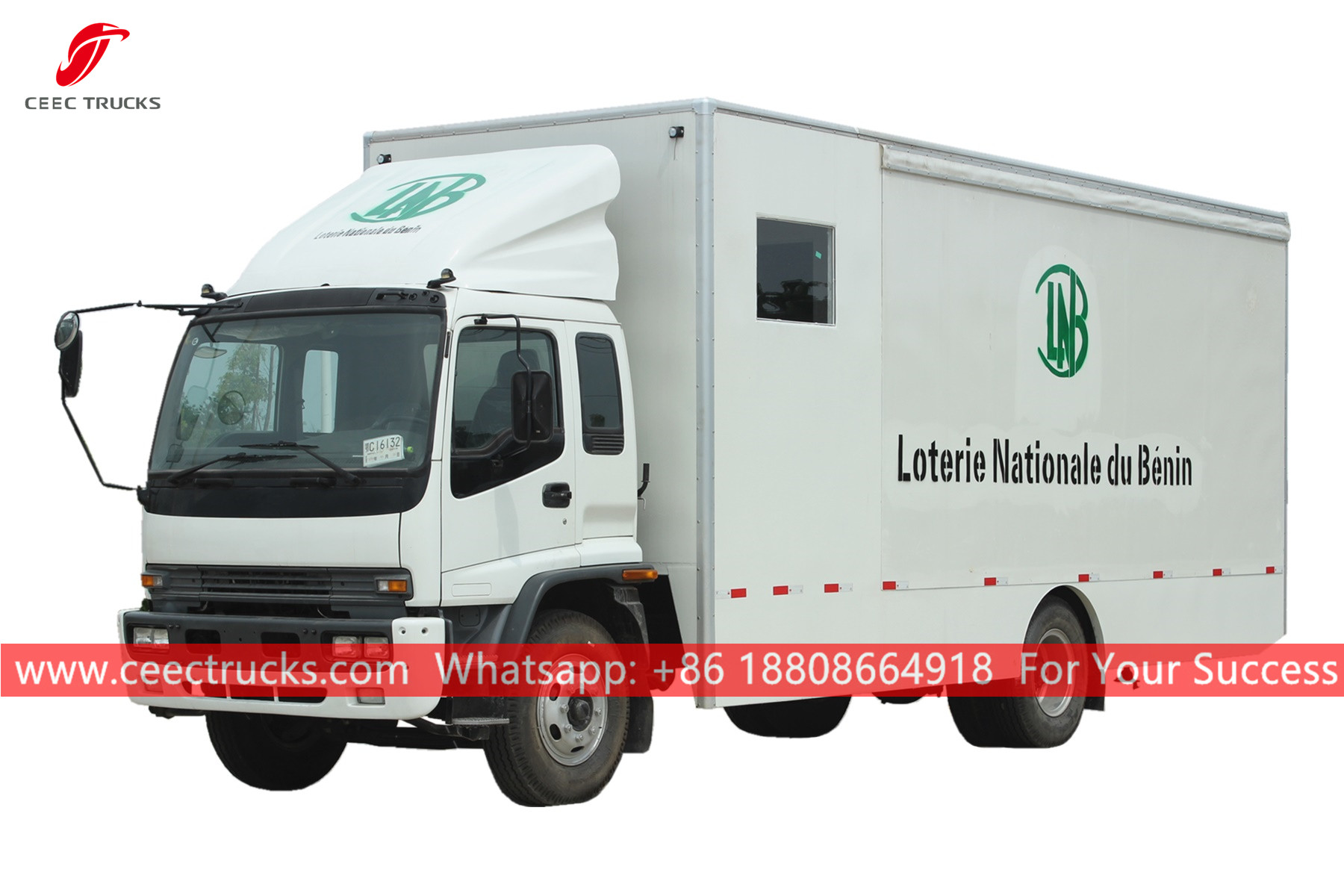

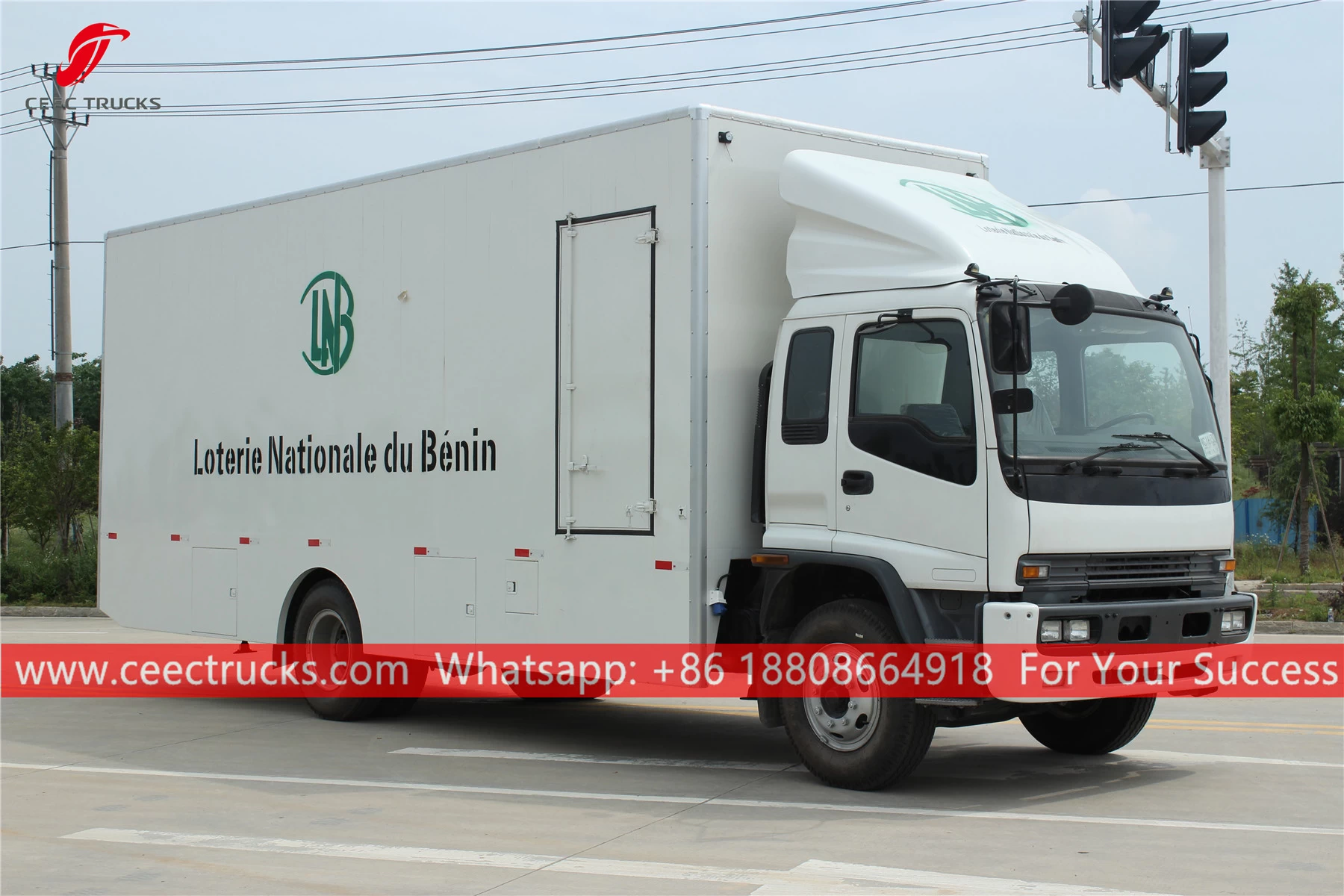

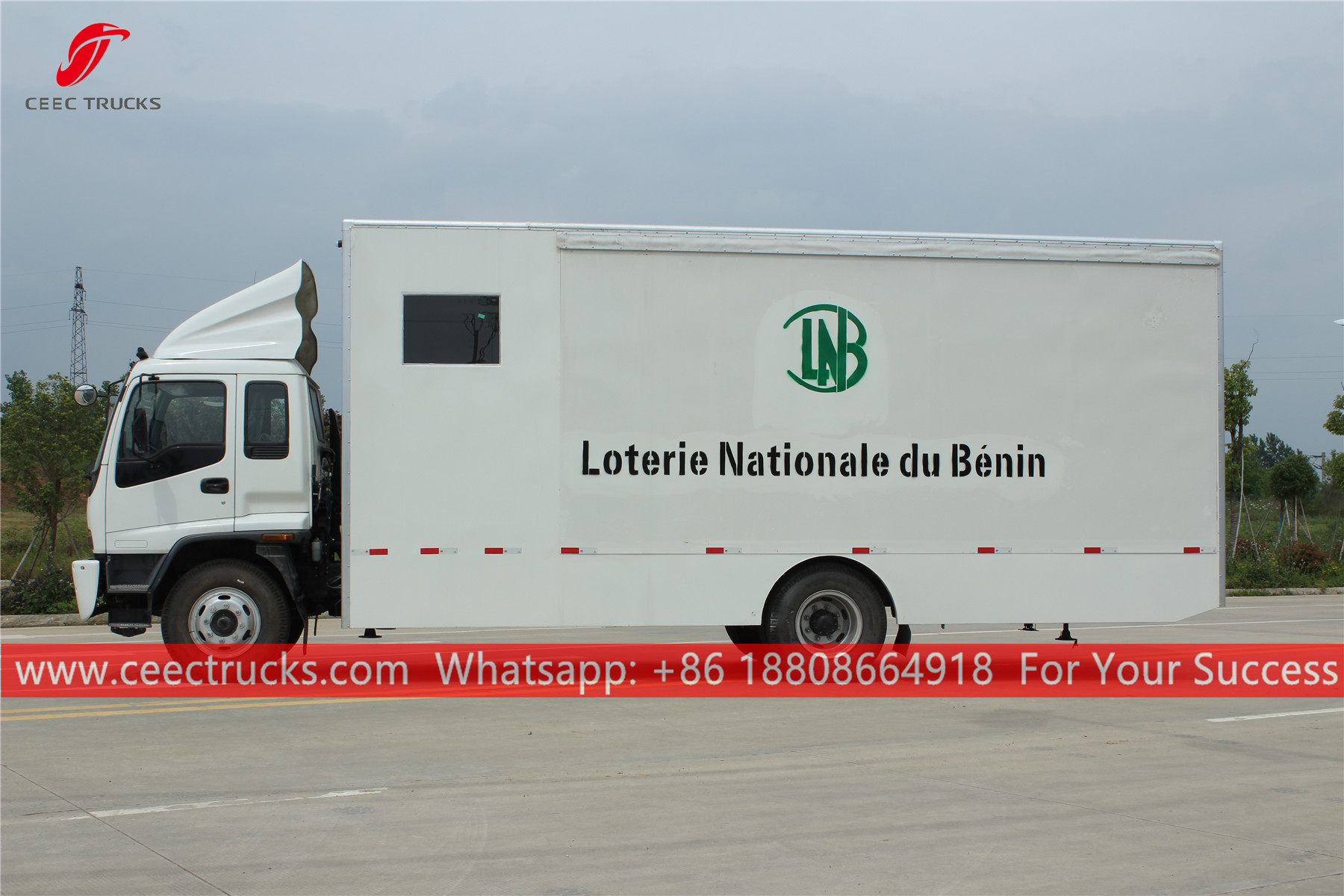

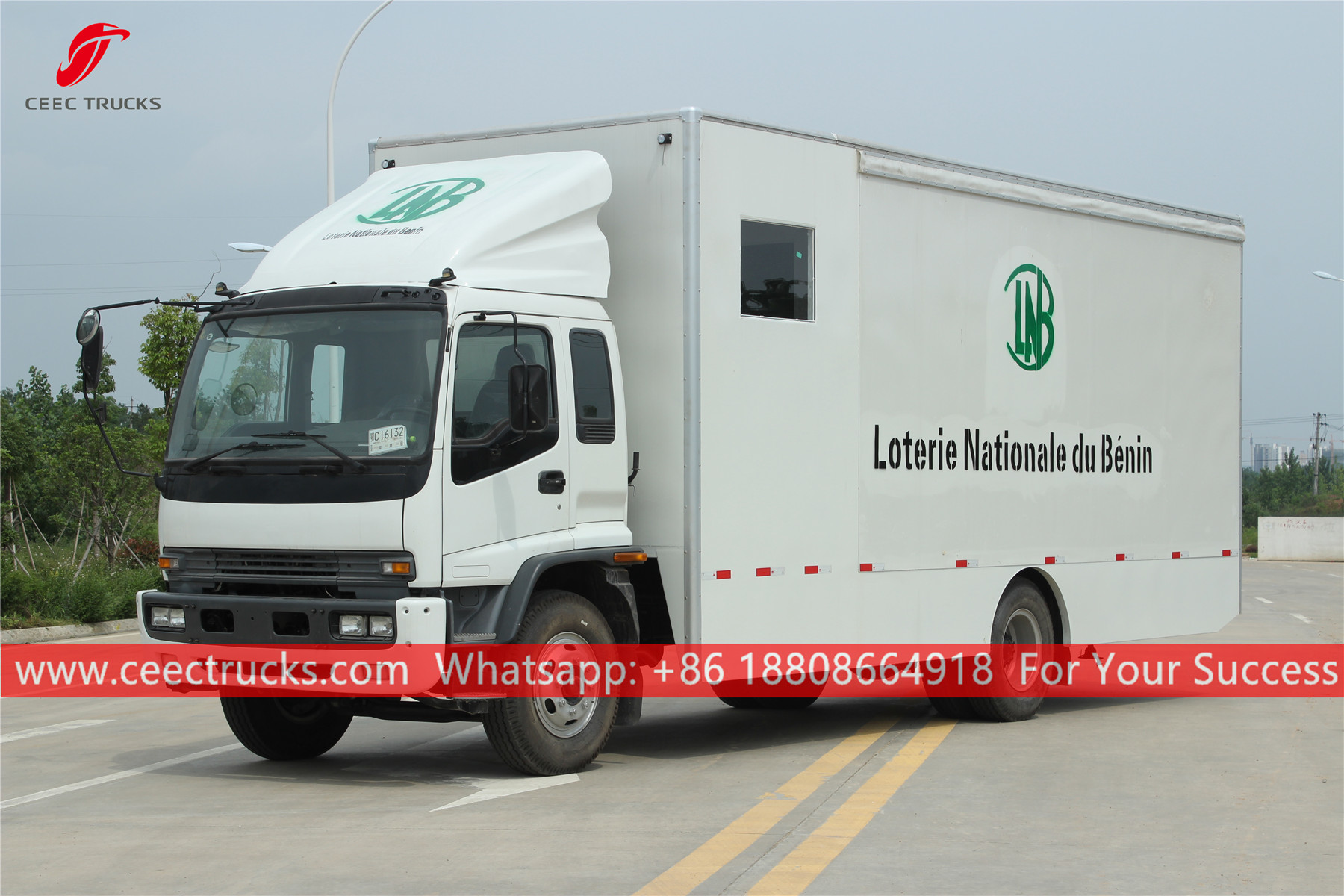

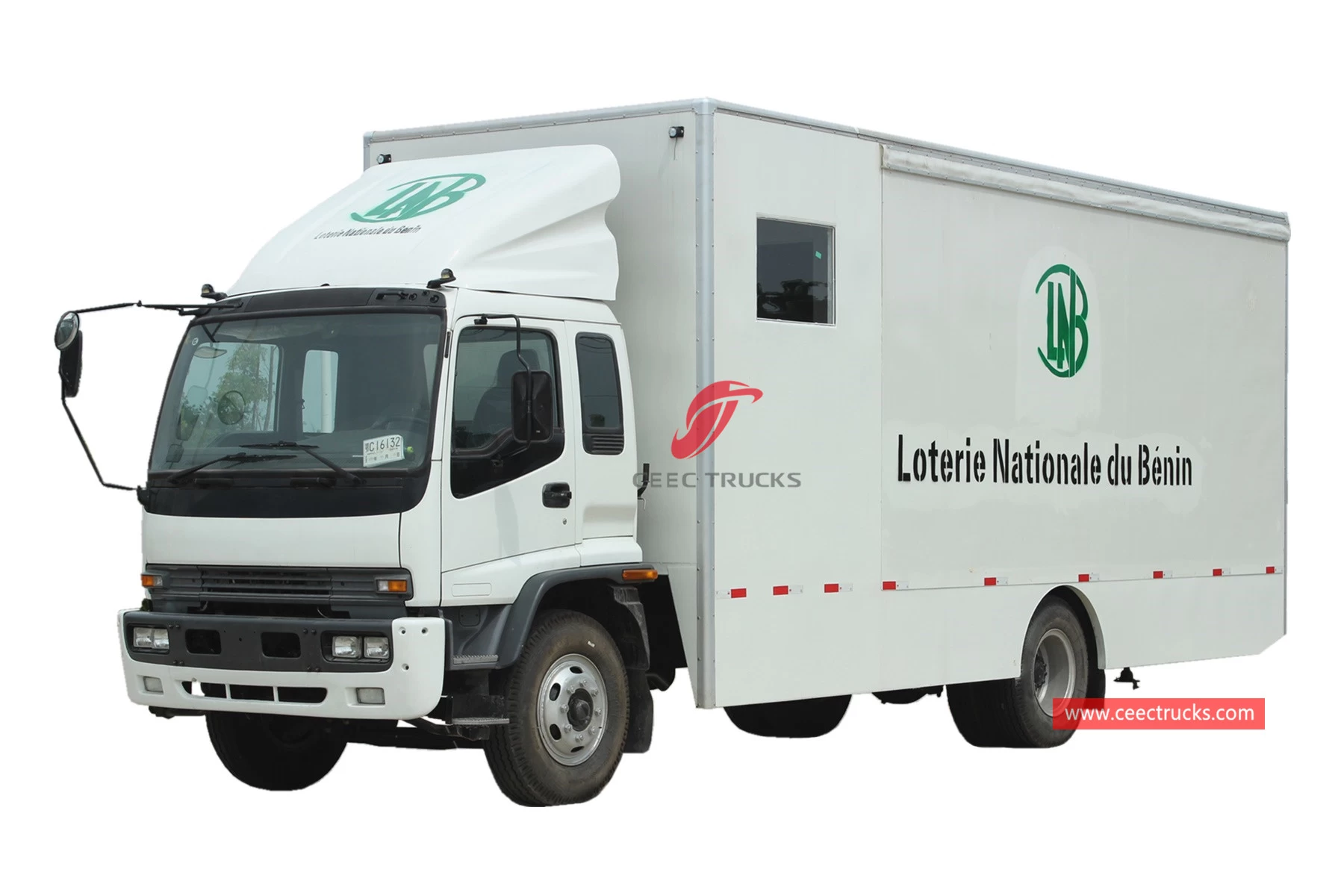

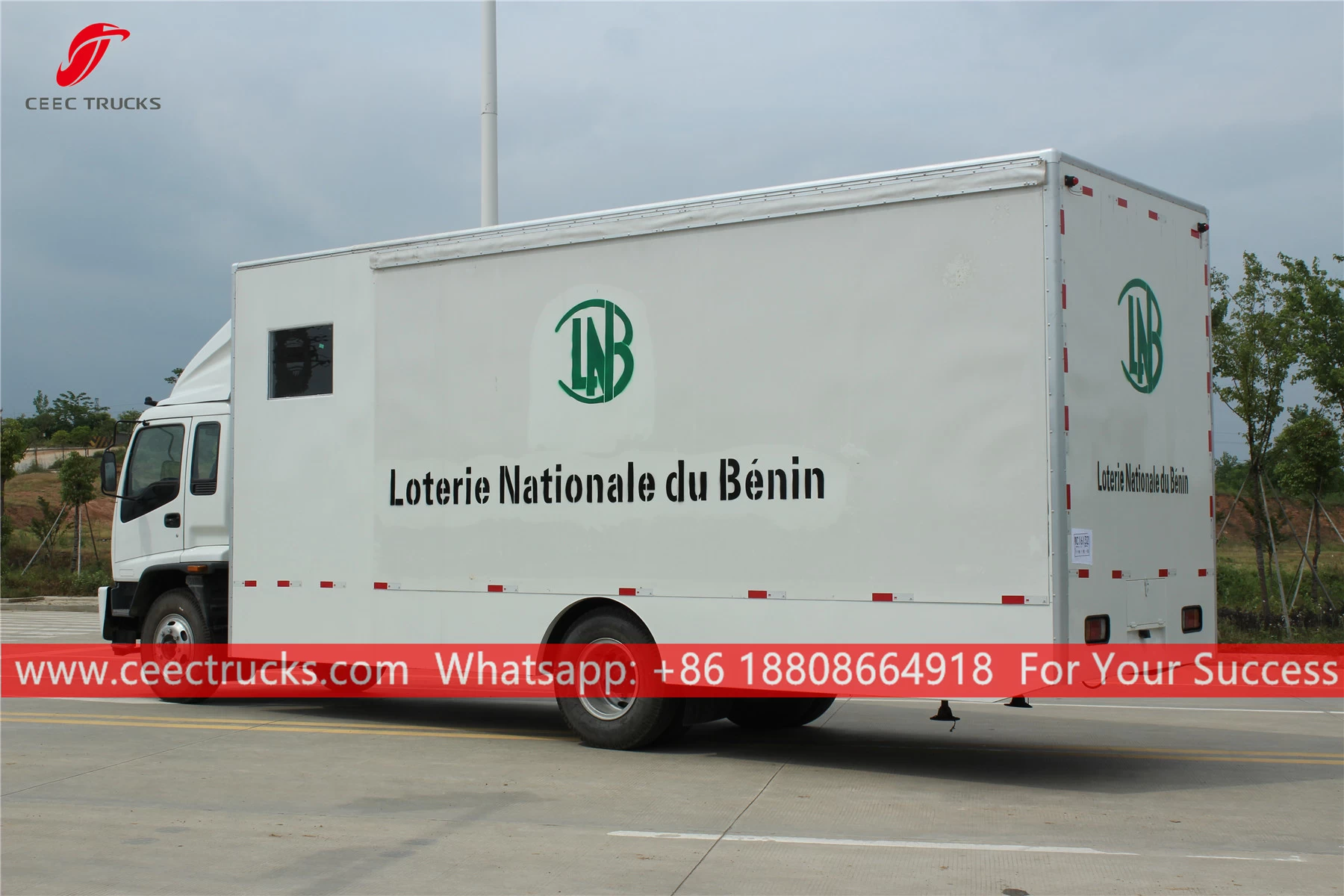

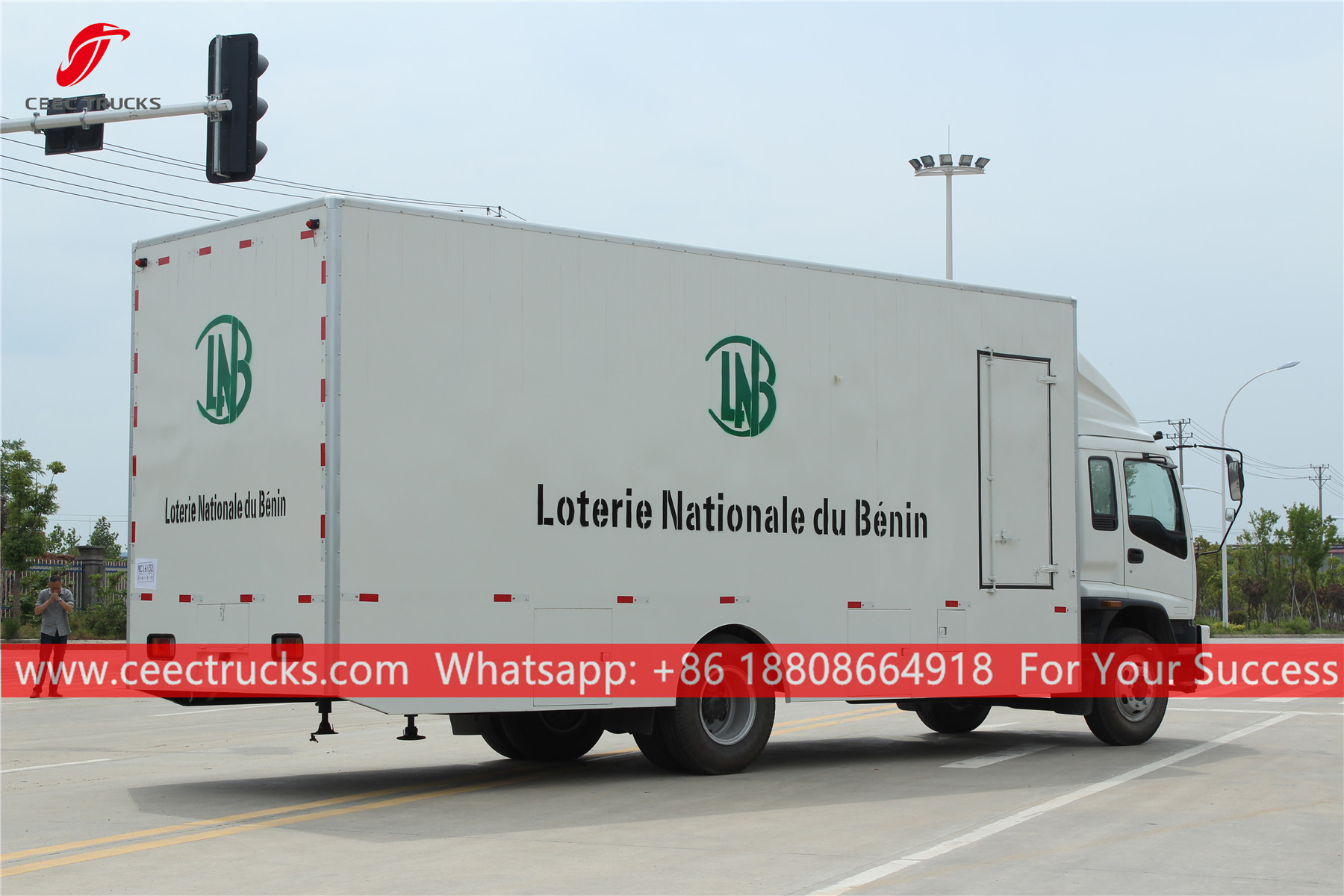

ISUZU FTR Outdoor Show Truck
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
9900 * 2640 * 3850 mm
|
|
GVW / Kerb Weight
|
18,000kg / 9,000kg
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
190 HP (140 KW)
|
|
Displacement
|
5193 ml
|
|
Emission Standard
|
Euro 4
|
|
Chassis
|
Drive Type
|
4X2
|
|
Transmission
|
MLD 6 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
4500 mm / 2
|
|
Tire Specification
|
11.00R20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
90 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Van Box Dimension
|
7600*2640*3850 mm
|
|
Stage Extension
|
One side extension
|
|
Stage Floor
|
Anti-slip floor
|
|
Hydraulic System
|
Chinese top brand
|
|
Hydraulic Outrigger
|
4pces
|
|
Ladder
|
1 set
|
|
Light Truss
|
1 set
|
|
All standard accessories: Basic tool kit, English manual……
|
|
Optional
|
** Van body could be hydraulic lifted as awning.
** LED billboard.
** Extra Stage.
|
