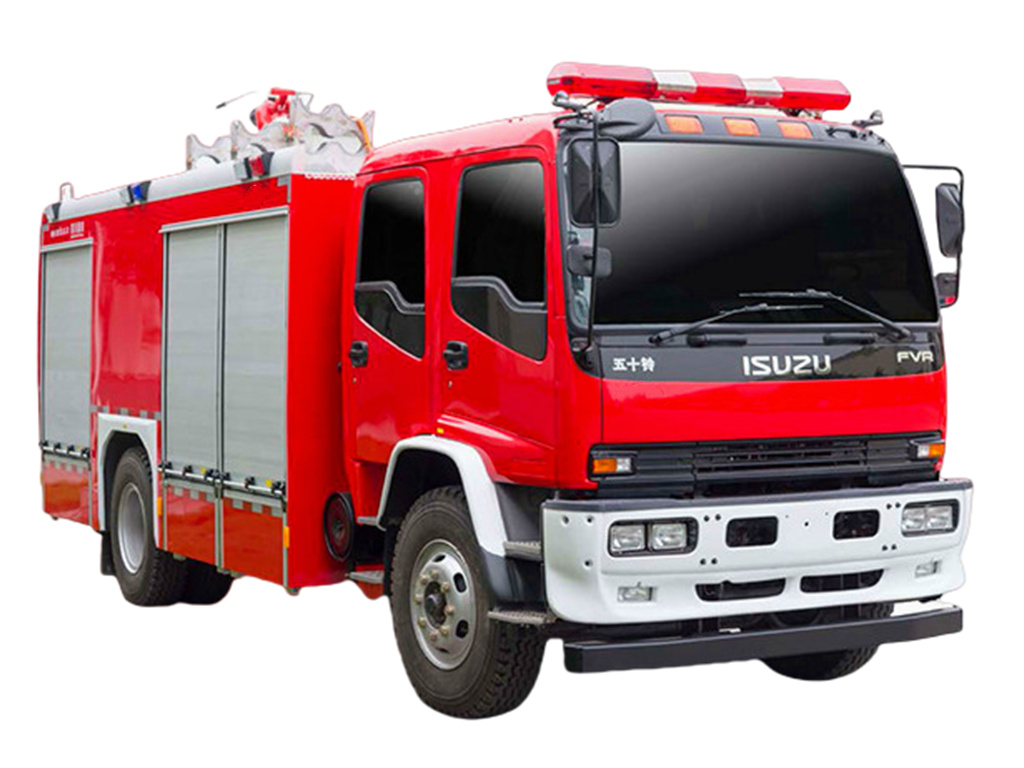

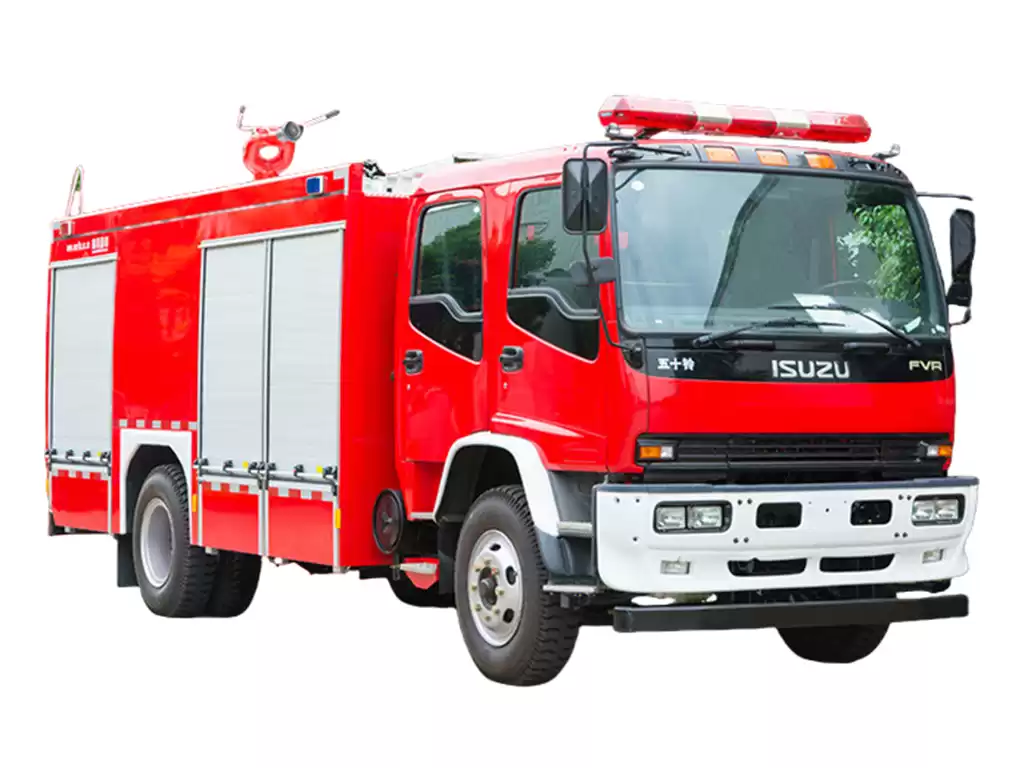

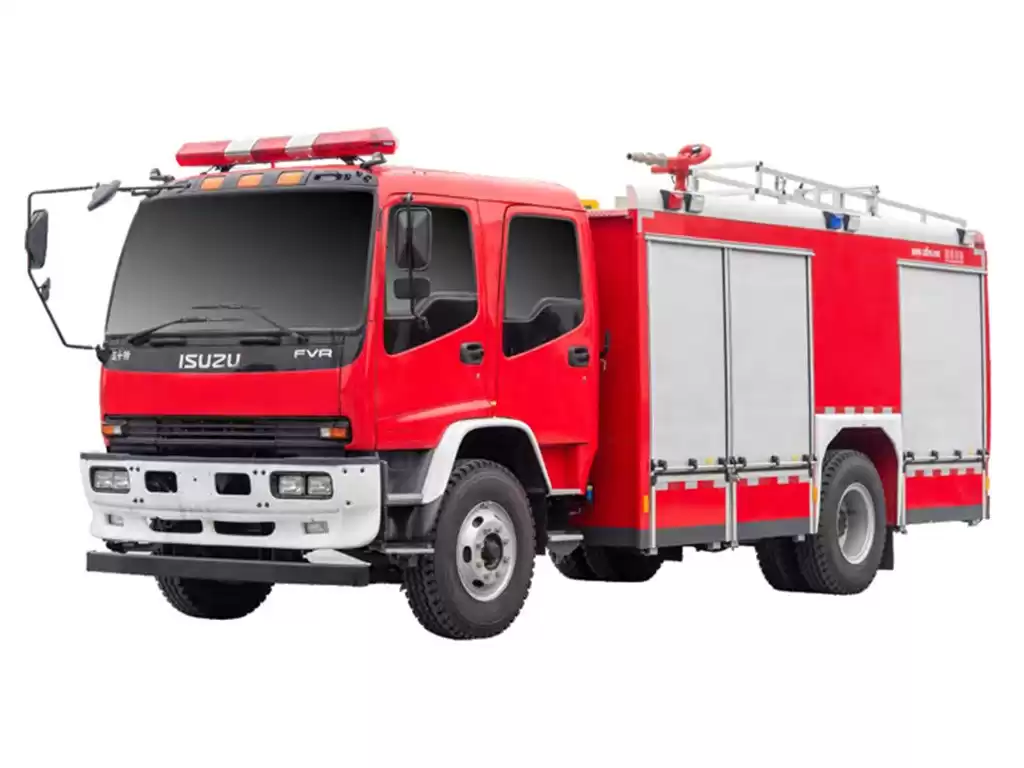

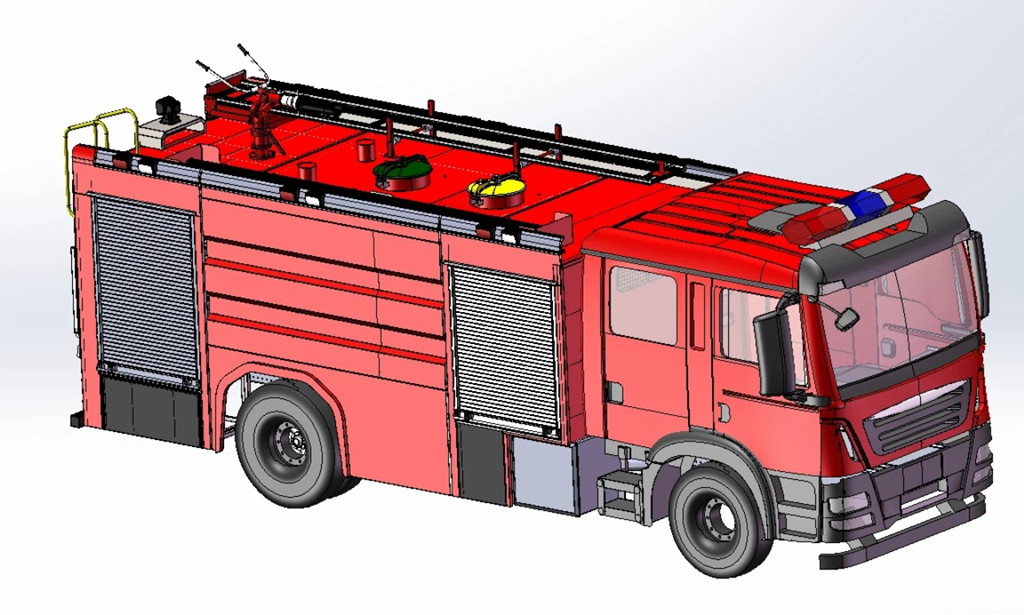

Newly designed and produced ISUZU FVR Water Foam Tanker Fire Truck is a professional firefighting vehicle based on the ISUZU FVR 4×2 fire truck chassis, specifically designed for urban and industrial fire protection needs. Isuzu FVR 300HP fire department apparatus measuring 8500×2500×3450mm overall with truck wheelbase 4500mm. Original Japanese ISUZU technology 6HK1-TCH diesel engine with 300HP maximum power. The combination of a 5,000L water tank and 2,000L foam tank, along with the CB10/60 model 60L/s fire pump and PL8/48 fire monitor, makes it an ideal primary apparatus for medium-sized fire stations. ISUZU Compressed Air Foam Fire Truck is composed of Japanese Isuzu truck chassis, Aluminimu alloy compartment, power transmission system, CAFS system, water system, intelligent control system, electrical system, auxiliary lighting device, etc.
Isuzu Foam Tanker Fire Truck mounted base on the ISUZU classical FVR 4x2 LHD 300HP diesel engine fire vehicle chassis, the 6 wheelers ISUZU fire engine usually a specially-designed or modified truck, that functions as a firefighting apparatus. ISUZU 300HP pumper fire engine design focuses on intelligence and safety. The integrated control system in the rear pump room English Vesion Control Panel can adjust the start and stop of the water fire pump, foam ratio and communication equipment in real time, and some models support firefighting operations while moving; the fire tanker truck body is also equipped with anti-slip pedals, strobe lights and anti-corrosion tanks to improve operational safety at night and in harsh environments. Isuzu rescue fire truck is widely used in urban firefighting, industrial hazardous chemical sites and field rescue, and is one of the core equipment of public security fire brigades, factories and mines, and community fire stations. The primary purposes of an Isuzu fire engine include transporting firefighters with air apparatus and water foam or other liquid to an incident as well as carrying equipment for firefighting rescue equipment.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
| PT5180GXFPM Isuzu FVR 300HP fire department apparatus technical parameters |
| ISUUZ Chassis |
Chassis brand |
/ |
ISUZU |
| Model |
/ |
QL1180 |
| Drive type |
/ |
4x2 left hand drive |
| Cabin |
/ |

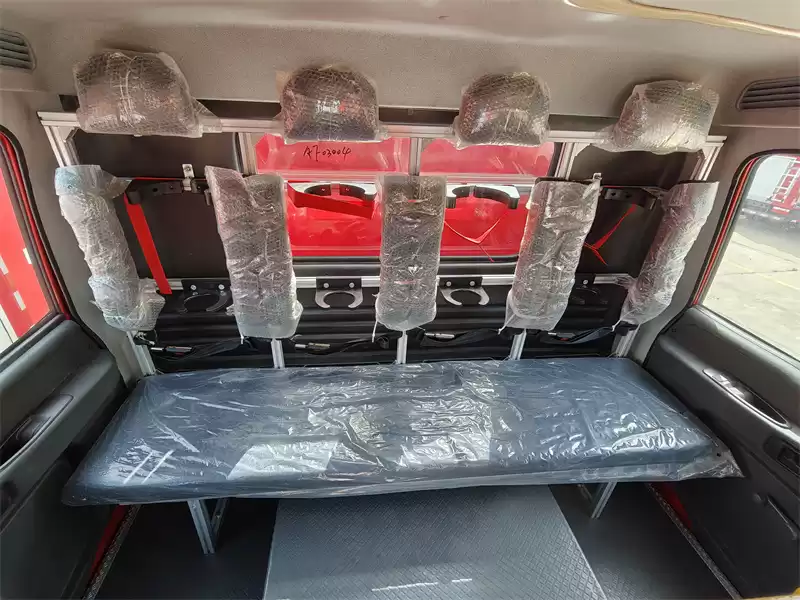

Double row, 2+4 SCBA seats |
| Overall dimension(L*W*H) |
mm |
8500*2500*3450 |
| Total mass |
kg |
18000 |
| Rated Loading capacity |
kg |
8800 |
| Wheel Base |
mm |
4500 |
| Front /rear suspension |
mm |
1015/1890 |
| Approach/departure angle |
(°) |
24/12 |
| Spring No. |
/ |
8/6+5 |
| Tyre No. |
pcs |
6, (front 2, rear 4) |
| Type & Size of Tyre |
/ |
295/80R22.5 |
| Axle No. |
/ |
2 |
| Steering wheel |
/ |
Left hand drive |
| Gear box |
/ |
MLD, 6 speed forward with 1 reverse, manual ,with ABS |
| Engine |
Engine model |
/ |
6HK1-TCH |
| Engine brand |
/ |
ISUZU |
| Engine type |
/ |
6 cylinders in line |
| Maximum power |
HP/kw |
300/220 |
| Fuel type |
/ |
diesel |
| Displacement |
ml |
7790 |
| Emission Standard |
/ |
Euro V |
| Tanker |
Water tanker |
/ |
5000Liter, Stainless steel #304 |
| Foam tanker |
/ |
2000Liter, Stainless steel #304 |
| ISUZU Fire Truck mounted 5000 litres water tank & 2000 litres foam tank |
| Fire pump |
Model |
/ |
CB10/60,Normal pressure pump |
| Pressure |
Mpa |
≥1.0 |
| Max suction height |
m |
7 |
| Flux |
L/S |
60 |
| Rated speed |
r/min |
3600 |
| Time of drawing water (s) |
s |
≤35 |
| Input diameter |
mm |
125 |
| Outlet diameter |
mm |
2xΦ75 |
Fire monitor
|
Model |
/ |
PL8/48 |
| Fire fighting nozzle range |
Water (m) |
≥65 |
| Foam (m) |
≥55 |
| Flux |
L/S |
48 |
| Rated Working pressure |
Mpa |
1 |
| Fire Equipment |
Full sets fire fighting equipment and people rescue tools equipped on the ISUZU 6HK1 fire truck
|
ISUZU Fire fighting truck is an Isuzu fier vehicle specially designed, produced and export primarily for fire fighting operations to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly. ISUZU tanker pumper fire truck equiped firefighting apparatus and customized for use during firefighting operations. These trucks are highly customized depending on their needs and the duty they would be performing. For the Firefighting Truck tank mediums, we have three types: water, foam, dry powder. And for the tanks material, we have below options:
Standard as carbon steel, with internal and external treat with antirust and anticorrosion painting, which can have the most cost competetive.
Optional Stainless steel and PP material, which are customized and guarantee tanker never rust.

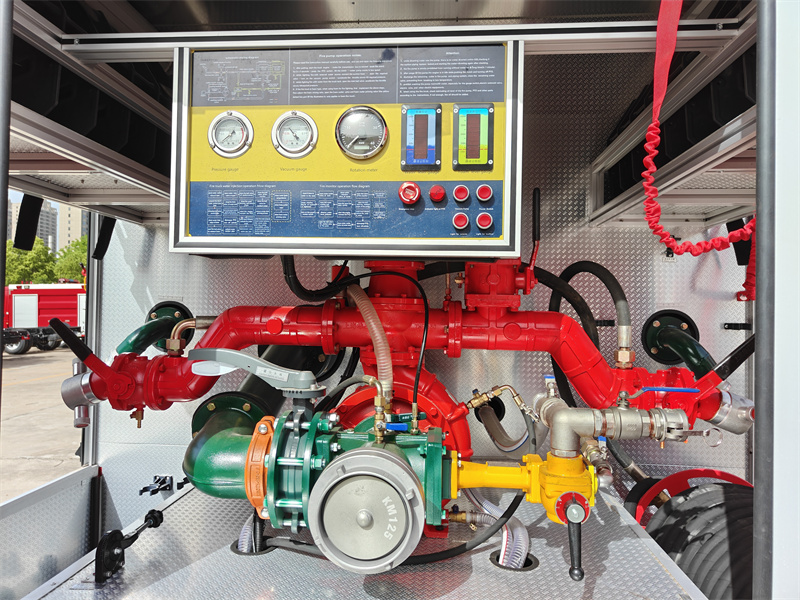

Isuzu fire fighting truck Pump Room
Isuzu fire apparatus core structure includes a dual storage system of water tank and foam tank, all based on stainless steel #304 material, equipped with top 1 Chinese brand CB10/60 fire pump and flow rate 60 liters per second, full sets pipeline systems and full sets rescue equipment, which can independently or also in conjunction with external water sources for efficient fire extinguishing operations. As for the control panel, which can standard be English version, but also can be customized as Russia, Arabic, French, Spanish, etc.

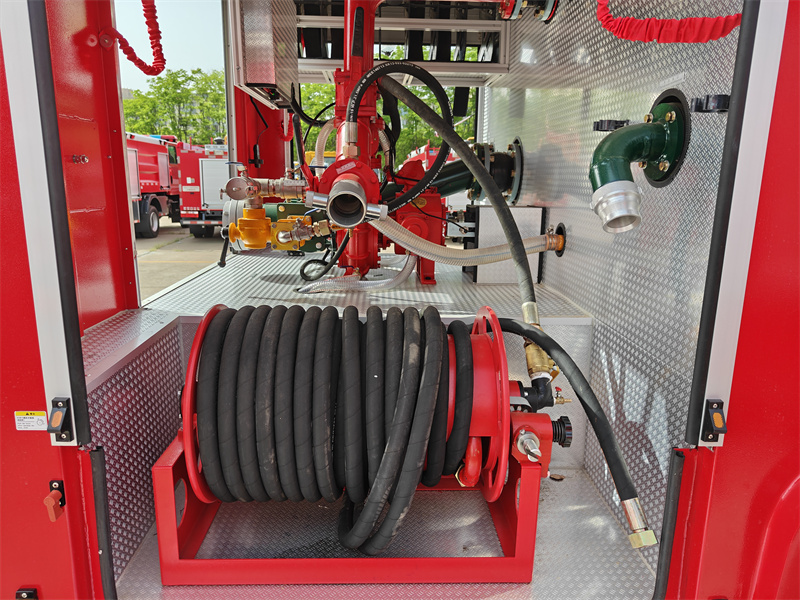

Isuzu pumper fire truck mounted with 30m hose reel
ISUZU pumper fire engine usually uses a tank body made of high-quality stainless steel, and the capacity varies according to different models. Which are 100% customized to meet customer requirement all over the world. Also truck equipped with 30m hose reel as customized, which can be manual extend out or retract back, working distance can be 30m, matched with water jetting gun, and jetting gun have 2 type water spraying model for different fire scene requirement.

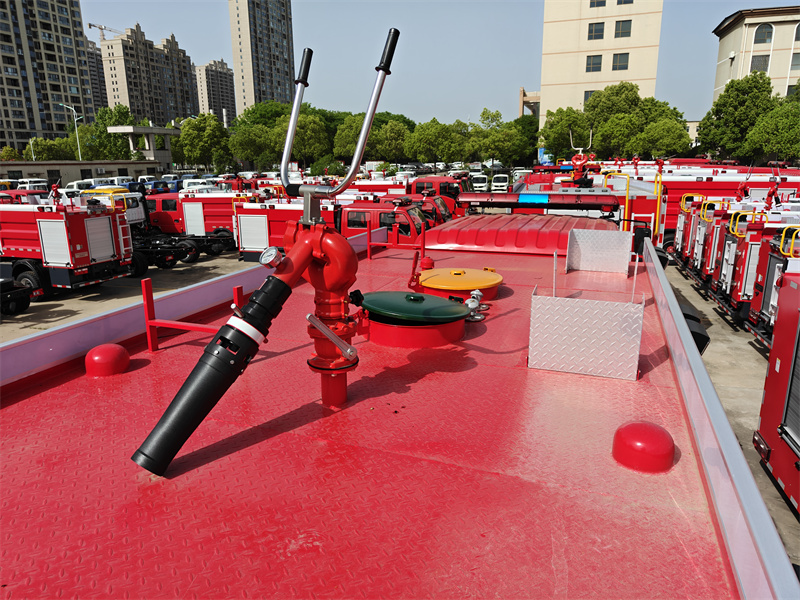

Isuzu fire engine top mounted fire monitor
Isuzu fire truck core structure includes a dual storage system of water tank and foam tank, all based on stainless steel #304 material, and on the top mounted with PL8/48 model water foam fire monitor, matched working with CB10/60 fire pump, with jetting distance for water 60m and for foam 55m. On top of Isuzu 6HK1 fire tender also can be mounted with Aluminium alloy ladder, with working height range from 6m to 14m.
