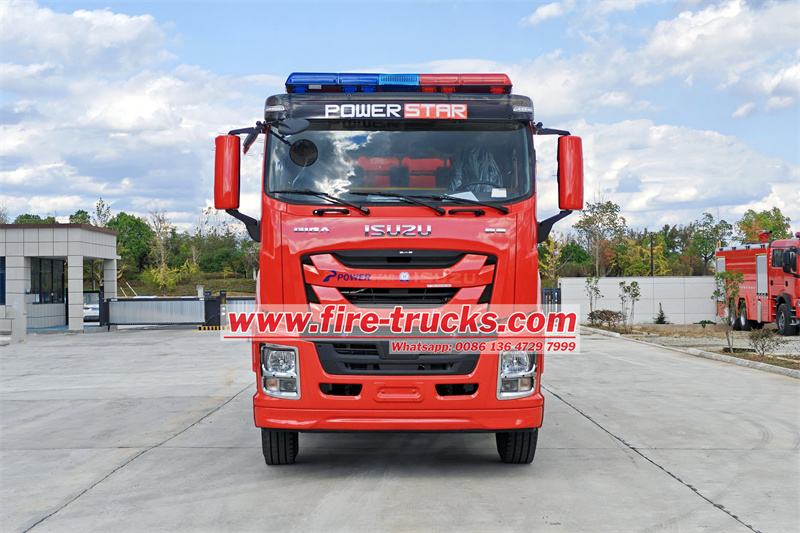

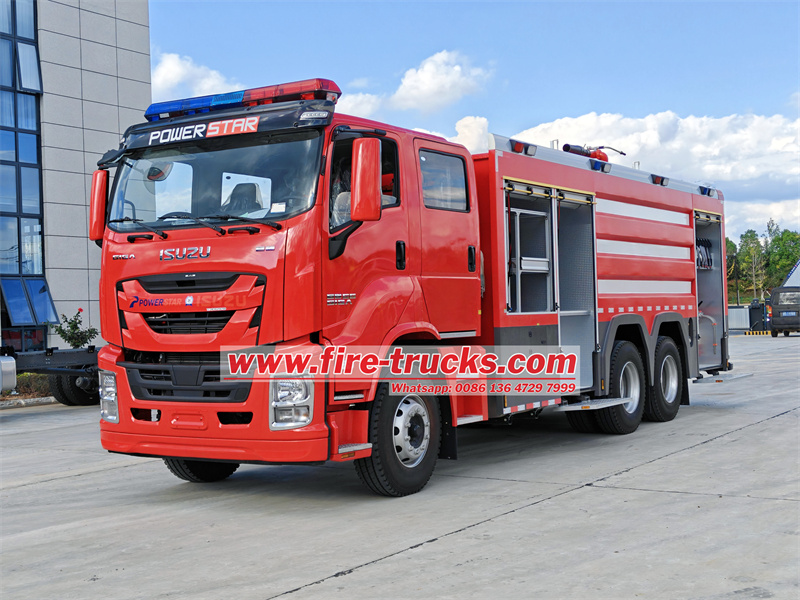

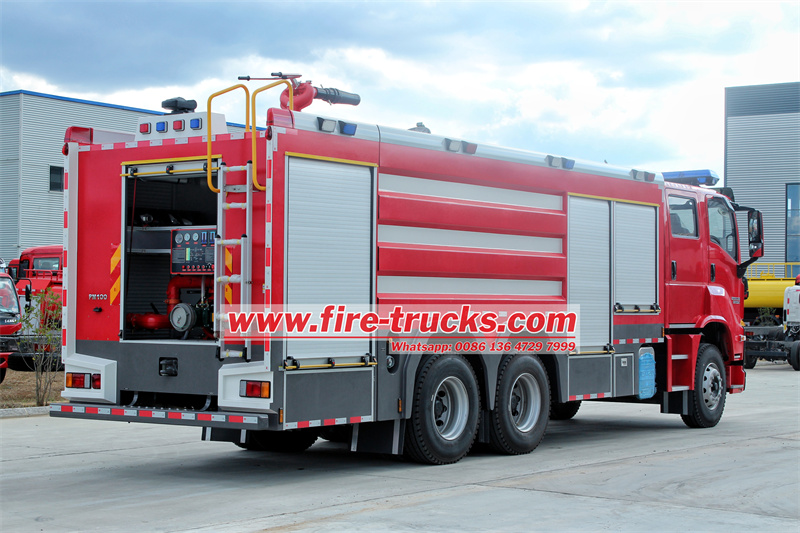

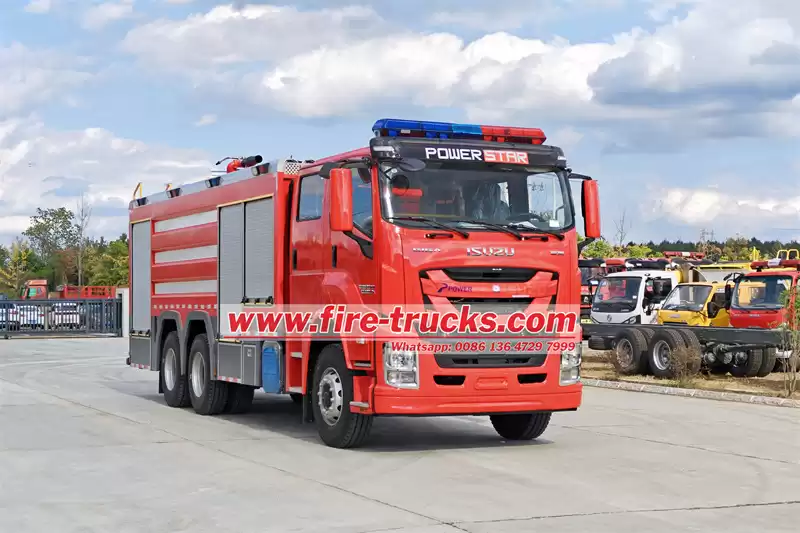

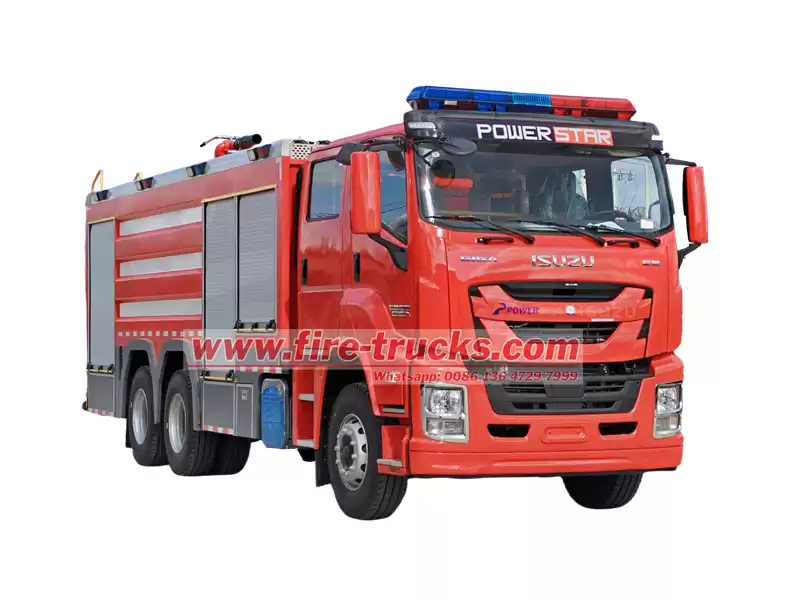

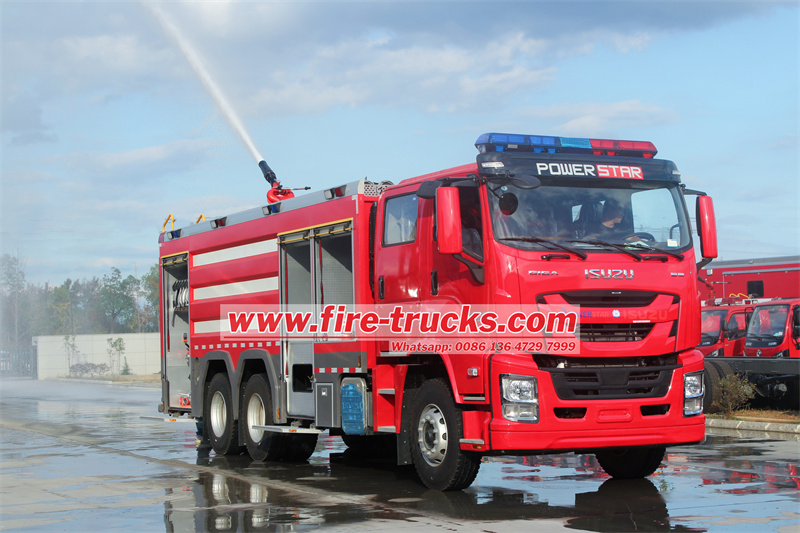

Isuzu GIGA 6x4 water fire tank truck

The Isuzu GIGA 6x4 water fire truck is built on the sturdy ISUZU GIGA 5x cabin chassis. It combines excellent power and environmentally friendly emissions. High engine power 6UZ1, it can challenge all kinds of difficult roads. It’s equipped with a 8000-liters large-capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. The Isuzu GIGA fire fighting truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions.

  • RemarkCustomized fire fighting rescue equipment
  • Fire MonitorPS50
  • Fire PumpCB10/60, 60L/s
  • Engine ModelIsuzu 6UZ1
  • Engine Power380HP
  • Axle drive6x4,LHD
  • Wheelbase4600+1370mm
  • Work capacity 8000L
  • Tanker Structure8000L water tank
  • Truck ModelPST53305GXF
Facebook Twitter Pinterest LinkedIn 分享

The Isuzu GIGA 6x4 water fire truck is built on the sturdy ISUZU GIGA 5x cabin chassis. It combines excellent power and environmentally friendly emissions. High engine power 6UZ1, it can challenge all kinds of difficult roads. It’s equipped with a 8000-liters large-capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs. This Isuzu all-wheels fire water truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility. The Isuzu GIGA fire fighting truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions. In addition, the design of the cab also takes into account the convenience and safety of driving.

ISUZU GIGA 6X4 fire fighting truck

● China best heavy-duty water fire truck factory

● More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery. any order is welcome

● 24 month quality guarantee term



Specification:



ISUZU GIGA 6x4 fire fighting truck



Product Name

ISUZU GIGA 6x4 water fire truck

Chassis Series

ISUZU GIGA Series

Vehicle Model

PST50703MXF

Main specifications

Manufactory

Powerstar

Overall dimension(L*W*H)

10600×2480×3160mm

GVW

25000Kg

Curb weight

12500Kg

Water tank volume

8,000 liters

Cabin

double cabin, 2+3seats,with Air conditioner, electronic windows, USB

Wheel base

4600+1370 mm

Driving type

6*4

Chiassis model

ISUZU GIGA

Transmission

Fast 12-speed forward, 2 reverse

Number of axles

3

Tire specification

295/80R22.5

Number of Tires

10pcs with 1 spare tire

Passengers in cab

3+3

Engine

Engine model

6UZ1

Type of fuel

Diesel

Displacement/power

9.839L / 380 Ps

Maximum torque

1800N·m

Max speed

95 Km/h

Emission standard(TAS)

EURO 6

Fire performance

 Water tank capacity

8000L

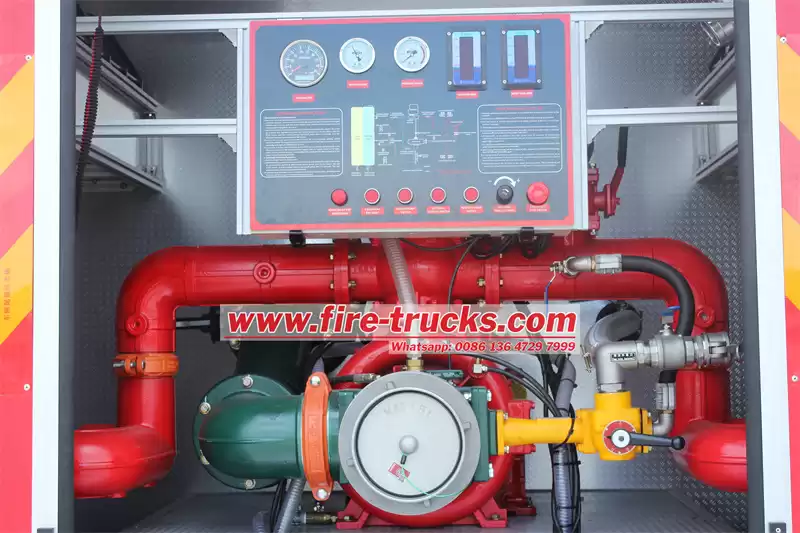

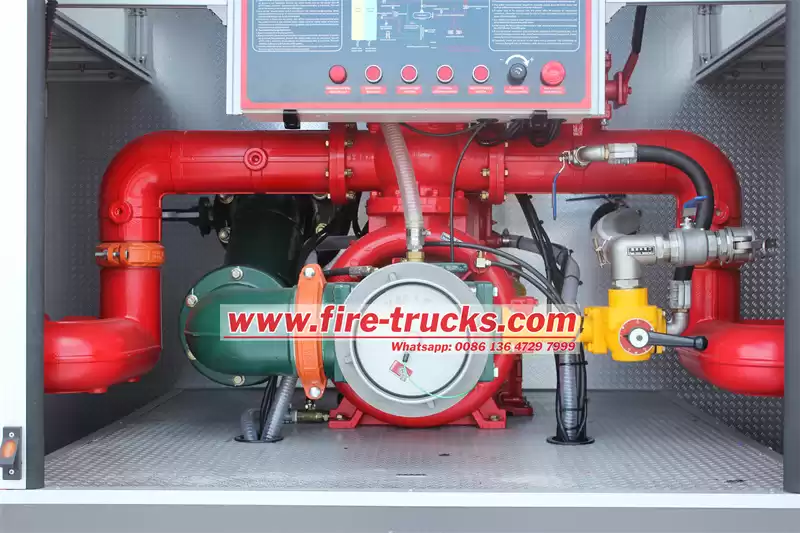

Fire pump

China Top brand

Model: CB10/60

Low-pressure:60L/S

Medium-pressure:60L/S

Fire monitor

China top brand

Model:PS50

Working pressure: 1.0MPa

Flow:60L/S

Water jet distance:≥65m

Rotation angle: 360° horizontally, -45° to 70° in pitch

Fire pump Input

1 unit, diameter: 100mm

Fire pump Outlet

2 units, diameter: 65mm

2 units,diameter: 85mm

Standard configurations

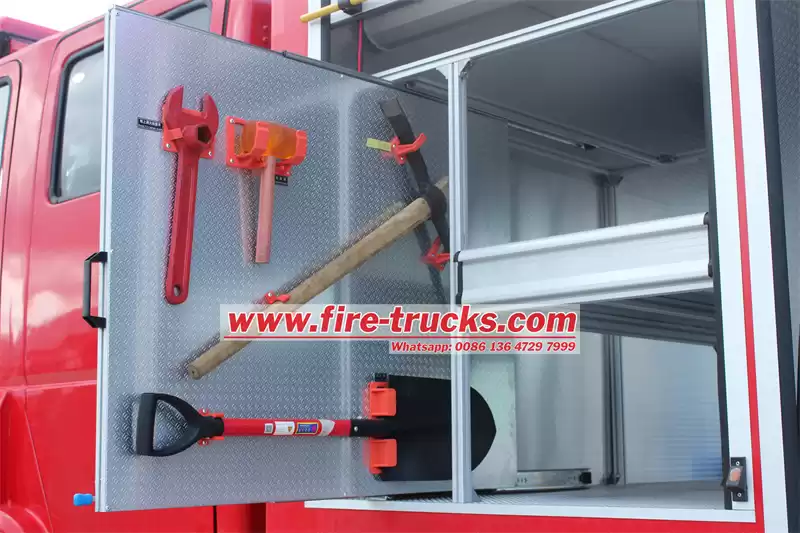

Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose



How to use the ISUZU GIGA fire fighting truck correctly?

ISUZU GIGA frie fighting truck

1. Preparation and inspection before operation



♦ Power system pre-inspection: Check the 6UZ1 engine before starting daily. The oil level must be kept at the center line of the dipstick (API CI-4 or above), the coolant level (ethylene glycol-based long-term antifreeze), and the air filter clogging indicator status (pressure difference > 25kPa requires replacement).



♦ Pre-inspection of water system: Inspect 8000L water tank，drain residual water to prevent freezing (in winter), monthly biofilm test on inner wall (ATP test <50RLU), accuracy of water injection filter device (≥200 mesh).



Fire pump verification: Confirm before starting, vacuum pump sealing (vacuum degree reaches -85kPa within 30 seconds), water outlet pressure sensor calibration (error <±0.2MPa), foam proportion mixer accuracy test (±1%).

ISUZU GIGA frie fighting truck

2. Operational Specifications during Operation Phase



♦ Power system management: Engine running, idle preheating after cold start (water temperature ≥50℃ can be loaded), continuous working cycle ≤4 hours requires shutdown for cooling (intercooler temperature monitoring), overspeed is prohibited (≤2300rpm is the red line zone).

♦ Water system operation: When using the fire water pump, ensure that the pipeline valve opening is ≥30% before starting, and the working pressure is controlled in stages (normal pressure stage ≤1.0MPa, boost stage ≤1.8MPa). If the continuous operation time is ≤2 hours, the standby pump needs to be switched.



ISUZU GIGA frie fighting truck

3. Key points of periodic maintenance



♦ Power system maintenance: Maintenance is carried out every 500 hours of use, including diesel filter replacement (with oil-water separation function), EGR valve carbon deposit cleaning (ultrasonic cleaning), and turbocharger axial clearance detection (standard value 0.03-0.08mm).

♦ Water system maintenance: Every quarter, the inside of the tank is cleaned under high pressure (≥10MPa), the check valve is tested for sealing (leakage rate <0.1L/min), and the pipeline is pulse tested (maintained at 1.5 times the working pressure).

♦ Structural parts inspection: Every six months, the frame welds are inspected by magnetic particle inspection (with a focus on the rear suspension connection), the leaf spring U-bolts are torqued back (standard torque ±5%), and the drive shaft universal joint clearance is measured (angular clearance <15°).
