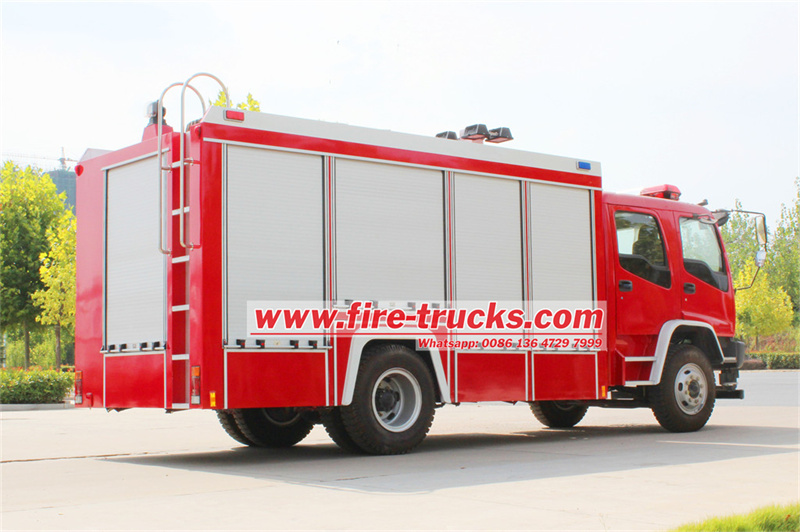

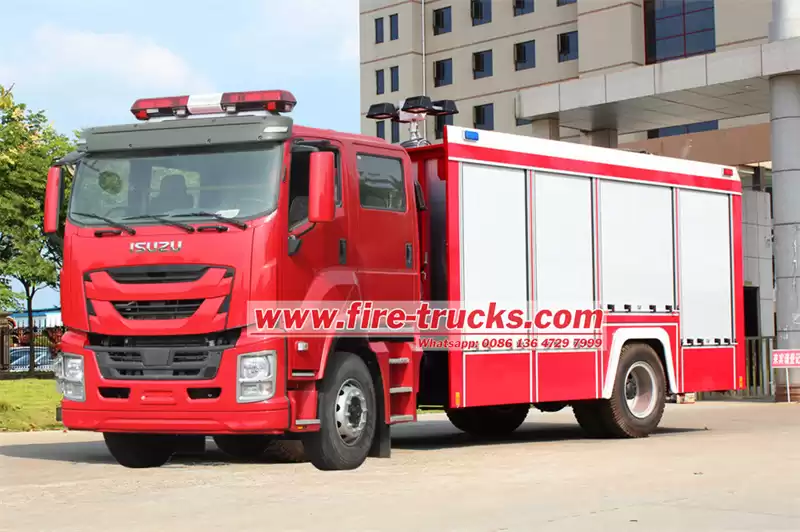

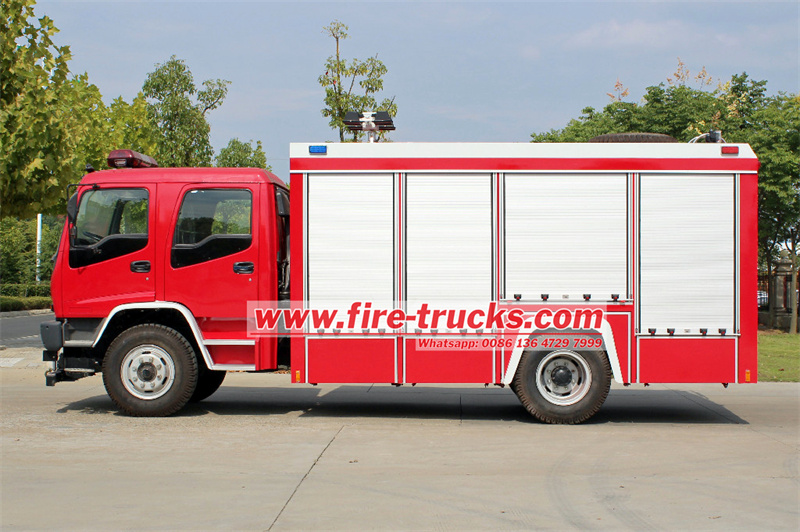

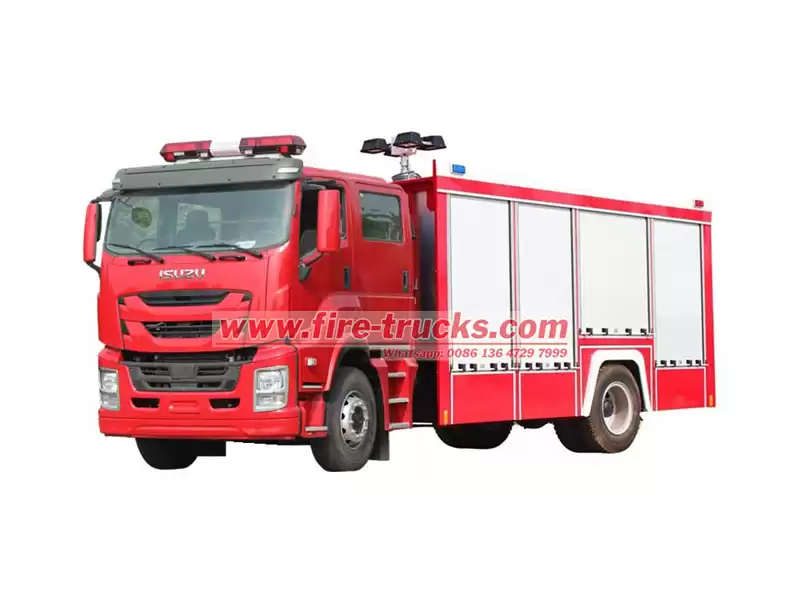

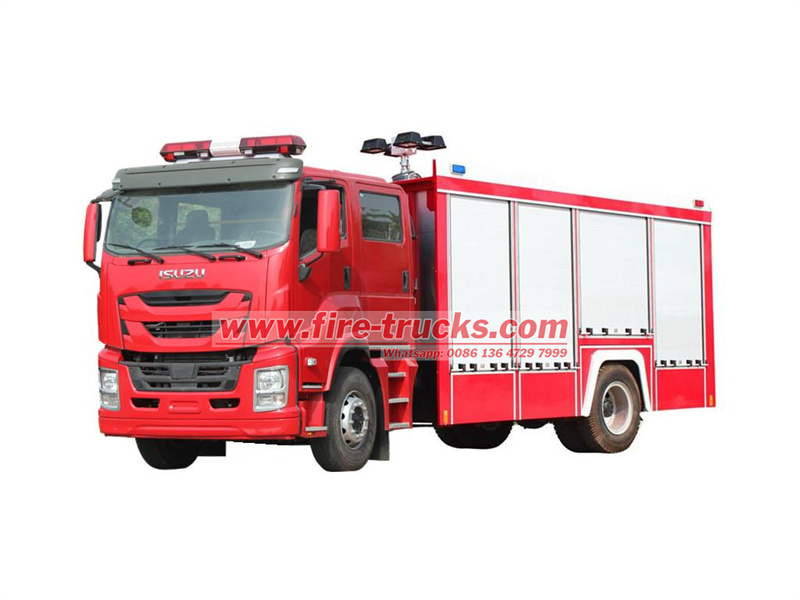

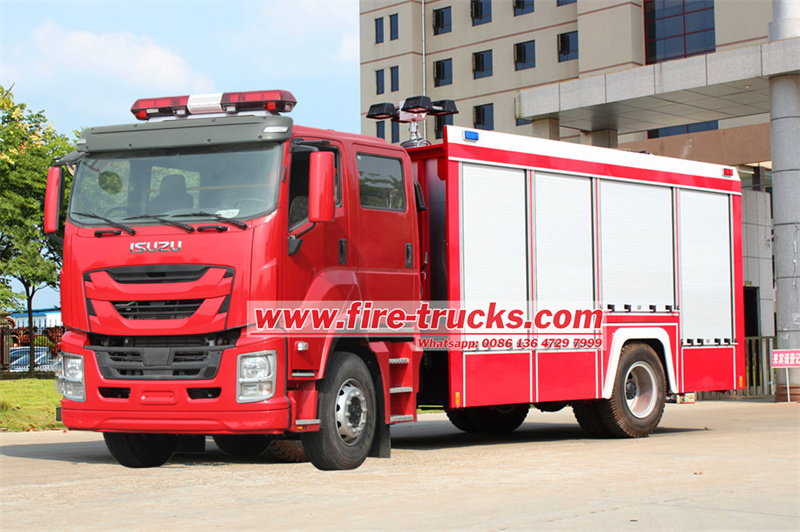

ISUZU GIGA fire rescue lighting truck

Isuzu GIGA emergency lighting fire truck is built on the high-quality ISUZU GIGA chassis, combining excellent power and environmentally friendly emissions. It has 380 horsepower and can challenge all kinds of difficult roads. It is equipped with an independent power generation system and emergency lighting system. It is multi-angle and all-round, and can quickly achieve the purpose of lighting the rescue channel when a fire breaks out. The control panel language is optional, and a variety of optional configurations are provided to meet different needs. This Isuzu GIGA fire rescue lighting truck provides solid protection for fire emergencies and demonstrates outstanding performance and flexibility. The Isuzu GIGA classical cabin is equipped with air conditioning to ensure that the driver and emergency personnel can remain comfortable in any weather conditions.

  • RemarkLighting System
  • Engine Model6UZ1
  • Engine Power380HP
  • Axle drive4x2
  • Wheelbase4600mm
  • Work capacity 10tons
  • Truck ModelPST52501YJXF
Facebook Twitter Pinterest LinkedIn 分享

Isuzu GIGA emergency lighting fire truck is built on the high-quality ISUZU GIGA chassis, combining excellent power and environmentally friendly emissions. It has 380 horsepower and can challenge all kinds of difficult roads. It is equipped with an independent power generation system and emergency lighting system. It is multi-angle and all-round, and can quickly achieve the purpose of lighting the rescue channel when a fire breaks out. The control panel language is optional, and a variety of optional configurations are provided to meet different needs. This Isuzu GIGA fire rescue lighting truck provides solid protection for fire emergencies and demonstrates outstanding performance and flexibility. The Isuzu GIGA classical cabin is equipped with air conditioning to ensure that the driver and emergency personnel can remain comfortable in any weather conditions.

 ISUZU GIGA fire rescue truck

● China best fire emergency truck factory

● More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery any order is welcome

● 24 month quality guarantee term



Specification:



ISUZU GIGA fire rescue truck



Isuzu GIGA Emergency Rescue Fire Truck

General

Vehicle Brand

Powerstar TRUCKS

Chassis Model

Isuzu GIGA

Overall Dimension

8600 * 2550 * 3150 mm

GVW / Kerb Weight

25,600kg / 12,300kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Model

6UZ1

Power

380 HP (279kW)

Displacement

9.839L

Emission Standard

Euro 6

Chassis

Drive Type

4X2

Transmission

12-speed levers with 2 reverse

Wheelbase/No. of axle

4600 mm / 2

Tire Specification

295/80R22.5

Tire Number

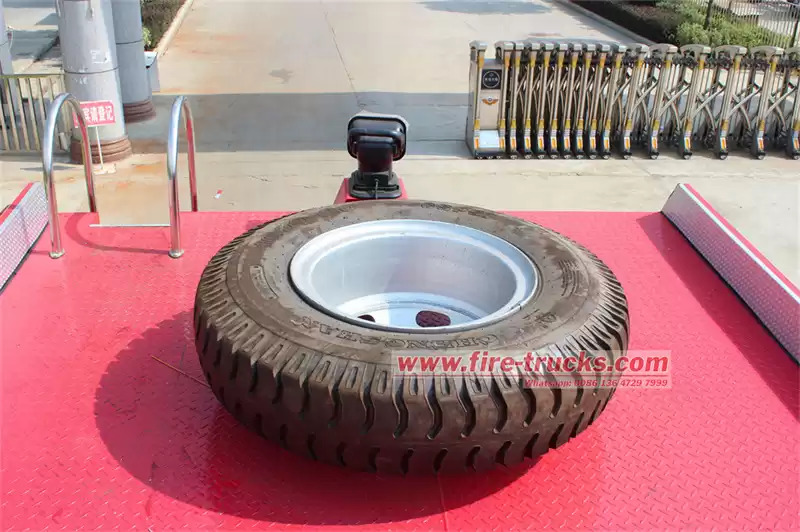

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Lighting system technology

Light source type

LED and other high brightness, low energy consumption light sources

Color Temperature

＞2700K

Luminous flux

Evacuation passage ground illumination ≥1.5 lx

Stairwell ≥6.0 lx

Coverage

Center or rear

Adjustable angle robotic arm (horizontal ±180°, vertical ±90°)

Multi-directional lighting，the coverage radius can reach more than 100m

Centralized power supply

Continuous lighting time ≥ 90 minutes

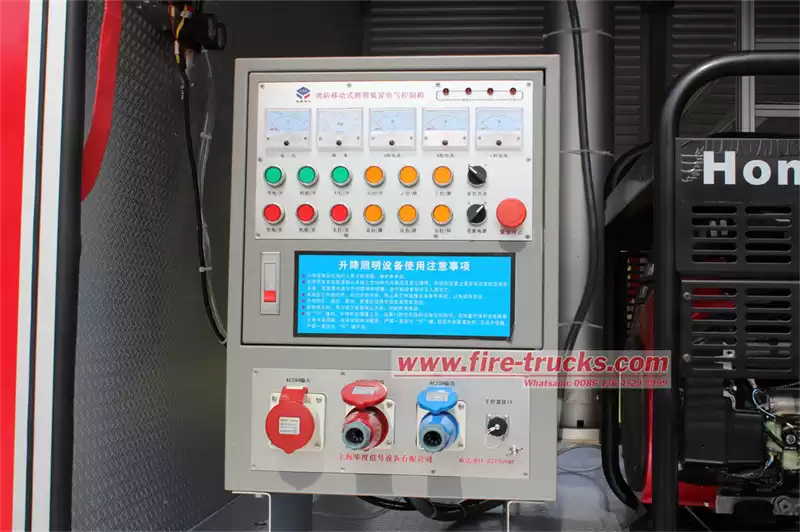

Control panel

English or Your language

Electrical System

Battery

Lithium iron phosphate battery

Capacity

100 minutes

Security

Fireproof and anti-leakage design

Voltage

Converted to 220V AC through inverter



 Adavantage:

ISUZU GIGA fire rescue truck

1. Chassis performance: reliable power and high passability

Engine and power system：The Isuzu GIGA chassis is equipped with a 6UZ1-TCG61 diesel engine (National VI emission standard), with a maximum power of 279kW (about 380 horsepower) and a torque of 510N·m. It has stable power output and excellent fuel economy, and is suitable for long-term high-intensity operations. The dual-battery design ensures the stable operation of electrical equipment under extreme conditions.

Passability parameters：Equipped with 295/80R22.5 tires and high quality drive capability, the minimum turning radius is ≤13 meters, and the wading depth is ≥900mm, which can adapt to complex terrain and severe weather conditions.



ISUZU GIGA fire rescue truck

2. Modification adaptability: modular and multifunctional integration

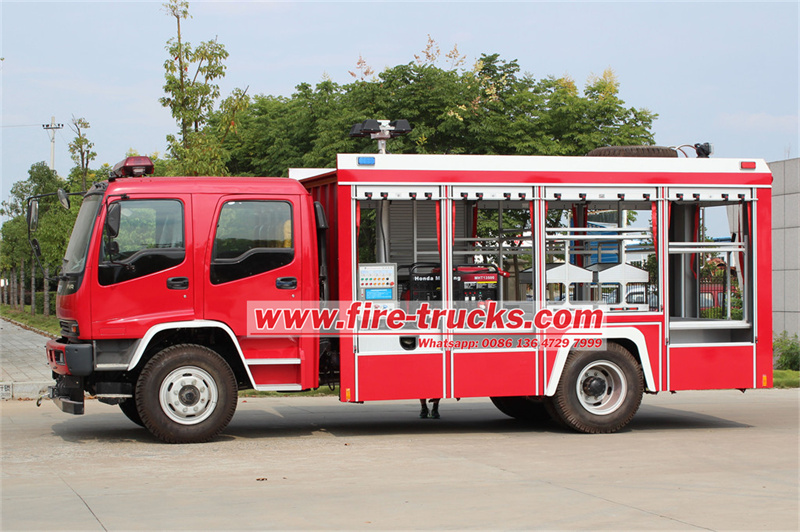

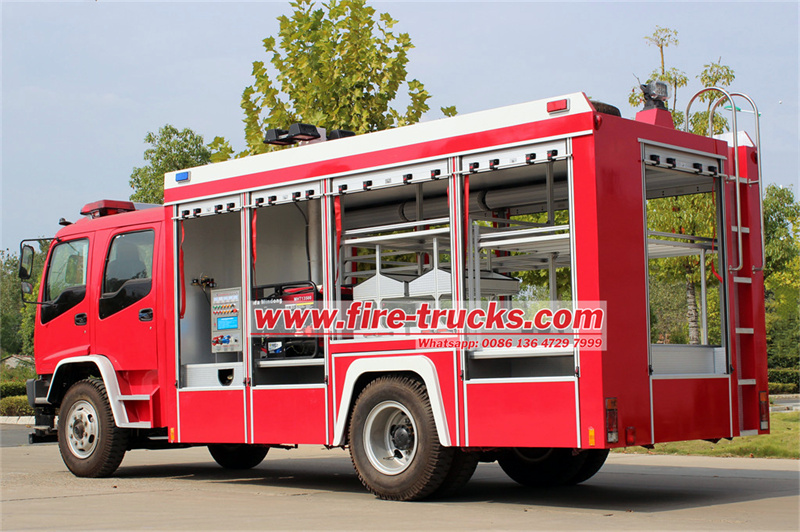

Structural design：The chassis adopts a high-strength carbon steel frame, anti-twisting box structure, and the external rolling door design facilitates quick access to rescue tools; the interior is equipped with adjustable aluminum alloy storage racks and rotating trailers to optimize space utilization.

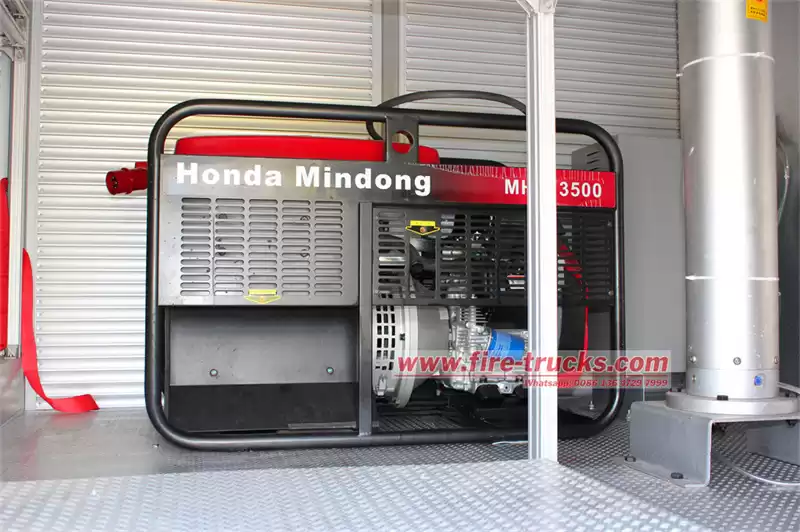

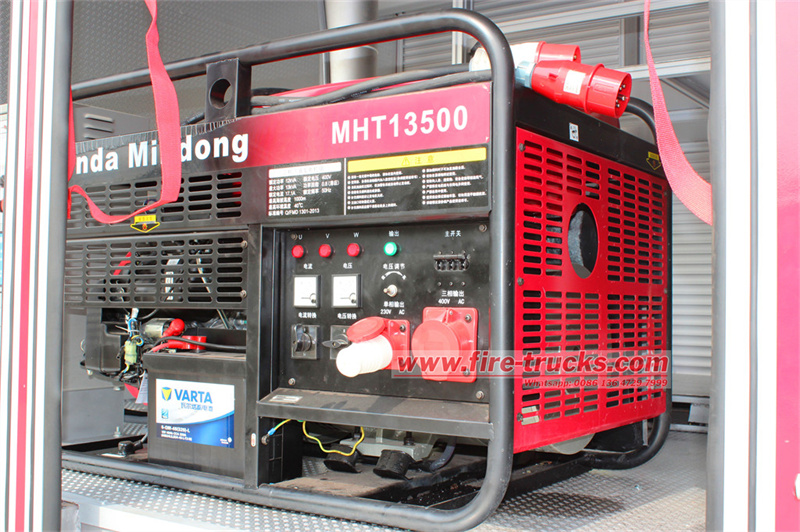

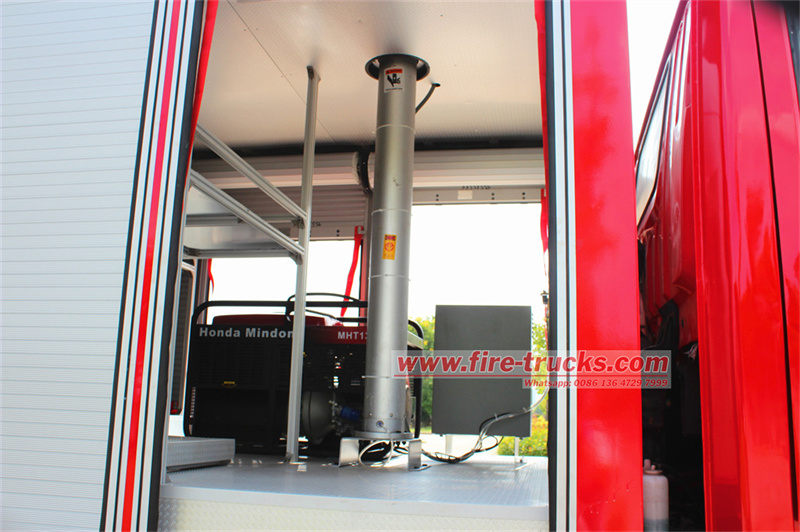

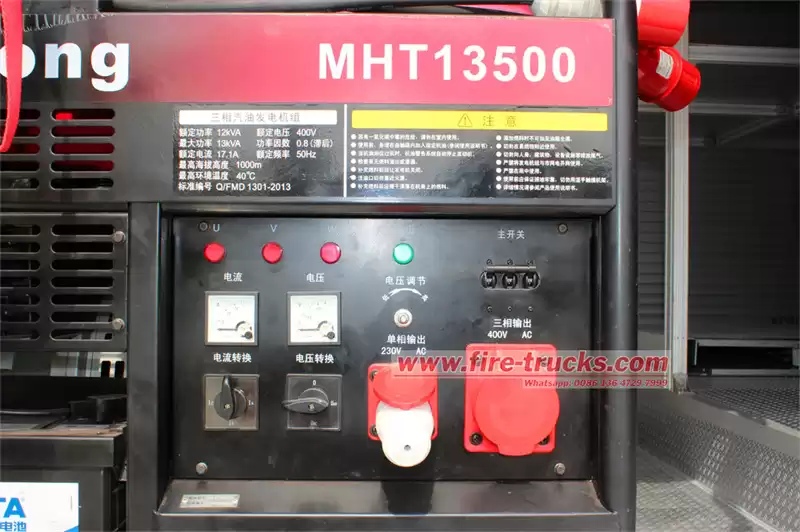

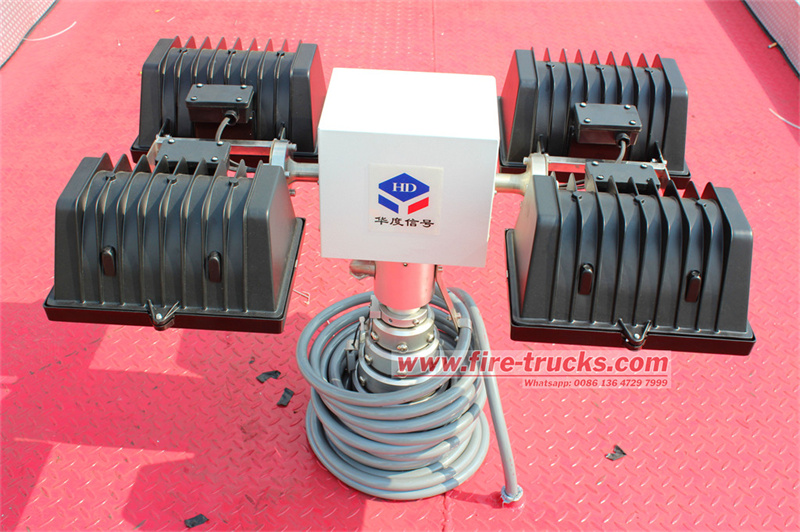

Emergency lighting system：Integrated with 30kW generator set and lifting lighting, mast height ≥ 7 meters, support 360° pan-tilt rotation and wireless remote control, coverage radius over 100 meters, to meet large-scale lighting needs. The lamp protection level reaches IP67, suitable for high humidity and dusty environments such as tunnels and chemical areas.

Multi-task expansion capability：It can carry rescue equipment such as hydraulic demolition tool sets and life detectors, and reserved interfaces to support drone collaborative reconnaissance or remote water supply system linkage.

ISUZU GIGA fire rescue truck

3. Safety and intelligence: risk control and operational efficiency

Safety protection design:The cab is equipped with a self-protection sprinkler system, which can automatically cool down in high-temperature fire scenes; the battery compartment is independently sealed and equipped with a leak-proof tray, and the flame-retardant material shell reduces the risk of fire.

Remote control and intelligence:Supports 150-meter remote control driving function, and switches to unmanned mode in 5-10 seconds. Firefighters can complete the laying of water hoses and firefighting operations without approaching the fire source, significantly reducing the risk of heat radiation damage. The on-board intelligent control system integrates fault self-detection, lighting power adjustment and remote monitoring functions.
