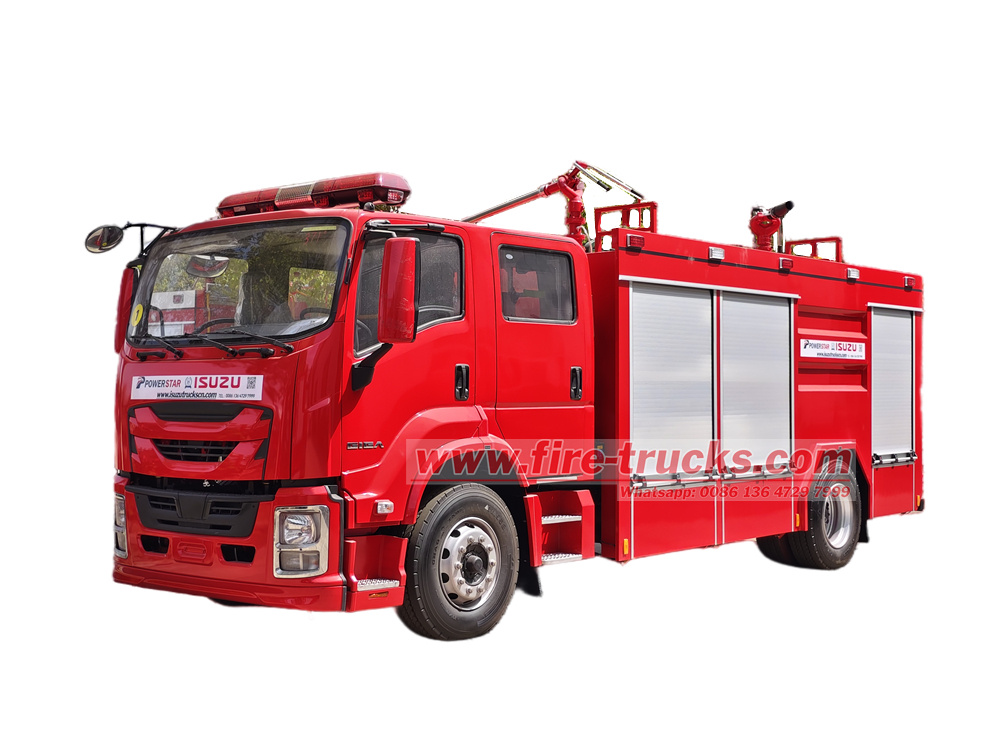

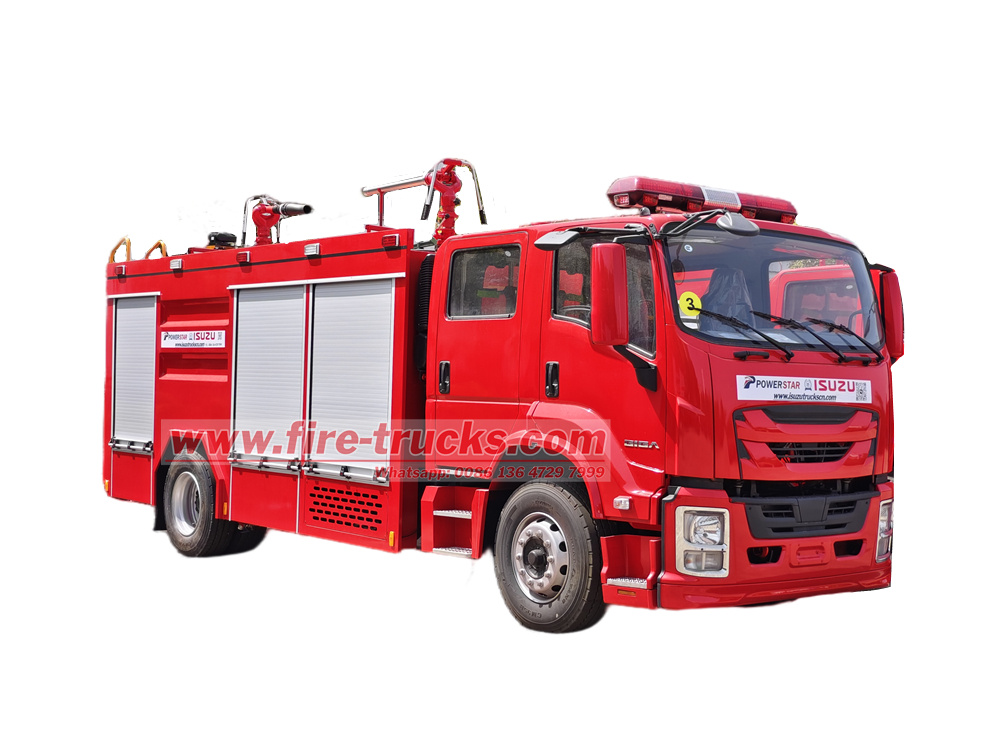

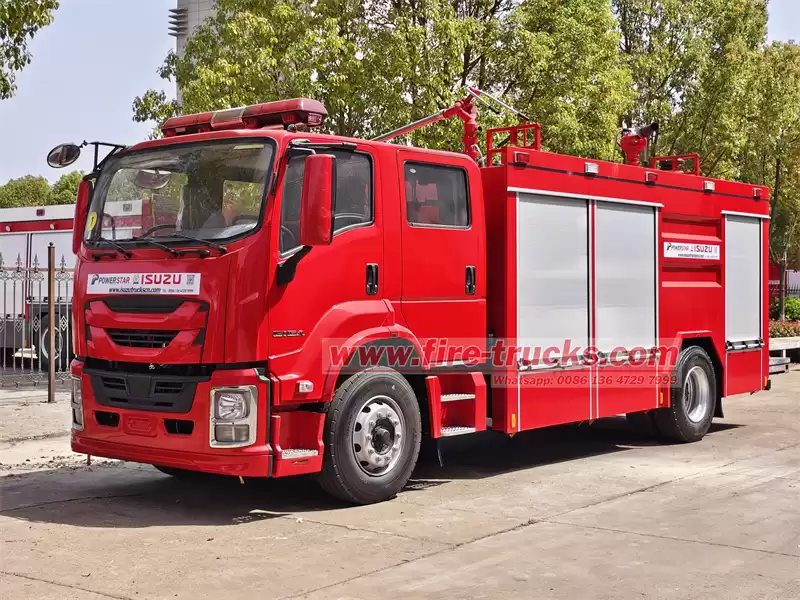

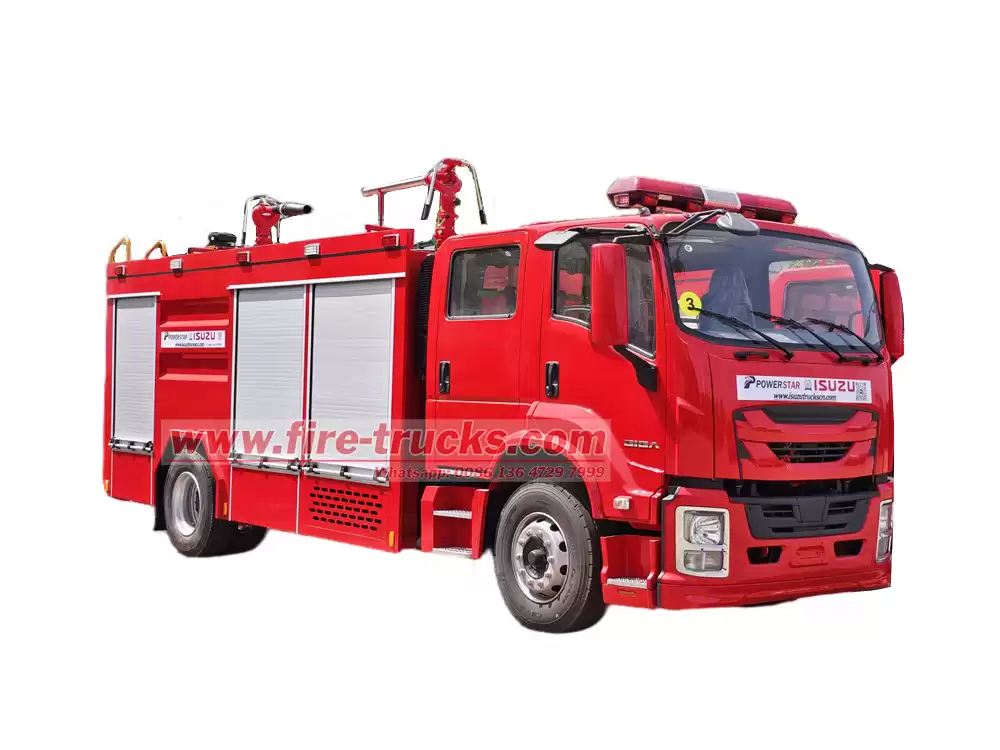

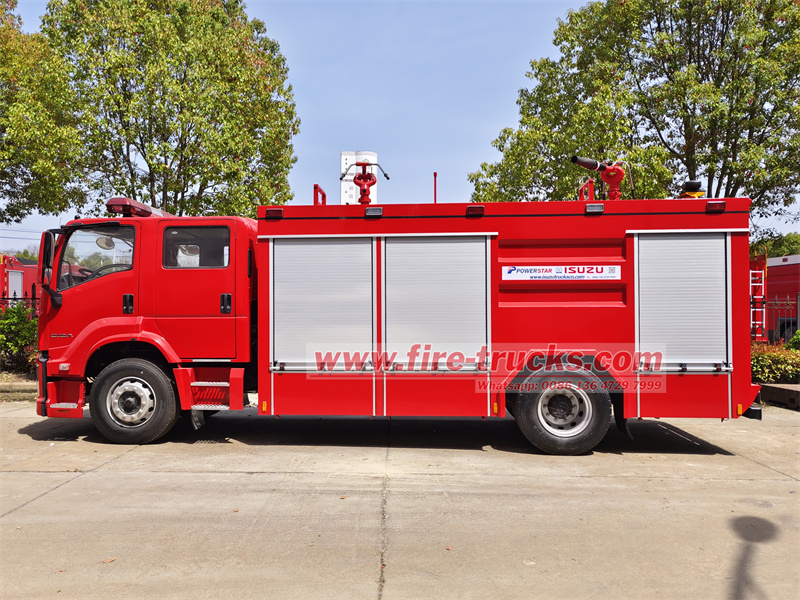

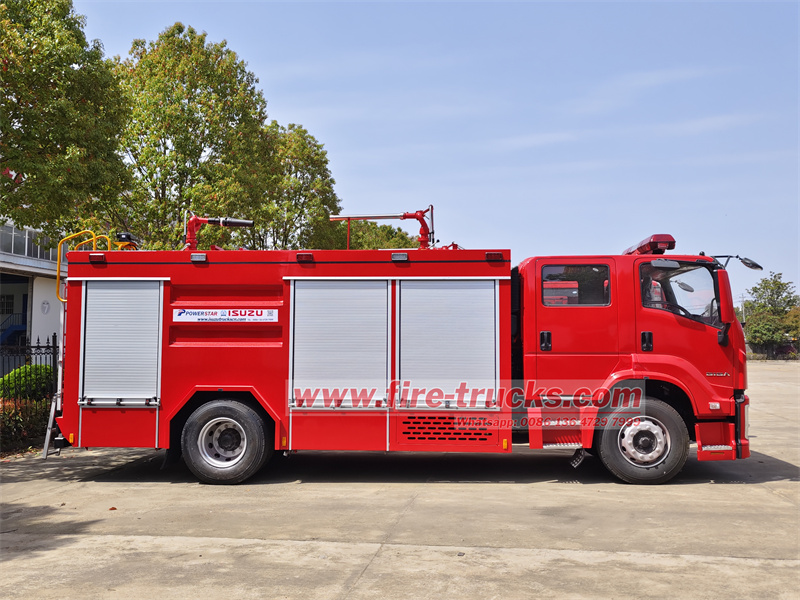

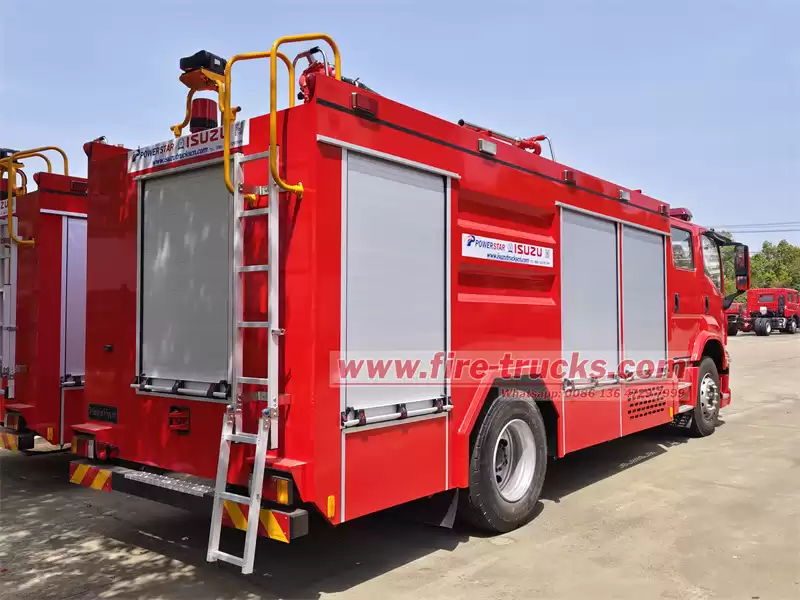

Isuzu GIGA pump tanker fire truck

In the field of firefighting, efficient and reliable fire trucks are key equipment to protect the safety of people's lives and property. The Isuzu GIGA pump tanker fire truck is a multifunctional fire truck that integrates three fire extinguishing media: water, foam and dry powder. It is suitable for fighting Class A (solid fire), Class B (liquid fire), Class C (gas fire) and electrical fires. This fire truck is carefully modified based on the Isuzu FTR 4X chassis. The Isuzu chassis is world-renowned for its excellent stability and reliability, providing a solid operating foundation for fire trucks. The double-row cab design is not only spacious and comfortable, but also can carry 2 + 4 firefighters, meeting the needs of rapid dispatch and multi-person collaborative operations during emergency rescue. The 4500mm wheelbase ensures the stability of the vehicle during driving, and can quickly reach the fire scene even under complex road conditions.

● China best Isuzu dry powder foam fire truck factory

● 30 years experience on dry powder fire rescue truck designing

● Professional sales team which will help you to choose suitable truck.

● Build strict QC team to guarantee the quality

● Fast delivery time, Quick 10 days shipping time

The Isuzu FTR 6-cubic-meter dry powder foam fire truck is a multi-functional fire truck modified based on the Isuzu FTR 4X4 chassis, equipped with a 4HK1-TCG60 engine and a 6-speed gearbox. The vehicle adopts a double-row cab, can carry 6 people, and is equipped with 4 cubic water tanks, 1 cubic foam tank and 1 cubic dry powder tank. The core equipment includes CB10/40 fire pumps, PL8/32 fire monitors (range ≥ 60m) and PF5~15/30 dry powder monitors (range > 35m), and is equipped with 4 70L nitrogen bottles to drive the dry powder system. The vehicle is equipped with two intelligent control panels: the pump room panel integrates the monitoring and operation functions of the water foam system, and the dry powder panel is dedicated to the powder fire extinguishing system. The vehicle is equipped with complete firefighting equipment to achieve coordinated operations of three fire extinguishing methods: water, foam and dry powder. It is suitable for various complex fire scenes and is a professional firefighting equipment that integrates efficient fire extinguishing, intelligent control and reliable performance.

★ Chassis and power system

1. Chassis structure

● Adopting Isuzu's new FTR chassis, the drive form is 4×2, ensuring good road adaptability and traction performance.

● The wheelbase is 4500mm, which optimizes the vehicle's turning radius and is suitable for driving in narrow streets and complex terrain.

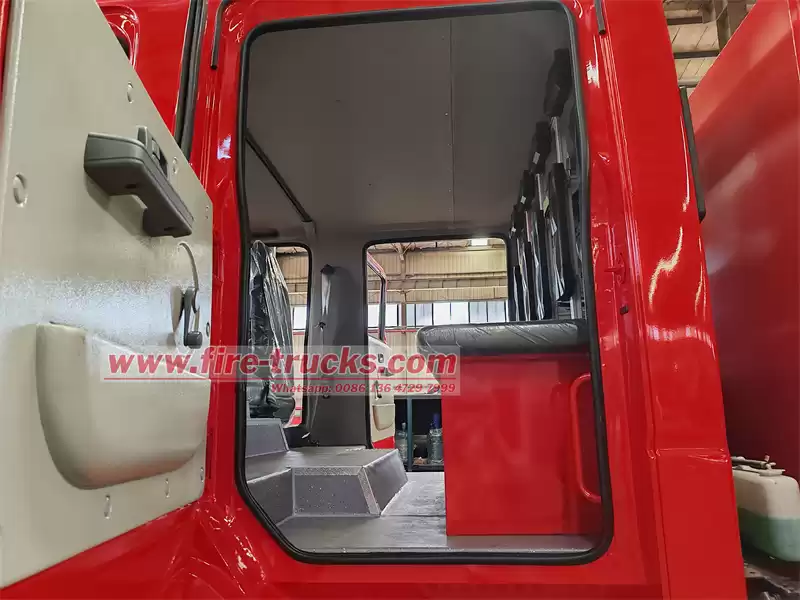

● The double-row cab design, with 2 people in the front row (driver + commander) and 4 people in the back row (firefighters), meets the needs of rapid police response.

2. Power performance

● Equipped with Isuzu 4HK1-TCG60 diesel engine, with a maximum power of 205 horsepower, in line with the National VI emission standards.

● Matched with Isuzu MLD 6-speed manual transmission, it provides stable power output and adapts to long-term combat needs.

★ Upper system

1. Tank system

● 4 cubic meter carbon steel water tank: Made of high-quality carbon steel material, the inner wall is specially anti-corrosive treated, equipped with a liquid level display device and a quick water filling interface.

● 1 cubic meter stainless steel foam tank: Made of 304 stainless steel, equipped with an automatic foam ratio mixing system, the mixing ratio can be adjusted within the range of 3%-6%.

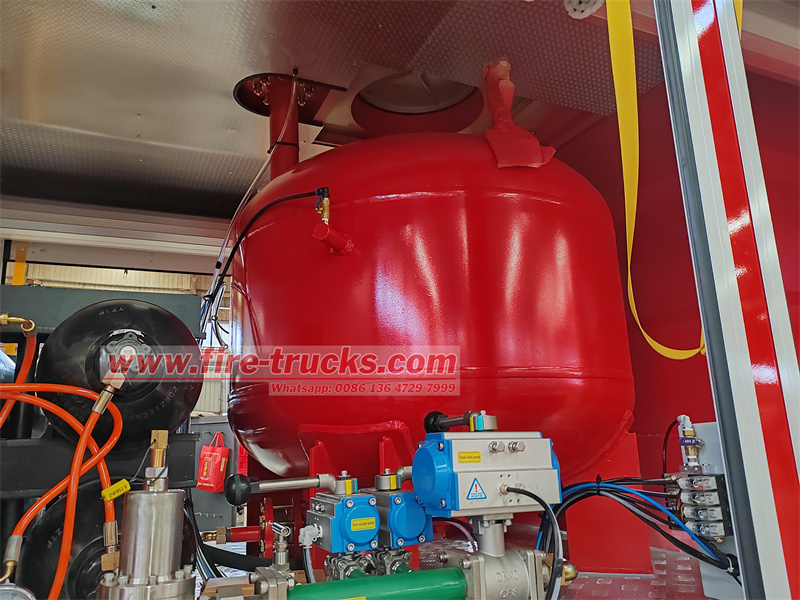

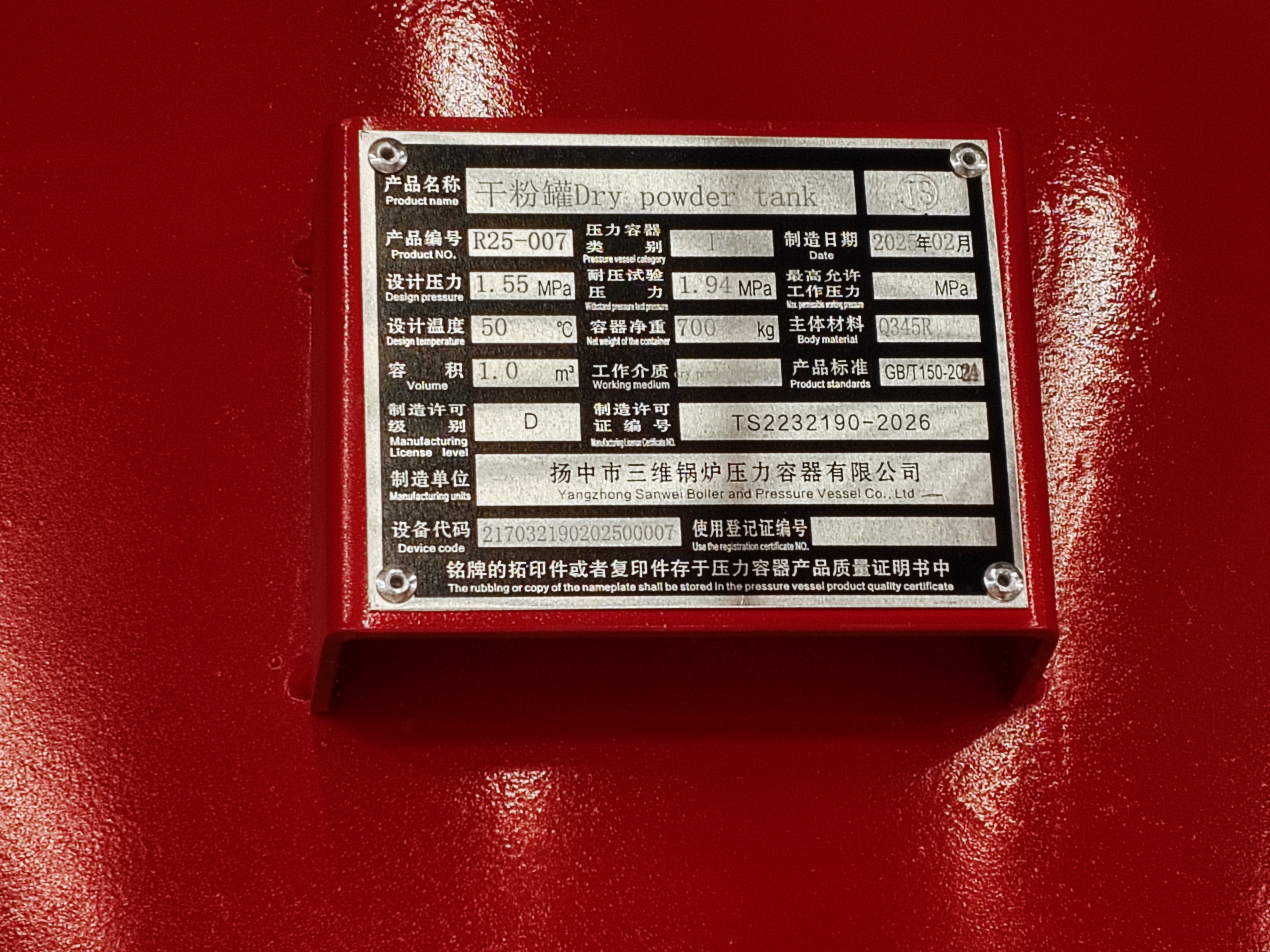

● 1 cubic meter Q345R dry powder tank: design pressure 1.55MPa, pressure test pressure 1.94MPa, working temperature range -30℃～50℃.

2. Fire extinguishing system

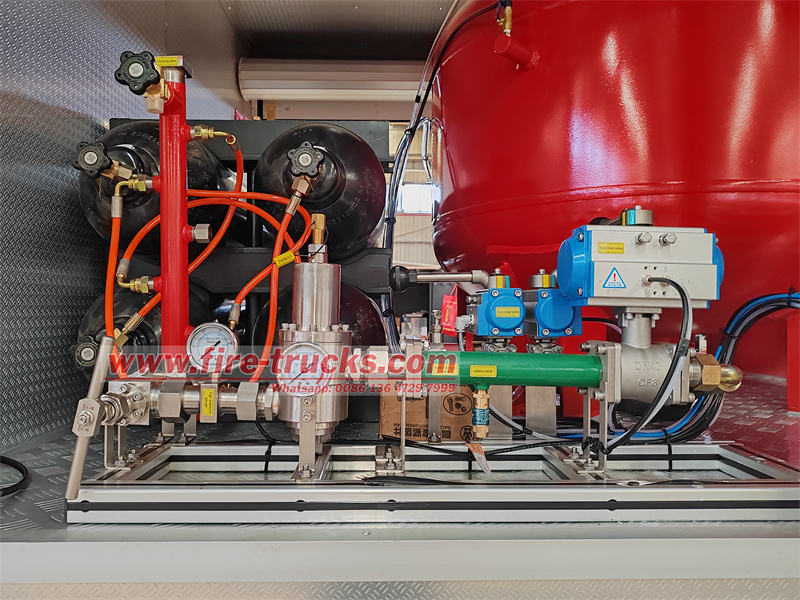

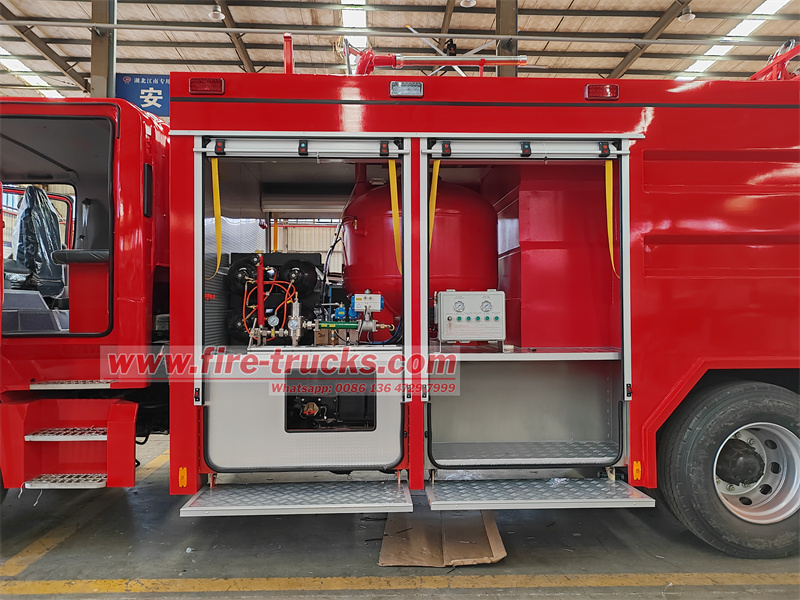

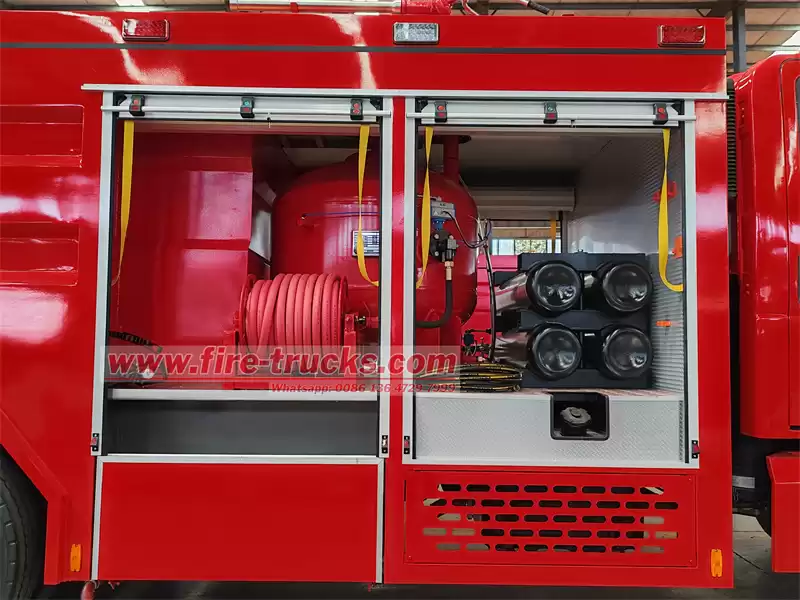

● Dry powder fire extinguishing system: equipped with 4 70L nitrogen cylinders, working pressure 15MPa, and driven by high-pressure nitrogen to spray dry powder.

● Fire pump system: CB10/40 fire pump with rated flow rate of 40L/s and outlet pressure of 1.0MPa is used, which can provide stable and strong water flow for fire extinguishing.

★ Firefighting equipment

1. Fire monitor system

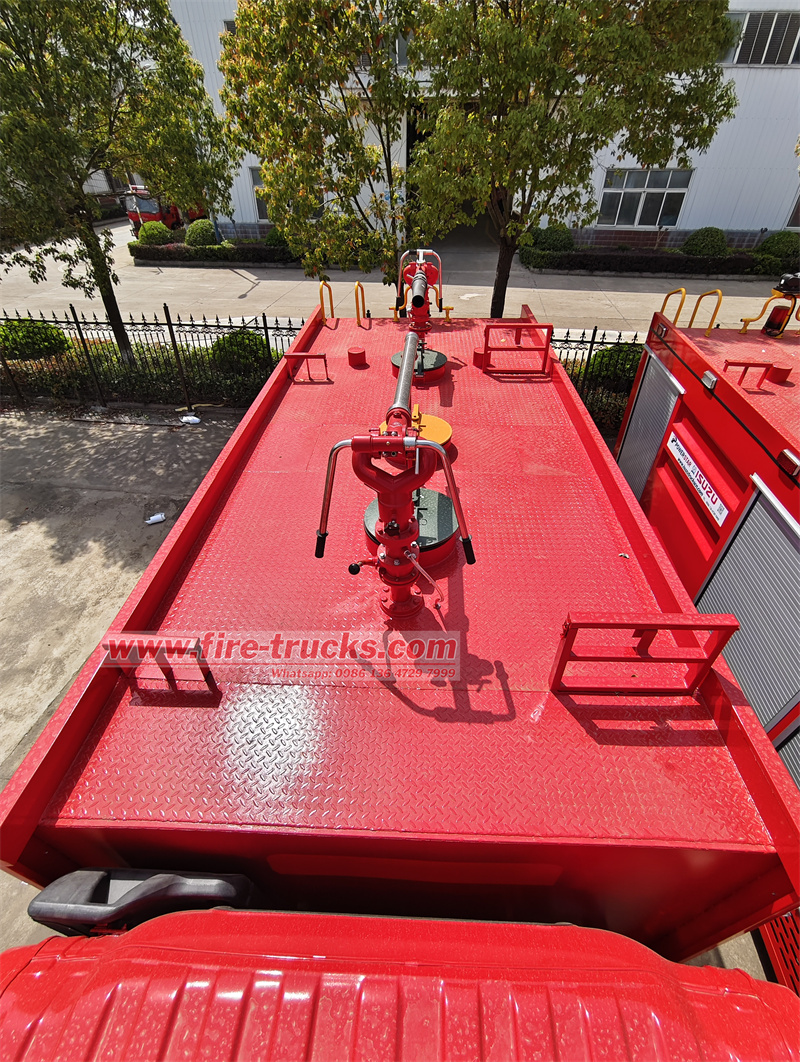

● PL8/32 fire monitor: flow rate 32L/s, water range ≥60m, foam range ≥48m, horizontal rotation angle 360°, pitch angle -15°～+70°.

● PF5～15/30 dry powder monitor: working pressure 0.5-1.7MPa, range >35m, can quickly extinguish large-area fires.

2. Auxiliary equipment

● Dry powder gun: range >12m, suitable for close-range precision fire extinguishing.

● 30m hose reel: equipped with quick interface, can be quickly deployed for use.

● 2 multi-function fire hoses (DC/spray adjustable)

● 1 foam gun, used with foam proportion mixing system

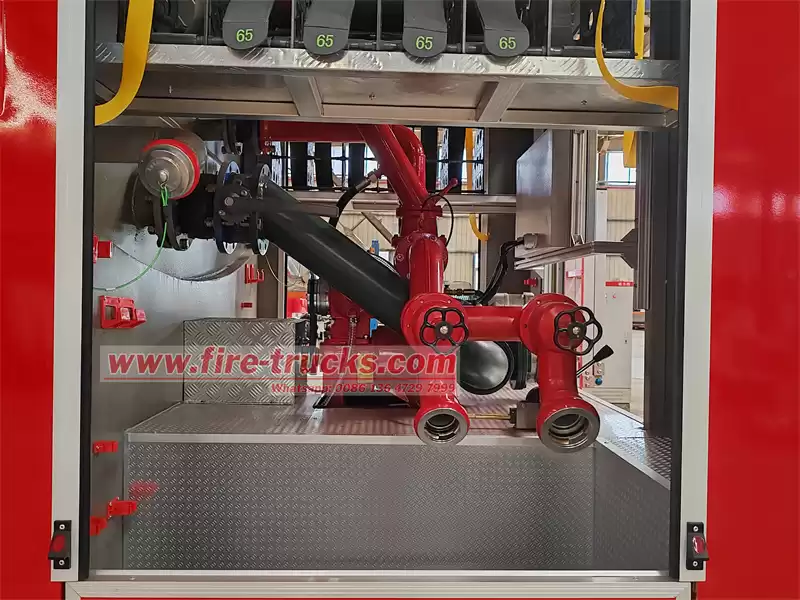

3. Pump room fire fighting equipment

● Equipped with standard 65mm/80mm caliber fire hose

● Matching water collector (can realize water absorption from multiple water sources at the same time), water filter (can filter impurities with a diameter greater than 3mm), water distributor (support multiple water guns to operate simultaneously), etc.

4. Equipment room equipment

● Equipped with fire axe, pickaxe, shovel, hammer, wrench, shears, fire suits and other fire fighting auxiliary equipment

★ Intelligent control system

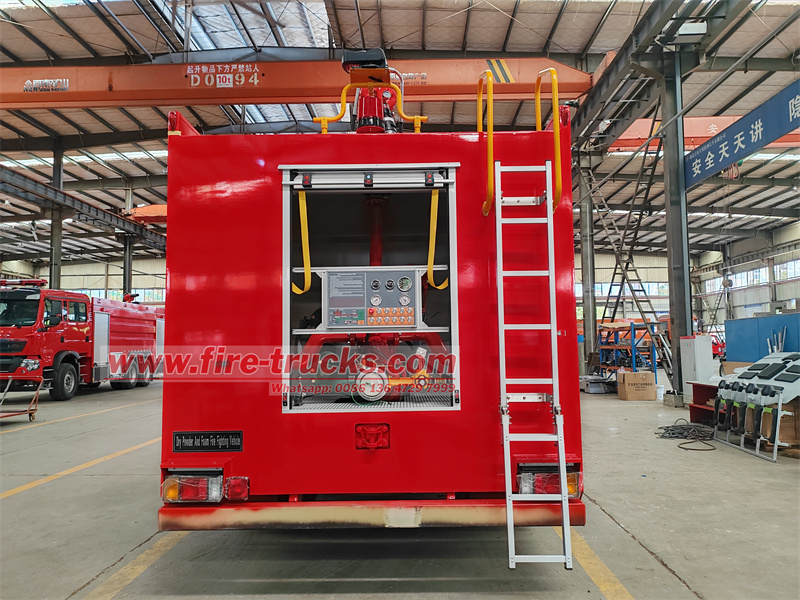

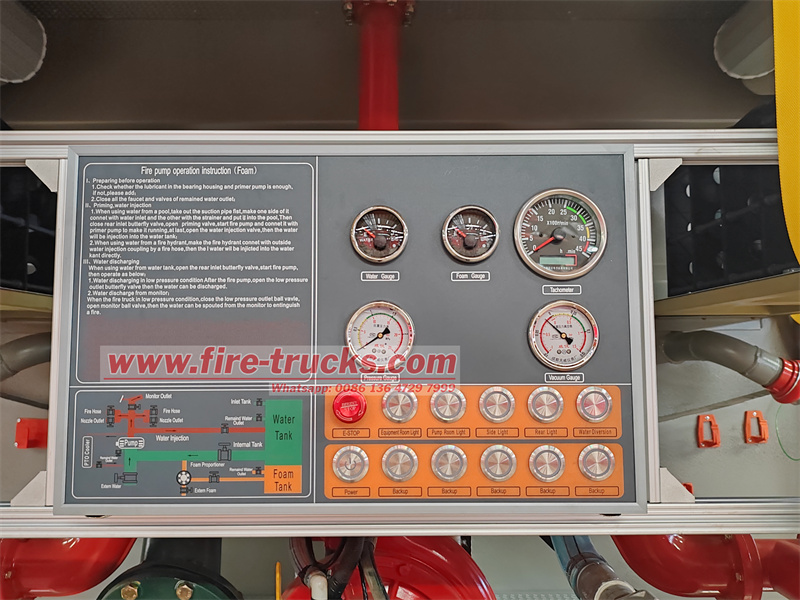

1. Pump room control panel

Equipped with water level meter, foam level meter, vacuum meter, pressure meter, tachometer, as well as emergency brake button, equipment room light, pump room light side light, tail light and other control buttons, fire pump operation instructions, and water tank and foam tank structure pipeline diagram, so that firefighters can monitor the working conditions in real time and operate related buttons.

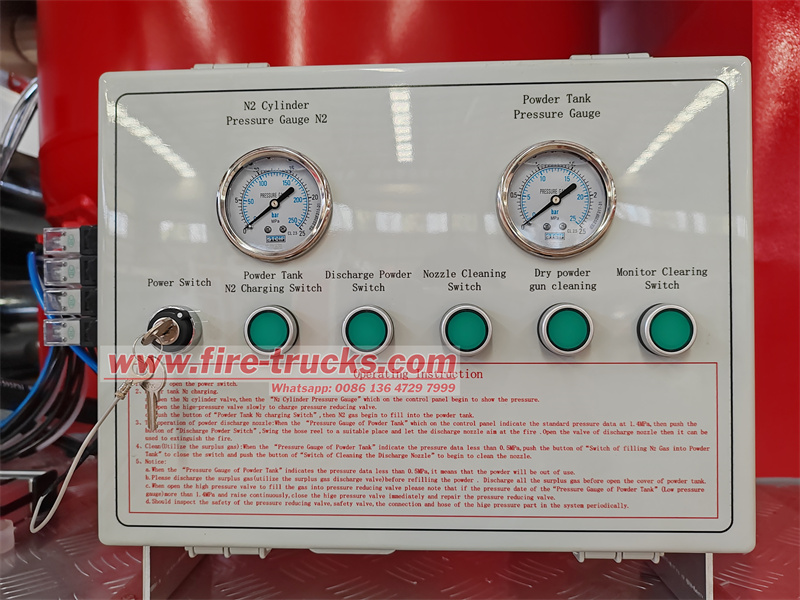

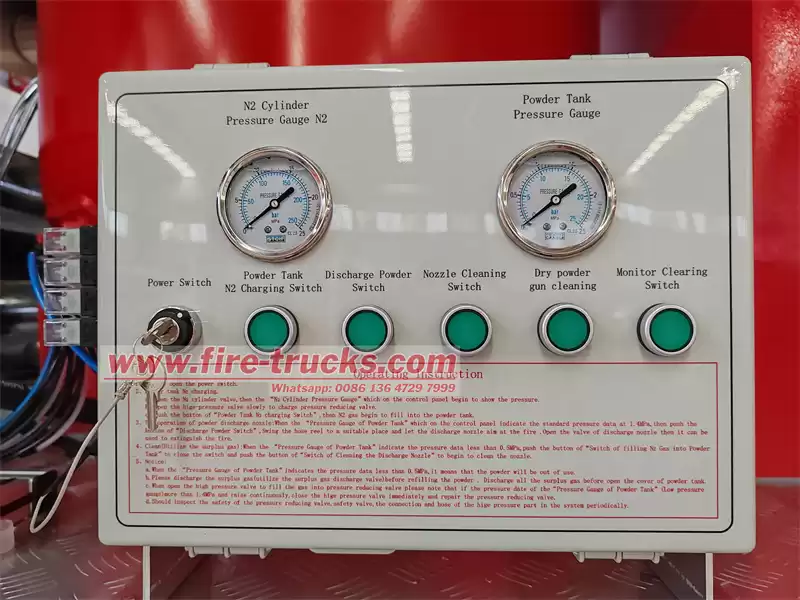

2. Dry powder tank room control panel

It is equipped with buttons such as Powder Tank Pressure Gauge, N2 Cylinder Pressure Gauge, Power Switch, Powder Tank N2 Charging Switch, Discharge Powder Switch, Nozzle Cleaning Switch, Dry powder gun cleaning, Monitor Clearing Switch, and Operating Instruction for real-time monitoring and operation.
