ISUZU GIGA water foam fire engine dry powder Fire Fighting Truck

New Model 2019 Japanese ISUZU GIGA Left Hand Dive 15000Liters Water Foam 2T Dry Powder Tanker





Brand new Customer made ISUZU GIGA Water/foam/dry powder Fire Engine Trucks

Brand new Customer made ISUZU GIGA Water/foam/dry powder Fire Engine Trucks



Description:

GIGA ISUZU Foam water dry powder fire engine (also called as ISUZU GIGA Dry powder fire extinguisher, GIGA foam fire pumper, Isuzu combined dry powder foam fire truck, Dry powder rescue fire trucks ISUZU Giga brand ) This Isuzu Fire fighting trucks are designed with stand the prevailing humen conditutions, much as ambient temperature, maximum relative humidity, the sand, the dust and the influence of high salinity condtions.


Fire fighting trucks types: Water fire truck, Foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.


Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other dapartments.

Features:

Key Features of road sweeper truck ISUZU     ISUZU GIGA heavy duty Chassis, Durable & Performance.

Key Features of road sweeper truck ISUZU    High performance fire pump and fire cannon

Key Features of road sweeper truck ISUZU     Tanker material: Carbon steel or Stainless steel

Key Features of road sweeper truck ISUZU     A complete set of fire fighting Accessories & Equipments, your can put work immediately.

Key Features of road sweeper truck ISUZU     FREE training in our factory if customers need.






Specifications

Manufacturer

POWERSTAR TRUCKS INDUSTRY CO., LIMITED

Product Name

Dry powder water foam Fire Truck ISUZU

 (10,000 L water+2,000L foam+2,000L dry powder)

Vehicle Brand Series

ISUZU

Vehicle Model

PT5350GXFPM60

Chassis parameters

Overall dimensions

mm

13500*2500*3460

Gross weight

kg

35000

Curb weight

12630

Wheel base

mm

1850+4575+1370

Driving type

8X4

Number of axles

4

Tire specification

12.00-20

Number of Tires

10+1

Passengers in cab

2+4

Engine

Engine model

6UZ1-TCG50

Type of fuel

Diesel

Power/Displacement

ml

380HP /9839

Max speed

Km/h

110

Emission standard(TAS)

EURO 5

Fire performance

 Tank capacity

Water tank capacity: 10000 L

Foam tank capacity: 2000 L

Dry powder tank capacity:2,000L

Fire pump

Model: CB10/60

Pressure (Mpa): 1.0

Rate (L/S): 60

Fire monitor

Model:Ps60

Flow:60L/S

Water jet distance:≥65m

Foam jet distance: ≥60m

Electronic alarm

LY CJB-100-C24

Alarm lamp

LY TBD-XF-168LED



Detail Images

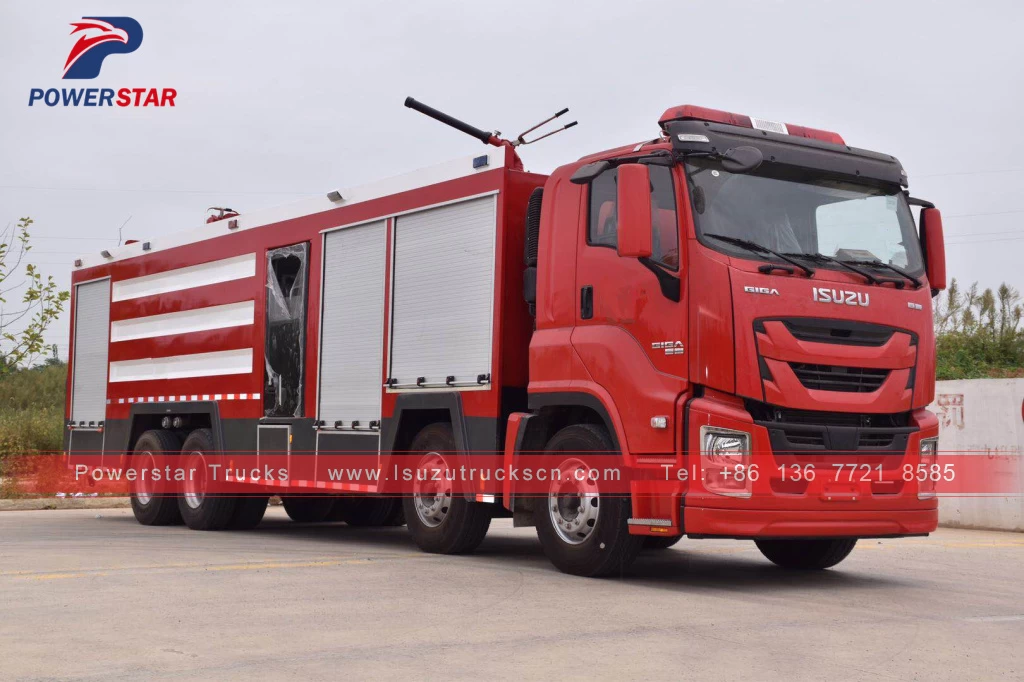

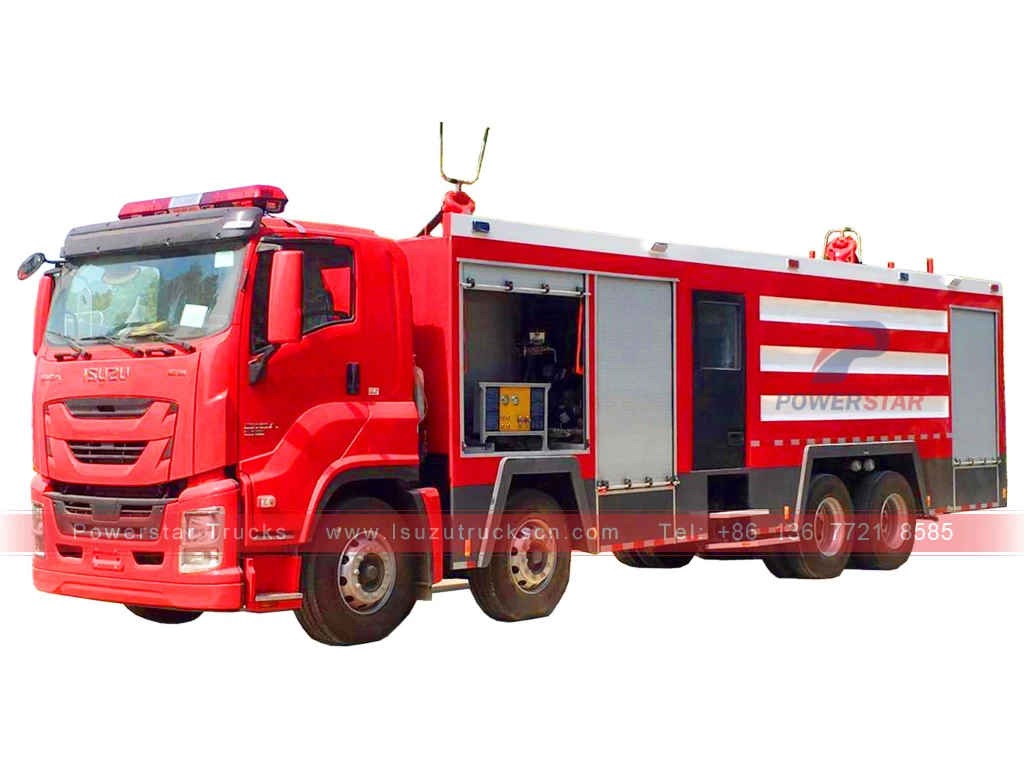

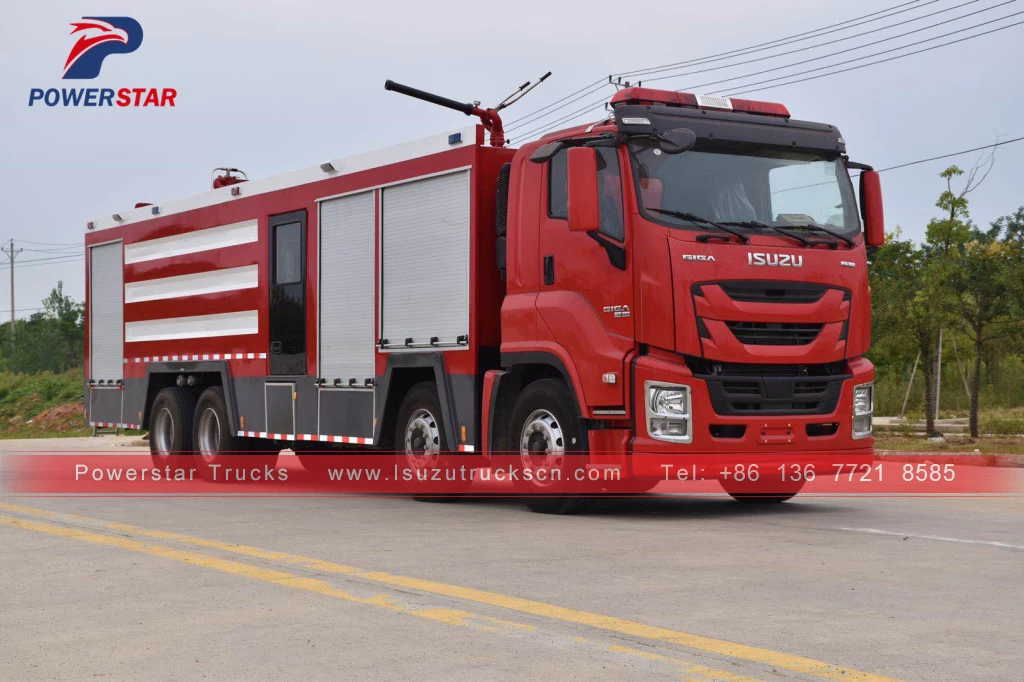

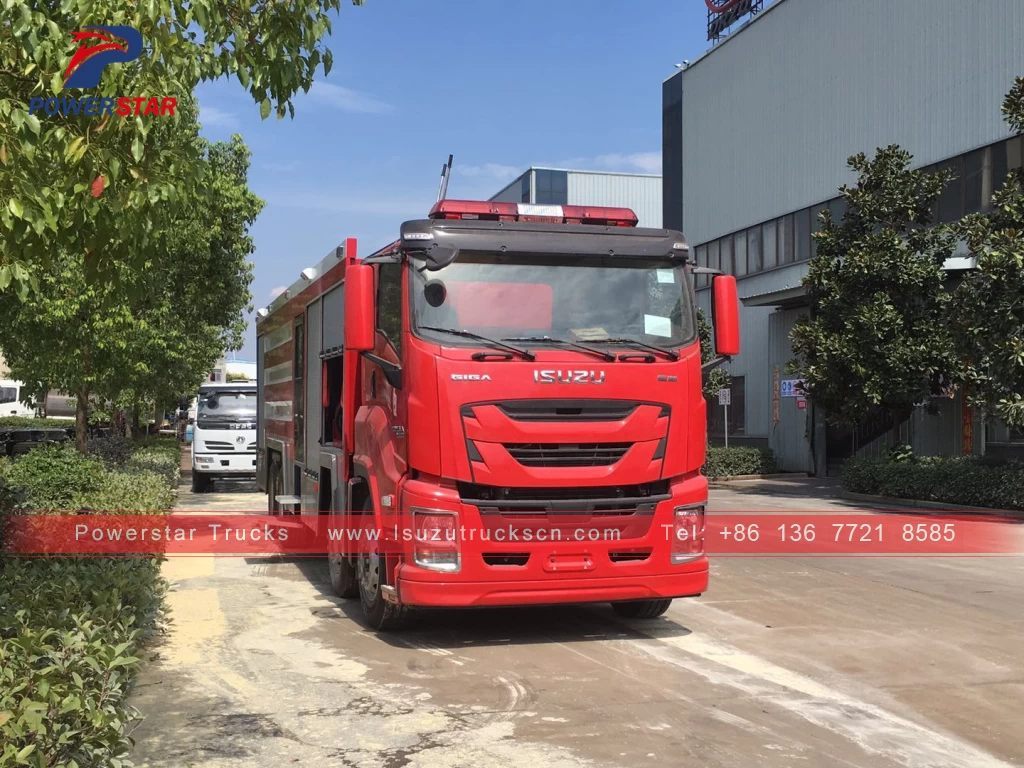

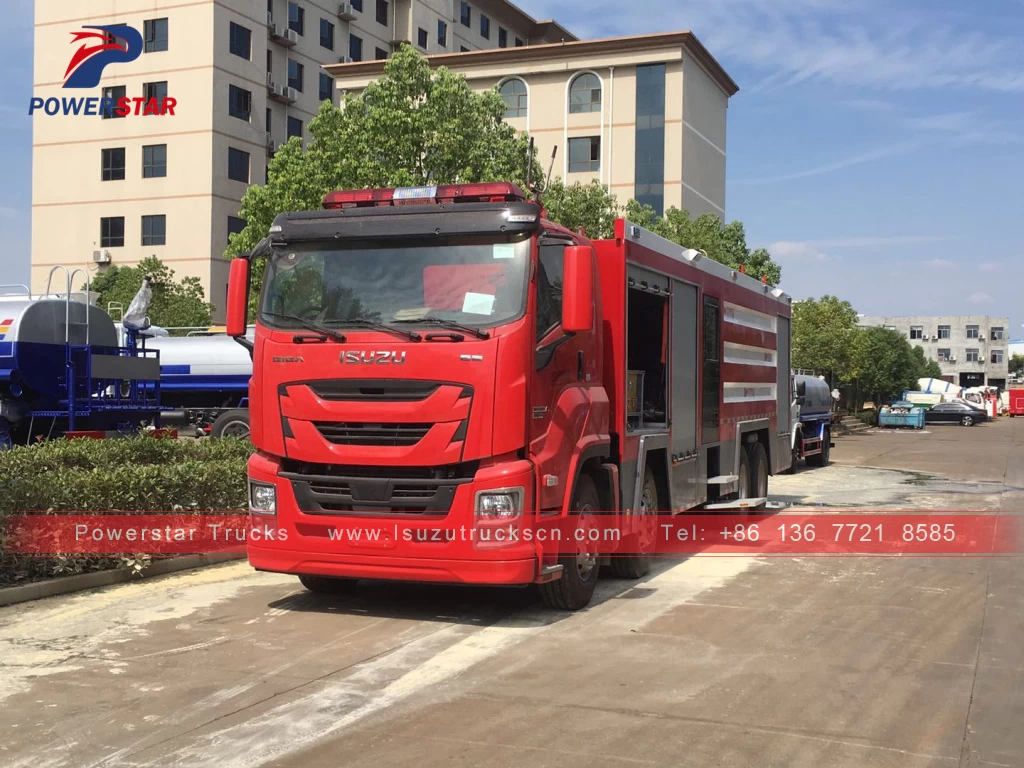

 Brand new Customer made ISUZU GIGA Water/foam/dry powder Fire Engine Trucks for sale    Brand new Customer made ISUZU GIGA Water/foam/dry powder Fire Engine Trucks for sale

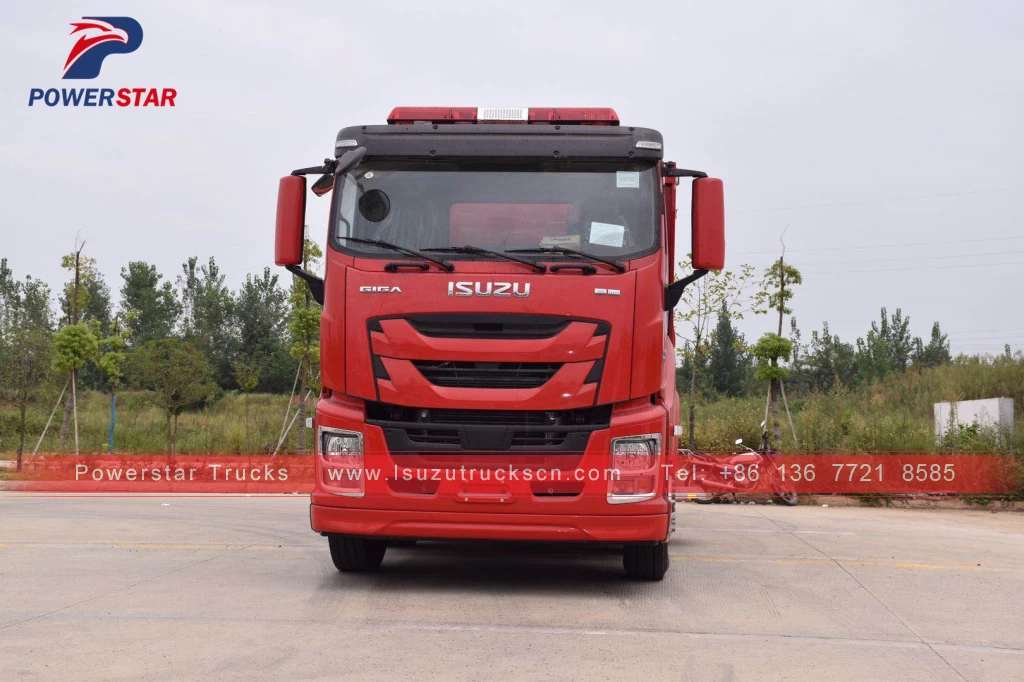

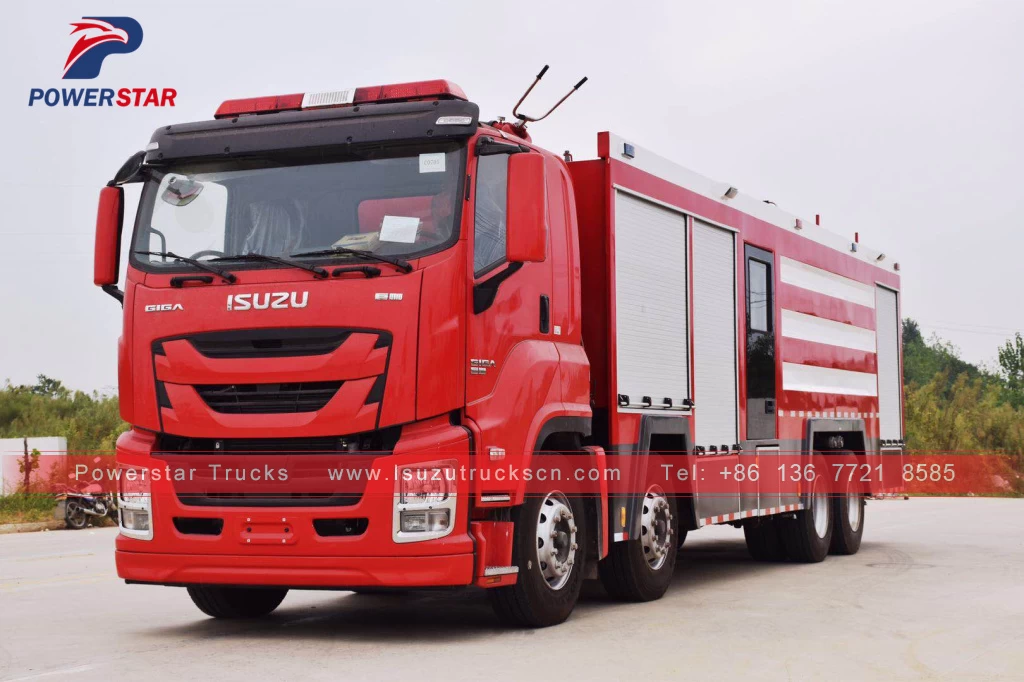

 Brand new Customer made ISUZU GIGA Water/foam/dry powder Fire Engine Trucks for sale    Brand new Customer made ISUZU GIGA Water/foam/dry powder Fire Engine Trucks for sale

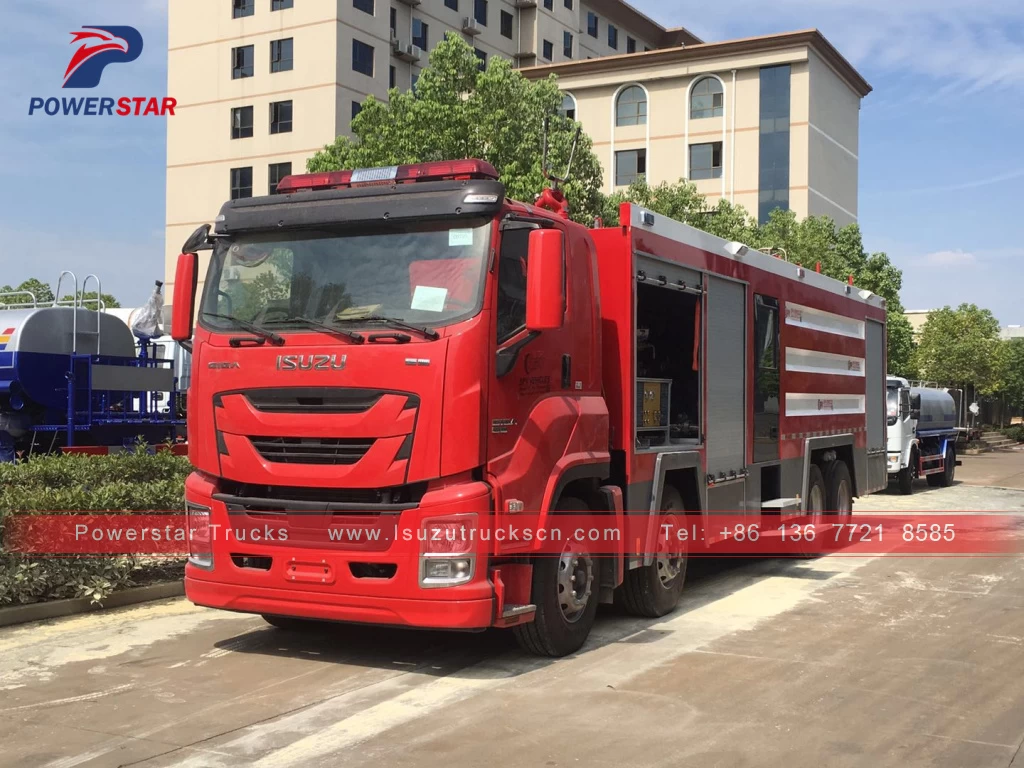

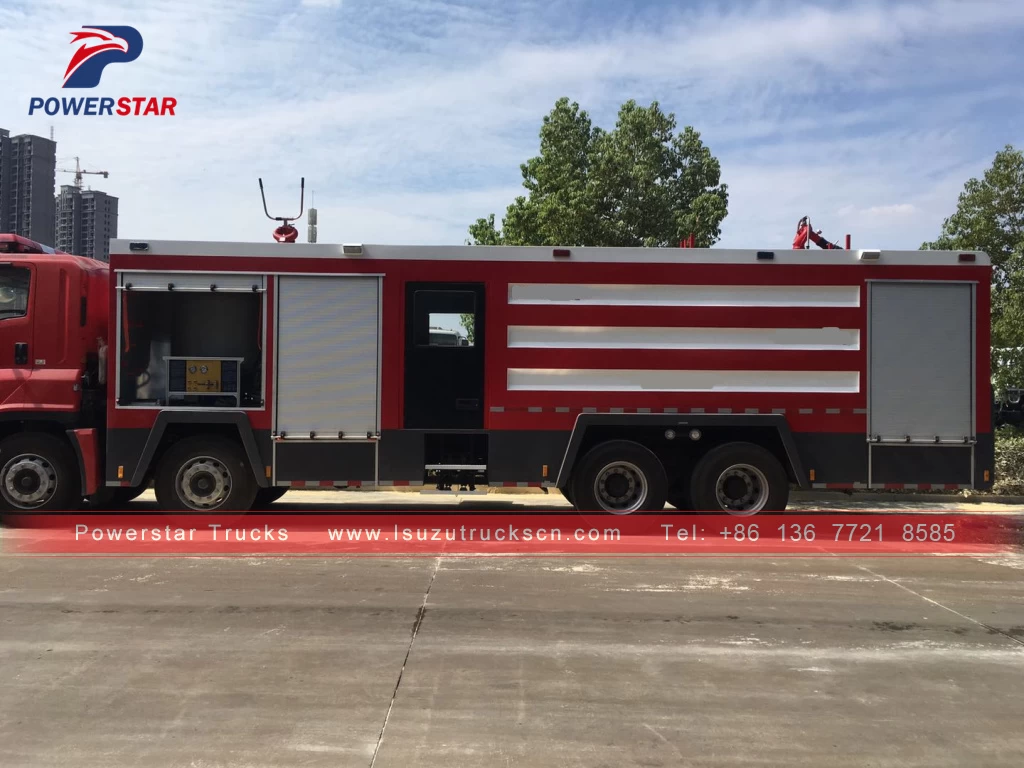

 Japan ISUZU GIGA Firefighting Water FoamDry Powder Monitor Fire Truck for sale    Japan ISUZU GIGA Firefighting Water FoamDry Powder Monitor Fire Truck for sale

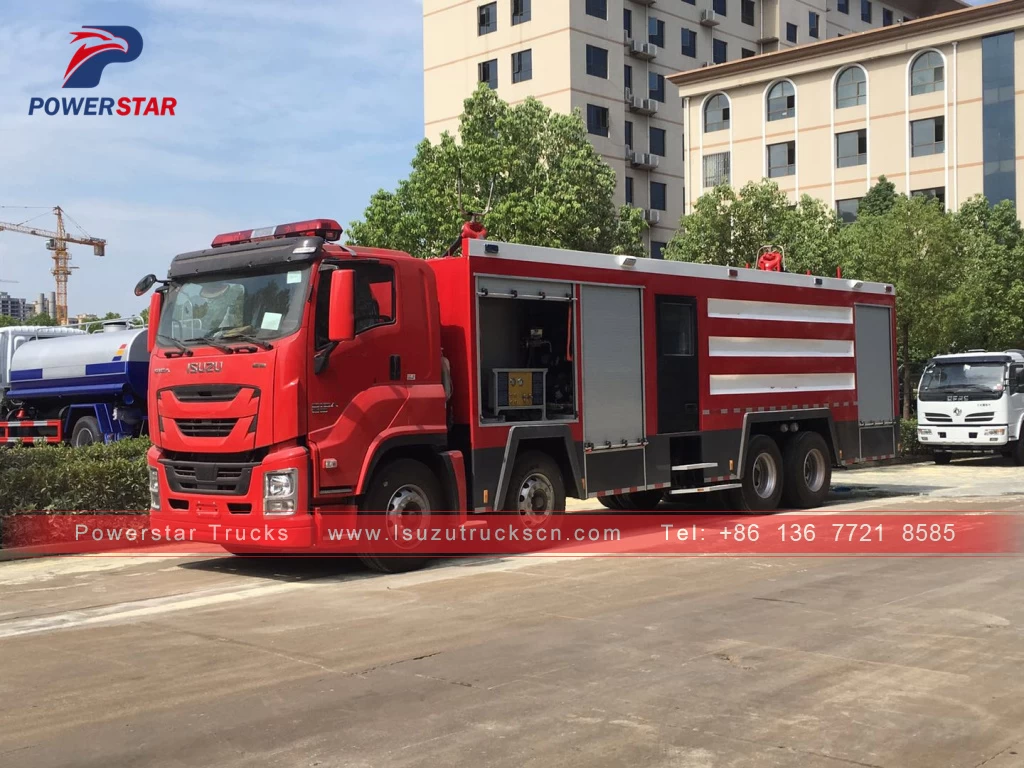

Japan ISUZU GIGA Firefighting Water FoamDry Powder Monitor Fire Truck for sale

Japan ISUZU GIGA Firefighting Water FoamDry Powder Monitor Fire Truck for sale

Japan ISUZU GIGA Firefighting Water FoamDry Powder Monitor Fire Truck for sale

Japan ISUZU GIGA Firefighting Water FoamDry Powder Monitor Fire Truck for sale



2,000L water tanker fire truck Isuzu production workshop

Fire Equipments:

2,000L water tanker fire truck Isuzu fire vehicle equipments



 2,000L water tanker fire truck Isuzu fire accessories and equipments    2,000L water tanker fire truck Isuzu fire accessories and equipments

 2,000L water tanker fire truck Isuzu fire accessories and equipments    2,000L water tanker fire truck Isuzu fire accessories and equipments

Performance Testing:

 Water Fire Truck Isuzu (2,000L) performance testing    Water Fire Truck Isuzu (2,000L) performance testing
 Fire fighting truck performance test    Fire fighting truck performance test
 Water Fire Truck Isuzu (2,000L) performance testing    Water Fire Truck Isuzu (2,000L) performance testing


Water Fire Truck Isuzu (2,000L) performance testing


Water Fire Truck Isuzu (2,000L) performance testing


Water Fire Truck Isuzu (2,000L) performance testing
