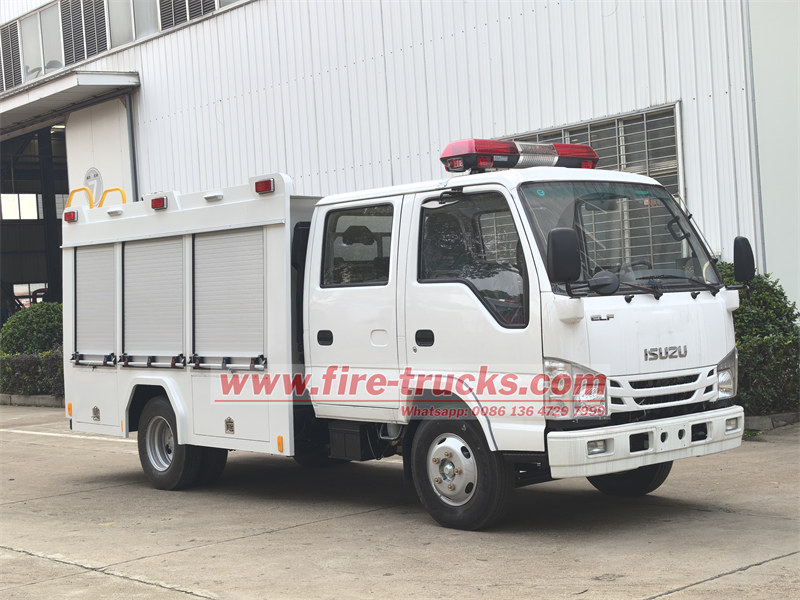

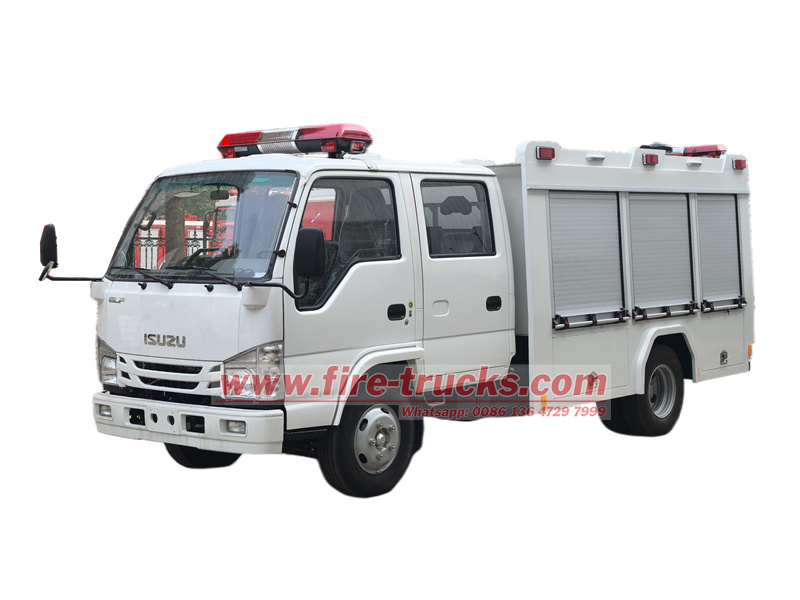

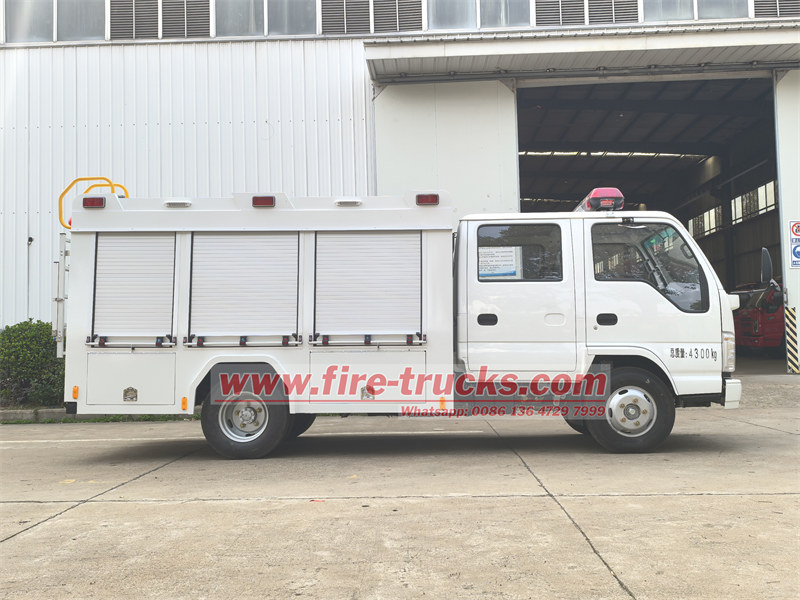

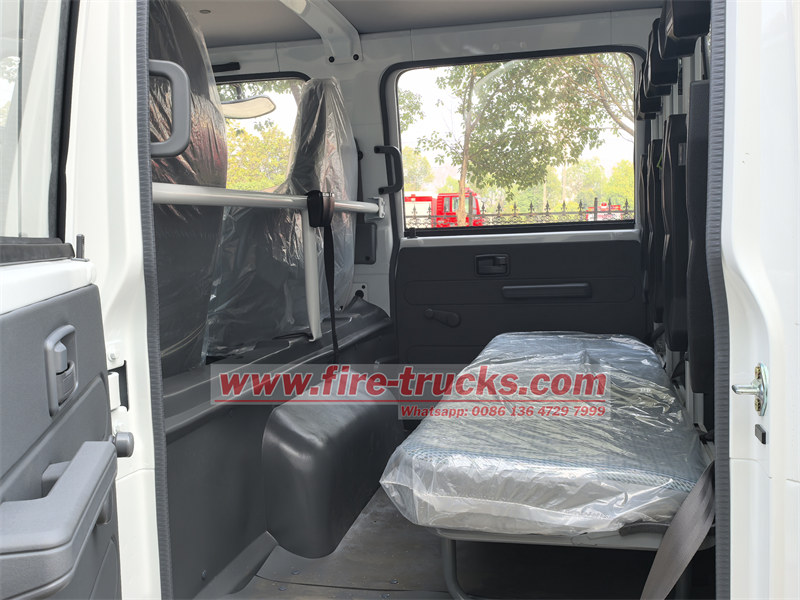

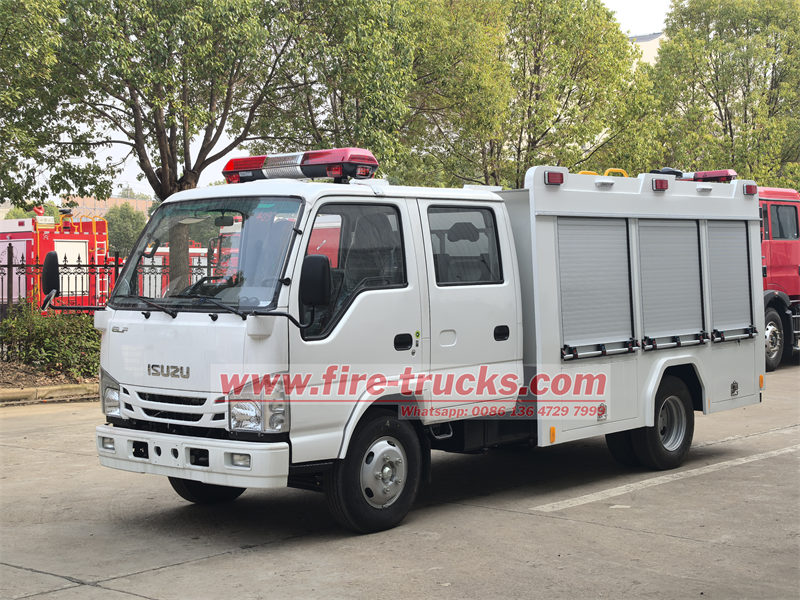

The ISUZU NKR Light Rescue Fire Truck, modified from the QL1040BUH cargo chassis, is a professional emergency response vehicle combining mobility, functionality, and reliability. With compact dimensions of 5,995 × 1,990 × 2,650 mm, its design ensures urban maneuverability and operational flexibility. The GVW is 4,300 kg, and it is powered by a 4KH1CN6LB diesel engine delivering 88 kW and 2,999 ml displacement, achieving a top speed of 100 km/h. The double-row cab seats five rescue personnel (2+3 layout), while the 3,360 mm wheelbase and 3/3+2 leaf spring suspension enhance driving stability, making it ideal for rapid response to emergencies.

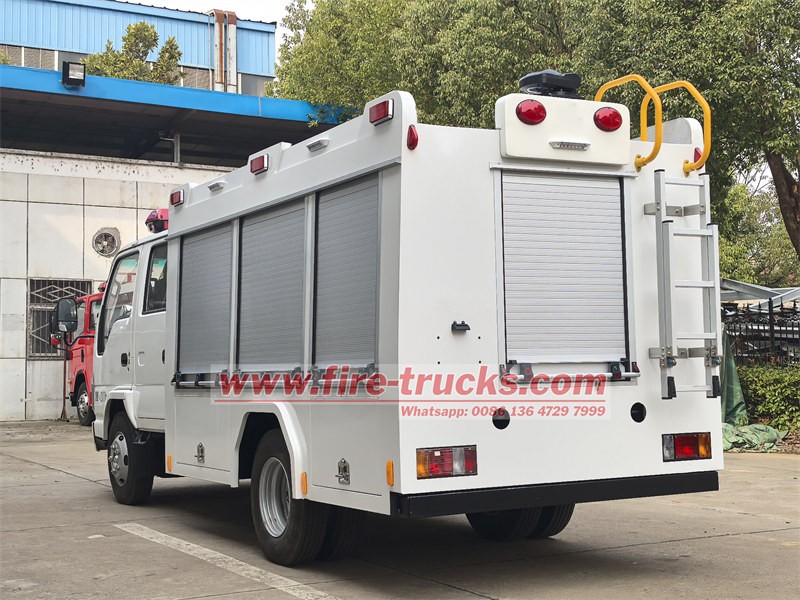

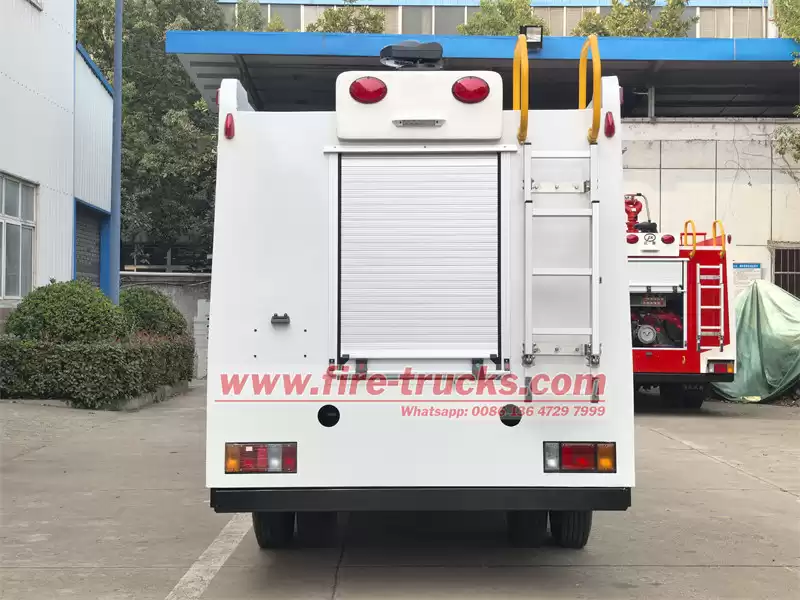

The core advantage of this ISUZU light rescue fire vehicle lies in its modular superstructure. The body features a high-strength integrated welded frame divided into three zones: the cab, crew compartment, and multifunctional equipment storage. The storage compartment is equipped with roll-up anti-theft doors and an optimized layout for categorized storage of demolition tools, detection instruments, personal protective gear, and life-saving equipment. The roof integrates a 100W alarm siren and a light bar with strobes, while red-and-blue warning lights and four spotlights are mounted on both sides. Combined with reflective markings, these features significantly improve visibility at night. Notably, the vehicle comes standard with ABS and an air conditioning system, ensuring braking safety on challenging roads and enhancing crew comfort.
Thanks to its versatility, the ISUZU Emergency Fire Truck has become the preferred choice for fire departments, road authorities, and industrial enterprises. With a 24° approach angle and 16° departure angle, it handles diverse terrains, enabling rapid deployment to traffic accidents, hazardous material leaks, or natural disaster sites. Optional equipment includes lifting lighting systems, decontamination devices, and communication tools, meeting diverse needs such as rescue operations, environmental monitoring, and evacuation management. The 7.00R16LT 8PR high-load tires and front/rear axle load distribution of 1,700/2,600 kg ensure stability under heavy loads, making it particularly suitable for prolonged missions involving hydraulic spreaders, toxic gas detectors, and other heavy-duty equipment.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading Isuzu firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
Vehicle Parameters
|
|
Model
|
ISUZU5040TXFQC
|
|
Overall Dimensions(L×W×H)
|
5995×1990×2650（mm）
|
|
Passenger Capacity
|
2+3
|
|
Weight Parameters
|
GVW：4300kg ; Curb weight: 3925 kg
|
|
Approach/Departure Angle:
|
24°/16°
|
|
Max Driving Speed
|
100km/h
|
|
Front/Rear Overhang
|
1015/1620(mm)
|
|
Chassis Parameters
|
|
Chassis Model
|
QL1040BUH
|
|
Engine Model
|
4KH1CN6LB
|
|
Engine Power/Displacement
|
88kw/2999ml
|
|
Number of Axles/Wheelbase
|
2 axles / 3360mm
|
|
Axle Load (Front/Rear)
|
1700/2600 kg
|
|
Leaf Spring Configuration
|
3/3+2
|
|
Number of Tires
|
6个
|
|
Tire Specification
|
7.00R16LT 8PR
|
|
Front Track
|
1377 mm
|
|
Rear Track
|
1425 mm
|
|
Special Equipment
|
|
Upper-body Configuration
|
- The vehicle consists of a cab, crew compartment, and equipment compartments.

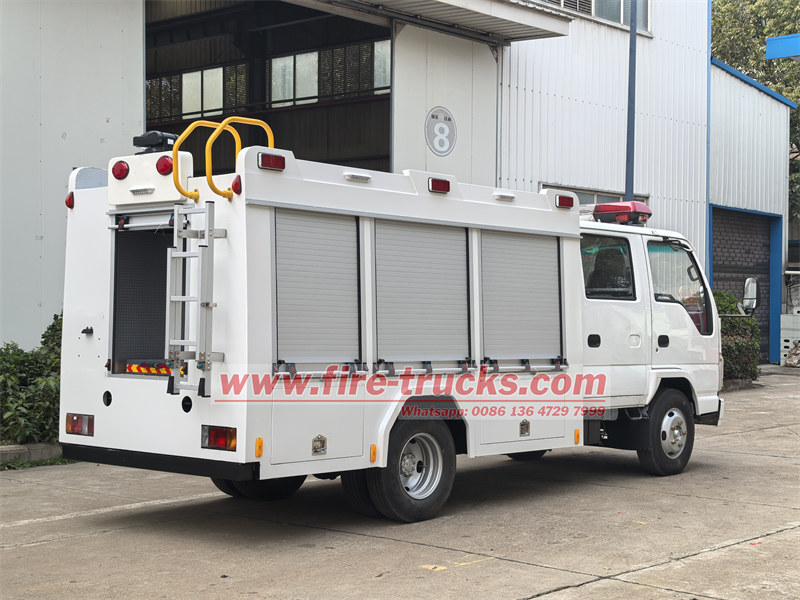

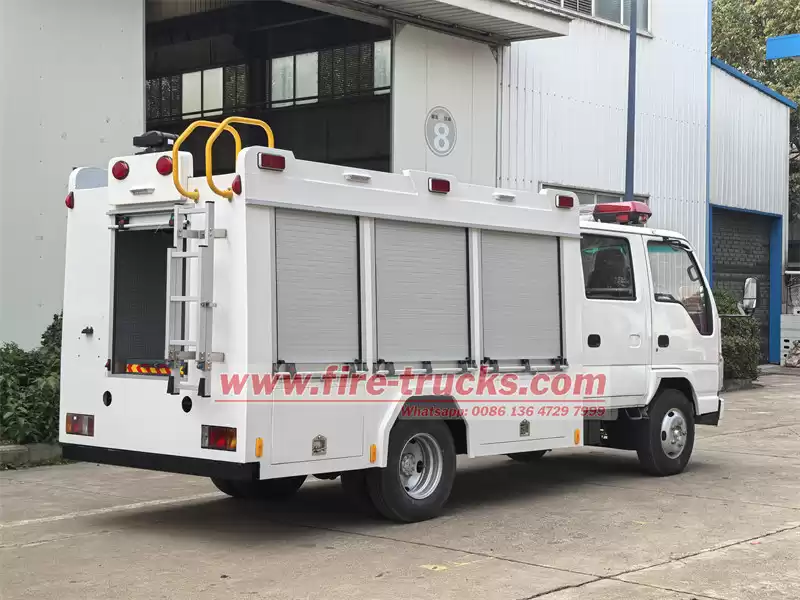

- Equipment compartments feature roll-up locking doors and are constructed with an integrated welded frame for strength and rigidity.
- Interior lighting is installed.

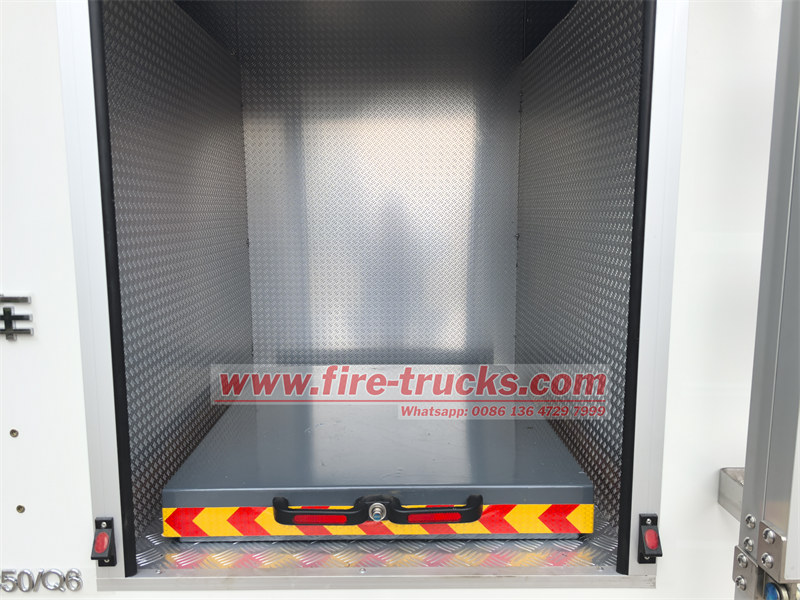

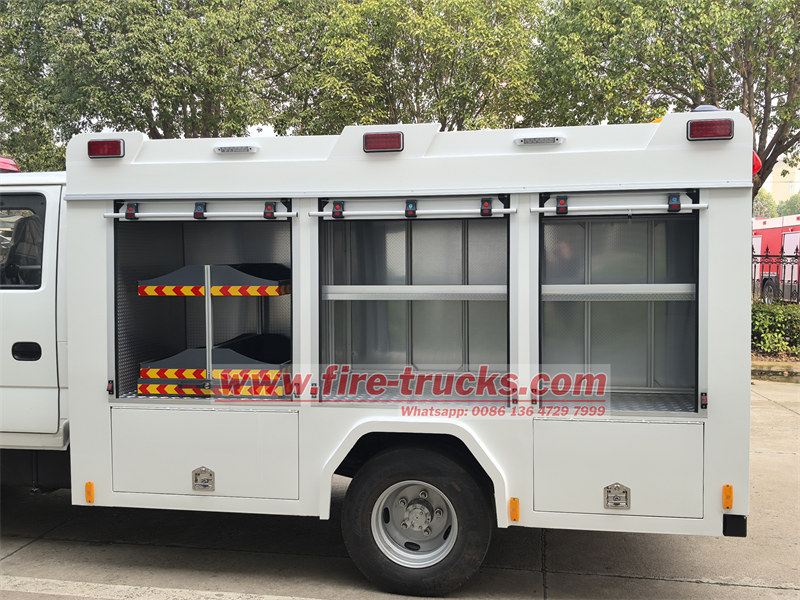

- The compartments can store personal protective equipment, lighting devices, rescue and demolition tools, leak-sealing tools, detection equipment, and specialized cases for precision instruments.
|
- The cab roof is equipped with a long-row high-intensity strobe light and a 100W siren.
- Two red and one blue strobe lights are installed on each side of the body, controlled from the cab.
- Four floodlights are mounted on both sides of the roof.
- Safety marker lights are installed on the lower sides of the vehicle.
- Reflective markings are applied to the body and rear according to standards.
|
|
Remarks
|
Equipped with air conditioning and ABS.
|
