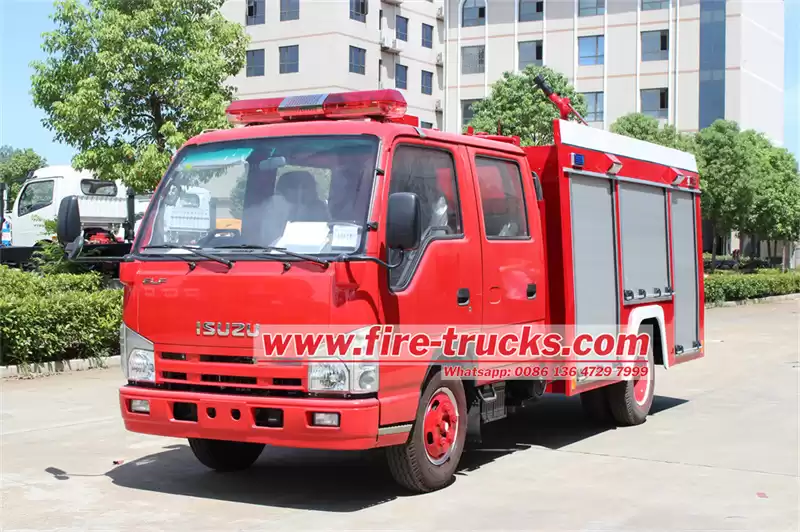

Isuzu NKR mini pumper fire truck

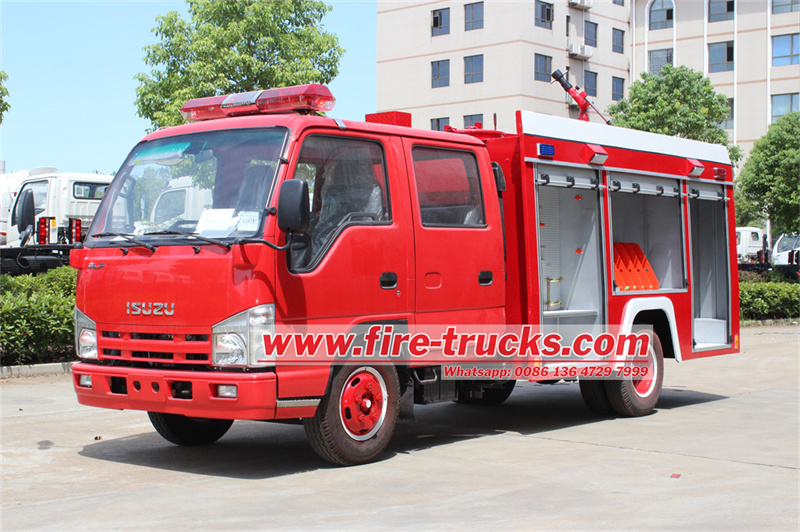

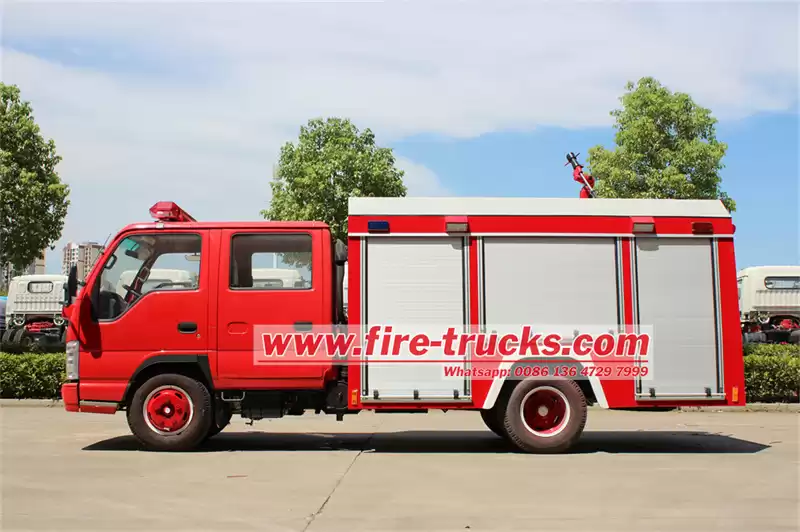

This is Isuzu NKR mini fire fighting truck built on the basis of ISUZU NKR Chassis. It is equipped with a powerful ISUZU 4KH1CN6LB engine with a displacement of 2.99L and an output power of 120 horsepower. The maximum speed can reach 95km/h. It is compact and flexible, and easy to operate to adapt to various complex road conditions.In terms of the fire fighting system, the vehicle is equipped with a 2600-liters carbon steel water tank. The fire pump is driven by PTO, with a pressure range of 1.6-2.5 MPa and a flow rate of 36L/s. The fire cannon has a spray speed of 32L/s and a range of 45-55 meters, which can effectively deal with various fire situations. The Isuzu NKR fire truck is also equipped with a full set of standard firefighting and rescue equipment

  • Fire MonitorPS32, 32L /S
  • Fire PumpCB10/30, 1600L/min
  • Engine Model4KH1CN6LB
  • Engine Power120HP
  • Axle drive4x2
  • Wheelbase3360mm
  • Truck ModelPST50401SXF
  • Tanker StructureHigh quality stainless steel
  • Work capacity 2600L Water
  • RemarkStainless steel tank body, light-duty
Facebook Twitter Pinterest LinkedIn 分享

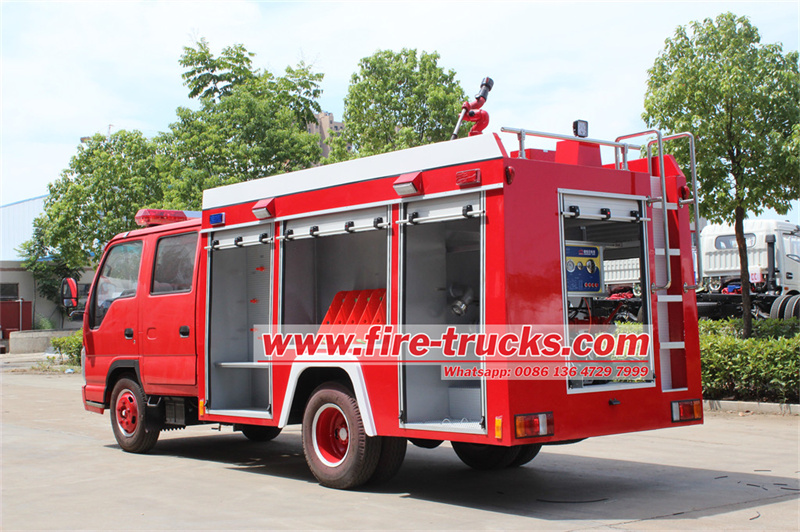

This is Isuzu NKR mini fire fighting truck built on the basis of ISUZU NKR Chassis. It is equipped with a powerful ISUZU 4KH1CN6LB engine with a displacement of 2.99L and an output power of 120 horsepower. It adopts a 4X2 drive mode and is equipped with an MSB 5 speed gearbox. The maximum speed can reach 95km/h. It is compact and flexible, and easy to operate to adapt to various complex road conditions.

In terms of the fire fighting system, the vehicle is equipped with a 2600-liters carbon steel water tank. The fire pump is driven by PTO, with a pressure range of 1.6-2.5 MPa and a flow rate of 36L/s. The fire cannon has a spray speed of 32L/s and a range of 45-55 meters, which can effectively deal with various fire situations. The Isuzu NKR fire truck is also equipped with a full set of standard firefighting and rescue equipment, such as shovels, crowbars, axes and cutting equipment, etc., and ladders and floodlights are optional.

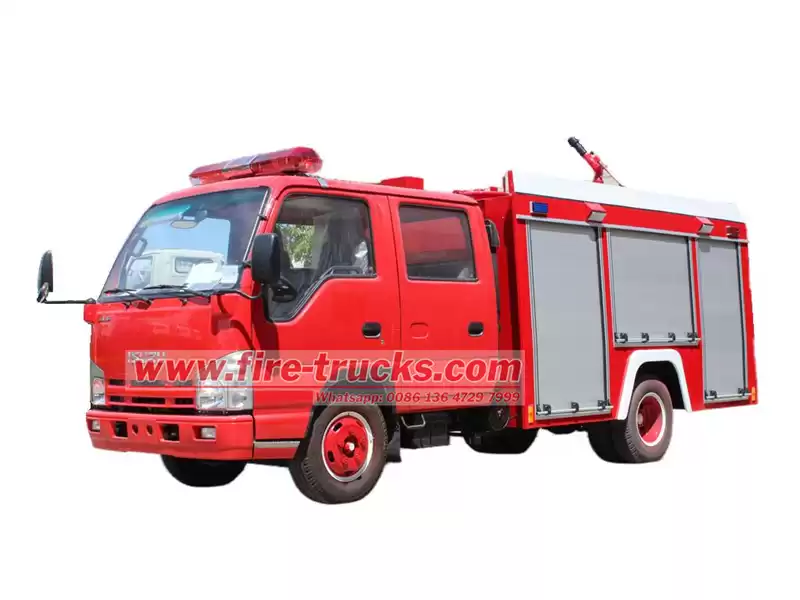

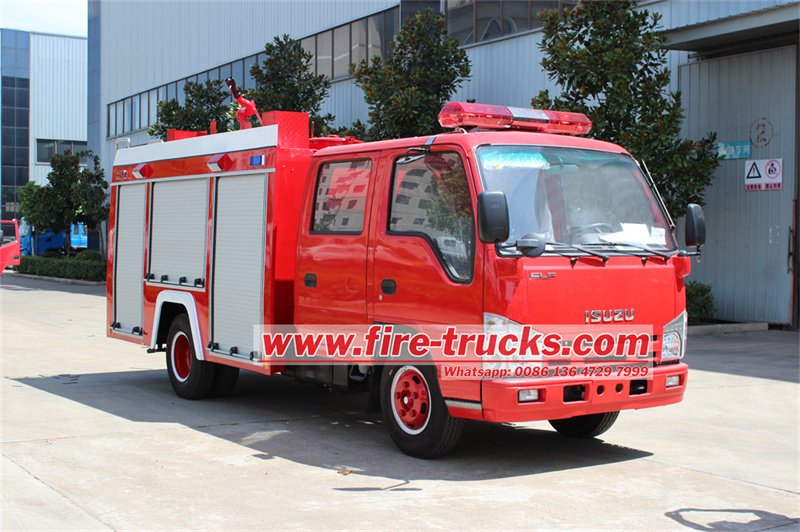

ISUZU NKR mini fire fighting truck

● China best fire fighting truck factory

● More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery. any order is welcome

● 24 month quality guarantee term



Specification:



ISUZU NKR mini fire fighting truck



ISUZU NKR mini fire fighting truck

General

Vehicle Brand

Powerstar

Chassis Brand

ISUZU

Overall Dimension

6300*2280*2750mm

GWW/ Kerb Weight

7,600kg/4,220kg

Painting

Red color

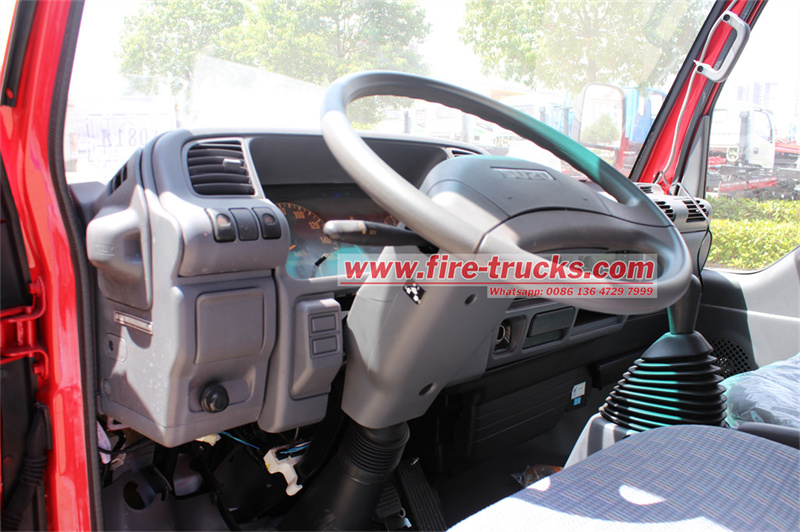

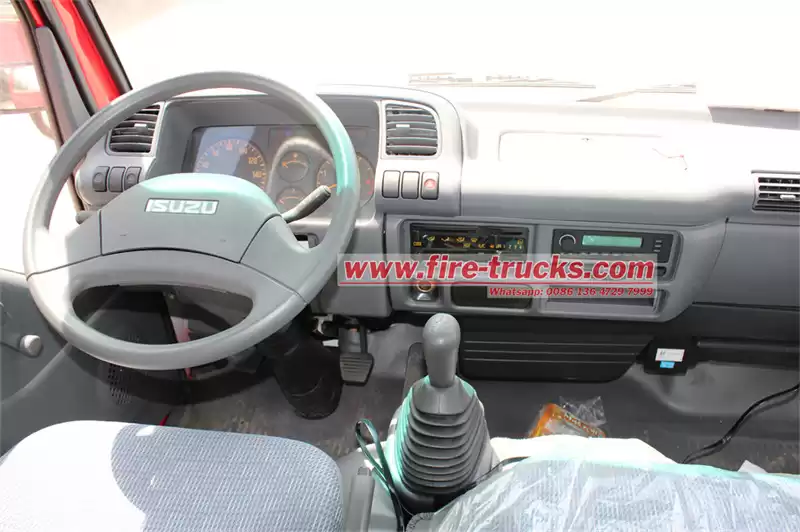

Cab

Cab Capacity

2+4 persons allowed

Air Conditioner

 air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU engine ,4KH1CN6LB

Engine type

Inline 4-cylinder, turbocharged, inter-cooled diesel engine

Power

120 HP

Displacement

2.99L

Emission Standard

Euro 6

Chassis

Drive Type

4X2,left hand drive

Transmission

MSB 5-speed forward, 1 reverse

Wheelbase/No.of axle

3360 mm/2

Tyre Specification

700 R16

Tyre Number

6 tyres and 1 spare tyre

Max Speed

95 km/h

Fuel tank capacity

70L

PTO

Full power sandwich type

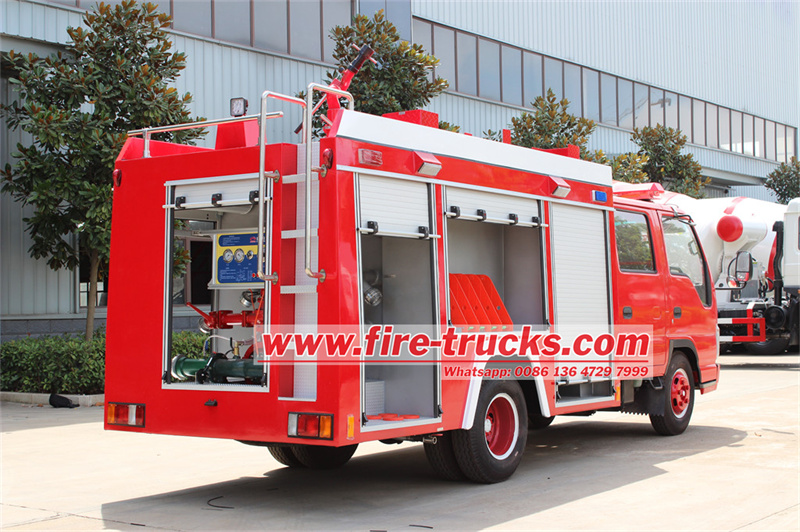

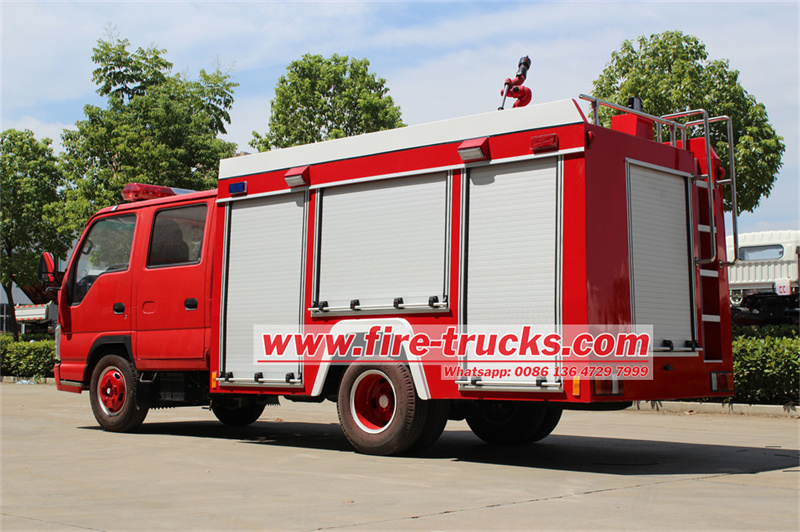

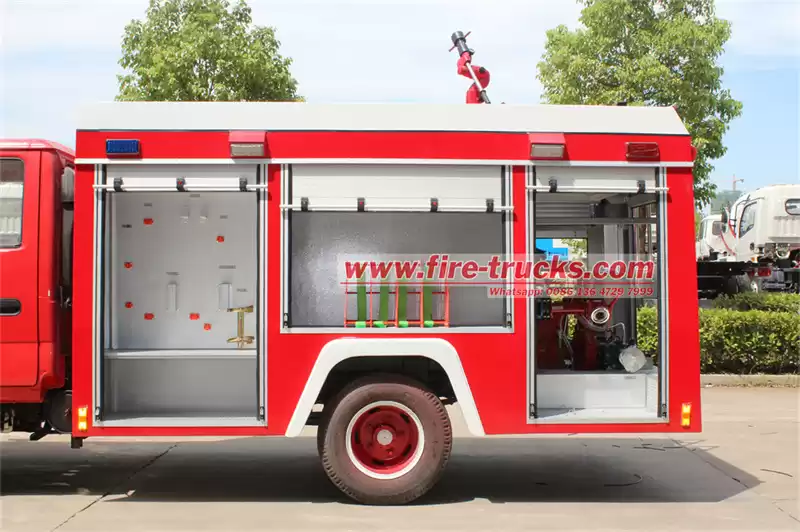

Superstructure

Water Tank Capacity

2,600 Litres

Tank Material

Stainless steel

Standardized Sub-frame

Material

High-strength rectangular tube made of special steel

Structure

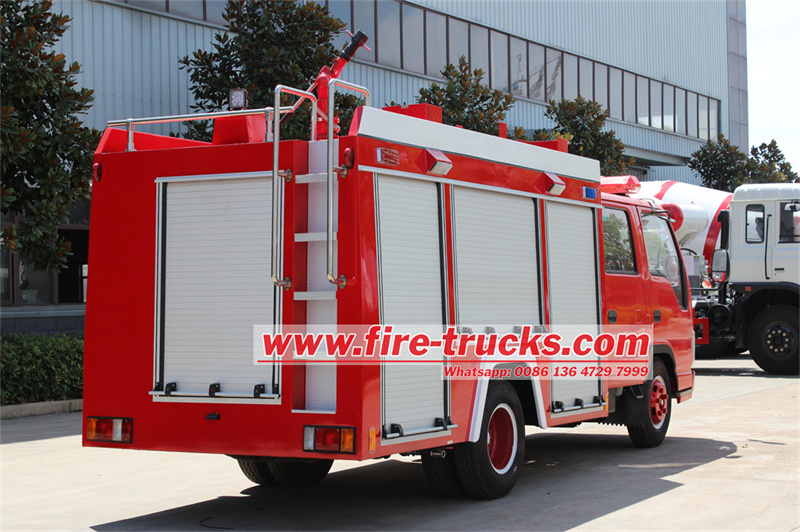

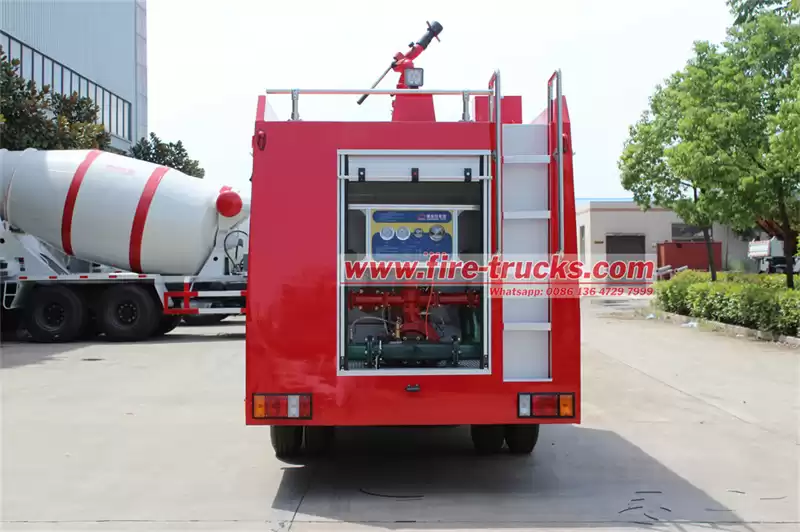

Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear

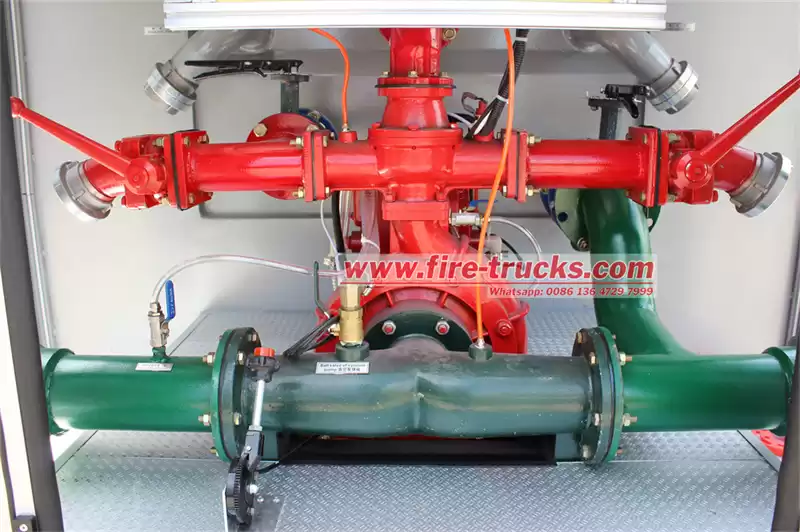

Fire Pump

Brand

China TOP brand

Drive mode

 PTO

Priming Manner

Automatic

Pressure range

1.6-2.5 MPa

Flow rate

32L / s

Suction Height

7m

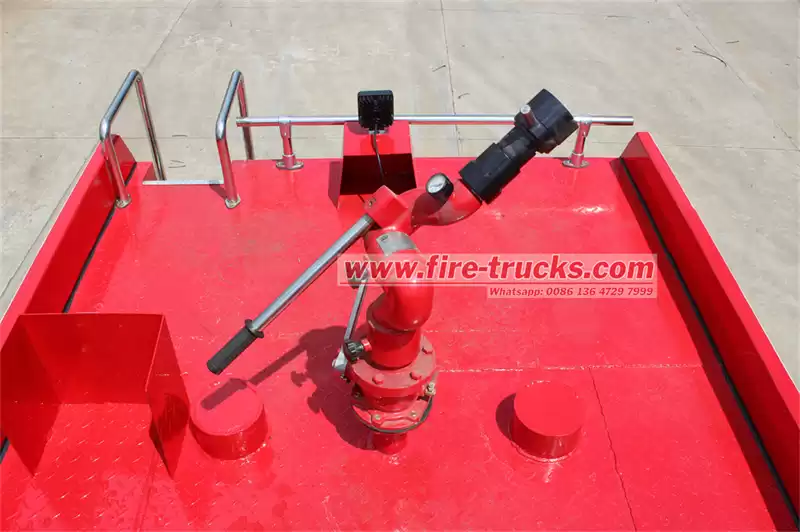

Fire Cannon

Flow speed

32L /s

Range

45-55 m

Superstructure Electric Appliance

Warning Light and Siren

Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.

Strobe Light

Mounted on the both sides of the compartment

External Lighting

LED lights are mounted on the both sides of the compartment

Roof Lighting

LED lights are mounted on the inside of the roof

Side Indicator Light

Inline yellow warning light is mounted on the side of the compartment and pedals

All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...

Optional

** Back alarm and Camera can be equipped

** Standard carbon steel, stainless steel optional

** USA or Germany fire pump can be optional



Advantage:

ISUZU NKR mini fire fighting truck

1. Power and terrain adaptability: reliable mobility in complex

Isuzu NKR mini drive system: Adopting Isuzu non-load-bearing chassis, it can cope with extreme terrains such as mountains, mud, ice and snow. The minimum ground clearance is optimized to 250mm, and the approach angle/departure angle are 30° and 20° respectively, ensuring the vehicle's passability in collapsed buildings or wild fire scenes.

Power chain matching: Equipped with a 4KH1CN6LB turbocharged diesel engine (120PS/290N·m), matched with a 5-speed synchronous meshing gearbox, the low-speed torque distribution efficiency is improved by 15%, and it can still maintain a highway cruising speed of 80km/h under full load (GVW 7.5 tons) conditions to meet the needs of rapid response.

ISUZU NKR mini fire fighting truck

2. Firefighting efficiency: Tactical advantages of high flow and long range

Large-capacity water storage system: The 2600L carbon steel water tank (optional 316L stainless steel) adopts a double-layer explosion-proof structure design with a pressure resistance of 1.2MPa. With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 100 seconds (single water source mode).

Efficient pump system: Standard CB10/30 mid-mounted centrifugal pump (30L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 40L/s), water cannon range of 45m (DC)/38m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.

ISUZU NKR mini fire fighting truck

3. Ergonomics and safety: continuous combat capability under high-intensity tasks

Double-row cab design: Complies with ECE R29 collision standards, the 5-person cabin layout integrates air suspension seats (shock absorption efficiency 60%), equipped with dual-zone automatic air conditioning and positive pressure fresh air system, ensuring that the CO concentration is less than 50ppm under 60 minutes of closed working conditions.

Intelligent control terminal: The 7-inch IP67 explosion-proof touch screen supports multi-language switching (including EN/FR/ES presets), real-time monitoring of pump pressure, liquid level, GPS positioning and fault diagnosis codes, and operation response delay <200ms.

Active safety configuration: Optional 360° surround view image (2 million pixel thermal imaging), AEBS automatic emergency braking and ESC body stability system, the braking distance is shortened by 12% (60km/h-0) compared with similar models.

ISUZU NKR mini fire fighting truck

4. Comprehensive application scenario advantages

Urban firefighting: compact wheelbase (3815mm) supports 7.5m turning radius, suitable for narrow streets.

Industrial fire: foam system is compatible with AFFF/AR-AFFF, which can cope with fires in petrochemical facilities.It is suitable for extinguishing various oil fires and polar solvent fires such as alcohols, ketones, and esters.

Field rescue: mini truck body achieve multi-terrain coverage.
