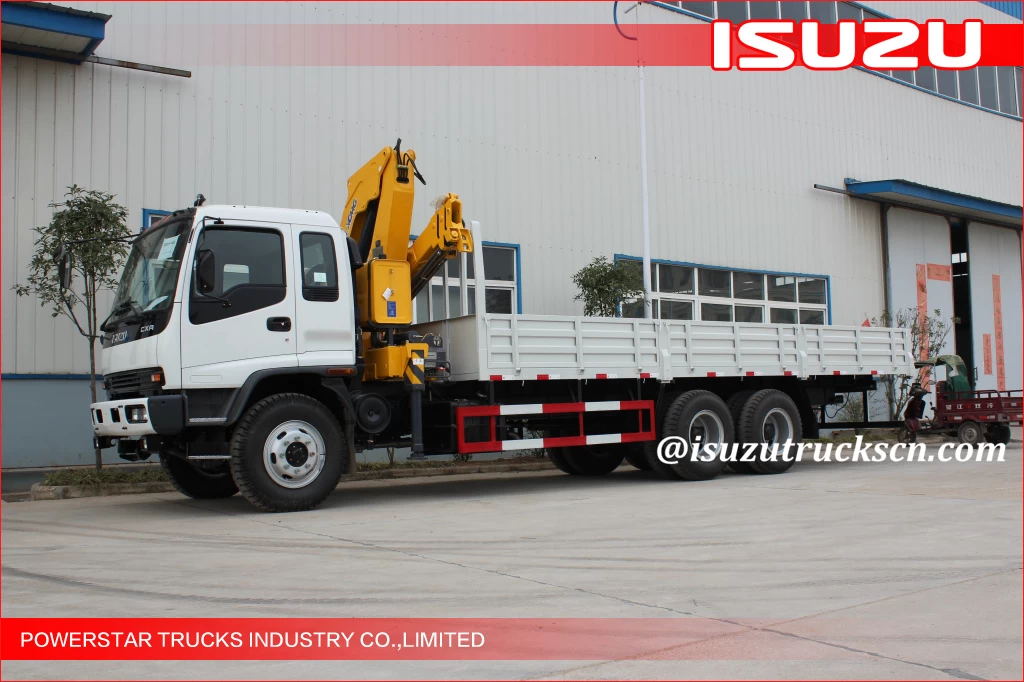

ISUZU SQ10SK3Q Truck Mounted Telescopic Boom Truck Crane For City Construction

ISUZU SQ10SK3Q Truck Mounted Telescopic Boom Truck Crane For City Construction, Telescoping Boom Truck Crane, Knuckle Boom Truck Crane



ISUZU SQ10SK3Q Truck Mounted Telescopic Boom Truck Crane For City Construction

ISUZU SQ10SK3Q Truck Mounted Telescopic Boom Truck Crane For City Construction



ISUZU FVR FVZ Truck Mounted Telescopic Boom Truck Crane For City Construction





  1. Name: ISUZU Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
  2. Max. Lifting Capacity: 10 ton
  3. Max. Lifting Moment: 25 T.M
  4. Max. Oil Flow of Hydraulic System: 100 L/min
  5. Max. Lifting Height:13.5meters
  6. Brand: XCMG
  7. Crane Weight: 3955 kg
  8. Oil Tank Capacity: 160 L
  9. Feature: safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

Telescopic boom cranes can be hydraulic extended and retracted without a knuckle function. These cranes should always be executed with a hoisting winch installation.


Telescopic boom crane SQ10SK3Q-II is lifting capacity is 10tons moment is 25 T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.



Specifications:



Model

SQ10SK3Q-II

Unit

Max Lifting Capacity

10000

kg

Max Lifting Moment

25

T.M

Recommend Power

30

kw

Max Oil Flow of Hydraulic System

100

L/min

Max Pressure of Hydraulic System

26

MPa

Oil Tank Capacity

160

L

Rotation Angle

All Rotation

Crane Weight

3800

kg

Installation Space

1200

mm

Choice of Chassis

ISUZU, HINO700, UD



SQ10SK3Q-II Lifting capability diagram

Working radius (m)

2.5

4.5

7

9

12

Lifting capacity (kg)

10000

5556

3000

2000

1400



Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
