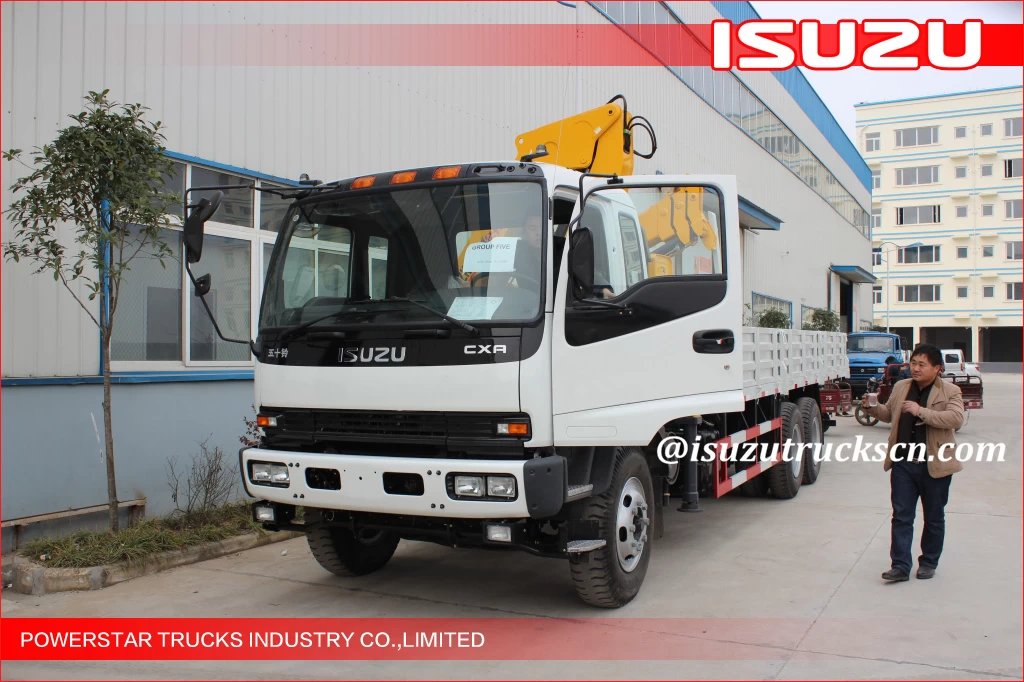

Isuzu truck with Telescopic boom crane SQS200
Reliable ISUZU truck with Telescopic boom crane SQS200 , Telescopic Boom Truck Mounted Crane
Description:
ISUZU Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are longer, with wide operating range.
Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Parameters:
Model
|
SQS200 III
|
Unit
|
Max Lifting Capacity
|
8000
|
kg
|
Max Lifting Moment
|
20
|
T.M
|
Recommend Power
|
30
|
kw
|
Max Oil Flow of Hydraulic System
|
55+55
|
L/min
|
Max Pressure of Hydraulic System
|
25
|
MPa
|
Oil Tank Capacity
|
200
|
L
|
Rotation Angle
|
360°All Rotation
|
Crane Weight
|
3770
|
kg
|
Installation Space
|
1300
|
mm
|
Choice of Chassis
|
ISUZU all series
|
SQS200 III Lifting capability diagram
|
Working radius (m)
|
2.5
|
4.7
|
7.3
|
9.9
|
12.4
|
15.1
|
Lifting capacity (kg)
|
8000
|
4300
|
2400
|
1660
|
1200
|
700
|
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
|
Stabilizer leg
|
Spread
|
|
Fixed
|
2179mm
|
|
Single extension
|
2256-3556mm
|
|
Double extension
|
2212-4752mm
|
