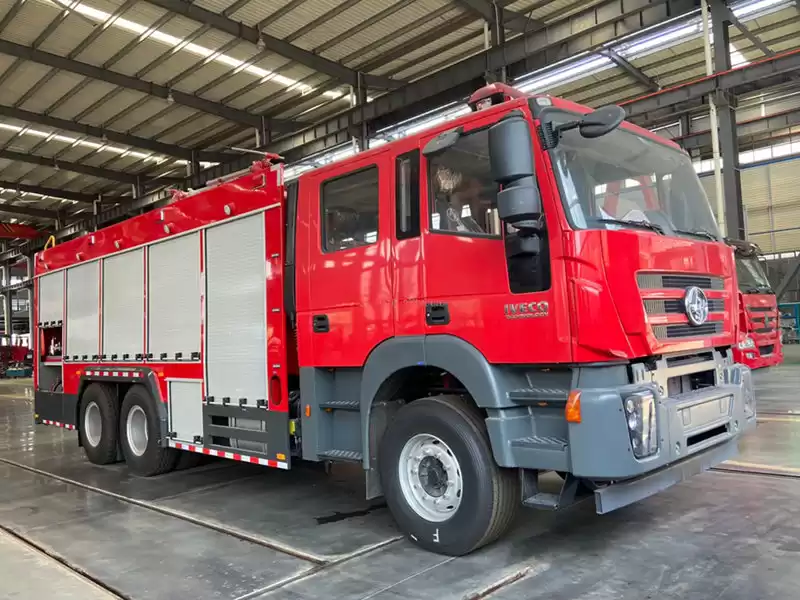

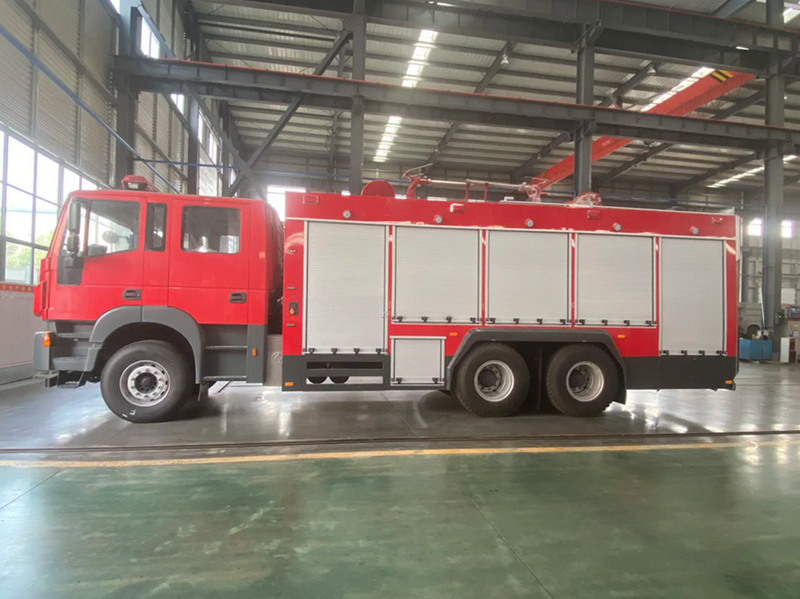

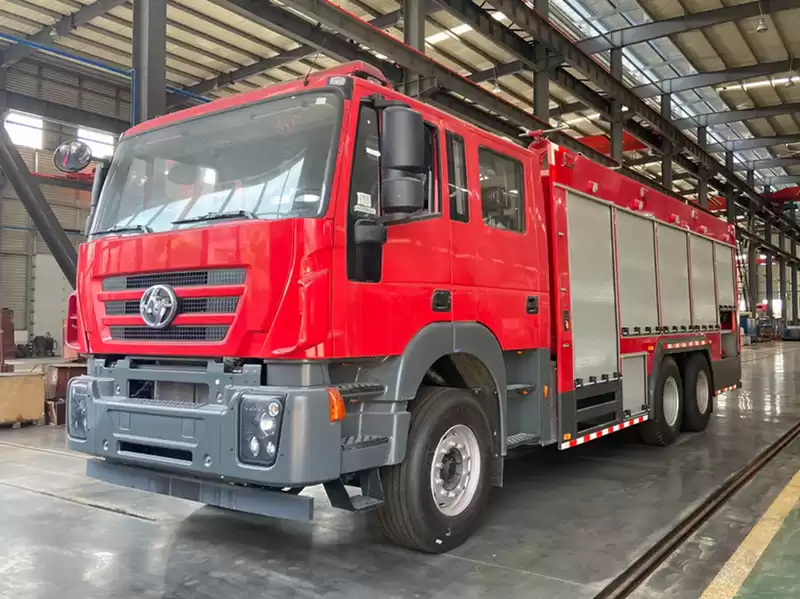

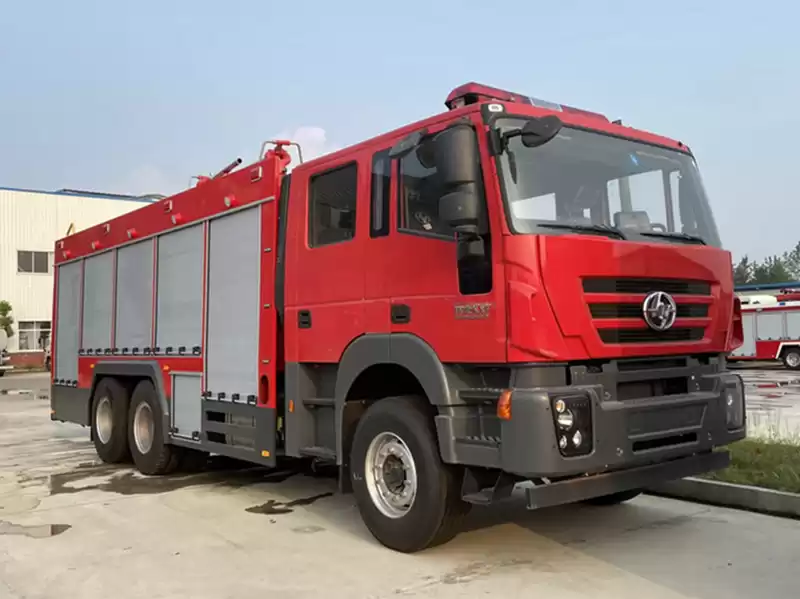

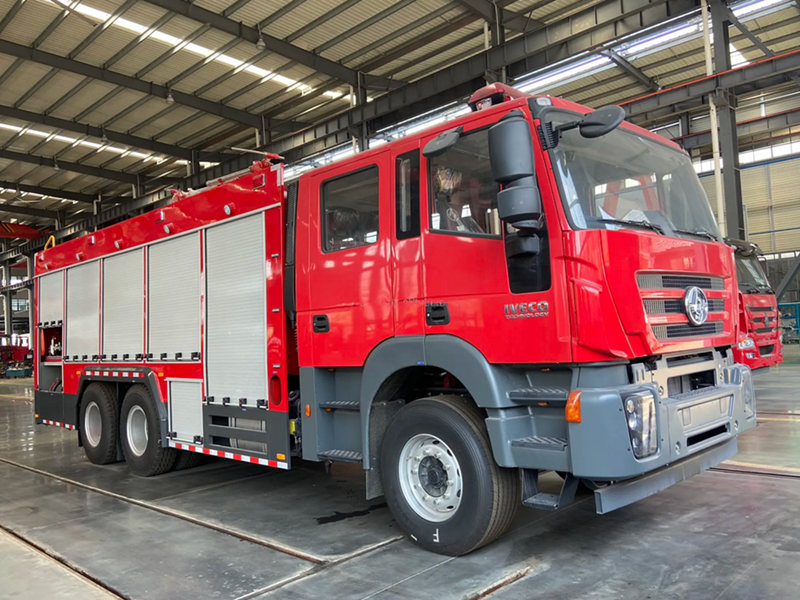

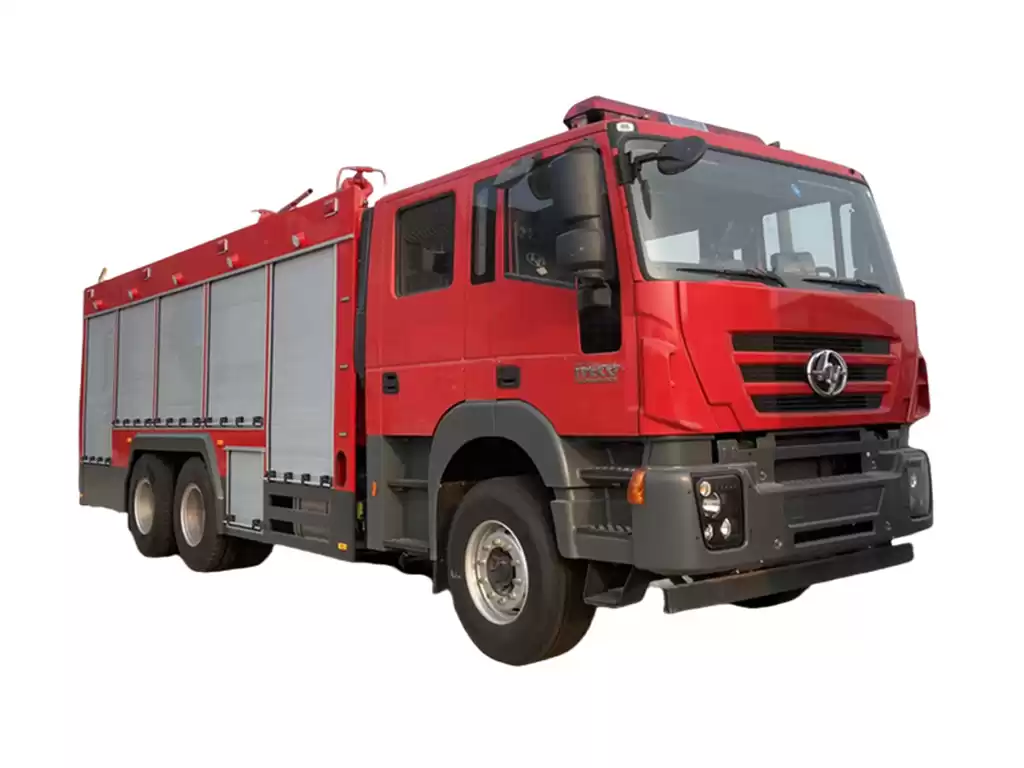

The IVECO 6×4 tanker fire truck is a high-performance firefighting vehicle specifically designed to tackle large-scale fires and complex rescue missions. Built on the IVECO 6×4 heavy-duty chassis, it is equipped with a powerful powertrain system and advanced firefighting equipment, enabling it to respond quickly and efficiently complete firefighting tasks in various complex environments. The iveco fire engine vehicle's overall dimensions are 10,350 × 2,550 × 3,565 mm, with a gross vehicle weight of 32,200 kg and a rated load capacity of 16,550 kg, offering excellent load-bearing capacity and stability. The vehicle's water tank capacity of 13,000 liters and foam tank capacity of 3,000 liters make it highly effective in large-scale fires, particularly suitable for high-risk locations such as chemical industrial parks, oil depots, and airports.
The core firefighting equipment of the IVECO 6×4 foam fire truck includes a large-capacity water tank, foam tank, high-efficiency fire pump, and multifunctional fire monitor. The water tank has a capacity of 13,000 liters and is made of Q235 carbon steel, offering high strength and corrosion resistance, enabling long-term storage of a large water supply to ensure sufficient water availability at fire scenes. The foam tank has a capacity of 3,000 liters and is made of stainless steel, providing excellent chemical corrosion resistance, making it suitable for storing various types of foam firefighting agents.
The IVECO fire truck is equipped with a CB10/60 fire pump, which has a rated flow of 60 liters per second and a rated pressure of 1.0 MPa, capable of delivering a large volume of water in a short time to meet the demands of large-scale fires. The fire pump has a maximum suction depth of 7 meters, allowing it to draw water from deep sources and adapt to various complex environments. The fire monitor, model PL48, has a rated flow of 48 liters per second, with a water jet range of over 60 meters and a foam jet range of over 55 meters, ensuring precise targeting even during long-distance firefighting operations.
● 30 years experience in fire truck designing
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best firefighting truck factory
● Build strict QC team to guarantee the quality
Product Specifications
|
IVECO 6×4 firefighting truck specifications
|
|
Product name
|
IVECO 6x4 fire truck
|
|
Overall dimension (L x W x H)
|
10350×2550×3565 mm
|
|
GVW(Kg)
|
32200 (Kg)
|
|
Curb weight
|
15200 (Kg)
|
|
Rated load weight
|
16550 (Kg)
|
|
Chassis Specification
|
|

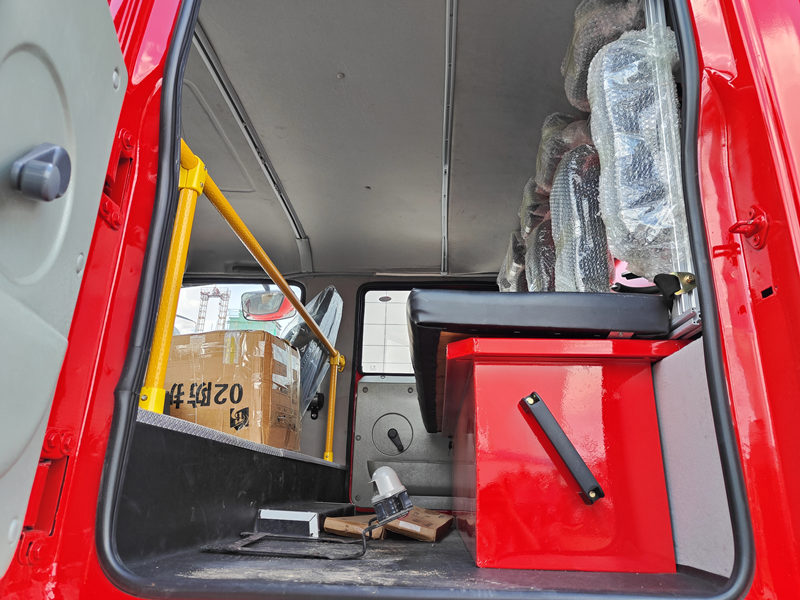

Cabin
|
Crew cab, 2+4 seats, air conditioner
|
|
Drive type
|
4x2
|
|
Wheelbase
|
4600+1400 mm
|
|
Engine
|
Model
|
WP10.380E32
|
|
Maximum horse power
|
380 hp
|
|
Displacement
|
9726 cc
|
|
Type
|
Diesel, 6 cylinders in-line, turbocharged inter-cooled
|
|
Gear box
|
Manual, 12 forwards and 2 reverse
|
|
Tyres
|
12.00R20, 10+1 pieces
|
|
Upper body specification
|
|
Tank
|
Water Tank Capacity
|
13000 liter
|
|
Foam Tank Capacity
|
3000 liter
|
|
Water Tank Material
|
Q235 carbon steel
|
|
Foam Tank Material
|
Stainless steel
|
|
Fire pump
|
Model
|
CB10/60
|
|
Rated flow
|
60L/s
|
|
|
Rated pressure
|
1.0 Mpa
|
|

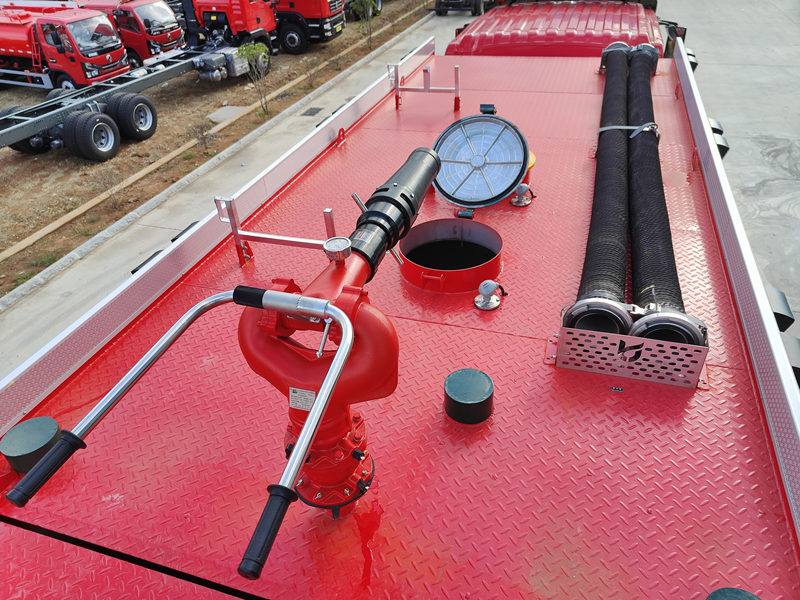

Fire monitor
|
Model
|
PL48
|
|
Flow
|
48L/s
|
|
Range
|
Water range: ≥60m, foam range: ≥55m
|

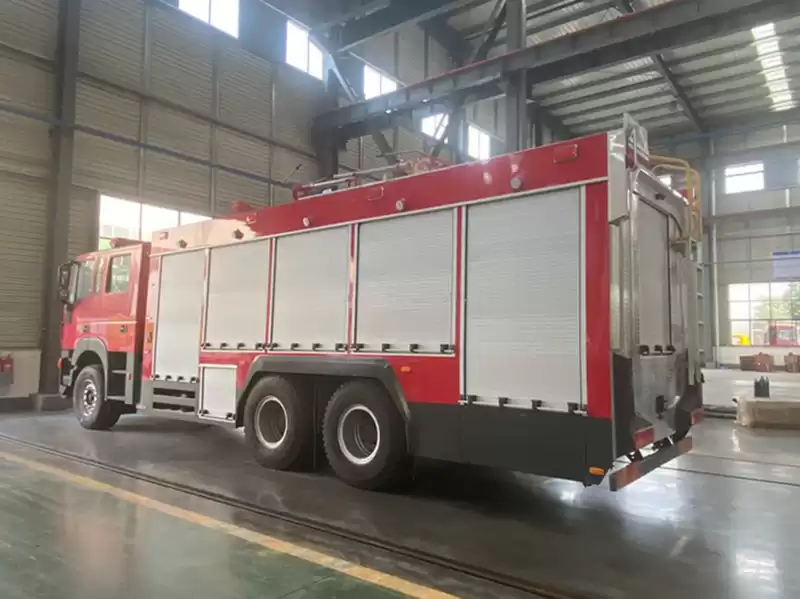

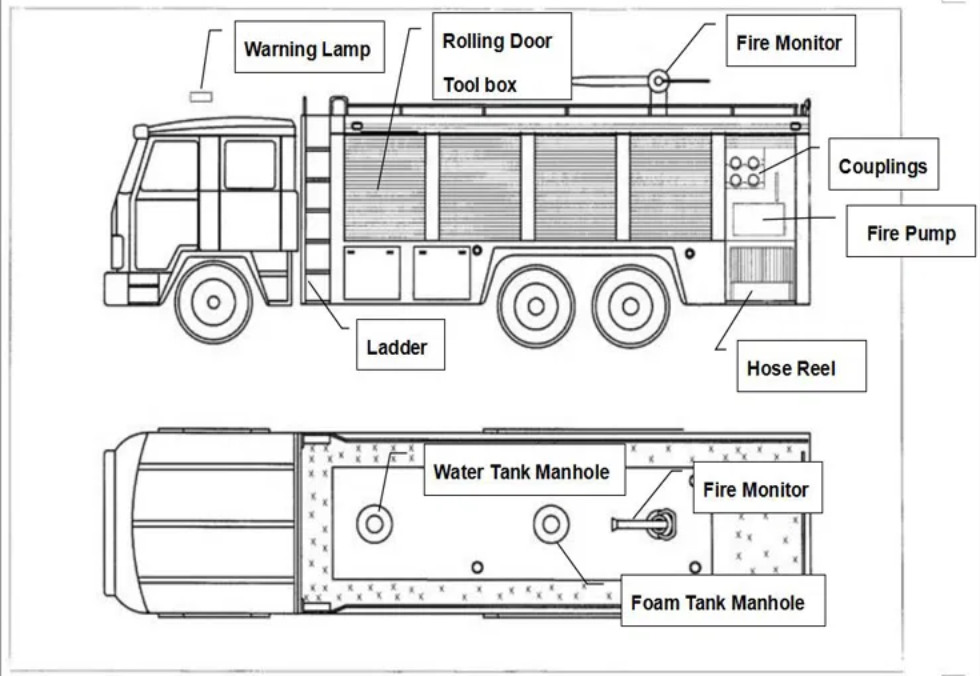

Upper body structure of IVECO foam fire truck
|
Main frame
|
The main frame is constructed using high-quality square tubes welded together, with exterior decorative panels made of welded carbon steel plates. The roof is anti-slip and walkable, with flip steps on both sides designed for anti-slip use.
|
|

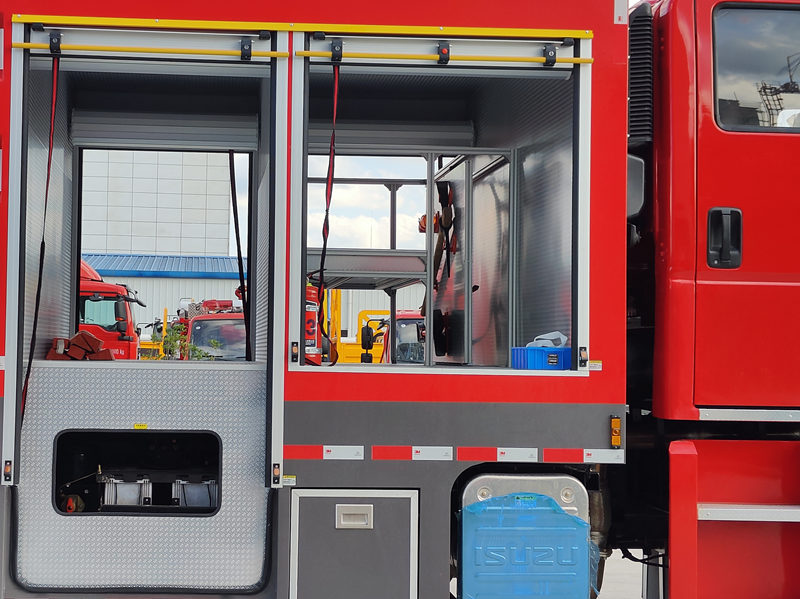

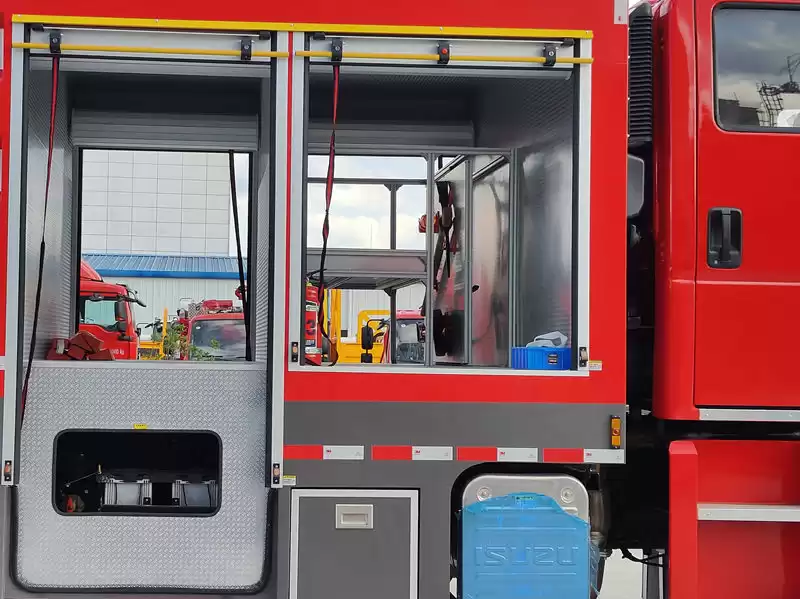

Equipment Compartment
|
Located at the rear of the crew cabin, the equipment compartment features aluminum alloy roll-up doors on both sides, with interior lighting. Storage boxes are installed inside the compartment as needed. The lower side skirts are equipped with toolboxes and roll-up doors for storing small tools.
|
|

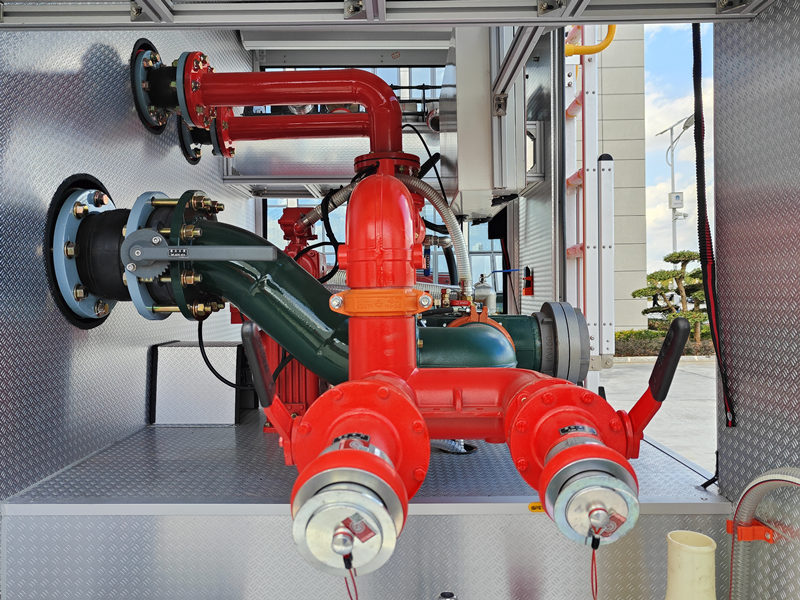

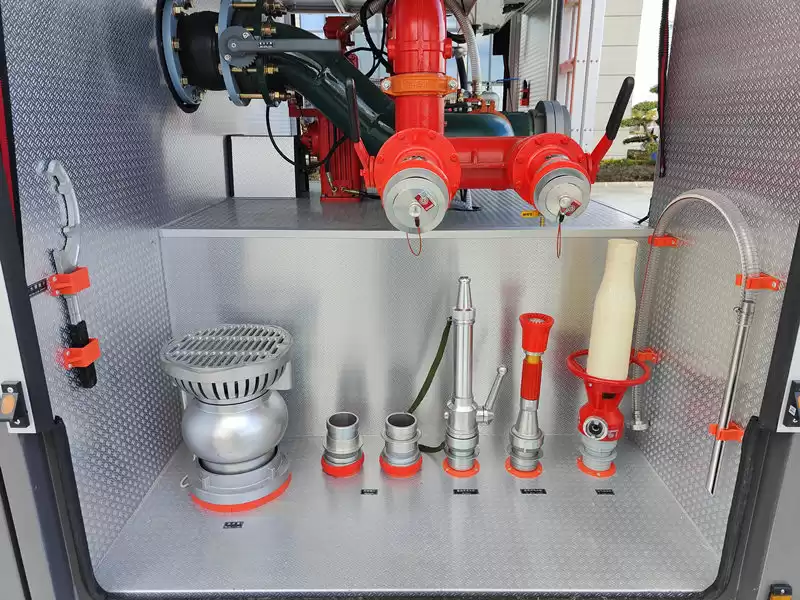

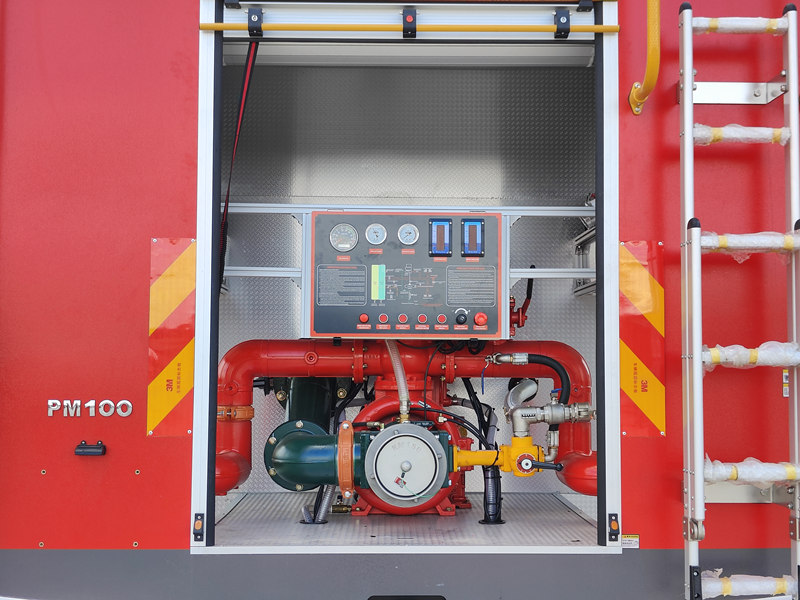

Pump Room
|
Situated at the rear of the vehicle, the pump room is equipped with aluminum alloy roll-up doors on both sides and the rear, along with interior lighting. Commonly used equipment can be stored on both sides of the pump room.
|
|
Ladder and Handles
|
The rear ladder is a two-section flip ladder made of aluminum alloy, with a maximum ground clearance of 350mm when in use. The handrails are made of anti-slip grooved round steel pipes with a powder-coated surface.
|
|
Water Tank
|
Manhole: 1 × DN470 manhole with a quick-lock/release mechanism.
|
|
Overflow Port: 1 × DN65 overflow port.
|
|
Drain Port: 1 × DN40 drain port with a ball valve.
|
|
Water Inlet: 1 × DN65 water inlet on each side of the water tank.
|
|
Inlet/Outlet Ports: 1 × DN150 inlet pipe from the water tank to the pump, with a valve that can be controlled pneumatically or manually; 1 × DN65 filling pipe from the pump to the water tank, with a valve that can be controlled pneumatically or manually.
|
|
Foam Tank
|
Manhole: 1 × DN460 manhole with a quick-lock/release mechanism and an automatic pressure relief device.
|
|
Overflow Port: 1 × DN40 overflow port.
|
|
Drain Port: 1 × DN40 drain port for the foam tank.
|
|
Foam Outlet: 1 × DN40 outlet pipe from the foam tank to the pump.
|
