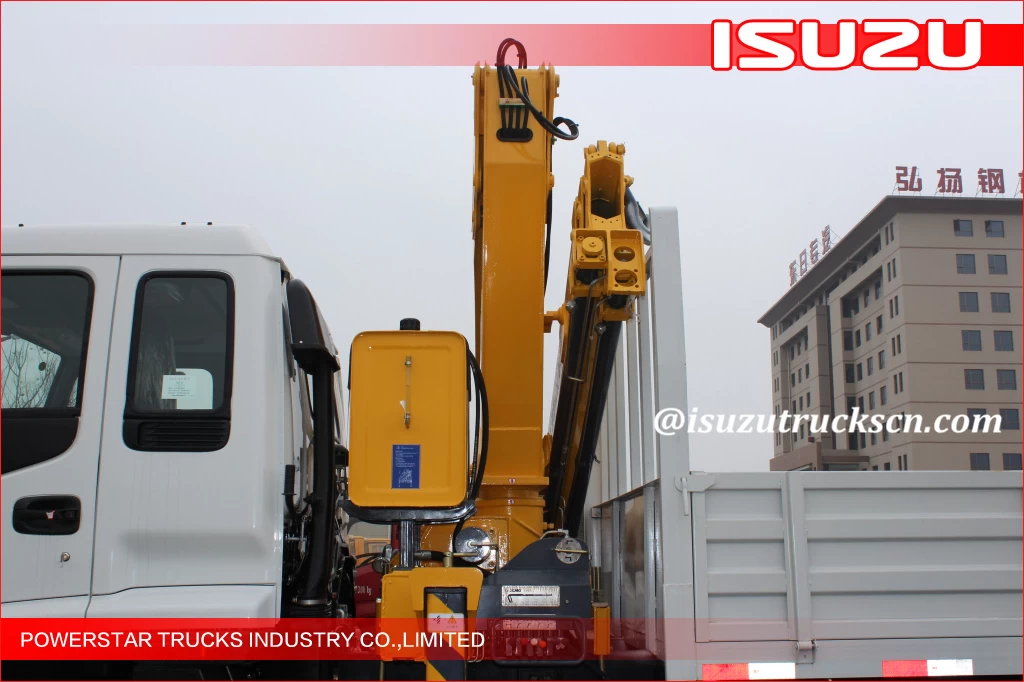

Japanese-made 6.3Ton Truck Crane , Isuzu Truck Mounted Crane, Crane Truck

Durable Commercial Knuckle Boom Truck Mounted Crane, 6300kg Lifting Weight

1. Name: Folding boom crane, Folding boom truck crane, Knuckled boom crane, Knuckle boom truck mounted crane
2. Max Lifting Capacity: 6300 kg
3. Max Lifting Moment: 13.23 t.m
4. Max Oil Flow of Hydraulic System: 25 L/min
5. Max. Lifting height:11meters
6. Brand: XCMG
7. Crane Weight: 2152 kg
8. Oil Tank Capacity: 90 L
9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.

Description:

Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Knuckle boom crane SQ6.3ZK2 is used for lifting 6.3tons, moment is 13.23T.M.

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Specifications:

Optional parts:

1, Moment limited device

2, Remote control equipment

3, Anti-overwind magnet valve

4, High seat on column

5, Work light

6, Assistant stabilizer leg
