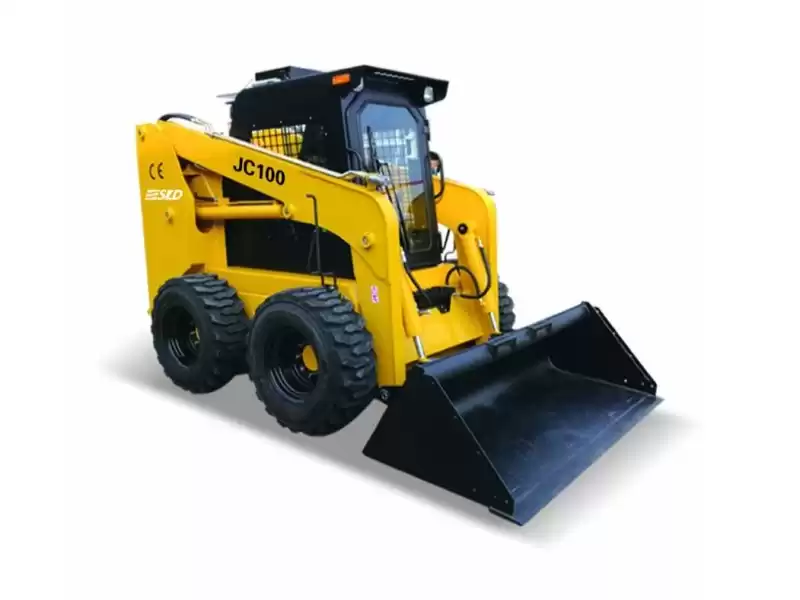

JC100 wheel skid steering loader

Rated load: 1200 kgs

Rated power: 74 kw

Operating weight: 3550 kgs

Bucket Capacity: 0.5 m3

Overall length: 3580 mm

Overall width: 1880 mm

Overall height: 2160 mm



The horsepower of Skid steer loader series covered 25HP-140HP, control system could be mechanical & joystick and electronica etc many ways, there are two type transmission system, low speed chain transmission & high speed gear transmission. For the cabin, we can supply with open cabin and closed cabin with air conditioner etc many options. Also can provide Ultra-narrow, ultra-low special models.

Technical Parameters:

Rated Operating Capacity

1200

Tipping load(Kg)

2400

Bucket Capacity(m3)

0.4-0.5

Lifting Force(Kg)

2200

Hydraulic Pump Flow(L/min)

75/125

Engine power(HP)

100

Weight(Kg)

3800

Max. Travel Speed(km/h)

12/18

Grade ability(° )

20

Tire

12-16.5

Fuel/hyd. Oil capacity(L)

80/80

Dimensions

A. Height at Maximum Extension

      3780mm

B. Hinge Pin Height

      3150mm

C. Total Height

      2040mm

D. Length with Bucket

      3450mm

E. Length without Bucket

      2540mm

F. Width with Bucket

      1900mm

G. Track Width

      1560mm

H. Wheelbase

      1020mm

J. Ground Clearance

      260mm

K. Dumping Angle °

       45

L. Dumping Height

      2400mm

M. Maximum Reach

      700mm

Skid steer loaders can match kinds of attachments to satisfy customers' different actual working conditions.
