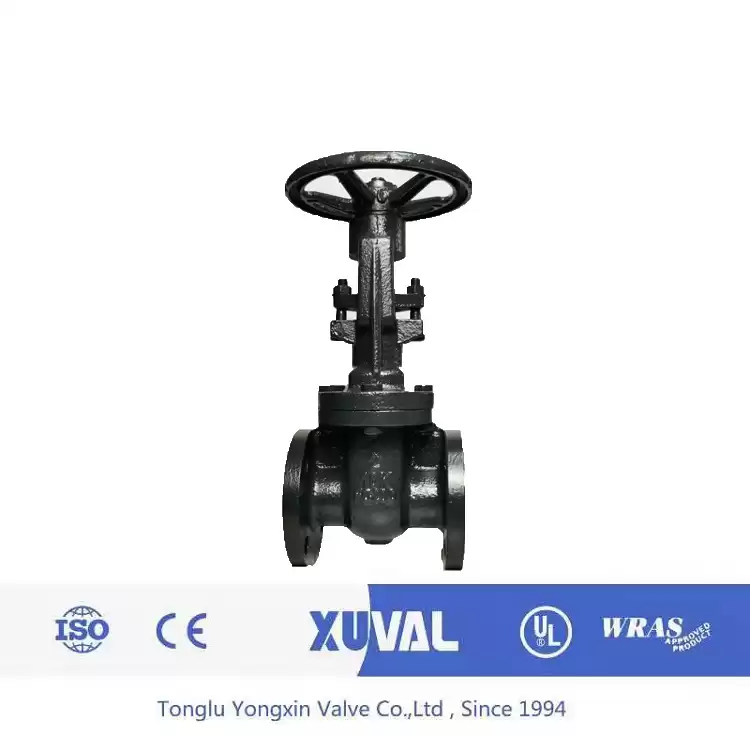

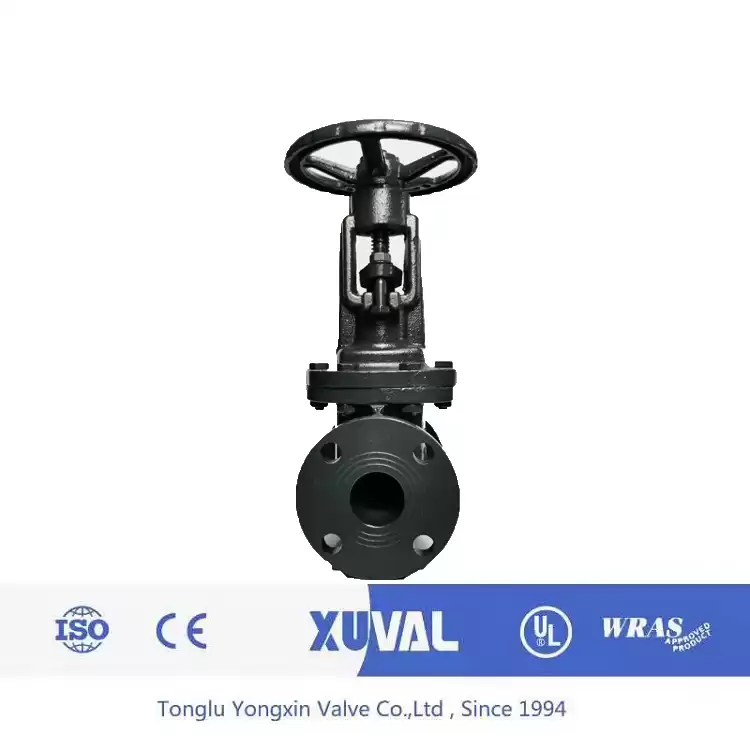

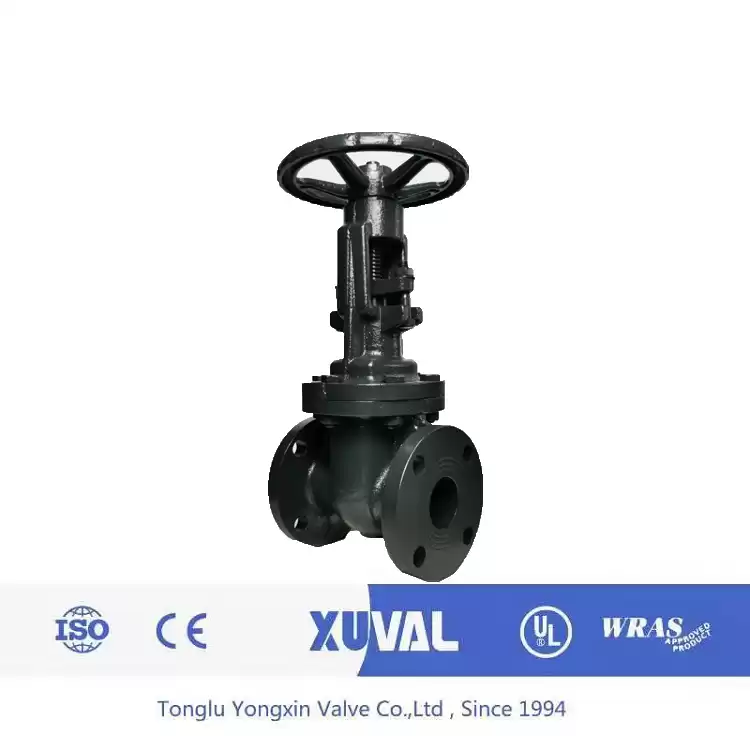

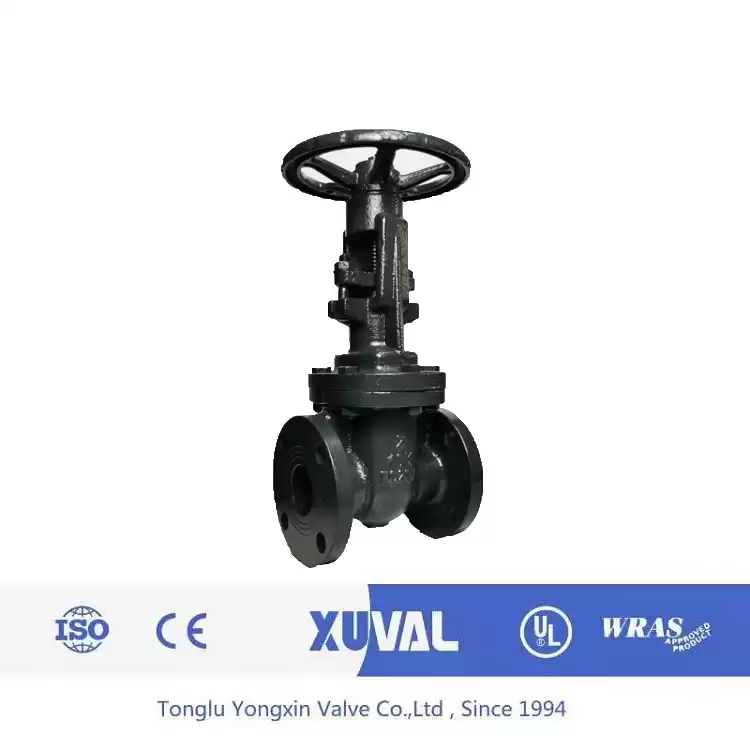

JIS 10K Cast Iron Rising stem gate valve

The opening and closing part of the hard sealed gate valve is the gate plate, whose motion direction is perpendicular to the fluid direction. The gate valve can only be fully opened and closed without adjustment or throttling.



JIS 10K Cast Iron Rising stem gate valve

The opening and closing part of the hard sealed gate valve is the gate plate, whose motion direction is perpendicular to the fluid direction. The gate valve can only be fully opened and closed without adjustment or throttling.Gate has two sealing faces, the two sealing faces of the most commonly used model gate valve form wedge, wedge Angle varies with valve parameters, usually 50, medium temperature is not high for 2°52'.Wedge gate valves can be made into an integral body, called a rigid gate;It can also be made into a small deformation of the gate, in order to improve its process, make up for the sealing surface Angle in the processing of the deviation, called elastic gate.


Application
1 Design according to JIS-10K
2 Flange end face to JIS B2212

Test
Working pressure 10K
Shell pressure 21.1Kg/cm²
Seat pressure 15.0Kg/cm²

Main Parts and Materials
Number Part Name Material
1 Body FC200
2 Seat Ring Brass/Bronze
3 Wedge FC20
4 Wedge ring Brass/Bronze
6 Stem AISI 420
7 Bonnet Gasket Graphite
9 Bonnet FC20
11 Packing Graphite
14 Gland Follower FCD45
15 Stem Nut Brass


Rising stem gate valve


Main dimensions

Norminal

diameter

L D D1 b n-d DN H(open)
50 180 155 120.7 15.9 4-19 50 375
65 190 175 139.5 17.5 4-19 65 408
80 200 185 152.5 19.1 4-19 80 442
100 230 210 190.5 23.9 8-19 100 545
125 250 250 216 23.9 8-22 125 656
150 270 280 241.5 25.4 8-22 150 770
200 290 330 298.5 28.6 8-22 200 959
250 330 400 362 30.2 12-25 250 1255
300 350 445 432 31.8 12-25 300 1443

Packing & Delivery :

Packing Details : all by seaworthy plywood case and packed strongly by  packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough

subject to the order quantity. But anyway,normally, we are able to make sure the delivery will not exceed 45 days.
