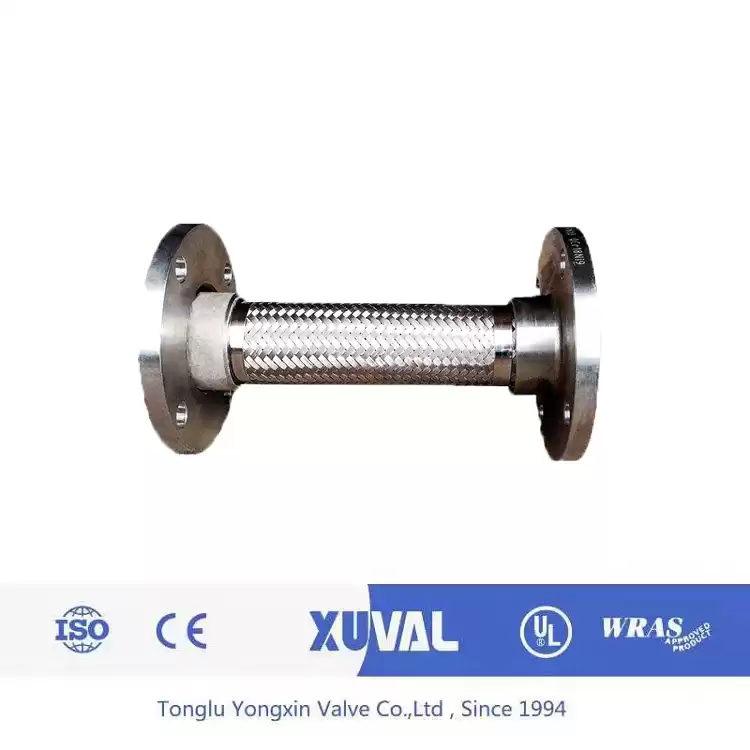

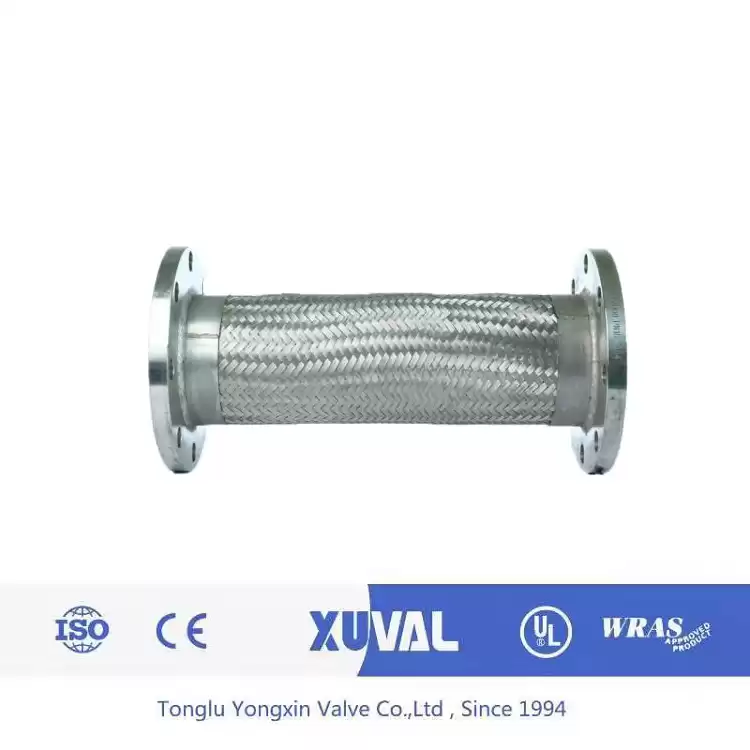

JTW Universal hose External steel sleeve hose

Corrugated steel hose is a kind of high-quality flexible pipe in modern industry pipeline. As a result of austentic stainless steel manufacture,the hose has good flexibility, fatigue resistance, hot and low temperature resistance, corrosion resistance, and many other features.



JTW Universal hose, External steel sleeve hose


Performance characteristics:

The elasticity property of corrugated pipe outline causes it very easy to absorb each kind of movement distortion and the cyclic load, especially has the ability of compensating the big displacement in the piping system.The hose's life is much higher n relative to many others, therefore it also has the high mixed economic efficiency.

The hose is suitable for the pipe which need fully flexible and tube which prevent vibration premises, it is also applicable to steam,gas,air,oil,chemical and pharmaceutical, etc.



Design temperature:-20℃~400℃   Product code: JTW   Model logo: JTW

DN(mm)
ID(mm)
Outside diameter(mm)
Min bending radius

Mpa

Maximum working pressure

Corrugated hose With a network set Static Dynamic One network Two network
8 8.8 13.2 14.4 50 110 15 20
10 11.7 16.5 17.7 65 145 15 20
15 13.5 19.5 21.1 80 180 15 20
20 20 27 28.6 120 270 10 15
25 27 34.5 36.1 160 360 6.3 10
32 32 40 41.6 175 400 4.0 6.3
40 39.6 52 53.6 225 510 4.0 6.3
50 49.7 62 63.6 280 640 3.0 5.0
65 61.2 80.2 81.8 410 915 3.0 5.0
80 79 96.3 97.9 486 1030 3.0 5.0
100 101.2 119.6 121.2 610 1340 2.5 4.0
125 124.1 145.3 146.9 700 1540 2.5 4.0
150 149.4 180.8 182.4 810 1780 2.5 4.0
200 176 240 243.2 1000 2000 2.5 4.0
250 248 290 294 1250 2500 2.5 4.0
300 298 350 354 1500 3000 1.6 2.5
350 347.6 400 404.8 1750 3500 1.6 2.5
400 397.6 460 464.8 2000 4000 1.6 2.5

Packing & Delivery :

Packing Details : all by seaworthy plywood case and packed strongly by  packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough

subject to the order quantity. But anyway,normally, we are able to make sure the delivery will not exceed 45 days.
